Product Overview

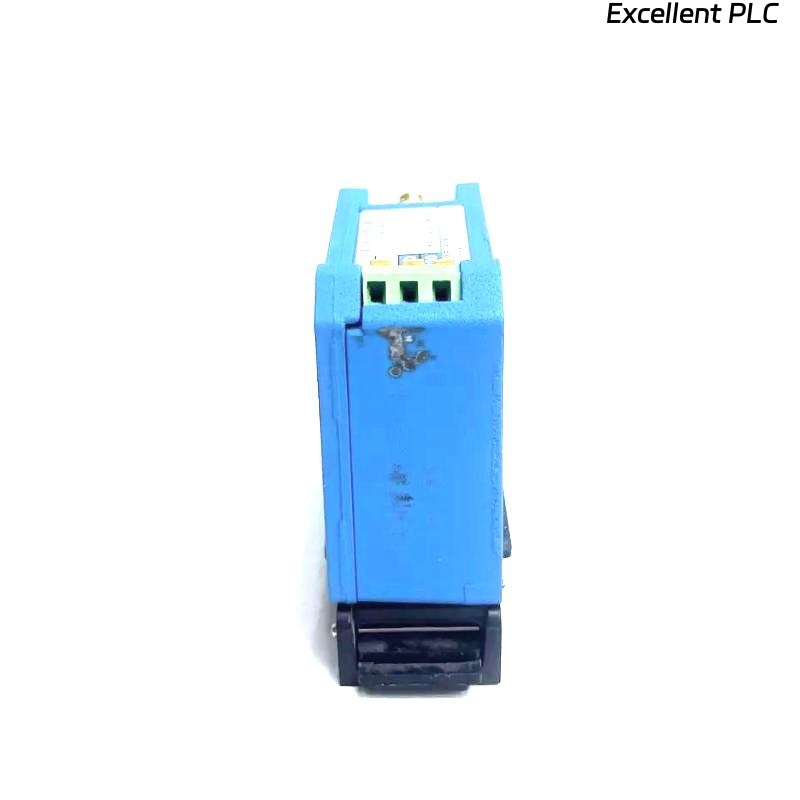

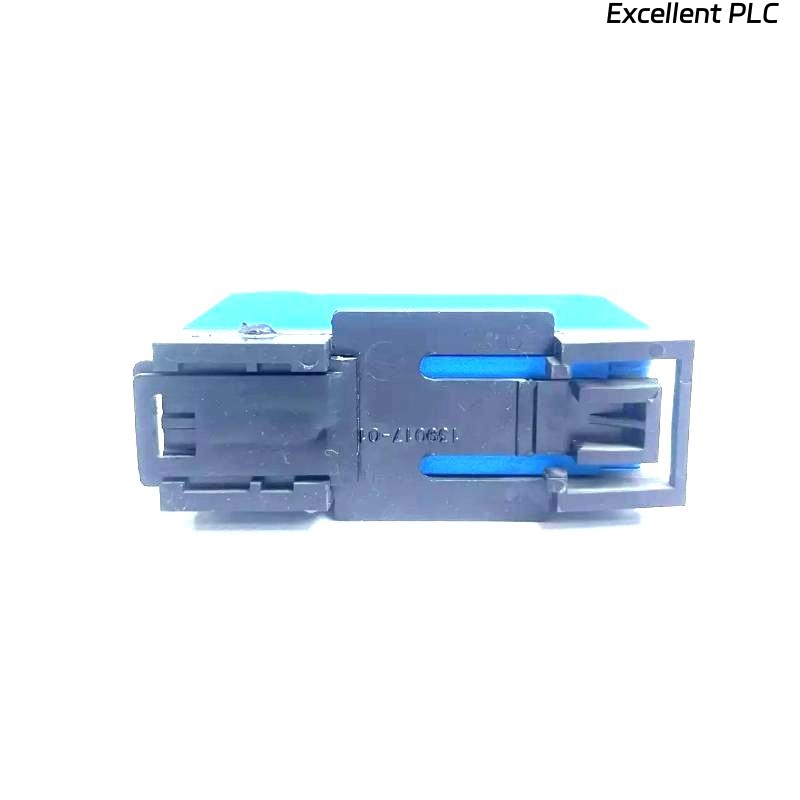

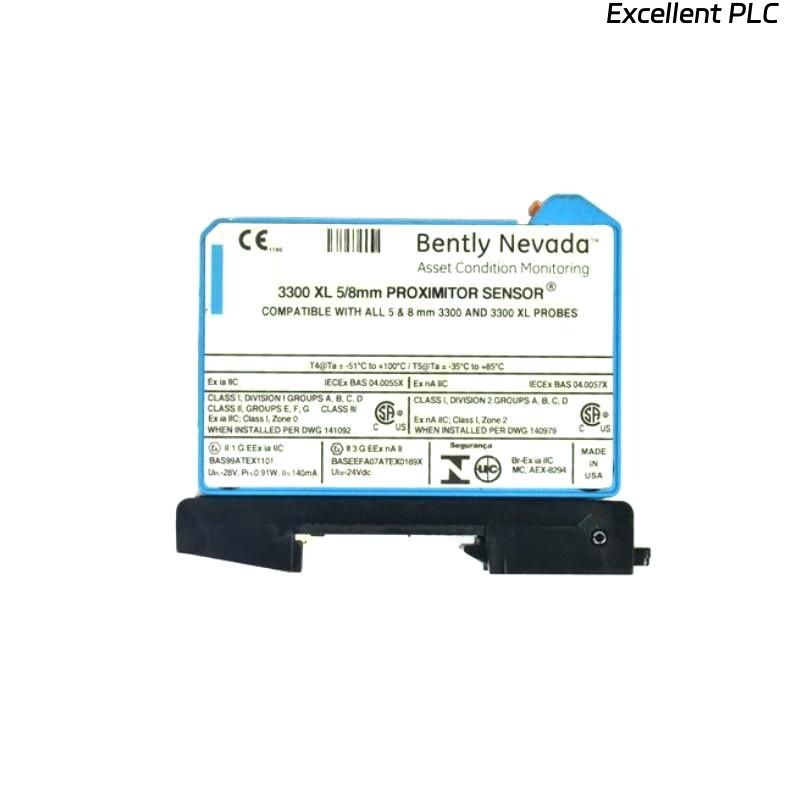

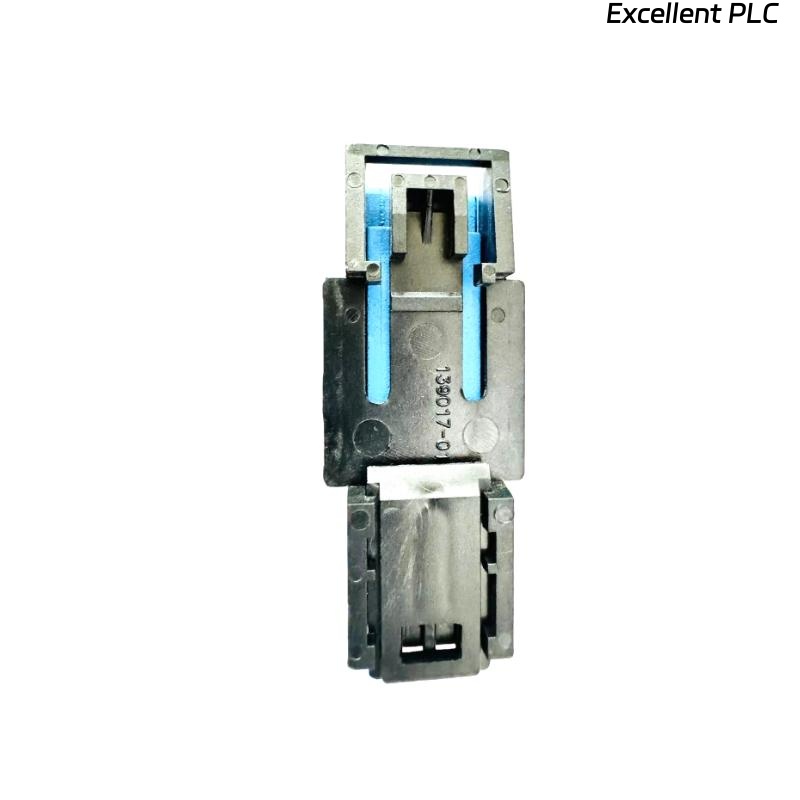

The Bently Nevada 330180-X1-05 145004-75 3300 XL Proximitor Sensor is part of the 3300 XL 8 mm Proximity Transducer System, designed for precise vibration and position measurements in fluid-film bearing machines. It delivers accurate static (position) and dynamic (vibration) readings, meeting API 670 standards for mechanical configuration, linear range, and accuracy. This model ensures full interchangeability between probes, extension cables, and Proximitor Sensors, reducing installation complexity and calibration requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330180-X1-05 145004-75 |
| System Type | 3300 XL 8 mm Proximity Transducer System |
| Output | 7.87 V/mm (200 mV/mil) ± 5% (5 m & 1 m system) |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | -9 Vdc (~1.27 mm / 50 mils) |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Minimum Target Size | 15.2 mm (0.6 in) diameter |
| Operating Temperature (Sensor) | -52°C to +100°C |
| Storage Temperature (Sensor) | -52°C to +105°C |
| Housing Material | A308 Aluminum |
| Dimensions (Sensor) | 81.3 × 35.1 × 63.5 mm |
| Weight (Sensor) | 0.246 kg |
| Compliance | API 670, CE Mark, RoHS, FCC Part 15 |
| Hazardous Area Approvals | CSA, ATEX, IECEx certified |
Applications
-
Vibration Monitoring – For turbines, compressors, pumps, and generators.
-
Shaft Position Measurement – To monitor axial and radial displacement.
-
Keyphasor & Speed Detection – For rotating machinery speed reference.
-
Condition Monitoring Systems – Integrated into Bently Nevada monitoring platforms.
-
High-Temperature Environments – With optional ETR components for up to 260°C cable rating.
Advantages
-
High Accuracy – Complies with API 670 for vibration and position measurement.
-
Full Interchangeability – Compatible with non-XL 3300 series 5 mm and 8 mm components.
-
RFI/EMI Immunity – Allows use in fiberglass housings without special shielding.
-
Easy Installation – SpringLoc terminal strips and ClickLoc connectors reduce wiring time.
-
Robust Design – Patented TipLoc and CableLoc technology enhance mechanical durability.
-
Reduced Installation Costs – No special tools or matched component calibration needed.
FAQ
Q1: What is the main function of the 330180-X1-05 Proximitor Sensor?
A1: It measures vibration and shaft position using an eddy-current proximity transducer system.
Q2: Does it comply with API 670 standards?
A2: Yes, the 3300 XL 8 mm system meets API 670 mechanical, linear range, and accuracy requirements.
Q3: Can it be used in hazardous areas?
A3: Yes, it has CSA, ATEX, and IECEx certifications for various hazardous zone classifications.
Q4: Is it compatible with older Bently Nevada probes?
A4: Yes, it is fully interchangeable with non-XL 3300 series 5 mm and 8 mm probes and cables.
Q5: What is the recommended gap setting?
A5: The recommended gap is -9 Vdc, approximately 1.27 mm (50 mils) from the target surface.
Q6: What is the operating temperature range of the Proximitor Sensor?
A6: From -52°C to +100°C.
Q7: What materials are used for the housing?
A7: The sensor housing is made from A308 aluminum for durability.
Q8: Does it require matched calibration with the probe?
A8: No, all components are factory calibrated for full interchangeability.
Q9: Can it be used for speed measurement?
A9: Yes, it can function as a Keyphasor transducer for speed and phase reference.
Q10: What is its immunity to electrical noise?
A10: It has high RFI/EMI immunity, reducing interference from nearby electrical sources.
Related Models (Same Series)
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| 330180-90-00 | Proximitor Sensor, Panel Mount, 9 m system | 81.3 × 35.1 × 63.5 | 0.246 kg |
| 330180-50-05 | Proximitor Sensor, Panel Mount, 5 m system | 81.3 × 35.1 × 63.5 | 0.246 kg |
| 330180-10-05 | Proximitor Sensor, Panel Mount, 1 m system | 81.3 × 35.1 × 63.5 | 0.246 kg |
| 330180-11-05 | Proximitor Sensor, DIN Mount, 1 m system | 81.3 × 35.1 × 63.5 | 0.246 kg |
| 330180-51-05 | Proximitor Sensor, DIN Mount, 5 m system | 81.3 × 35.1 × 63.5 | 0.246 kg |
| 330180-91-05 | Proximitor Sensor, DIN Mount, 9 m system | 81.3 × 35.1 × 63.5 | 0.246 kg |
