Product Description

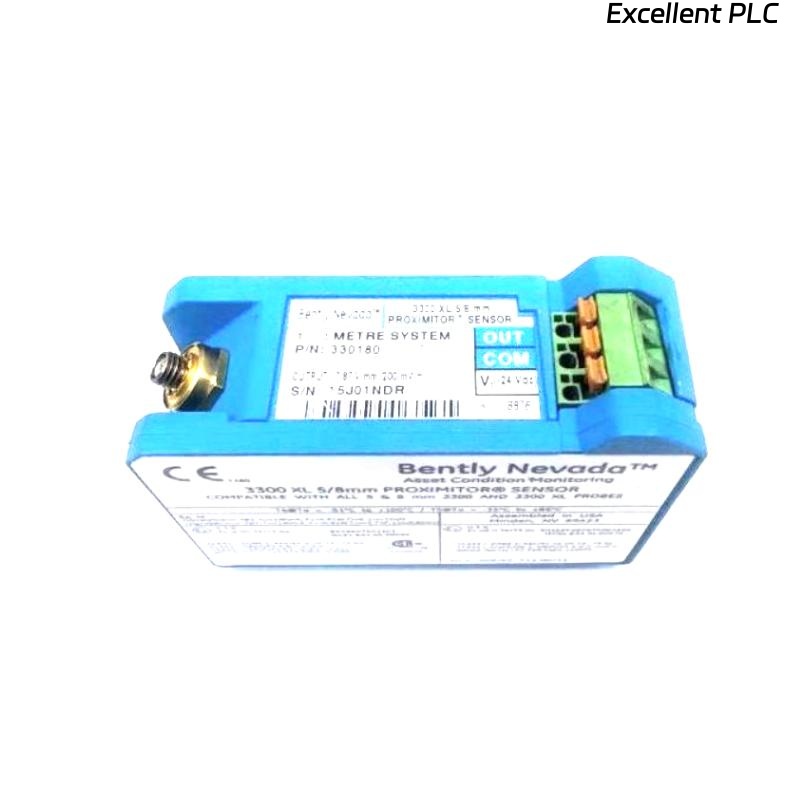

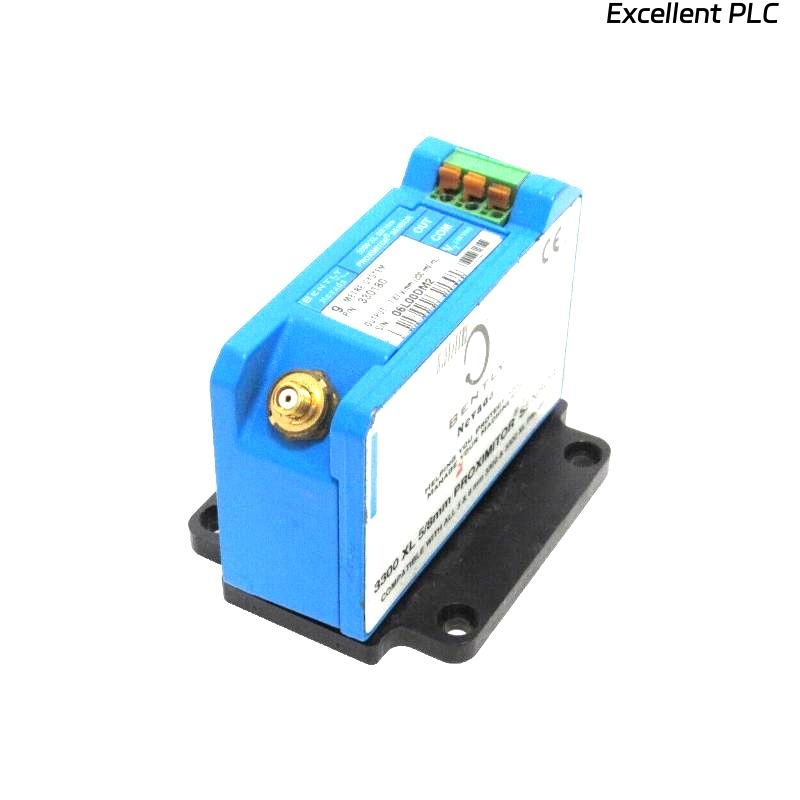

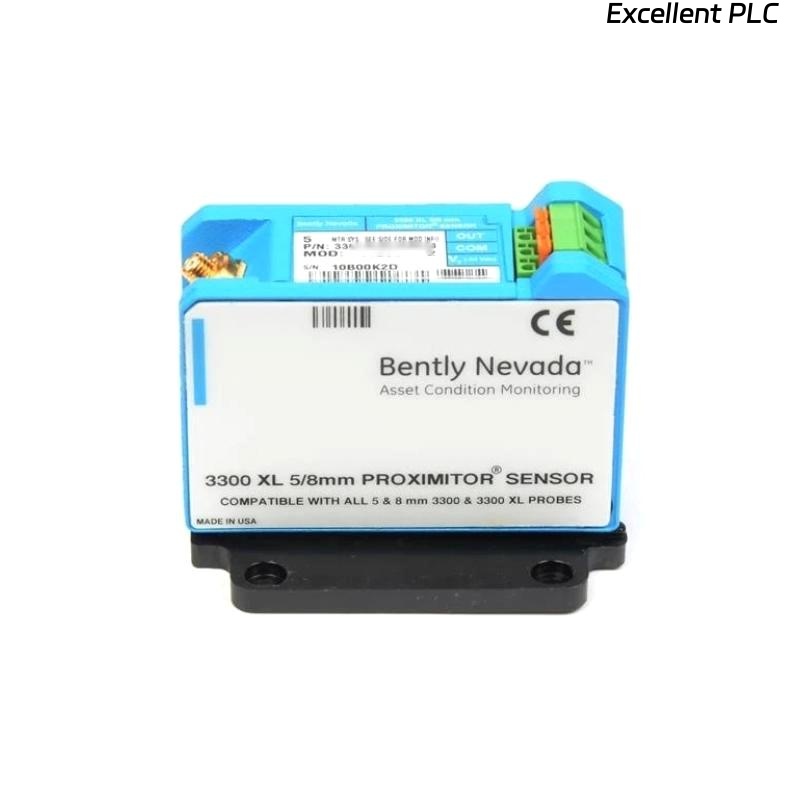

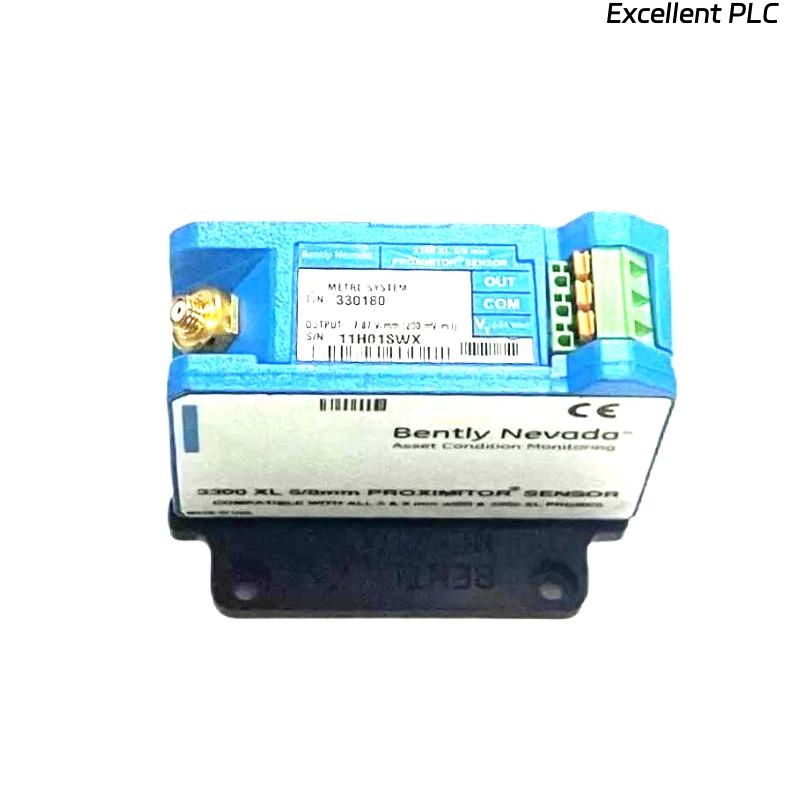

The Bently Nevada 330180-X1-IN 145004-137 3300 XL Proximitor Sensor is part of the 3300 XL 8 mm Proximity Transducer System, designed for precise vibration and position measurements in fluid-film bearing machinery. It works with an 8 mm proximity probe and extension cable to deliver an output voltage directly proportional to the distance between the probe tip and the conductive target surface.
This sensor meets API 670 mechanical and performance standards, supports full component interchangeability, and provides superior immunity to RFI/EMI, enabling reliable use even in high-interference environments. Its design allows for DIN-rail or panel mounting, with improved installation efficiency via SpringLoc terminal strips.
Technical Specifications
| Parameter | Specification |
|---|---|
| Dimensions | 81.3 × 35.1 × 63.5 mm |
| Weight | 0.246 kg |
| System Length Options | 1 m, 5 m, 9 m |
| Power Supply | –17.5 Vdc to –26 Vdc, max 12 mA |
| Output Resistance | 50 Ω |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | –9 Vdc (~1.27 mm / 50 mils) |
| Incremental Scale Factor | 7.87 V/mm (200 mV/mil) ±5% (5 m / 1 m) |
| Frequency Response | 0–10 kHz (±3 dB) |
| Operating Temperature | –52°C to +100°C |
| Storage Temperature | –52°C to +105°C |
| Humidity Resistance | ≤3% ASF change at 93% RH (56 days) |
| Housing Material | A308 Aluminum |
| Mounting Options | DIN-rail or panel mount |
Applications
-
Vibration and position monitoring for turbines, compressors, and pumps
-
Keyphasor reference signal generation
-
Shaft speed and phase measurements
-
Condition monitoring for predictive maintenance
-
Machinery protection in hazardous and industrial environments
Advantages
-
API 670 compliant for mechanical and performance standards
-
Full interchangeability with other 3300 series components
-
High RFI/EMI immunity for reliable operation in harsh environments
-
Flexible mounting options (DIN-rail or panel)
-
SpringLoc terminal strips for faster, tool-free wiring
-
Rugged construction with corrosion-resistant connectors
-
Extended temperature range options for demanding conditions
FAQ
Q1: What is the primary function of the 330180-X1-IN Proximitor Sensor?
A1: It converts the proximity probe signal into a voltage proportional to the distance from the target surface for vibration and position monitoring.
Q2: Can it be used in hazardous areas?
A2: Yes, it has ATEX, IECEx, and CSA approvals for various hazardous classifications.
Q3: Is it interchangeable with older 3300 series components?
A3: Yes, it is fully interchangeable with non-XL 3300 5 mm and 8 mm components.
Q4: What is the recommended gap setting?
A4: Approximately –9 Vdc, equivalent to 1.27 mm (50 mils).
Q5: Does it meet API 670 standards?
A5: Yes, it meets API 670 requirements for mechanical configuration, accuracy, and stability.
Q6: What is the operating temperature range?
A6: –52°C to +100°C for the sensor housing.
Q7: Can it be DIN-rail mounted?
A7: Yes, it supports both DIN-rail and panel mounting.
Q8: What is the frequency response range?
A8: 0–10 kHz with ±3 dB variation.
Q9: What cable types are compatible?
A9: Standard and Extended Temperature Range (ETR) extension cables from the 3300 XL series.
Q10: Does it require special tools for wiring?
A10: No, the SpringLoc terminal design allows tool-free wiring.
Related Models (Same Series or Compatible)
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| 330101 | 8 mm Probe, UNF thread, no armor | Varies | ~0.2 kg |
| 330102 | 8 mm Probe, UNF thread, armored | Varies | ~0.25 kg |
| 330103 | 8 mm Probe, M10 thread, no armor | Varies | ~0.2 kg |
| 330104 | 8 mm Probe, M10 thread, armored | Varies | ~0.25 kg |
| 330130 | Standard Extension Cable | Custom length | ~0.03 kg/m |
| 330190 | ETR Extension Cable | Custom length | ~0.03 kg/m |
