Product Overview

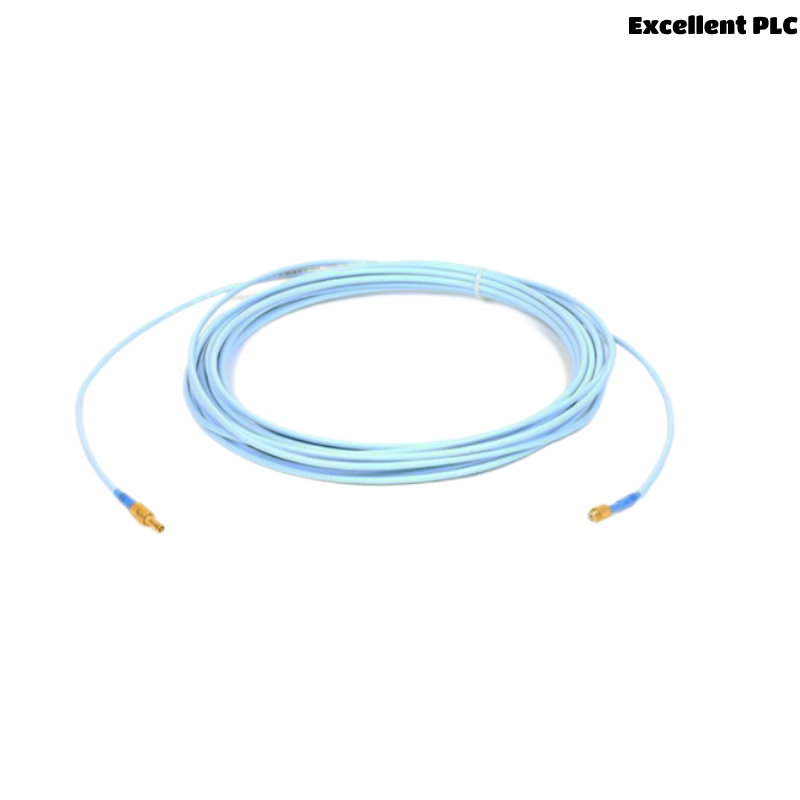

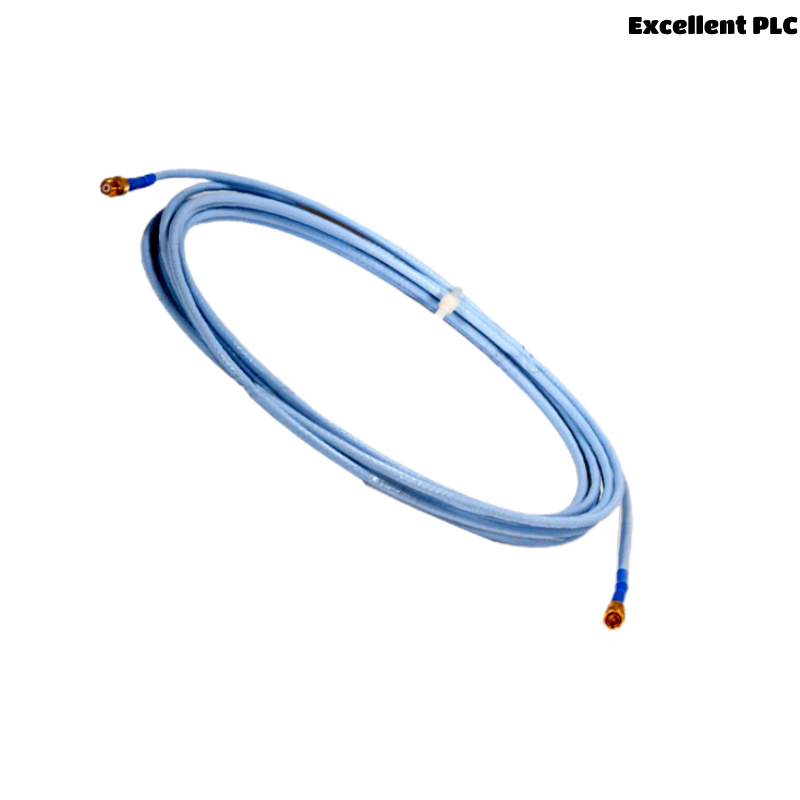

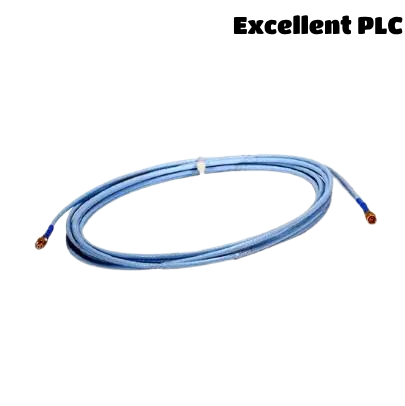

The Bently Nevada 330190-040-00-00 3300 XL ETR Extension Cable is a high-quality extension cable designed for use with Bently Nevada’s 3300 XL series proximity probes and sensors. Specifically engineered for vibration and displacement monitoring applications, this cable facilitates the extension of the sensor-to-monitoring system connection, ensuring that signals are transmitted with minimal loss or distortion, even over longer distances.
The ETR (Extension Transducer Return) configuration in this cable ensures excellent signal quality and integrity, providing continuous protection and monitoring for critical machinery, such as motors, pumps, turbines, and compressors. With superior shielding, robust insulation, and a durable construction, this extension cable is built to withstand harsh industrial environments, ensuring reliable performance and longevity.
Key Features
-
High-performance extension cable designed for Bently Nevada 3300 XL series proximity probes and sensors
-
Low signal loss and excellent signal integrity over long distances
-
ETR (Extension Transducer Return) configuration for optimal signal quality
-
Durable construction for use in challenging industrial environments
-
Highly resistant to electrical noise and electromagnetic interference (EMI)
-
Robust insulation and shielding to protect against environmental factors
-
Available in various lengths to meet specific application requirements
-
Compatible with Bently Nevada’s 3300 XL system for continuous machinery health monitoring
-
Flexible design for easy installation and integration into existing systems
-
CE and RoHS compliant for global industrial use
Technical Specifications
| Parameter | Description |
|---|---|
| Product Name | Bently Nevada 330190-040-00-00 3300 XL ETR Extension Cable |
| Part Number | 330190-040-00-00 |
| Cable Type | Extension cable for Bently Nevada 3300 XL proximity probes |
| Cable Configuration | ETR (Extension Transducer Return) |
| Signal Integrity | Low signal loss, high signal fidelity over extended distances |
| Maximum Operating Voltage | 30 VDC (typical) |
| Shielding | Dual shielding (foil and braid) to minimize interference |
| Temperature Range | -40°C to +85°C (operating) |
| Storage Temperature Range | -40°C to +85°C (storage) |
| Maximum Length | Available in multiple lengths, customizable upon request |
| Cable Diameter | Total Length: 4.0 meters |
| Insulation | High-temperature PVC with fire-resistant properties |
| Environmental Resistance | Resistant to moisture, chemicals, and abrasion |
| EMC Compliance | IEC 61000-6-2, IEC 61000-6-4 |
| Certifications | CE, RoHS |
| Weight (per meter) | 0.034 kg |
Product Advantages
-
High Signal Integrity: The cable is designed to minimize signal loss, ensuring accurate data transmission over extended distances.
-
Durable and Reliable: Built with high-quality materials, this cable provides long-lasting performance in harsh industrial conditions.
-
Electromagnetic Interference (EMI) Protection: Dual shielding prevents electrical noise from degrading signal quality, ensuring reliable monitoring.
-
Wide Temperature Range: Capable of operating in extreme temperatures, making it suitable for a variety of industrial environments.
-
Flexible and Easy to Install: The cable’s design allows for easy handling and installation, even in tight or difficult-to-reach spaces.
-
Compatibility with 3300 XL Series: Seamlessly integrates with the Bently Nevada 3300 XL series, ensuring full functionality when used with the corresponding proximity sensors.
-
Customization Options: Available in multiple lengths to meet specific requirements, ensuring flexibility in system configurations.
-
Compliant with Industry Standards: Meets CE and RoHS certifications, ensuring global applicability and regulatory compliance.
-
Environmental Protection: Resistant to moisture, chemicals, and mechanical wear, ideal for high-demand applications.
-
Cost-Effective: Reduces the need for costly replacements by ensuring long-term durability and reliability.
Industry Applications
The Bently Nevada 330190-040-00-00 3300 XL ETR Extension Cable is widely used in industries that rely on continuous vibration and displacement monitoring for machinery protection and performance optimization. Common applications include:
-
Power Generation: Connecting proximity probes to monitoring systems on turbines, generators, and compressors
-
Oil & Gas: Monitoring and protection of pumps, motors, and compressors in offshore and onshore applications
-
Petrochemical and Chemical Plants: Continuous monitoring of critical rotating machinery in refineries and chemical processing units
-
Manufacturing: Ensuring the reliability of production line machinery, conveyor systems, and motors
-
Mining: Monitoring of crushers, mills, and other heavy equipment in mining operations
-
Water and Wastewater Treatment: Monitoring pumps, motors, and turbines in water management systems
-
Aerospace: Ensuring the health of turbines and other critical components in aircraft engines
-
Pulp and Paper: Monitoring and protection of rollers, motors, and other rotating machinery in paper mills
Frequently Asked Questions (FAQ)
Q1: What is the ETR configuration in the Bently Nevada extension cable?
The ETR (Extension Transducer Return) configuration ensures the integrity of the sensor signals over extended distances, maintaining accuracy in vibration and displacement measurement.
Q2: How does this cable minimize signal loss?
The cable uses high-quality shielding and insulation materials that reduce electrical interference and maintain signal fidelity.
Q3: What is the maximum length for the Bently Nevada 330190-040-00-00 Extension Cable?
The cable is available in various lengths, and custom lengths can be ordered to suit specific application needs.
Q4: Can this extension cable operate in harsh environmental conditions?
Yes, the cable is designed to resist moisture, chemicals, and mechanical wear, and it has a wide operating temperature range of -40°C to +85°C.
Q5: What is the typical application for this extension cable?
It is used in industrial applications that require the extension of sensor connections, such as machinery vibration monitoring in power plants, oil & gas, and manufacturing.
Q6: Is this extension cable compatible with all Bently Nevada proximity probes?
This cable is specifically designed for use with Bently Nevada 3300 XL series proximity probes.
Q7: How is the cable shielded?
The cable features dual shielding with foil and braided wire to protect the signal from electromagnetic interference (EMI).
Q8: What certifications does the cable hold?
The Bently Nevada 330190-040-00-00 cable is CE and RoHS compliant, meeting international safety and environmental standards.
Q9: How is the cable installed?
The cable features color-coded connectors for ease of installation, ensuring quick and accurate connections between proximity probes and monitoring systems.
Q10: What kind of monitoring systems is this cable used with?
It is designed to be used with Bently Nevada’s 3300 XL machinery monitoring and protection systems.
