Product Overview

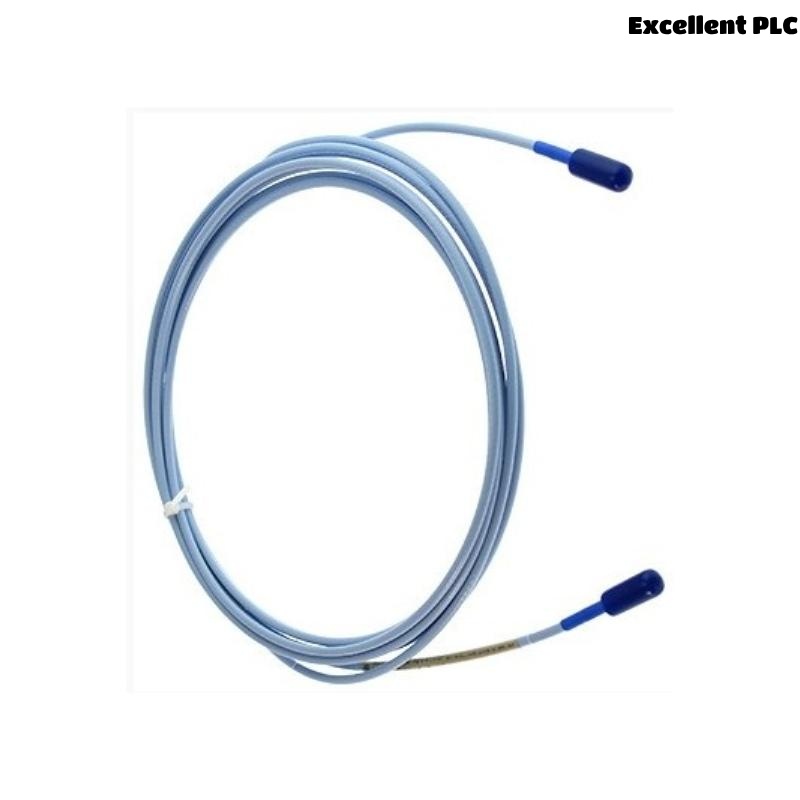

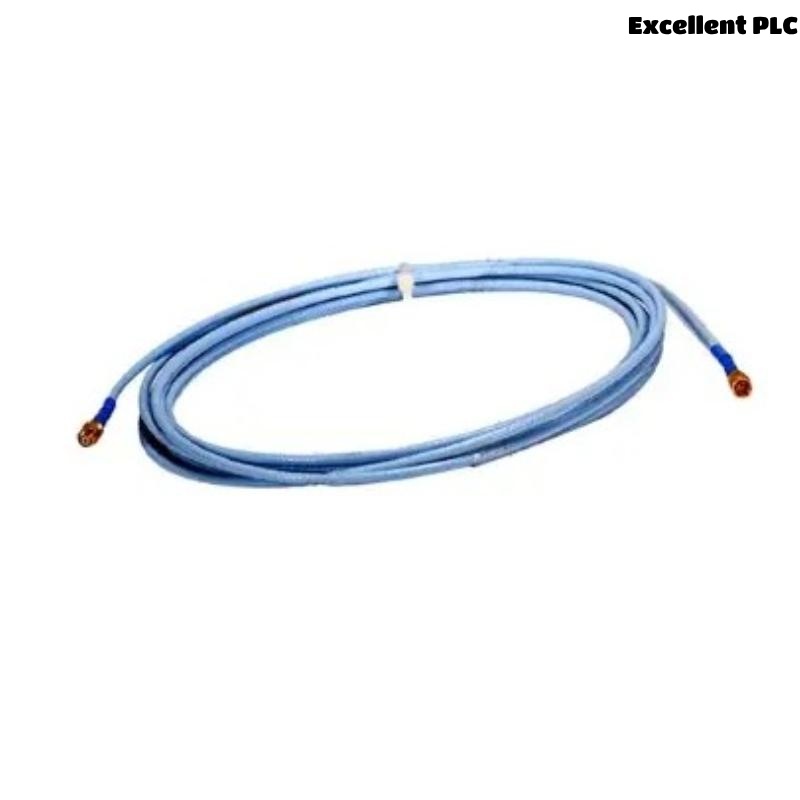

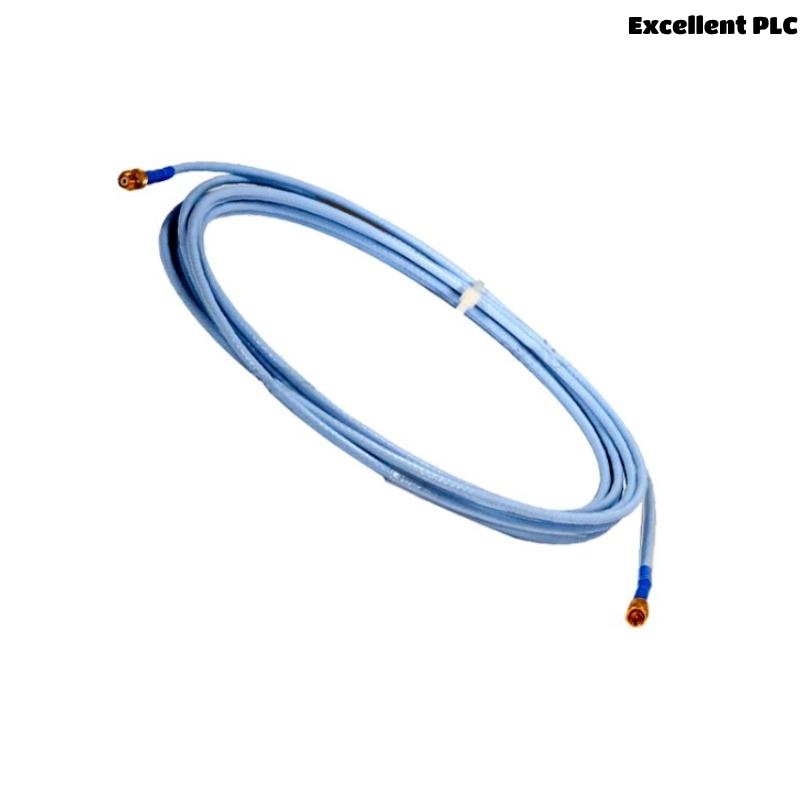

The Bently Nevada 330190-040-01-00 3300 XL ETR Extension Cable is a robust, high-performance cable specifically designed for extending the connection between Bently Nevada 3300 XL proximity probes and monitoring systems. This extension cable supports reliable, accurate signal transmission over longer distances, ensuring the integrity of the measurement data collected from critical machinery components.
As part of Bently Nevada’s trusted 3300 XL series, the cable features an ETR (Extension Transducer Return) configuration that minimizes signal degradation and enhances measurement precision. Its rugged construction ensures the cable is resistant to harsh industrial environments, making it ideal for applications in industries such as power generation, oil and gas, petrochemical, and manufacturing.
Key Features
-
Designed specifically for Bently Nevada 3300 XL series proximity probes
-
ETR configuration for optimal signal integrity and minimal signal loss
-
Flexible construction for easy installation and routing in tight spaces
-
Dual shielding for resistance against electrical noise and electromagnetic interference (EMI)
-
Wide temperature range for use in diverse industrial environments
-
Available in various lengths to meet specific system requirements
-
High-quality insulation and robust shielding for long-lasting performance
-
Suitable for use in high-vibration, high-temperature, and hazardous environments
-
Fully compatible with Bently Nevada’s 3300 XL monitoring and protection systems
-
CE and RoHS compliant for global industrial use
Technical Specifications
| Parameter | Description |
|---|---|
| Product Name | Bently Nevada 330190-040-01-00 3300 XL ETR Extension Cable |
| Part Number | 330190-040-01-00 |
| Cable Type | Extension cable for Bently Nevada 3300 XL proximity probes |
| Cable Configuration | ETR (Extension Transducer Return) |
| Signal Integrity | Low signal loss and high signal fidelity over long distances |
| Maximum Operating Voltage | 30 VDC (typical) |
| Shielding | Dual shielding (foil and braid) |
| Temperature Range | -40°C to +85°C (operating) |
| Storage Temperature Range | -40°C to +85°C (storage) |
| Maximum Length | Customizable, available in various lengths based on application |
| Cable Diameter | Total Length: 4.0 meters |
| Insulation | High-temperature PVC with fire-resistant properties |
| Environmental Resistance | Resistant to moisture, chemicals, and abrasion |
| EMC Compliance | IEC 61000-6-2, IEC 61000-6-4 |
| Certifications | CE, RoHS |
| Weight (per meter) | 0.034 kg |
Product Advantages
-
Signal Integrity: Maintains high signal fidelity over long distances, ensuring precise vibration and displacement measurements.
-
Durability: Built to withstand harsh environmental conditions, including high temperature, moisture, and chemical exposure.
-
Electromagnetic Interference Protection: Dual shielding ensures immunity from EMI, protecting the data transmission quality.
-
Temperature Flexibility: Wide temperature range (-40°C to +85°C) for reliable performance in diverse industrial settings.
-
Easy Installation: Flexible design and color-coded connectors simplify installation, even in tight spaces.
-
Customization: Available in multiple lengths, this extension cable can be tailored to meet specific operational needs.
-
Global Compliance: Meets international regulatory standards, including CE and RoHS, ensuring safe and reliable operation worldwide.
-
High-Quality Insulation: The cable features premium insulation that resists abrasion, mechanical wear, and environmental hazards.
-
Long-Term Reliability: Designed for long-lasting performance, reducing the need for frequent maintenance and replacements.
-
Seamless Integration: Fully compatible with Bently Nevada’s 3300 XL proximity probes and machinery protection systems.
Industry Applications
The Bently Nevada 330190-040-01-00 3300 XL ETR Extension Cable is used in industries where machinery health monitoring is critical, and long-distance signal transmission is required:
-
Power Generation: Connecting proximity probes on turbines, generators, and compressors to monitoring systems for continuous health assessment.
-
Oil & Gas: Vibration monitoring for pumps, motors, and compressors in both offshore and onshore facilities.
-
Petrochemical and Chemical Plants: Monitoring rotating machinery in refineries and chemical processing units to ensure safe and efficient operation.
-
Manufacturing: Monitoring critical machinery in production lines, motors, and conveyor systems.
-
Mining: Extending sensor connections for crushers, mills, and other heavy machinery in mining applications.
-
Water and Wastewater Treatment: Continuous monitoring of pumps, turbines, and motors in water management systems.
-
Aerospace: Vibration and displacement monitoring for turbines, engines, and critical rotating components.
-
Pulp and Paper: Ensuring reliable operation of rollers, motors, and other machinery in paper mills and manufacturing plants.
Frequently Asked Questions (FAQ)
Q1: What does the ETR configuration in this extension cable mean?
ETR (Extension Transducer Return) ensures that the signal remains accurate and free from distortion over long distances, enhancing the overall system performance.
Q2: What are the maximum operating conditions for this cable?
The cable operates within a temperature range of -40°C to +85°C, ensuring reliable performance in a variety of industrial environments.
Q3: Is the cable resistant to environmental hazards?
Yes, it is highly resistant to moisture, chemicals, and mechanical abrasion, making it ideal for harsh conditions.
Q4: What are the typical uses for this extension cable?
It is used to extend the connection between Bently Nevada 3300 XL proximity probes and the monitoring system in various industrial machinery health monitoring applications.
Q5: How is the cable shielded?
The cable is dual-shielded with foil and braid to protect the signal from electrical noise and electromagnetic interference (EMI).
Q6: Can this extension cable be used in explosive environments?
Yes, the cable is designed to work in harsh and potentially explosive environments, provided it is part of a certified system.
Q7: What is the maximum voltage rating for the cable?
The maximum operating voltage for the cable is 30 VDC, which is standard for industrial monitoring systems.
Q8: Can this extension cable be customized in terms of length?
Yes, this extension cable is available in various lengths and can be customized based on the application’s specific requirements.
Q9: Is the 330190-040-01-00 cable compatible with all Bently Nevada probes?
This extension cable is specifically designed for use with Bently Nevada 3300 XL proximity probes.
Q10: How does this cable contribute to the overall machinery protection system?
By ensuring reliable signal transmission over extended distances, this extension cable allows proximity probes to effectively monitor the condition of critical machinery, enabling early detection of potential failures.
Recommended Related Models
| Model Number | Description |
|---|---|
| 330190-040-00-00 | 3300 XL ETR Extension Cable, Standard Length |
| 330190-050-00-00 | 3300 XL ETR Extension Cable, Longer Length |
| 330190-060-00-00 | 3300 XL ETR Extension Cable, Extended Length |
| 330180-01-05 | Bently Nevada 3300 XL 8mm Proximitor Sensor |
| 330101-00-08-10-02-05 | Bently Nevada 3300 XL 8mm Proximity Probe Extension Cable |
| 3300 XL 8mm Proximity Probe | Bently Nevada 3300 XL Proximity Probe for Vibration Monitoring |
