Product Overview

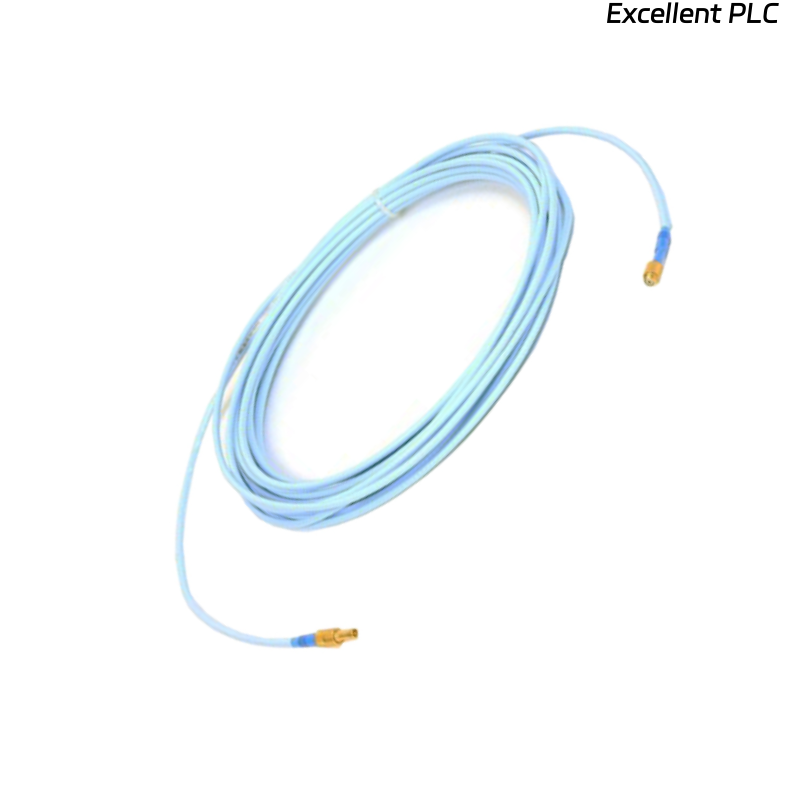

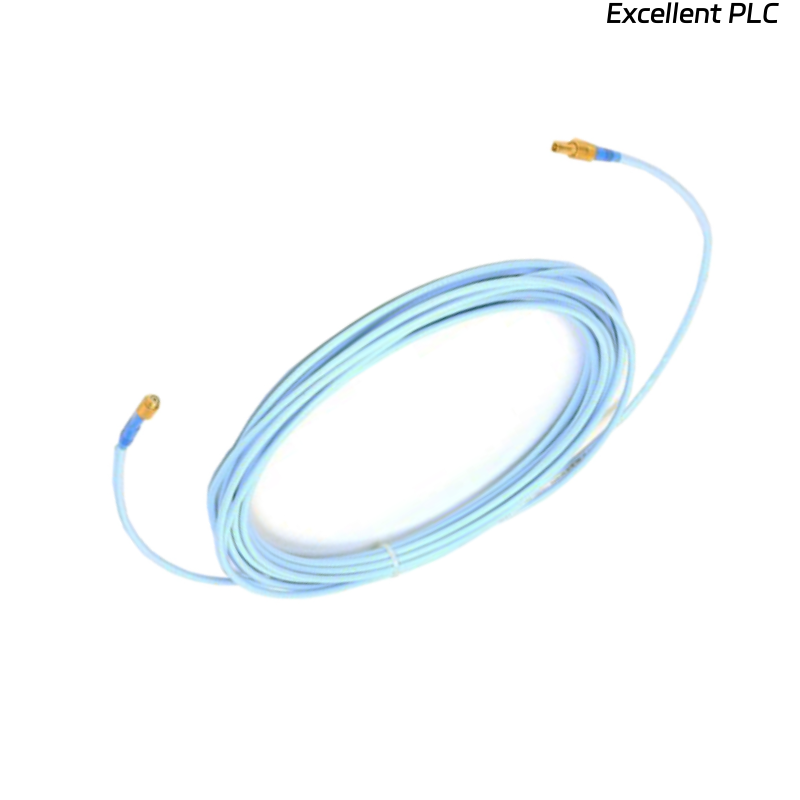

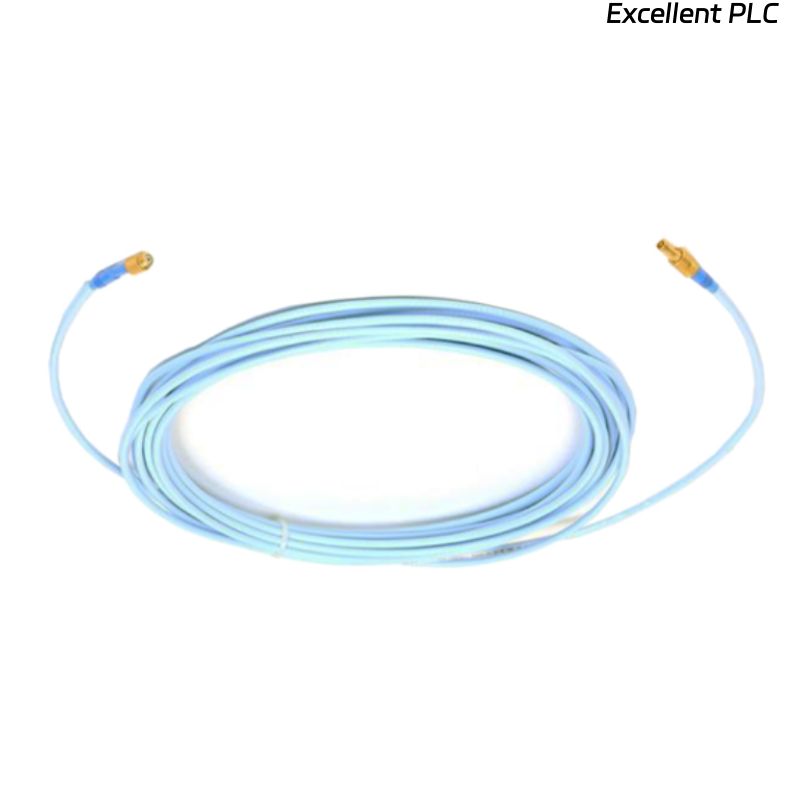

The Bently Nevada 330190-045-01-00 3300 XL ETR Extension Cable is engineered to extend the connection between 3300 XL Proximity Probes and monitoring systems. It ensures high-fidelity signal transmission over extended distances, maintaining the integrity of vibration and position measurements critical for machinery protection.
Key Features
-
Compatible with 3300 XL Proximity Probes and Proximitor® Sensors
-
Provides reliable, low-noise signal transmission over extended distances
-
Supports long-distance connections (4.5 m)
-
Rugged construction for industrial and harsh environments
-
Easy integration with 3300 XL ETR monitoring systems
-
Maintains API 670 compliance for machinery protection
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | 330190-045-01-00 |
| Type | XL ETR Extension Cable |
| Compatible Probes | 3300 XL Proximity Probes |
| Cable Length | 4.5 m |
| Cable Diameter | 5 mm |
| Connector Type | Standard XL connectors |
| Operating Temperature | -35 °C to +120 °C |
| Storage Temperature | -50 °C to +125 °C |
| Humidity | 100% condensing |
| Cable Jacket Material | PVC/Polyurethane |
| Dimensions | Total Length: 4.5 meters |
| Weight | 0.153 kg |
| Compliance | CE, RoHS, API 670 |
Industry Applications
-
Power Generation – turbine and generator vibration monitoring
-
Oil & Gas – pumps, compressors, and critical rotating machinery
-
Petrochemical & Chemical – machinery monitoring in process plants
-
Manufacturing – large rotating equipment requiring remote probe connections
-
Water & Wastewater – pump and motor monitoring
Advantages
-
Ensures reliable signal transmission for remote probe installations
-
Maintains high measurement accuracy for critical machinery monitoring
-
Rugged and durable design suitable for harsh industrial environments
-
Supports flexible installation layouts for equipment protection
-
Easy integration with 3300 XL ETR Proximitor® systems
-
Maintains API 670 compliance for machinery protection systems
Frequently Asked Questions (FAQ)
Q1: What is the purpose of this extension cable?
It connects 3300 XL Proximity Probes to monitoring systems over extended distances, ensuring accurate signal transmission.
Q2: Which probes is it compatible with?
It is compatible with all 3300 XL Proximity Probes.
Q3: What is the cable length?
This model has a 4.5 m cable.
Q4: What is the cable diameter?
Approximately 5 mm.
Q5: What is the operating temperature range?
-35 °C to +120 °C.
Q6: Can it be used in high humidity environments?
Yes, it is rated for 100% condensing humidity.
Q7: What material is the cable jacket made from?
PVC or polyurethane for durability and chemical resistance.
Q8: Is it suitable for harsh industrial conditions?
Yes, it is designed for rugged industrial applications.
Q9: Does it maintain signal integrity over long distances?
Yes, it provides low-noise, high-fidelity signal transmission.
Q10: Which industries commonly use this cable?
Power Generation, Oil & Gas, Petrochemical, Manufacturing, and Water & Wastewater.
