Product Introduction

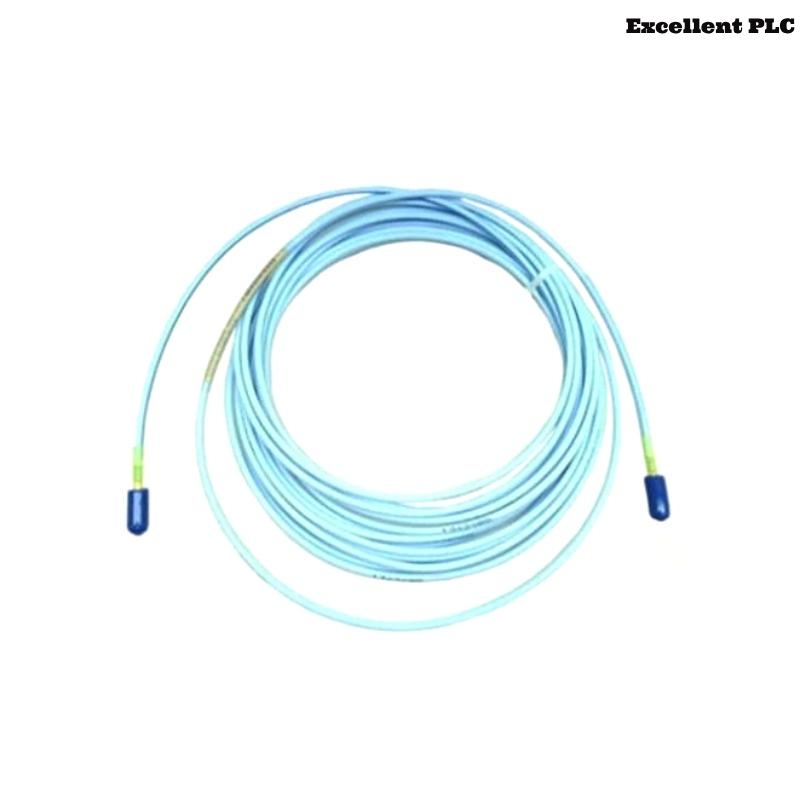

The Bently Nevada 330190-085-00-05 is an 8.5 meters long Extension Cable designed for the 3300 XL ETR (Extended Temperature Range) Proximity Transducer System, part of GE’s condition monitoring and machinery protection solution portfolio.
This specific cable acts as the intermediate link between the proximity probe and the Proximitor® sensor. It is engineered to perform in harsh and thermally extreme environments, such as those found in gas turbines, steam turbines, and critical rotating machinery installations.
The model suffix “00-05” typically refers to the specific connector and shielding configurations, making it compliant with high-frequency EMI environments. As part of the ETR series, this cable ensures signal integrity over long distances without the need for signal amplification or custom terminations in the field.
Product Specifications
| Parameter | Description |
| Model Number | 330190-085-00-05 |
| Product Type | Extension Cable |
| Series Compatibility | 3300 XL ETR (Extended Temperature Range) |
| Cable Length | 8.5 meters |
| Connector Type | MIL-C-5015 Circular Connectors |
| Cable Jacket Material | PTFE (Teflon®) with braided EMI shielding |
| Operating Temperature | -55°C to +200°C |
| Environmental Resistance | Chemical-resistant, Oil-resistant, UV-resistant |
| Outer Cable Diameter | 6.2 mm (0.24 inches) |
| Minimum Bend Radius | 2.5 inches (63.5 mm) |
| Weight | 0.289 kg |
| Impedance Match | Optimized for Bently Nevada Proximitor® sensors |
| Mounting Compatibility | Conduit trays, clamps, industrial cable ducts |
| Certifications | CE Marked, API 670 compliant, UL94 V-0 rated materials |
| Typical System Use | Long-distance installation in proximity measurement setups |
Product Applications
The 330190-085-00-05 is designed for applications requiring long cable runs while maintaining high signal fidelity under severe environmental conditions. It is commonly installed in:
-
Gas Turbine Monitoring Systems
-
Steam Turbine Vibration Detection
-
High-Speed Centrifugal Compressors
-
Large Industrial Motors and Generators
-
Pumps, Fans, and Blowers in Chemical Processing Plants
-
Marine Propulsion Engines
-
Refinery and LNG Facility Equipment
-
Balance-of-Plant (BoP) Asset Monitoring
Its rugged design enables reliable data transmission even in high-humidity, high-temperature, and high-vibration installations.
Product Advantages
-
Extended Reach Capability: With a length of 85 ft, the cable supports large-scale installations with distant probe placements.
-
High-Temperature Tolerance: Operates continuously in environments up to +200°C, meeting industry demands for thermal resilience.
-
Signal Integrity: EMI-shielded design ensures clean, uninterrupted signal transmission in electrically noisy industrial environments.
-
Factory Pre-Terminated: Eliminates the need for on-site splicing or assembly, reducing installation errors and setup time.
-
Chemically Resistant: Withstands exposure to oils, solvents, and harsh chemicals typically found in industrial settings.
-
Compliance Ready: Fully compatible with API 670 standard for machinery protection systems.
-
Durability Under Vibration: Mechanically robust for high-vibration environments such as rotating machine housings or frames.
-
Low Maintenance: Requires minimal inspection and offers long-term operational reliability.
Latest Industry News Headlines
-
“Bently Nevada Boosts Reliability in Long-Run Proximity Cabling with Extended ETR Models”
-
“High-Temperature Cable Innovations Driving Predictive Maintenance in Refineries”
-
“3300 XL ETR System Helps LNG Operators Achieve Record Monitoring Uptime”
-
“GE Bently Nevada Reaffirms API 670 Leadership with Enhanced ETR Cabling Solutions”
-
“Why Extension Cables Are the Backbone of Accurate Condition Monitoring”
-
“Asia-Pacific Growth in Machinery Protection Driven by Bently Nevada’s XL Series”
-
“Energy Sector Relies on 3300 XL ETR for Mission-Critical Equipment Protection”
-
“New Test Bench Validates Long-Distance Signal Integrity of 330190 Series Cables”
Frequently Asked Questions (FAQ)
1. What systems is the 330190-085-00-05 cable compatible with?
This cable is specifically designed for the 3300 XL ETR Proximity Transducer System.
2. Can this cable be used outdoors?
Yes. It is UV-resistant and suitable for outdoor use when properly routed in industrial cable trays or conduits.
3. Is the cable resistant to oil and chemicals?
Absolutely. Its PTFE outer jacket provides excellent protection against industrial solvents and lubricants.
4. What is the maximum operating temperature of this cable?
The cable can operate continuously in environments up to 200°C.
5. What happens if the cable length is exceeded?
Using cables longer than the specified limits may degrade signal quality and measurement accuracy.
6. Can I cut and reterminate this cable in the field?
No. It is factory-terminated and not designed to be modified in the field.
7. Is this cable API 670 compliant?
Yes. The cable supports API 670 compliance when installed as part of a certified 3300 XL ETR system.
8. How is this cable secured during installation?
It is typically installed using cable clamps, conduit pathways, or secured trays.
9. Does the cable support both AC and DC signal transmission?
It is specifically engineered for low-voltage analog signal transmission, optimized for proximity transducer systems.
10. What maintenance is required for this cable?
Routine visual inspection for abrasion or chemical wear is sufficient in most installations.
Recommended Models – Related or Same Series
| Model Number | Description | Length | System Compatibility |
| 330190-025-00-05 | ETR Extension Cable | 25 ft (7.62 m) | 3300 XL ETR |
| 330190-045-00-05 | ETR Extension Cable | 45 ft (13.72 m) | 3300 XL ETR |
| 330190-100-00-05 | ETR Extension Cable | 100 ft (30.48 m) | 3300 XL ETR |
| 330130-040-00-00 | Standard XL Extension Cable | 4 m | 3300 XL |
| 330130-080-00-00 | Standard XL Extension Cable | 8 m | 3300 XL |
| 330105-02-12-10-02-00 | Proximitor® Sensor | N/A | 3300 XL ETR |
| 330104-00-05-10-02-00 | Proximity Probe | 5 mm tip | 3300 XL ETR |
| 330500-02-00 | High-Temp Cable Assembly | Custom | High-Temp Applications |
