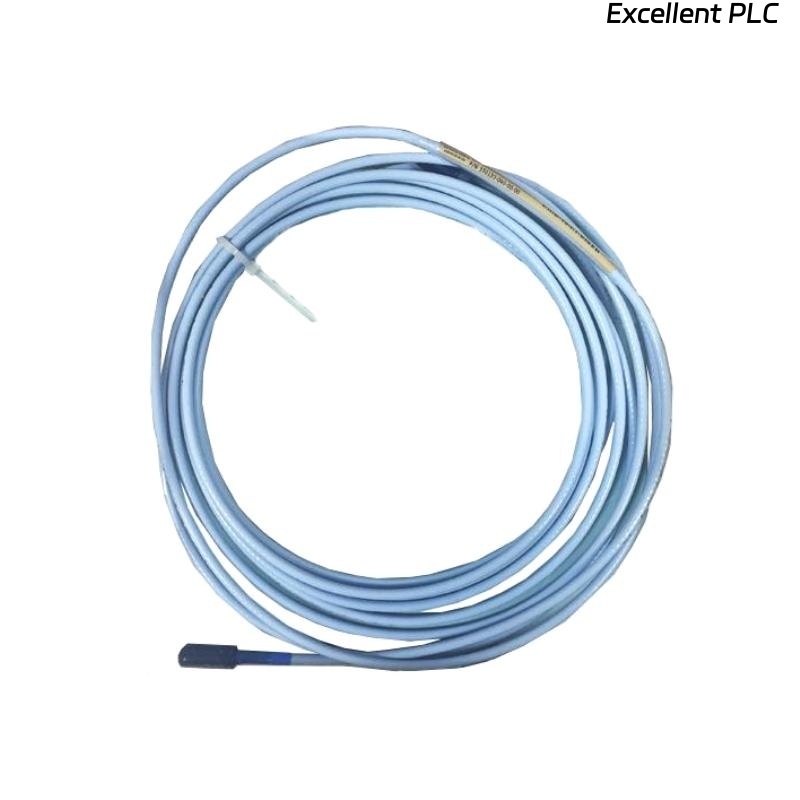

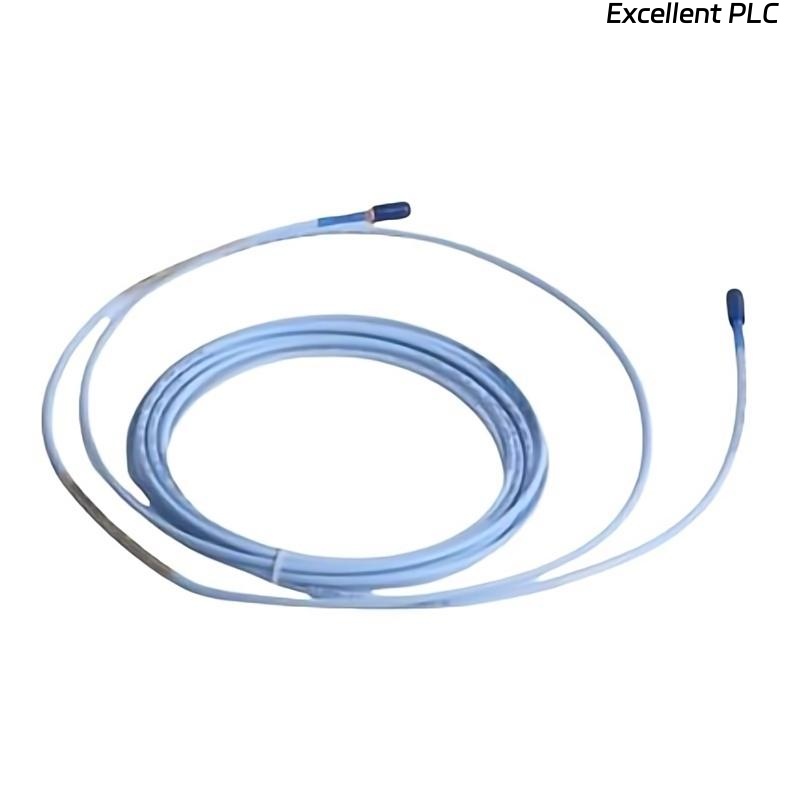

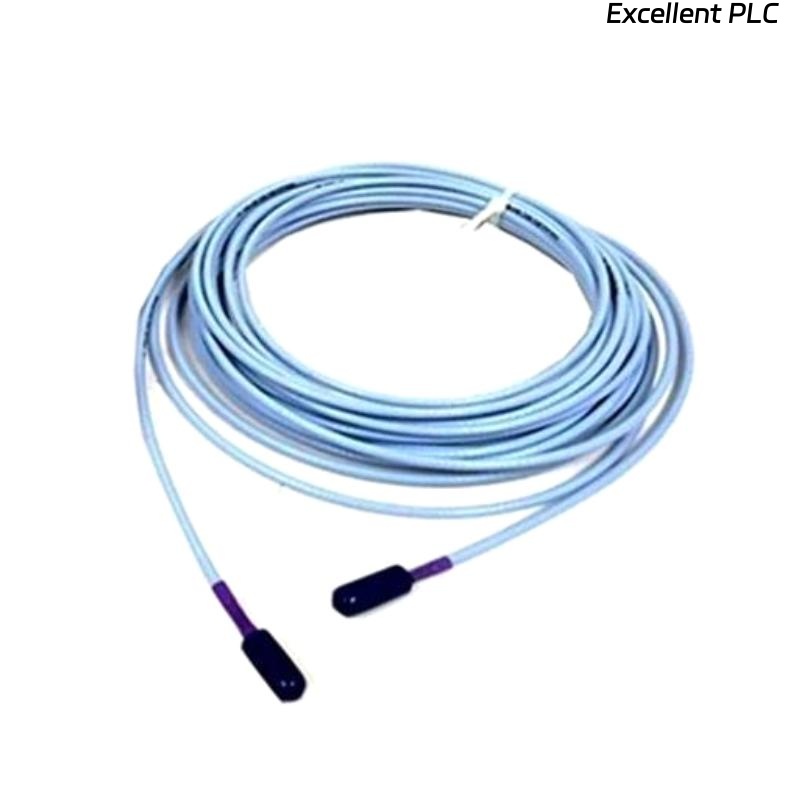

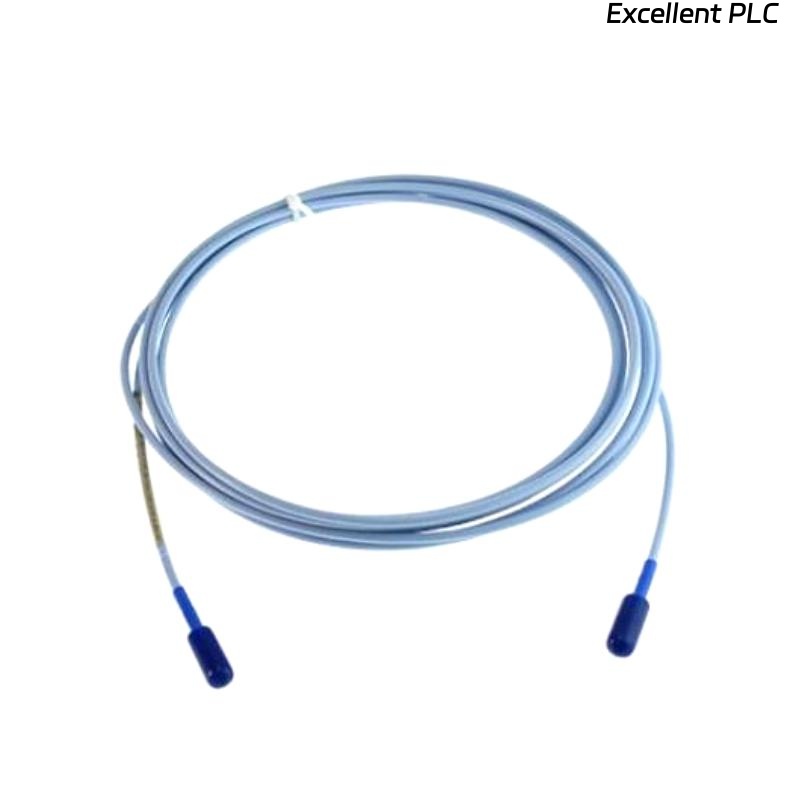

Bently Nevada 330193-09-20-05-00 3300 XL 8 mm Probe

Product Introduction

The Bently Nevada 330193-09-20-05-00 3300 XL 8 mm Probe is a high-precision, non-contact proximity sensor designed for monitoring rotor vibration, shaft displacement, and overall machinery dynamics in critical industrial equipment. Part of the trusted 3300 XL series, this probe ensures accurate and reliable measurement in challenging environments. Its robust construction, eddy-current sensing technology, and high linearity make it ideal for predictive maintenance, machinery protection, and real-time diagnostic systems in power generation, petrochemical, and heavy industrial applications.

Product Parameters

Product Applications

• Turbines: Real-time monitoring of rotor position and vibration in gas and steam turbines.

• Compressors & Pumps: Detects rotor imbalance, misalignment, and bearing wear for preventive maintenance.

• Motors & Generators: Provides accurate vibration and displacement measurements for operational reliability.

• Industrial Machinery: Suitable for heavy industrial applications where precise shaft monitoring is critical.

Product Advantages

• High Accuracy: Stable linear output ensures precise measurements across the 2 mm range.

• Wide Temperature Range: Functions reliably from –35 °C to +200 °C.

• Robust and Durable: IP67-rated housing protects against dust, moisture, and harsh environmental conditions.

• Electromagnetic Shielding: Reduces signal interference for consistent measurement output.

• Shock & Vibration Resistant: Can withstand high vibration and mechanical shock up to 200 g peak.

• System Compatibility: Integrates seamlessly with Bently Nevada 3300 XL Proximitor® sensors and 3500 series monitoring modules.

FAQ

1. What is the sensitivity of the 330193-09-20-05-00 probe?
   The probe provides a sensitivity of 7.87 mV/µm (200 mV/mil), enabling precise monitoring of shaft vibration and displacement.

2. Which Bently Nevada systems are compatible with this probe?
   It is compatible with 3300 XL Proximitor® sensors and 3500 series monitoring modules for seamless integration.

3. What is the operating temperature range for the probe and its cable?
   The probe operates from –35 °C to +200 °C, and the cable and connector range is –51 °C to +177 °C.

4. How is the probe installed securely on rotating machinery?
   It uses an M10 × 1 mm threaded body and locknut for stable mounting near the shaft.

5. What measurement principle does the probe use?
   The probe uses eddy-current technology to generate a voltage proportional to the distance between the probe tip and shaft surface.

6. What level of continuous vibration can the probe handle?
   The probe tolerates up to 20 g continuous vibration in the 10–2000 Hz frequency range.

7. Is the probe environmentally protected?
   Yes, it is IP67-rated, providing protection against dust and temporary water exposure.

8. What is the shock tolerance of this probe?
   The probe can withstand mechanical shocks up to 200 g peak without affecting performance.

9. How is signal integrity maintained in electrically noisy environments?
   Shielded construction minimizes electromagnetic interference and temperature-related drift, ensuring reliable signal output.

10. Can the probe measure both radial and axial displacement?
    Yes, it can measure both radial vibration and axial shaft displacement, enabling comprehensive machinery diagnostics.
