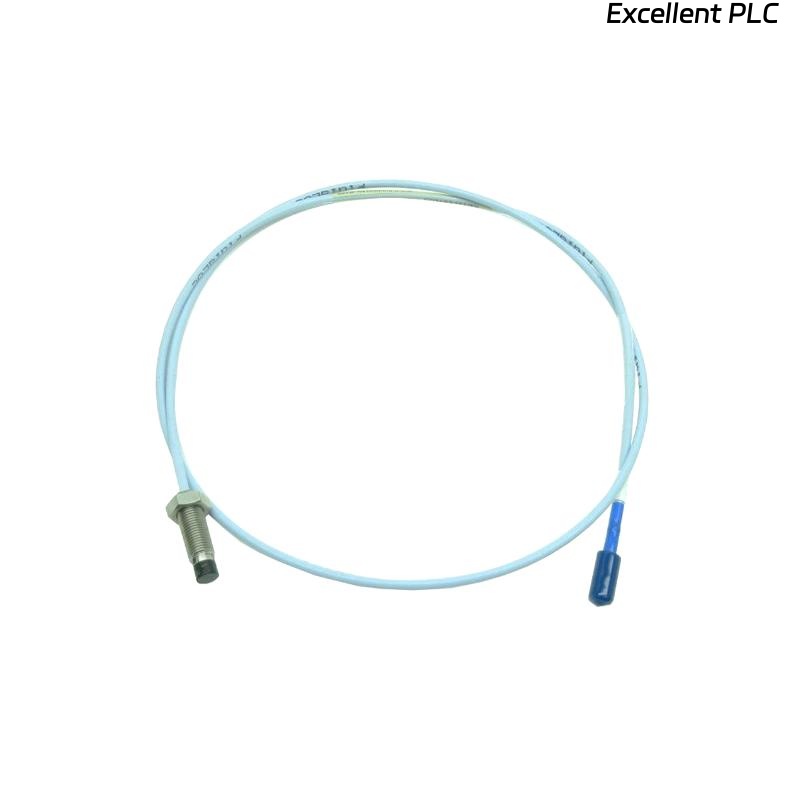

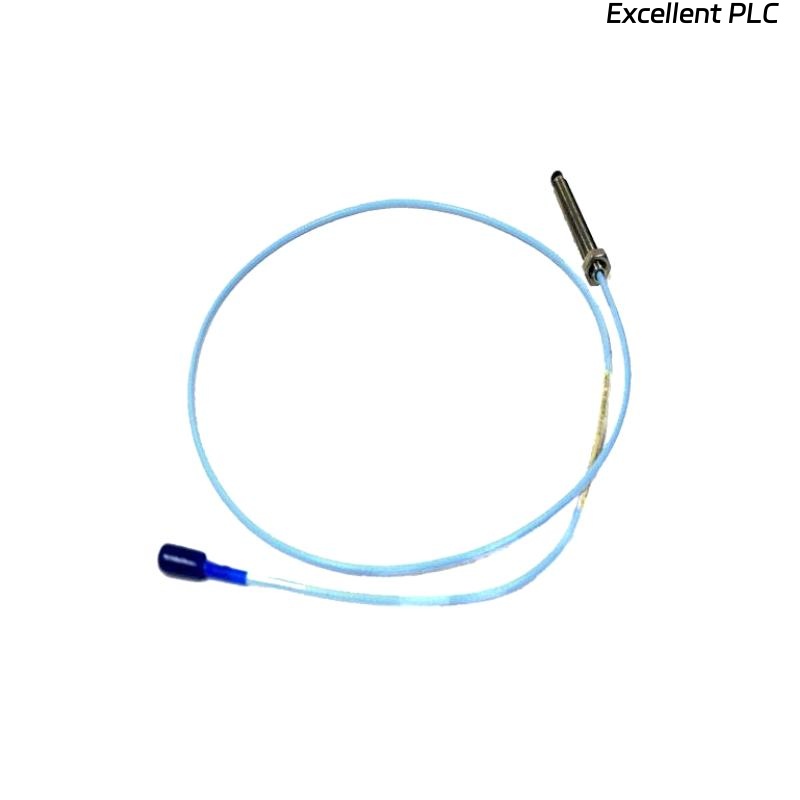

Bently Nevada 330193-09-20-10-00 3300 XL 8 mm Probe

Product Introduction

The Bently Nevada 330193-09-20-10-00 3300 XL 8 mm Probe is a high-precision, non-contact proximity sensor designed for real-time monitoring of rotor vibration, shaft displacement, and overall machinery dynamics. Part of the 3300 XL series, this probe delivers accurate, reliable measurements in demanding industrial environments. Its robust construction, eddy-current sensing technology, and high linearity make it an essential component for predictive maintenance, machinery protection, and diagnostic systems in power generation, petrochemical, and heavy industrial applications.

Product Parameters

Product Applications

• Turbines: Provides continuous rotor vibration and displacement monitoring in gas and steam turbines.

• Compressors & Pumps: Detects rotor imbalance, misalignment, and bearing wear for proactive maintenance.

• Motors & Generators: Supplies accurate vibration and displacement data to support operational reliability.

• Industrial Machinery: Applicable for petrochemical, power generation, and other heavy industrial equipment requiring precise shaft monitoring.

Product Advantages

• High Accuracy: Ensures stable and linear output across the full measurement range.

• Wide Operating Temperature: Functions reliably from –35 °C to +200 °C.

• Robust and Durable: IP67-rated housing protects against dust, moisture, and harsh environments.

• Electromagnetic Shielding: Minimizes signal interference for consistent measurements.

• Shock & Vibration Resistant: Can withstand high mechanical shock and vibration up to 200 g peak.

• System Compatibility: Fully compatible with Bently Nevada 3300 XL Proximitor® sensors and 3500 series monitoring modules.

FAQ

1. What is the nominal sensitivity of the 330193-09-20-10-00 probe?
   The probe has a nominal sensitivity of 7.87 mV/µm (200 mV/mil), providing accurate detection of shaft vibration and displacement.

2. Which monitoring systems support this probe?
   It integrates with Bently Nevada 3300 XL Proximitor® sensors and 3500 series monitoring modules for full compatibility.

3. What is the operating temperature range for the probe and cable assembly?
   The probe operates from –35 °C to +200 °C, while the cable and connector are rated from –51 °C to +177 °C.

4. How is the probe securely mounted on machinery?
   It uses an M10 × 1 mm threaded body and locknut to ensure stable placement near the rotating shaft.

5. What sensing principle does the probe employ?
   The probe uses eddy-current technology, generating a voltage proportional to the gap between the probe tip and shaft surface.

6. What level of vibration can the probe tolerate continuously?
   The probe tolerates up to 20 g continuous vibration within a 10–2000 Hz frequency range.

7. Is the probe protected against environmental factors?
   Yes, it is IP67-rated, providing protection against dust and temporary water exposure.

8. What is the mechanical shock tolerance of this probe?
   The probe can withstand shocks up to 200 g peak without performance degradation.

9. How is signal integrity maintained in electrically noisy environments?
   The shielded design minimizes electromagnetic interference and temperature-related drift, ensuring stable signal output.

10. Can this probe measure both radial and axial shaft displacement?
    Yes, it measures both radial vibration and axial displacement for comprehensive machinery diagnostics.
