Product Introduction

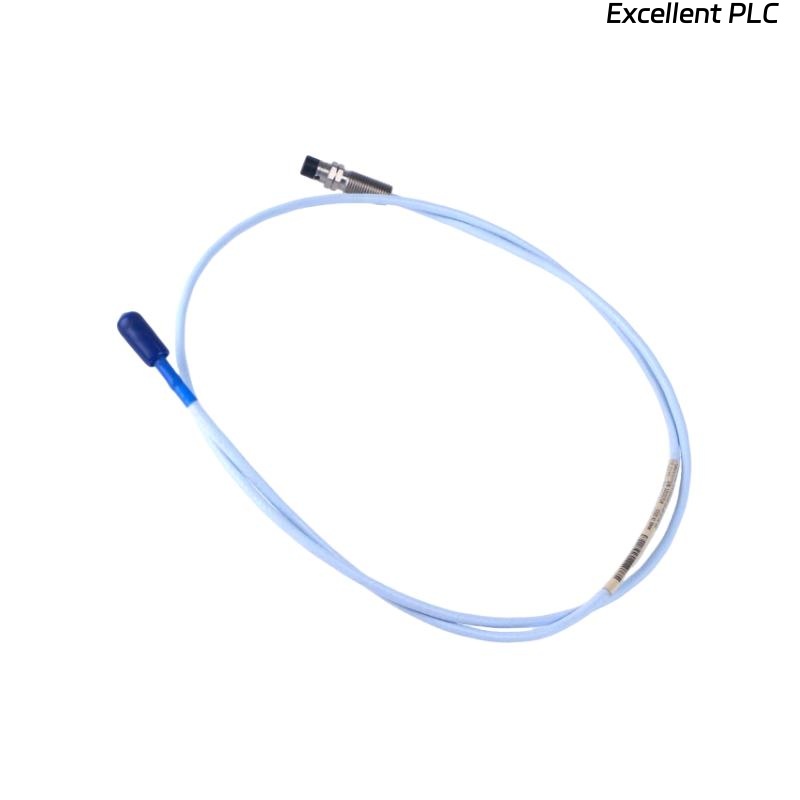

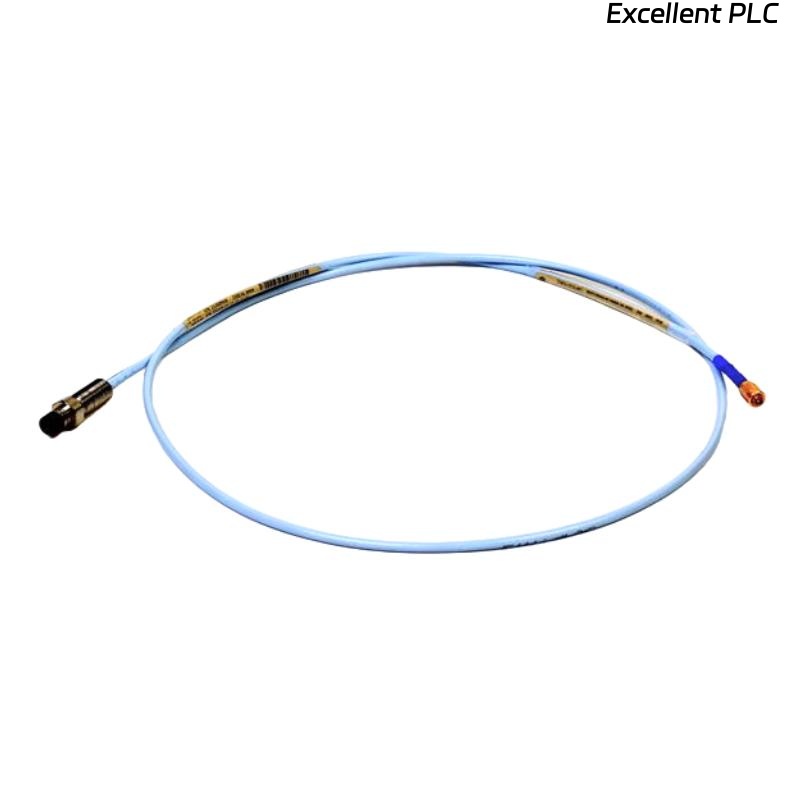

The Bently Nevada 330194-00-08-10-00 3300 XL 8 mm Probe is a high-precision, non-contact proximity sensor designed to monitor rotor vibration, shaft displacement, and overall machinery dynamics in critical industrial equipment. As part of the 3300 XL series, this probe ensures highly accurate and reliable measurements under harsh operating conditions. Utilizing advanced eddy-current sensing technology, it provides linear and stable output suitable for predictive maintenance, machinery protection, and real-time diagnostic systems in power generation, petrochemical, and heavy industrial environments.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | 330194-00-08-10-00 |
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Measurement Range | 2 mm (80 mil) linear range |
| Sensitivity | 7.87 mV/µm (200 mV/mil) |
| Tip Diameter | 8 mm |
| Thread Type | M10 × 1 mm |
| Operating Temperature (Probe) | –35 °C to +200 °C |
| Operating Temperature (Cable/Conn.) | –51 °C to +177 °C |
| Frequency Response | 0 to 10 kHz |
| Vibration Tolerance | Up to 20 g, 10–2000 Hz |
| Shock Tolerance | Up to 200 g peak |
| Environmental Protection | IP67 |
| Total Length | 1 meter |
| Weight | 0.323 kg |
Product Applications
-
Gas and Steam Turbines: Real-time monitoring of rotor vibration and shaft displacement.
-
Compressors & Pumps: Detects rotor imbalance, misalignment, and bearing wear for preventive maintenance.
-
Motors & Generators: Provides accurate measurements for reliable operation and condition monitoring.
-
Industrial Machinery: Applicable to petrochemical, power generation, and other heavy-duty equipment requiring precise shaft monitoring.
Product Advantages
-
High Precision: Delivers accurate linear output across the full measurement range.
-
Wide Operating Temperature: Maintains performance from –35 °C to +200 °C.
-
Robust and Durable: IP67-rated housing protects against dust, moisture, and environmental hazards.
-
Electromagnetic Shielding: Minimizes interference for consistent signal quality.
-
Shock & Vibration Resistant: Withstands high vibration and mechanical shock up to 200 g peak.
-
System Integration: Fully compatible with Bently Nevada 3300 XL Proximitor® sensors and 3500 series monitoring modules.
FAQ
-
What is the sensitivity of the 330194-00-08-10-00 probe?
The probe provides a sensitivity of 7.87 mV/µm (200 mV/mil), enabling precise detection of shaft vibration and displacement. -
Which Bently Nevada systems support this probe?
It is compatible with the 3300 XL Proximitor® sensors and 3500 series monitoring modules. -
What is the operating temperature range for the probe and cable?
The probe operates from –35 °C to +200 °C, while the cable and connector operate from –51 °C to +177 °C. -
How is the probe installed on machinery?
It uses an M10 × 1 mm threaded body and locknut for secure mounting near the shaft. -
What sensing technology does the probe use?
The probe uses eddy-current sensing to generate a voltage proportional to the distance between the probe tip and shaft surface. -
What level of vibration can the probe handle continuously?
It tolerates up to 20 g continuous vibration in the 10–2000 Hz frequency range. -
Is the probe protected against dust and moisture?
Yes, it has an IP67 rating for protection against dust and temporary water immersion. -
What is the mechanical shock tolerance of this probe?
The probe can withstand shocks up to 200 g peak without affecting performance. -
How does the probe maintain signal integrity in noisy environments?
Shielded construction minimizes electromagnetic interference and temperature-induced signal drift. -
Can the probe measure both radial and axial motion?
Yes, it measures both radial vibration and axial shaft displacement for complete machinery diagnostics.
