Product Introduction

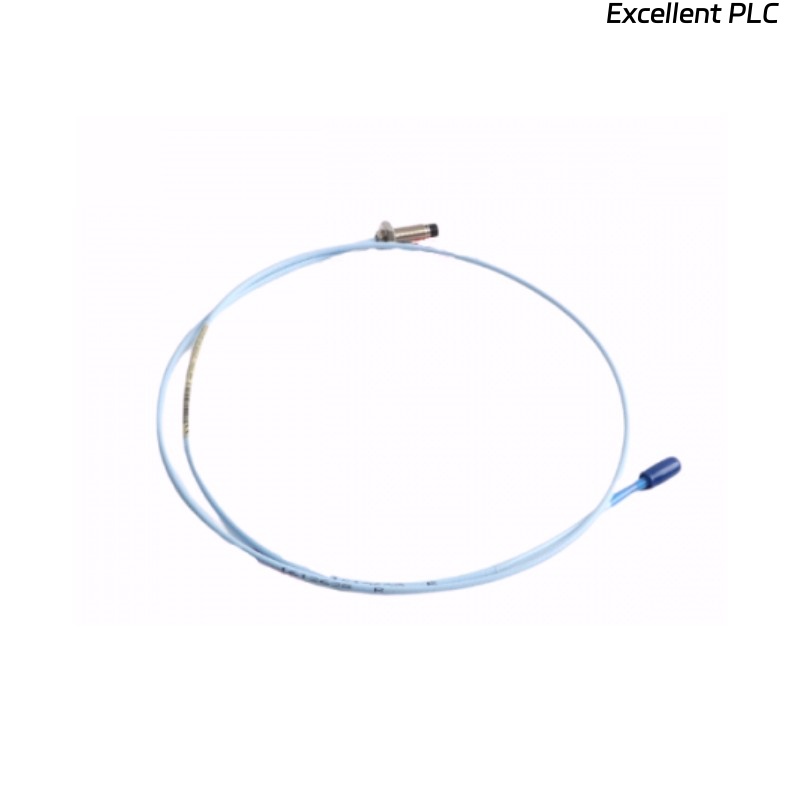

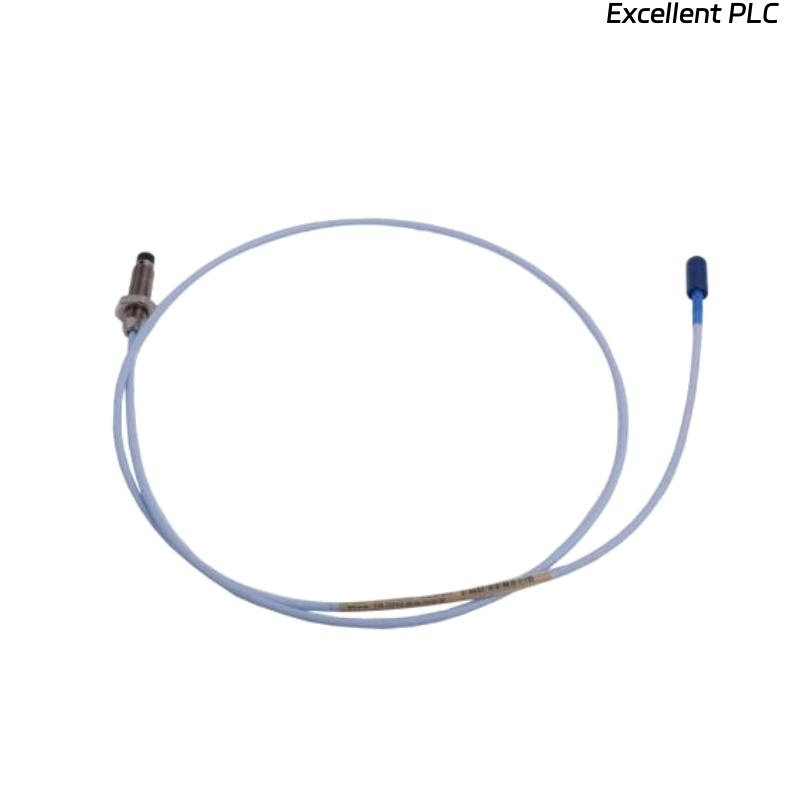

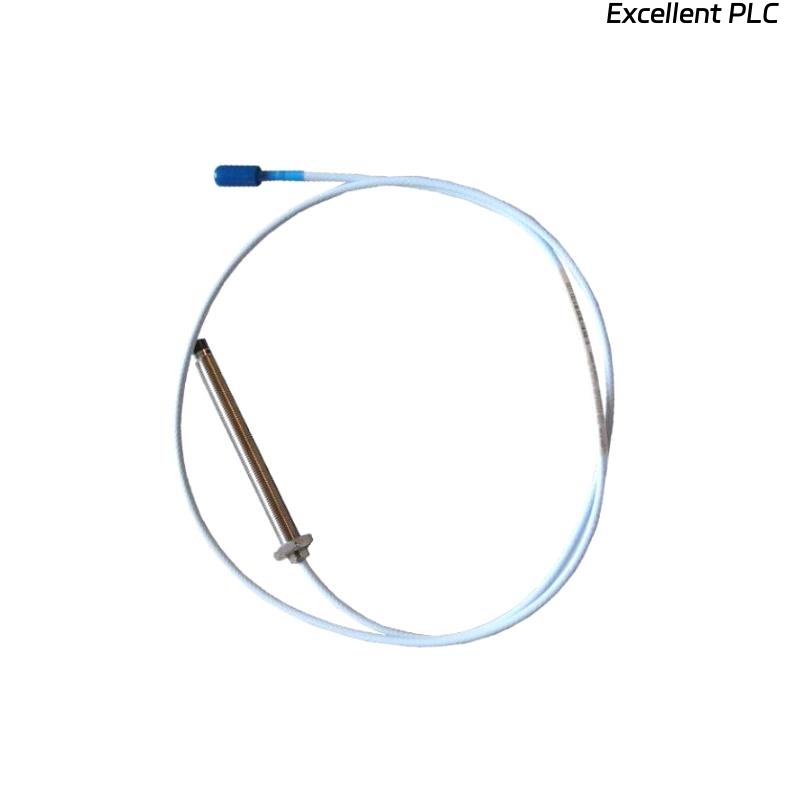

The Bently Nevada 330195-02-12-10-CN 3300 XL 8 mm ETR Reverse Mount Probe is a high-precision vibration and position monitoring sensor designed for use with the 3300 XL series machinery protection system. This reverse-mount probe configuration allows for flexible installation in challenging environments where conventional mounting may be difficult or space-restricted.
Engineered with advanced materials and precise sensing technology, the 330195-02-12-10-CN probe provides accurate, high-speed measurements of shaft vibration, proximity, and displacement. Its 8 mm diameter tip is optimized for sensitive machinery detection, making it ideal for turbines, compressors, generators, and other critical rotating equipment.
The probe’s robust design ensures reliability in harsh industrial environments, including high temperatures, vibrations, and electromagnetic interference, while maintaining exceptional signal integrity for the 3300 XL system.
Product Specifications
| Parameter | Description |
|---|---|
| Model | Bently Nevada 330195-02-12-10-CN |
| Series | 3300 XL |
| Probe Type | 8 mm ETR Reverse Mount |
| Function | Vibration and position monitoring |
| Tip Diameter | 8 mm |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Cable Type | Shielded, high-temperature resistant |
| Output Type | Differential proximity sensor signal |
| Operating Temperature | -40°C to +125°C |
| Storage Temperature | -50°C to +150°C |
| Maximum Vibration | Compatible with high-speed rotating machinery |
| Mounting Type | Reverse mount |
| Standards Compliance | ISO 10816, API 670, IEC 61508 |
Product Applications
The Bently Nevada 330195-02-12-10-CN probe is extensively used in:
-
Turbine vibration monitoring and shaft position measurement
-
Compressor and generator machinery protection systems
-
Industrial process control and monitoring panels
-
Retrofit projects for 3300 XL system integration
-
High-speed rotating machinery where space constraints require reverse mounting
-
Condition monitoring systems for early fault detection
Its precise measurements enable predictive maintenance and real-time machinery diagnostics, improving reliability and reducing unplanned downtime.
Product Advantages
The Bently Nevada 330195-02-12-10-CN probe offers several advantages:
-
High Measurement Accuracy: Optimized tip and sensor design provide precise vibration and displacement readings.
-
Reverse Mount Flexibility: Can be installed in tight or non-standard locations without compromising performance.
-
Durability: Withstands harsh environmental conditions, including high temperature and vibration.
-
Long Cable Length: 1.0 meter standard cable allows flexible installation.
-
Compatibility: Fully compatible with 3300 XL monitoring systems for seamless integration.
-
Signal Integrity: Shielded cable and robust sensor design minimize noise and electromagnetic interference.
-
Maintenance-Friendly: Simple installation and clear mounting instructions reduce setup and troubleshooting time.
Frequently Asked Questions (FAQ)
-
Can this probe be used in both horizontal and vertical shaft configurations?
Yes, the reverse mount design allows flexible orientation for horizontal or vertical shafts. -
What is the tip diameter of the probe?
The probe tip is 8 mm in diameter. -
Is the probe compatible with all 3300 XL modules?
Yes, it is fully compatible with standard 3300 XL system modules. -
What is the standard cable length?
The probe comes with a 1.0 meter shielded cable. -
What operating temperature range can the probe tolerate?
It operates reliably between -40°C and +125°C. -
How is the probe mounted?
It is designed for reverse mounting, allowing installation in tight or unconventional spaces. -
Does the probe provide differential output signals?
Yes, it provides a differential proximity sensor signal for accurate monitoring. -
Can the probe handle high-speed rotating machinery?
Yes, it is suitable for turbines, compressors, and generators operating at high rotational speeds. -
Is the cable shielded against electromagnetic interference?
Yes, the cable is fully shielded to maintain signal integrity. -
Does the probe meet international machinery monitoring standards?
Yes, it complies with ISO 10816, API 670, and IEC 61508 standards for machinery protection.
