Product Overview

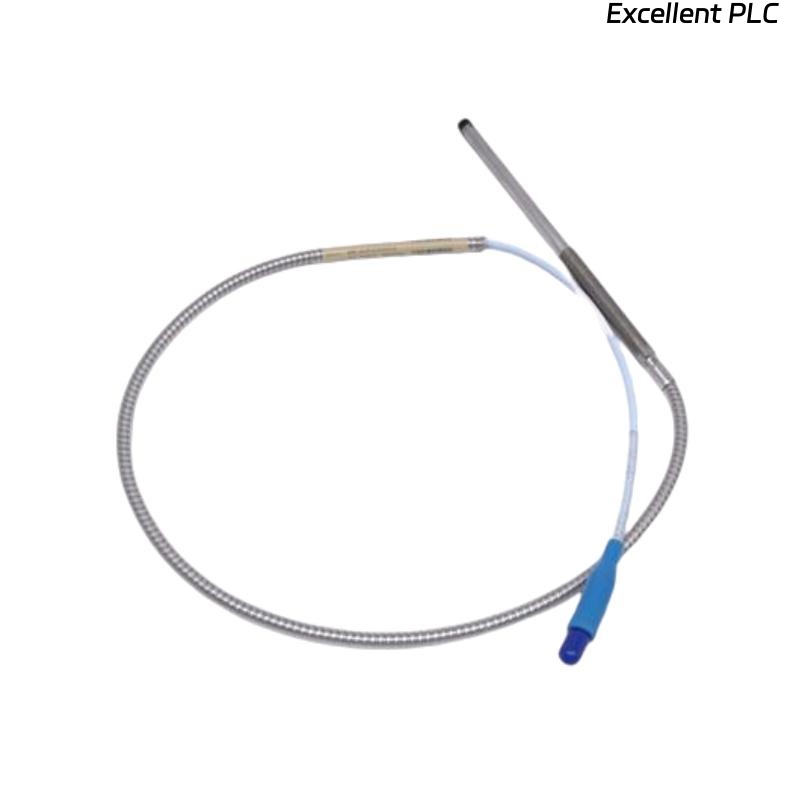

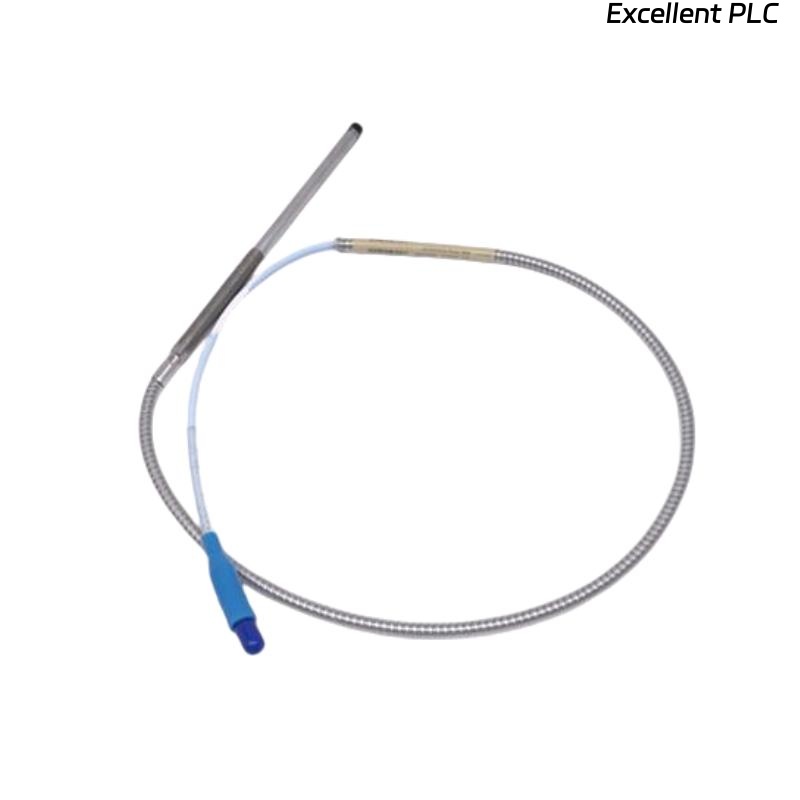

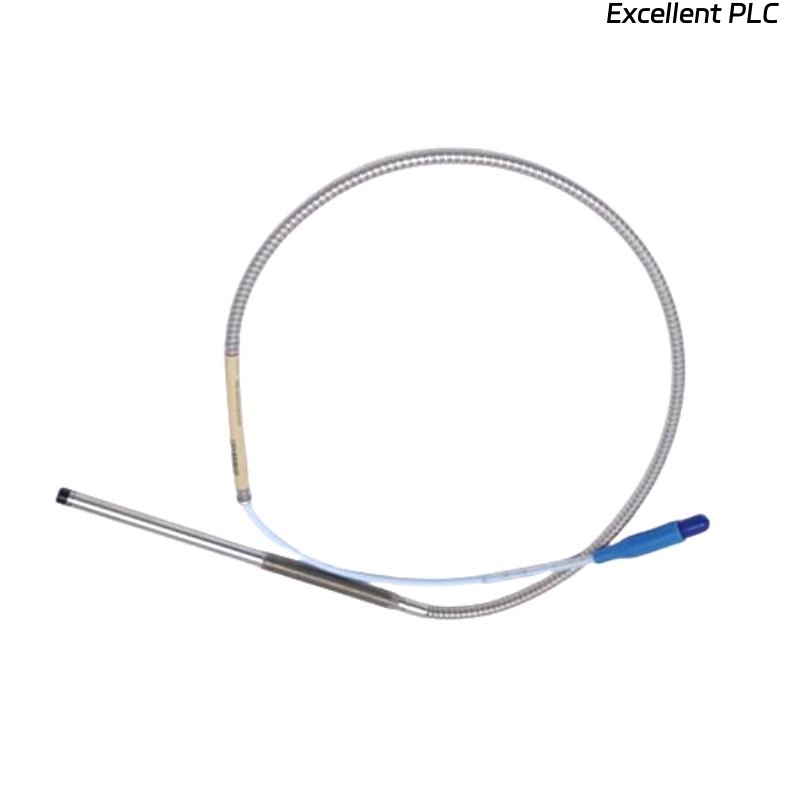

The Bently Nevada 330301-000-016-10-90-01-00 is part of the 3300 XL High Temperature Proximity System (HTPS), engineered for precise proximity measurements in high-temperature environments. This system is ideal for monitoring critical machinery components such as hot bearings, seal clearances, and thrust positions. With its robust design, the HTPS ensures reliable performance in extreme conditions, making it a preferred choice for industries like power generation and oil & gas.
Product Specifications
| Parameter | Specification |
| Model Number | 330301-000-016-10-90-01-00 |
| Thread Size | 3/4-16 UNF |
| Unthreaded Length | 0.0 inches |
| Overall Case Length | 1.6 inches (40.64 mm) |
| Hardline Cable Length | 1.0 meter (3.3 feet) |
| Total Length | 9.0 meters |
| Extension Cable Armor | Stainless steel armor |
| Agency Approvals | None required |
| Operating Temperature Range | Up to +350°C (+662°F) |
| Output Sensitivity | 3.94 V/mm (100 mV/mil) |
| Mounting Style | Smooth case with clamp-style bracket |
| Shipping Weight | 1.05 kg |
| Country of Manufacture | United States |
| Warranty | 12 months |
Applications
The 3300 XL High Temperature Probe is designed for:
-
Monitoring vibration and displacement in high-temperature zones.
-
Measuring thrust positions in turbines.
-
Assessing differential expansion in steam turbines.
-
Analyzing mode shapes in rotating machinery.
-
Monitoring seal clearances and labyrinth seals.
-
Measuring bearing housing struts in steam turbines.
-
Assessing exhaust paths in gas turbines.
Advantages
-
High-Temperature Resilience: Operates effectively in environments up to +350°C (+662°F).
-
Robust Construction: Features a thick hardline cable and stainless steel armor for durability.
-
Compatibility: Provides a standard output compatible with most Bently Nevada monitoring systems.
-
Flexible Mounting: Smooth case design with clamp-style bracket allows for easy installation without rotating the probe.
-
Reliable Performance: Ensures accurate measurements in extreme conditions, reducing the risk of machinery failure.
Frequently Asked Questions (FAQ)
-
What is the primary function of the 330301-000-016-10-90-01-00 probe?
-
It measures proximity (vibration and displacement) in high-temperature environments, ensuring machinery operates within safe parameters.
-
-
Can this probe be used in environments exceeding 350°C?
-
No, the maximum operating temperature is +350°C (+662°F). Exceeding this limit may compromise performance and safety.
-
-
Is the probe compatible with all Bently Nevada monitoring systems?
-
Yes, it provides a standard output of 3.94 V/mm (100 mV/mil), compatible with most Bently Nevada monitors.
-
-
What is the significance of the stainless steel armor?
-
It protects the extension cable from physical damage and environmental factors, enhancing durability.
-
-
How is the probe mounted?
-
It uses a smooth case design with a clamp-style bracket, allowing for easy installation without rotating the probe.
-
-
What is the total system length of this model?
-
The total system length is 9.0 meters (30 feet), including the hardline and extension cables.
-
-
Does this model have any agency approvals?
-
No, this specific configuration does not require any agency approvals.
-
-
What is the warranty period for this probe?
-
We provide one year warranty.
-
-
Where is this product manufactured?
-
It is manufactured in the United States.
-
-
Is the probe suitable for use in gas turbines?
-
Yes, it is designed for high-temperature applications, including use in gas turbines.
-
