Product Introduction

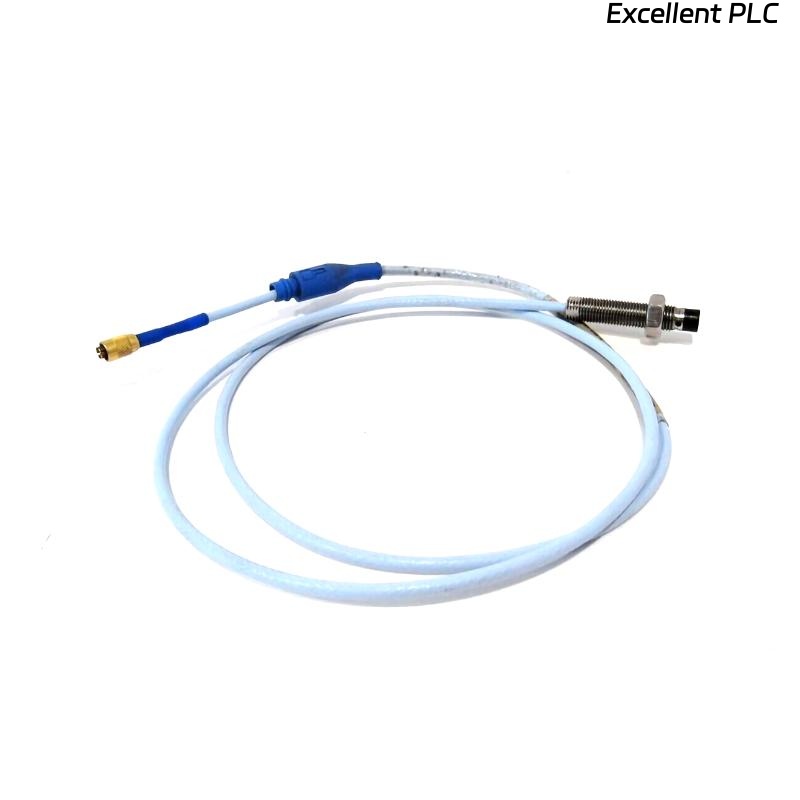

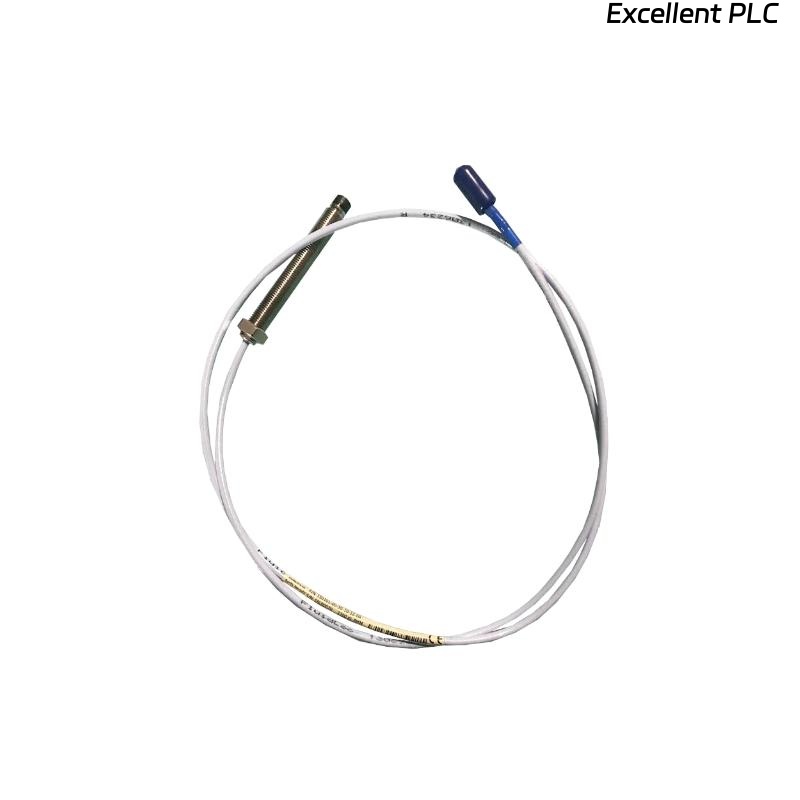

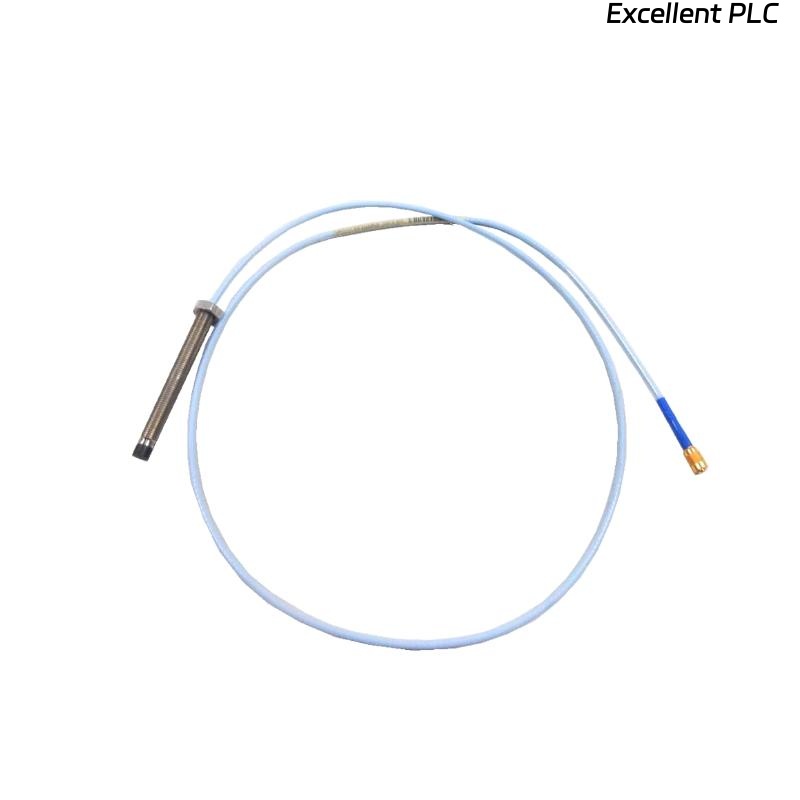

The Bently Nevada 330701-00-15-10-02-05 3300 XL 11 mm Proximity Probe is a high-precision non-contact displacement sensor specifically engineered for machinery condition monitoring and protection. Designed to detect the exact position and vibration of rotating shafts, this probe plays a vital role in predictive maintenance programs and protects critical assets such as turbines, compressors, and high-speed motors.
Utilizing advanced eddy current technology, the 3300 XL series delivers exceptional measurement accuracy and stable output even in harsh industrial environments. The probe integrates seamlessly with Bently Nevada’s 3300 XL series proximity transducer systems, ensuring reliable operation, superior signal integrity, and minimal downtime for industrial operators.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | 330701-00-15-10-02-05 |
| Series | 3300 XL 11 mm Proximity Probe |
| Measurement Principle | Eddy current non-contact displacement sensing |
| Total Length | 1.0 meter |
| Tip Diameter | 11 mm |
| Linear Range | 0 to 4 mm |
| Power Supply (via Driver) | –24 V DC typical |
| Frequency Response | 0 to 10 kHz |
| Operating Temperature | –35 °C to +180 °C |
| Storage Temperature | –50 °C to +200 °C |
| Humidity Tolerance | 95% non-condensing |
| Mounting Thread | M14 × 1.5 or equivalent |
| Output Signal | 200 mV/mil standard |
| Insulation Resistance | >10 MΩ at 500 V |
| Housing Material | Stainless steel with corrosion-resistant coating |
| Weight | 0.07 kg |
Applications
-
Turbomachinery Monitoring: Detects shaft vibration and axial position in gas and steam turbines.
-
Compressor Systems: Monitors rotor displacement for early fault detection.
-
High-Speed Motors: Provides accurate shaft vibration data to prevent mechanical failure.
-
Industrial Pumps: Tracks shaft movement for predictive maintenance.
-
Power Generation: Integral in generator and turbine vibration analysis.
-
Oil & Gas Industry: Ensures safe operation of critical rotating equipment.
Advantages
-
High Measurement Accuracy: Exceptional linearity and repeatability for precise shaft displacement data.
-
Robust Construction: Stainless steel housing and advanced insulation ensure reliability in harsh environments.
-
Wide Temperature Range: Operates from –35 °C to +180 °C for extreme industrial conditions.
-
Seamless Integration: Fully compatible with Bently Nevada 3300 XL proximity transducer systems.
-
Fast Frequency Response: Captures vibration data up to 10 kHz, critical for high-speed machinery.
-
Predictive Maintenance: Enables early fault detection to reduce downtime and maintenance costs.
-
Corrosion Resistance: Durable materials protect against oil, chemicals, and moisture.
-
Low Maintenance: Stable calibration reduces the need for frequent adjustments.
FAQ
1. What is the primary function of the 330701-00-15-10-02-05 proximity probe?
It measures the non-contact displacement and vibration of rotating machinery shafts for monitoring and protection systems.
2. What sensing technology does the probe use?
The probe employs eddy current technology to detect the distance between the probe tip and the target shaft surface.
3. What is the linear measurement range of this probe?
It provides accurate readings within a linear range of 0 to 4 mm.
4. What type of output signal does the probe deliver?
The probe generates a standard output of 200 mV/mil when paired with its matching driver.
5. What is the frequency response capability?
It supports a frequency response from 0 to 10 kHz, enabling precise vibration monitoring.
6. What are the operating temperature limits?
The probe is rated for continuous operation from –35 °C to +180 °C.
7. How is electrical insulation ensured?
It offers insulation resistance greater than 10 MΩ at 500 V to protect against electrical interference.
8. Which driver or extension cable is compatible with this probe?
It is designed for integration with Bently Nevada 3300 XL series drivers and extension cables.
9. How does the probe resist corrosion and harsh environments?
Its stainless steel housing and specialized coating provide strong protection against chemicals, oil, and moisture.
10. Can the probe be used in high-speed turbomachinery applications?
Yes, its high-frequency response and precision design make it ideal for turbines, compressors, and similar equipment.
Related Models in the Same Series
| Model | Description |
|---|---|
| 330701-00-20-10-02-05 | 3300 XL 11 mm Proximity Probe with 2.0 m total length |
| 330701-00-25-10-02-05 | 3300 XL 11 mm Proximity Probe with 5.0 m total length |
| 330701-00-12-10-02-05 | 3300 XL 11 mm Probe for compact installations |
| 330701-00-18-10-02-05 | 3300 XL 11 mm Probe with extended temperature tolerance |
| 330701-00-30-10-02-05 | 3300 XL 11 mm Probe for high-pressure environments |
| 330701-00-40-10-02-05 | 3300 XL 11 mm Probe with enhanced signal stability |
