Product Overview

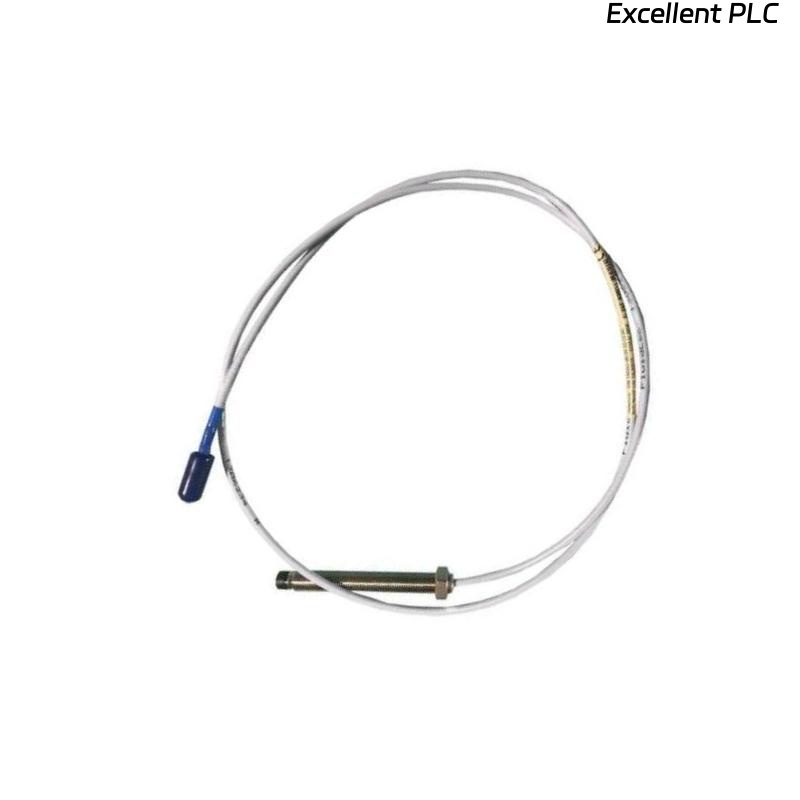

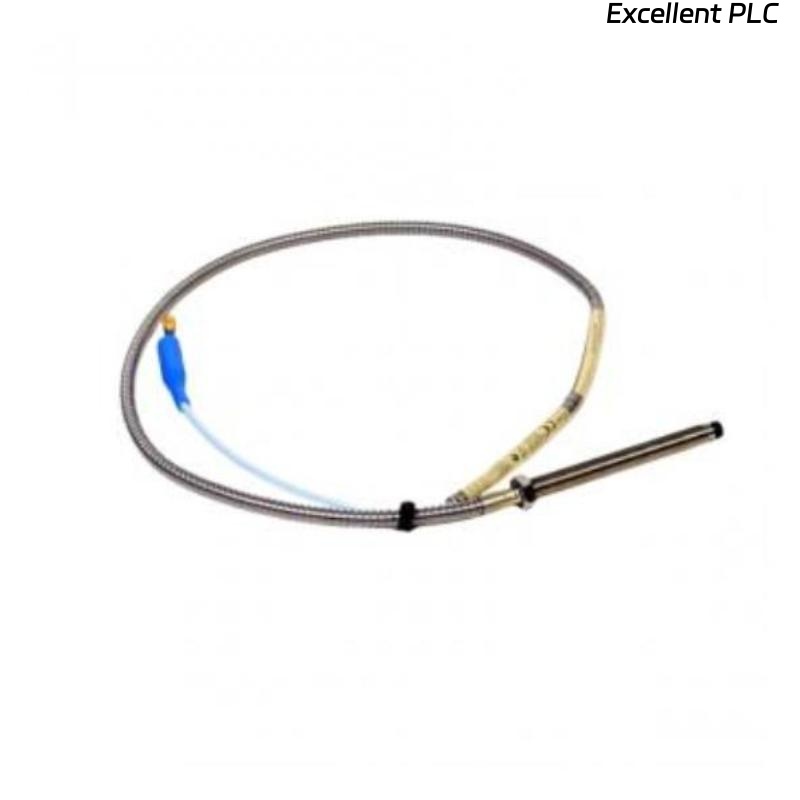

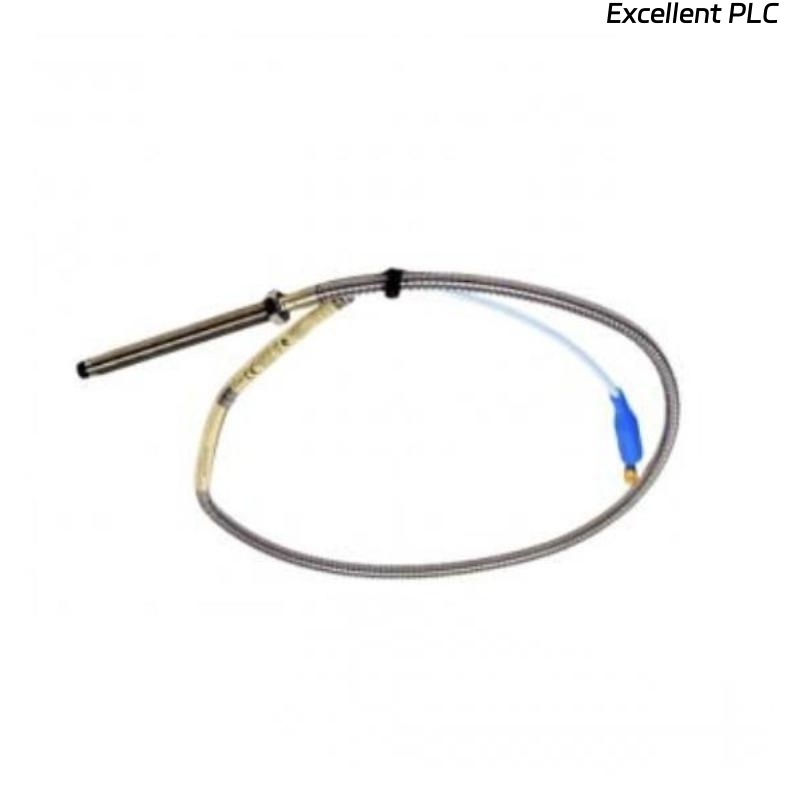

The Bently Nevada 330702-00-25-10-02-00 is a high-performance 3300 XL 11 mm Eddy-Current Probe designed for non-contact measurement of shaft vibration, displacement, and position in large rotating machinery. With its 25-meter integral cable, it offers flexible installation options for machinery monitoring systems, ensuring reliable operation in harsh industrial environments.
Key Features
-
11 mm probe tip for extended linear measurement range
-
Equipped with a 25 m integral cable for long-distance installations
-
Designed for use with Bently Nevada 3300 XL Proximitor® Sensors
-
Provides accurate and stable measurements in harsh conditions
-
Suitable for high-temperature and high-vibration industrial environments
-
Ensures long-term reliability and minimal maintenance
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330702-00-25-10-02-00 |
| Product Type | 3300 XL 11 mm Eddy-Current Probe |
| Probe Tip Diameter | 11 mm |
| Dimensions | Total Length : 1.0 meter |
| Weight | 0.17 kg |
| Probe Type | Non-contact eddy-current displacement probe |
| Linear Range | 0.5 – 4.0 mm (20 – 160 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) typical |
| Frequency Response | DC to 5 kHz |
| Temperature Range | –35 °C to +177 °C |
| Storage Temperature | –40 °C to +200 °C |
| Humidity | 0–95% RH, non-condensing |
| Compatibility | Bently Nevada 3300 XL Proximitor® Sensors |
| Applications | Shaft vibration, displacement, and position monitoring |
Industry Applications
-
Steam turbines
-
Gas turbines
-
Compressors and blowers
-
Industrial pumps
-
Generators and motors
-
Gearboxes and other rotating assets in oil & gas, power, and process industries
Frequently Asked Questions (FAQ)
Q1: What is the cable length of the 330702-00-25-10-02-00 probe?
It comes with a 25-meter integral cable.
Q2: What is the probe tip size?
This probe has an 11 mm diameter tip.
Q3: Which sensors is this probe compatible with?
It is designed to work with Bently Nevada 3300 XL Proximitor® Sensors.
Q4: What is the linear measurement range?
0.5 – 4.0 mm (20 – 160 mils).
Q5: What is the typical sensitivity?
7.87 V/mm (200 mV/mil).
Q6: What is the frequency response?
DC to 5 kHz.
Q7: Can it operate in high-temperature environments?
Yes, it can withstand –35 °C to +177 °C.
Q8: What industries commonly use this probe?
Oil & gas, power generation, and process industries with heavy rotating equipment.
