Product Introduction

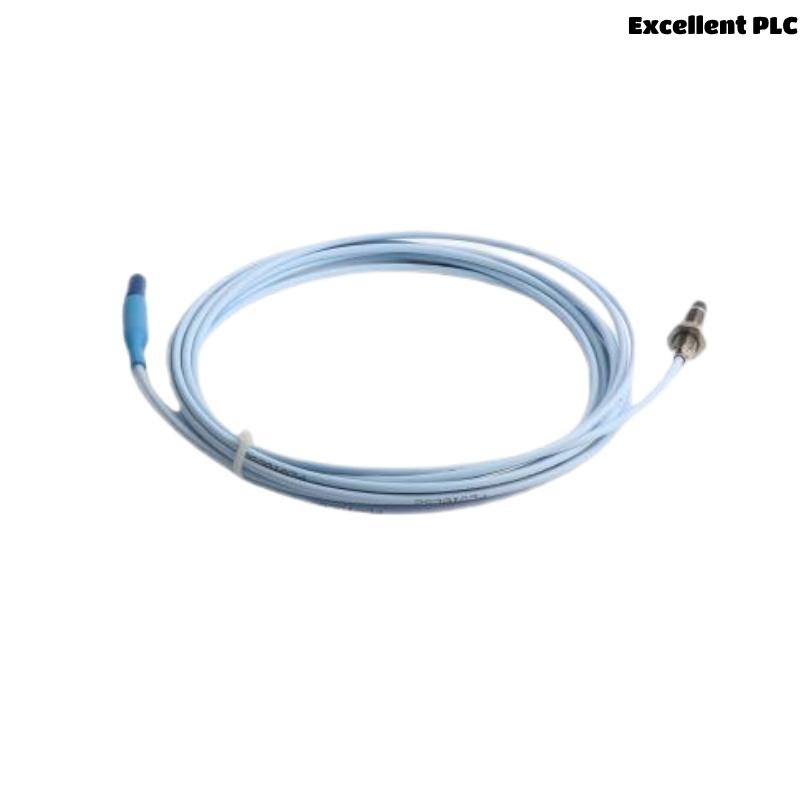

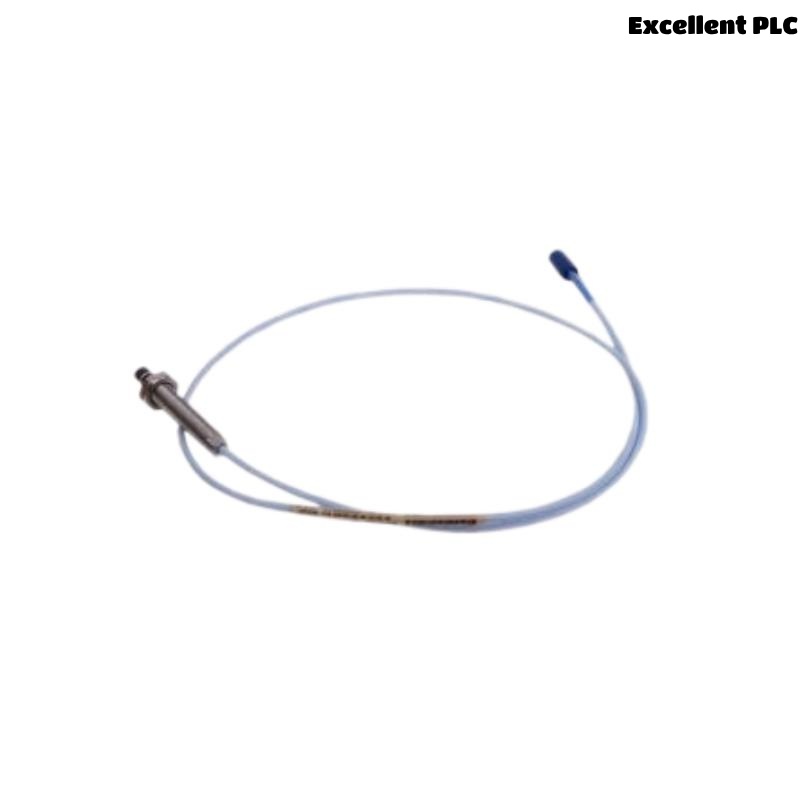

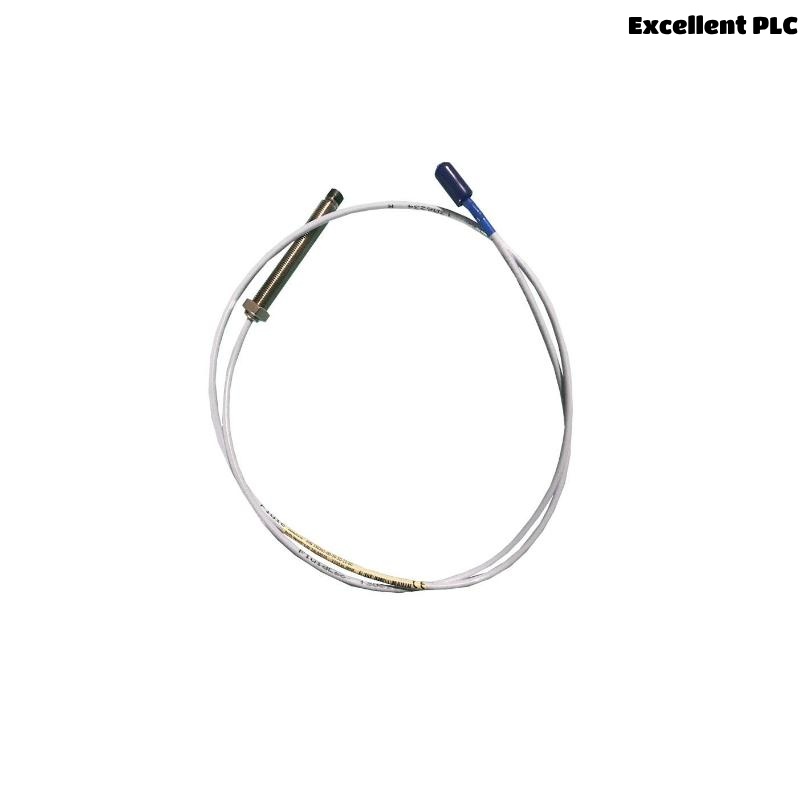

The Bently Nevada 330702-00-26-10-11-05 is part of the 3300 XL series and features an 11 mm eddy current proximity probe that provides precise and reliable measurements of shaft displacement and vibration. Designed for use in demanding industrial environments, the 3300 XL probe is built to withstand extreme conditions and deliver high performance over long periods. It uses advanced eddy current technology to offer high sensitivity, accuracy, and stability, which are essential for predictive maintenance and condition monitoring in critical rotating machinery.
The 330702-00-26-10-11-05 model is optimized for applications requiring precise monitoring of larger machinery with significant displacement or vibration. Its 11 mm sensing gap allows it to detect even the smallest changes in shaft position, enabling maintenance teams to address potential issues before they escalate into major failures. This capability reduces unscheduled downtime, improves reliability, and increases the overall efficiency of industrial equipment.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | 330702-00-26-10-11-05 |
| Product Series | Bently Nevada 3300 XL |
| Proximity Probe Type | 11 mm Eddy Current |
| Total Length | 1.0 meter |
| Weight | 0.17 kg |
| Sensing Range | 0 to 10 mm |
| Output Signal | 4–20 mA (Current Loop) |
| Operating Temperature Range | -40°C to +121°C |
| Material | Stainless Steel, Ceramic |
| Probe Tip Style | Threaded Mounting |
| Mounting Type | Axial Mounting |
| Probe Connection | 5-pin military-style connector |
| Compliance | CE, RoHS, UL |
Product Applications
The 330702-00-26-10-11-05 3300 XL 11 mm Eddy Current Probe is primarily used in applications where high precision is required to monitor displacement and vibration in rotating machinery. Some of the key industries and applications include:
-
Turbine and Compressor Monitoring: The probe is ideal for monitoring the health of turbines and compressors, which are critical to industrial processes. By detecting misalignment, excessive vibration, or shaft displacement, it helps prevent costly mechanical failures.
-
Motor and Generator Monitoring: In motor-driven systems, the 3300 XL probe helps detect early signs of wear, misalignment, or other faults, ensuring the long-term reliability of the motor and generator systems.
-
Pump Systems: The 3300 XL 11 mm probe is highly effective in detecting vibration issues in pump systems, preventing damage and improving efficiency.
-
Industrial Fan and Blower Systems: The probe is used to monitor industrial fans and blowers to detect excessive vibration or displacement, improving operational efficiency and avoiding failure.
-
Critical Machinery Monitoring: The 3300 XL probe is designed to monitor high-value equipment in power generation, oil & gas, and petrochemical industries. It offers early warning signs for mechanical failure, ensuring greater reliability and uptime.
With its advanced capabilities, the 3300 XL 11 mm probe plays a crucial role in reducing maintenance costs, extending the life of equipment, and improving overall system reliability.
Product Advantages
The 330702-00-26-10-11-05 3300 XL 11 mm Eddy Current Probe offers several distinct advantages:
-
High Accuracy and Sensitivity: The 11 mm gap provides excellent sensitivity, ensuring precise detection of shaft displacement, even in high-vibration environments.
-
Durability in Harsh Conditions: Constructed from stainless steel and ceramic, the probe is engineered to perform in demanding environments, offering long-lasting durability.
-
Wide Operating Temperature Range: The 3300 XL probe functions across a wide temperature range from -40°C to +121°C, ensuring reliability in both freezing and extremely hot conditions.
-
Minimal Drift and High Stability: The eddy current technology ensures minimal drift over time, providing stable measurements with long-term reliability and reducing the need for frequent recalibration.
-
Compact and Lightweight Design: Weighing only 0.17 kg and measuring 1 meter in length, this probe is easy to install and handle, even in tight spaces.
-
Compatibility with Condition Monitoring Systems: The probe integrates seamlessly with Bently Nevada’s condition monitoring systems, enabling a complete solution for predictive maintenance.
-
Preventive Maintenance Capabilities: By continuously monitoring displacement and vibration, the 3300 XL probe helps detect problems early, allowing for preventive maintenance and reducing the likelihood of unplanned downtime.
-
Noise Immunity: The probe is designed to resist electromagnetic interference, making it highly reliable even in environments with significant electrical noise.
These advantages make the 330702-00-26-10-11-05 3300 XL 11 mm Probe a top choice for critical machinery monitoring in various industrial applications.
Frequently Asked Questions (FAQ)
1. What technology does the 3300 XL 11 mm probe use?
The 3300 XL 11 mm probe uses eddy current technology, which enables it to detect even the smallest changes in shaft displacement without physical contact.
2. What is the total length of the 3300 XL 11 mm probe?
The total length of the 3300 XL 11 mm probe is 1.0 meter, making it suitable for a variety of industrial installations.
3. What is the weight of the 3300 XL probe?
The weight of the probe is 0.17 kg, making it lightweight and easy to install.
4. What is the sensing range of the 3300 XL probe?
The probe has a sensing range of 0 to 10 mm, ensuring precise measurements of displacement and vibration.
5. Can the 3300 XL 11 mm probe be used in high-temperature environments?
Yes, the probe operates effectively in temperatures ranging from -40°C to +121°C, making it suitable for both cold and hot industrial environments.
6. What is the output signal type for the 3300 XL probe?
The probe provides a 4–20 mA current loop output, which is compatible with a wide range of condition monitoring systems.
7. How is the 3300 XL 11 mm probe mounted?
The probe uses threaded mounting and is typically installed axially for accurate displacement measurement.
8. How does the 3300 XL 11 mm probe improve maintenance schedules?
By continuously monitoring vibration and displacement, the probe helps detect issues early, allowing for predictive maintenance and reducing unexpected downtimes.
9. Is the 3300 XL 11 mm probe resistant to electromagnetic interference?
Yes, the probe is designed with noise immunity, ensuring reliable performance even in environments with significant electrical noise.
10. What industries benefit from using the 3300 XL 11 mm probe?
Industries such as power generation, petrochemicals, oil & gas, and manufacturing benefit from the high precision and reliability of the 3300 XL 11 mm probe.
Related Models from the Same Series
| Model | Description |
|---|---|
| 330701-00-26-10-11-05 | 3300 XL 5 mm Proximity Probe with a smaller gap for more compact applications. |
| 330703-00-26-10-11-05 | 3300 XL 8 mm Proximity Probe with a standard gap for general-purpose applications. |
| 330704-00-26-10-11-05 | 3300 XL 12 mm Proximity Probe for larger equipment with greater displacement needs. |
| 330705-00-26-10-11-05 | 3300 XL 10 mm Proximity Probe for use in machines requiring moderate sensing range. |
| 330706-00-26-10-11-05 | 3300 XL 11 mm probe with enhanced protection for harsh environments. |
| 330707-00-26-10-11-05 | 3300 XL 14 mm Proximity Probe designed for equipment with higher vibration levels. |
