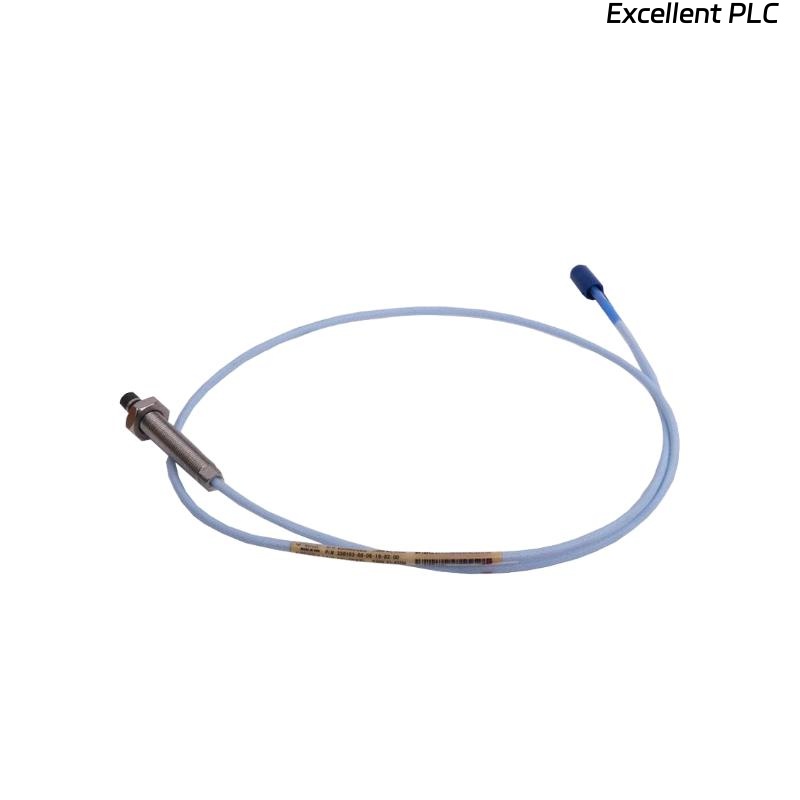

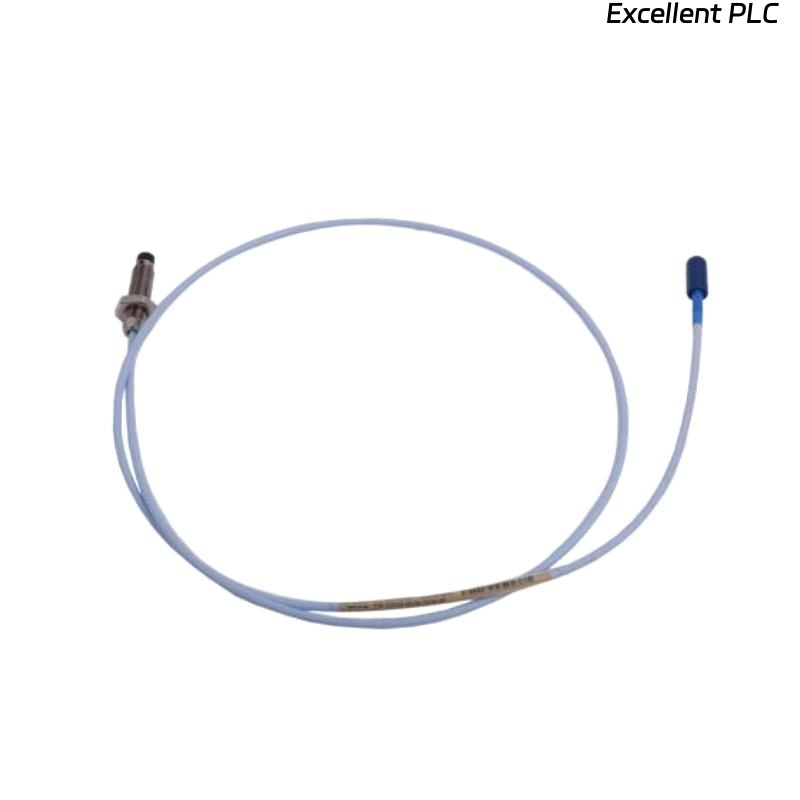

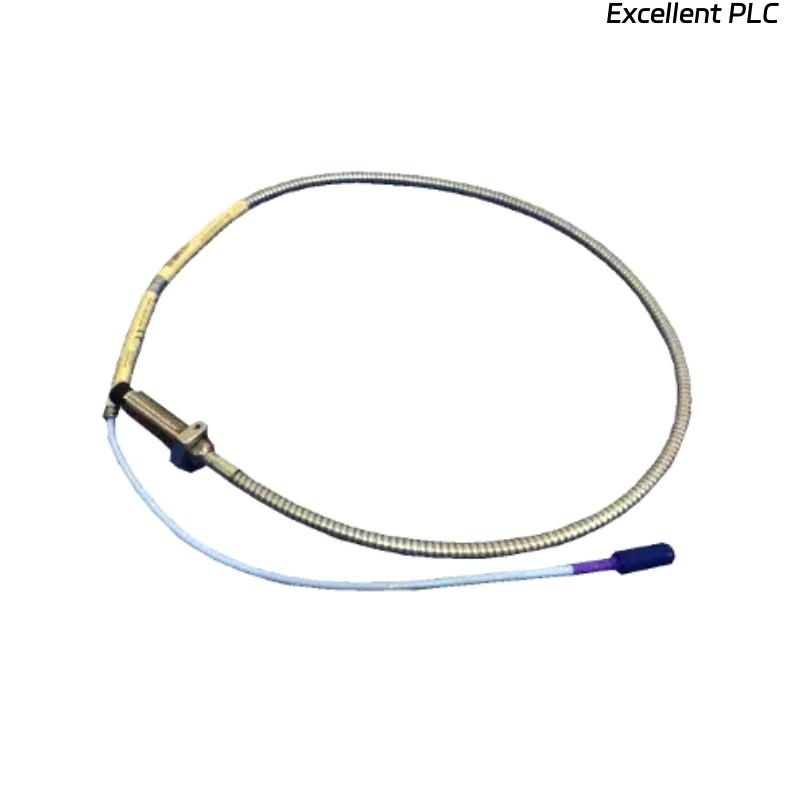

Bently Nevada 330702-20-30-10-01-05 3300 XL 11mm Proximity Probes

Product Introduction

The Bently Nevada 330702-20-30-10-01-05 3300 XL 11mm Proximity Probe is a high-precision non-contact sensor designed for accurate measurement of vibration and shaft position in industrial rotating machinery. As part of the Bently Nevada 3300 XL series, this probe is specifically engineered for applications requiring long measurement ranges and superior linearity, particularly in heavy-duty turbines, generators, compressors, and other large rotating machines.

The 330702-20-30-10-01-05 model provides precise displacement measurements by detecting the distance between the probe tip and the target surface (usually a metallic shaft). It converts this distance into an electrical signal used by monitoring systems such as the Bently Nevada 3500 Series Machinery Protection System. Its 11mm tip ensures a wider linear range than 5mm or 8mm probes, making it ideal for large shaft applications where high amplitude motion and displacement are expected.

Built with durable materials, this probe ensures excellent stability, noise immunity, and resistance to harsh industrial environments such as high temperature, vibration, and contamination. It is the trusted choice for critical condition monitoring systems across multiple industries.

---

Technical Specifications

---

Applications

The 330702-20-30-10-01-05 Proximity Probe is widely utilized in industrial condition monitoring and protection systems, where accurate displacement measurement is essential for machinery safety and performance. Its robust design and wide linear range make it suitable for a variety of demanding applications:

• Steam and Gas Turbines: For shaft vibration, axial position, and eccentricity measurement.

• Large Compressors and Pumps: To detect bearing movement and rotor instability.

• Electric Generators: For dynamic shaft displacement and casing vibration monitoring.

• Gearboxes: To monitor shaft motion and detect mechanical looseness or imbalance.

• Centrifugal Machinery: For detecting misalignment, rubs, or excessive shaft movement.

• Industrial Process Equipment: For predictive maintenance and early fault detection.

This probe is integral to critical asset protection systems, ensuring reliable operation of high-value machinery and minimizing downtime through precise diagnostics.

---

Product Advantages

The Bently Nevada 330702-20-30-10-01-05 offers several advantages that make it a preferred choice in advanced industrial monitoring systems:

• Extended Linear Range: The 11mm probe tip provides a greater measurement range suitable for large shaft diameters and wide dynamic movement.

• High Accuracy: Factory-calibrated for precise displacement readings, ensuring consistent performance over time.

• Superior Environmental Resistance: Designed for harsh conditions with resistance to temperature extremes, oil, and contaminants.

• Low Electrical Noise: The coaxial low-noise cable minimizes signal interference for accurate measurements.

• Seamless System Integration: Fully compatible with 3300 XL Proximitor Sensors and Bently Nevada monitoring systems.

• Mechanical Durability: Rugged stainless steel body and ceramic tip provide long-term reliability even under high vibration.

• Stable Temperature Performance: Maintains calibration and sensitivity across the full operating temperature range.

• High Signal Fidelity: Ensures accurate real-time data for vibration and position analysis in dynamic environments.

• Ease of Installation: Compact threaded design allows quick mounting in tight spaces.

• Proven Reliability: Based on Bently Nevada’s field-proven 3300 XL design used worldwide in critical rotating machinery.

---

FAQ

1. What is the sensitivity of the 330702-20-30-10-01-05 probe?
   The system provides a sensitivity of 100 mV/mil (3.94 mV/μm), consistent across its linear range.

2. Is this probe compatible with non-XL Proximitor sensors?
   It is designed specifically for use with 3300 XL Proximitor Sensors; older sensors may not provide accurate results.

3. What type of materials can the probe detect?
   It detects conductive metallic targets, typically steel rotor shafts.

4. Can this probe be used in high-temperature zones?
   Yes, it operates reliably up to +177°C (351°F).

5. How is the probe calibrated?
   Each probe is factory-calibrated to match its corresponding Proximitor and cable assembly for optimal accuracy.

6. What is the frequency response capability of this probe?
   It can accurately measure vibrations up to 10 kHz mechanical frequency.

7. What installation options are available?
   The probe can be installed using a threaded sleeve, mounting bracket, or epoxy mount depending on the application.

8. How does the probe maintain linearity over distance?
   The 11mm tip design and precise signal conditioning ensure excellent linearity across its full displacement range.

9. Is the probe immune to electromagnetic interference (EMI)?
   Yes, it features dual shielding in the coaxial cable to minimize EMI and radio frequency interference.

10. Can the probe be used in high-vibration environments?
    Absolutely. The rugged stainless-steel housing and robust internal design allow stable operation under strong mechanical vibration.

---
