Product Introduction

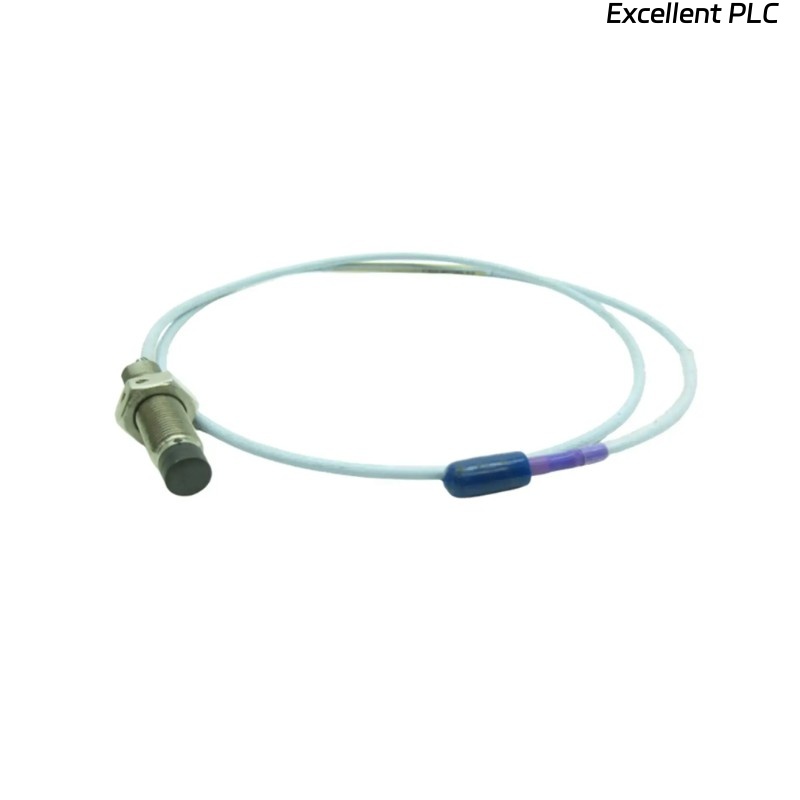

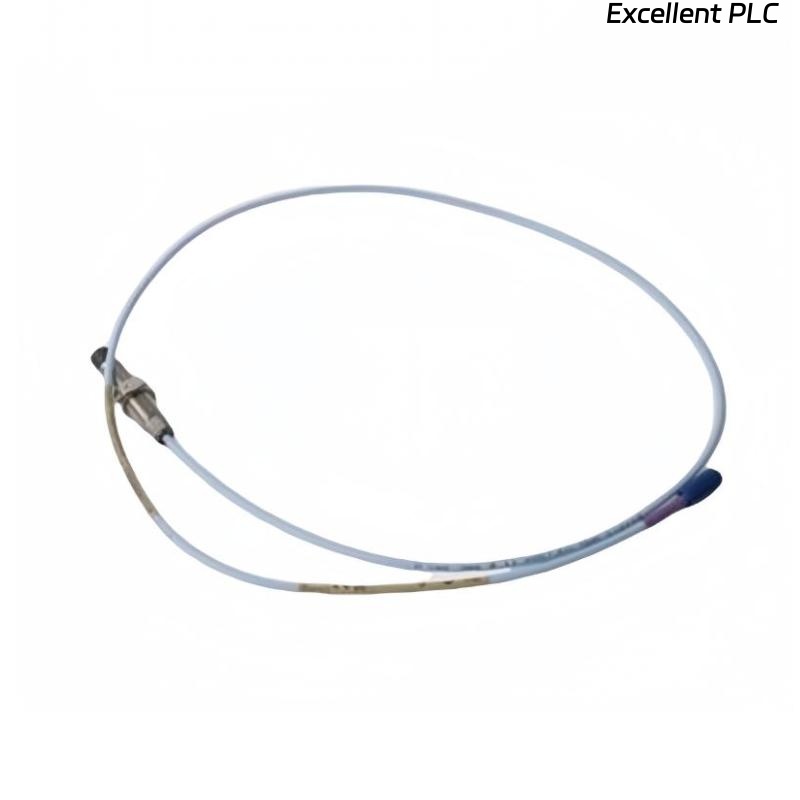

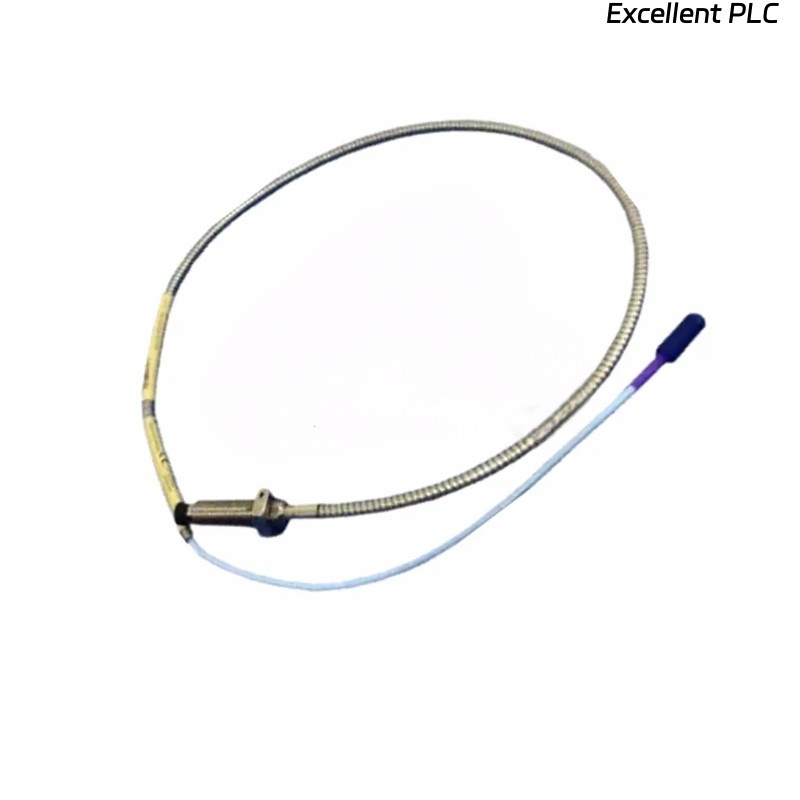

The Bently Nevada 330703-000-040-10-01-00 is a high-precision sensor cable designed for use with the 3300 XL machinery protection system. Engineered to ensure reliable signal transmission in industrial environments, this cable maintains the integrity of vibration and displacement measurements from proximity probes to monitoring devices. The construction of the cable emphasizes durability, resistance to electromagnetic interference, and ease of installation in complex machinery systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330703-000-040-10-01-00 |
| Type | Sensor Extension Cable |
| Compatible System | Bently Nevada 3300 XL Machinery Protection System |
| Total Length | 1 m |
| Weight | 0.255 kg |
| Connector Type | Standard 3300 XL-compatible connectors |
| Temperature Rating | -40°C to 85°C (-40°F to 185°F) |
| Shielding | Braided shield for EMI/RFI protection |
| Conductors | Multi-stranded copper for optimal signal integrity |
| Environmental Rating | Industrial grade, resistant to oils and chemicals |
Product Applications
-
Turbine vibration monitoring in power plants
-
Compressor protection systems in oil & gas industries
-
Generator shaft displacement measurement
-
Pumps and motors in industrial process plants
-
Any machinery requiring integration with Bently Nevada 3300 XL sensors
Product Advantages
-
Reliable Signal Integrity: Optimized for 3300 XL sensors to minimize signal degradation.
-
EMI/RFI Resistance: Braided shielding protects against electromagnetic and radio-frequency interference.
-
Industrial Durability: Resistant to oils, chemicals, and temperature extremes for robust industrial usage.
-
Ease of Installation: Standard connectors and flexible cable design simplify setup and replacement.
-
Consistent Performance: Maintains high-fidelity sensor readings under harsh operational conditions.
FAQ
Q1: What types of sensors are compatible with this cable?
A1: It is compatible with all Bently Nevada 3300 XL proximity probes and vibration transducers.
Q2: Can this cable be extended beyond its 1-meter length?
A2: Extensions are possible, but total cable length should be kept within manufacturer-recommended limits to avoid signal attenuation.
Q3: Is the cable shielded?
A3: Yes, the cable has a braided shield to minimize EMI/RFI interference.
Q4: What is the operating temperature range?
A4: The cable is rated for -40°C to 85°C (-40°F to 185°F).
Q5: Can it be used outdoors?
A5: Yes, it can withstand outdoor industrial environments but should not be submerged.
Q6: What type of connectors are used?
A6: Standard Bently Nevada 3300 XL-compatible connectors, ensuring secure and reliable connection.
Q7: Is this cable suitable for high-vibration environments?
A7: Yes, it is specifically designed to maintain signal integrity in rotating machinery applications.
Q8: How is the cable grounded?
A8: The braided shield should be connected to a suitable ground point at one end to prevent ground loops.
Q9: Can this cable carry both AC and DC signals?
A9: Yes, it is designed to transmit low-voltage AC or DC signals from sensors to monitoring equipment.
Q10: Is there any special installation procedure?
A10: Avoid sharp bends and excessive pulling; maintain bend radius recommended by the manufacturer to ensure performance.
Related / Same-Series Models
| Model Number | Description | Length |
|---|---|---|
| 330703-000-040-10-02-00 | Sensor Extension Cable | 2 m |
| 330703-000-040-10-05-00 | Sensor Extension Cable | 5 m |
| 330703-000-040-10-10-00 | Sensor Extension Cable | 10 m |
| 330703-000-040-10-20-00 | Sensor Extension Cable | 20 m |
| 330703-000-040-10-50-00 | Sensor Extension Cable | 50 m |
| 330703-000-040-10-100-00 | Sensor Extension Cable | 100 m |
