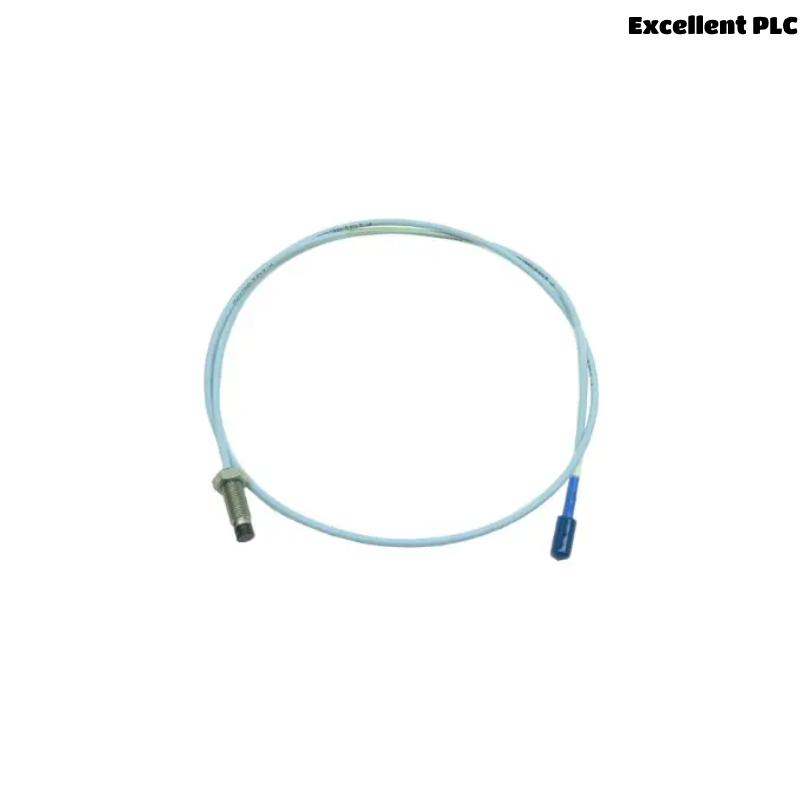

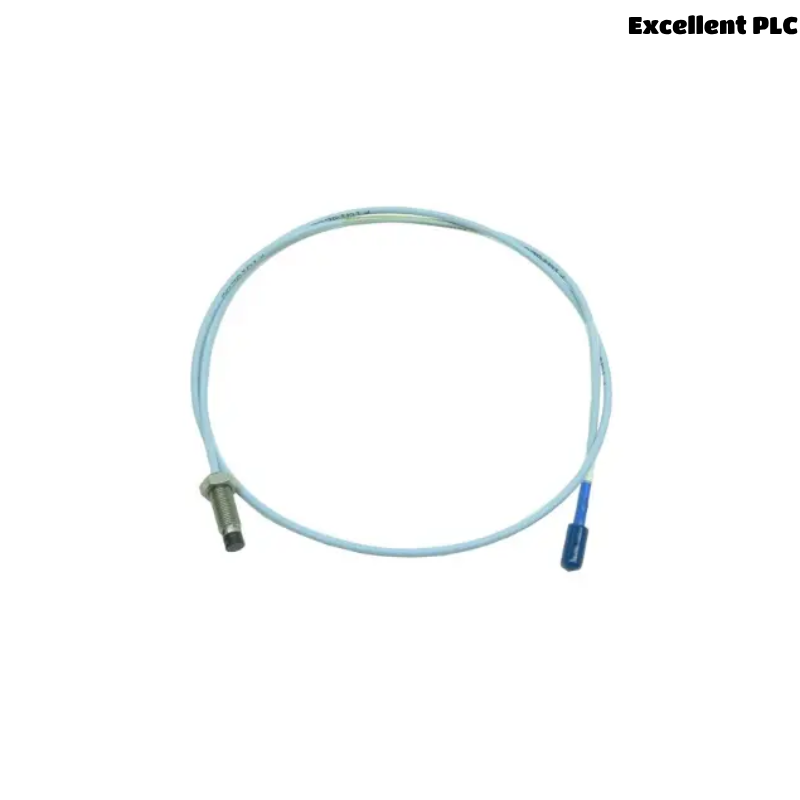

Bently Nevada 330703-000-040-10-02-00 Product Overview
The Bently Nevada 330703-000-040-10-02-00 is a high-performance vibration monitoring module designed for critical machinery protection and condition monitoring. This module is part of the Bently Nevada 3300 Series, renowned for its reliability and precision in industrial applications. It is widely used in industries such as oil & gas, power generation, and manufacturing to ensure the safe and efficient operation of rotating equipment.
Product Parameters
The table below outlines the key technical specifications of the Bently Nevada 330703-000-040-10-02-00:
| Parameter | Specification |
|---|---|
| Model Number | 330703-000-040-10-02-00 |
| Input Channels | 2 (Dual-channel vibration monitoring) |
| Input Signal Type | Accelerometer or Velocity Sensor |
| Frequency Range | 10 Hz to 1 kHz (configurable) |
| Dynamic Range | 0 to 20 in/s (peak) or equivalent |
| Output Signals | 4-20 mA, Alarm Relays, RS-485/Modbus |
| Power Supply | 18-30 VDC |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Enclosure Rating | IP66 (Dust and Water Resistant) |
| Cable length | 1 m |
| Weight | 0.255kg |
| Certifications | ATEX, IECEx, SIL 2 (Optional) |
Product Applications
The Bently Nevada 330703-000-040-10-02-00 is designed for:
-
Gas & Steam Turbines: Monitors blade passing frequencies and rotor imbalances.
-
Compressors & Pumps: Detects misalignment, bearing wear, and cavitation.
-
Electric Motors & Generators: Identifies eccentricity and stator faults.
-
Fans & Blowers: Tracks vibration levels to prevent catastrophic failures.
-
Marine & Offshore Equipment: Ensures reliability in harsh environments.
Product Advantages
-
High Accuracy: Precision sensors and advanced algorithms for reliable data.
-
Robust Construction: IP66-rated enclosure for harsh industrial environments.
-
Flexible Integration: Supports multiple communication protocols (4-20 mA, Modbus).
-
Easy Configuration: User-friendly interface for quick setup and calibration.
-
Compliance: Meets ATEX and SIL 2 standards for hazardous areas.
-
Low Maintenance: Solid-state design with no moving parts for longevity.
Frequently Asked Questions (FAQ)
-
What is the operating voltage range of this module?
-
It operates on 18-30 VDC.
-
-
Can this module be used in explosive atmospheres?
-
Yes, it is ATEX and IECEx certified for hazardous areas.
-
-
What types of sensors are compatible?
-
It supports accelerometers and velocity sensors.
-
-
How many alarm relays does it have?
-
It includes two programmable alarm relays per channel.
-
-
Is the module SIL compliant?
-
Yes, it meets SIL 2 safety standards.
-
-
What is the frequency range for vibration monitoring?
-
The range is 10 Hz to 1 kHz.
-
-
Can it communicate with PLCs or DCS systems?
-
Yes, it supports RS-485/Modbus for integration.
-
-
What is the weight of the module?
-
It weighs 0.255kg.
-
-
Is the enclosure weatherproof?
-
Yes, it has an IP66 rating for dust and water resistance.
-
-
How do I configure the alarm thresholds?
-
Thresholds are set via software or front-panel controls.
-
