Product Introduction

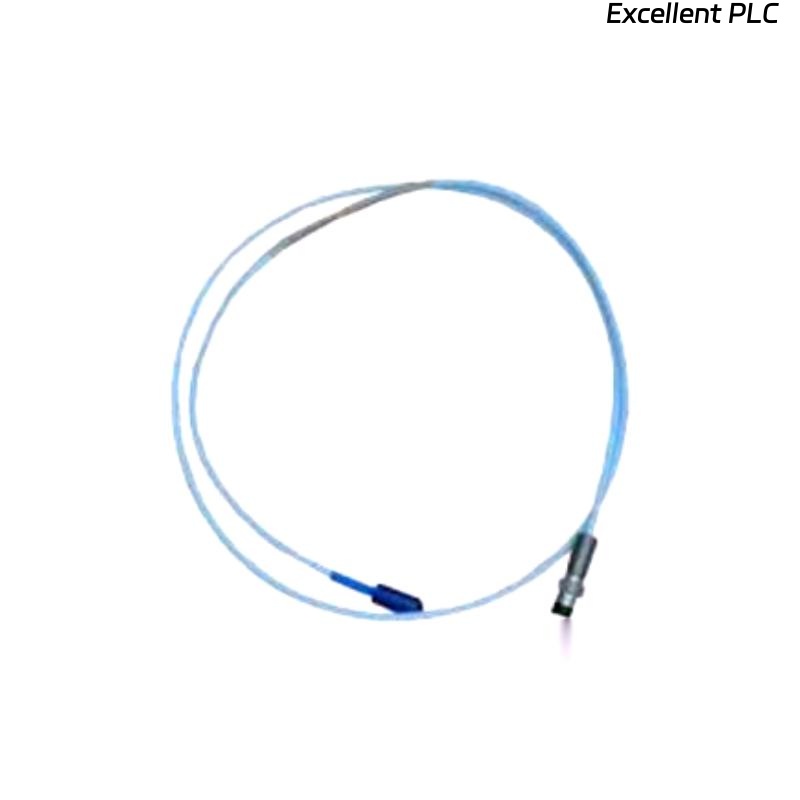

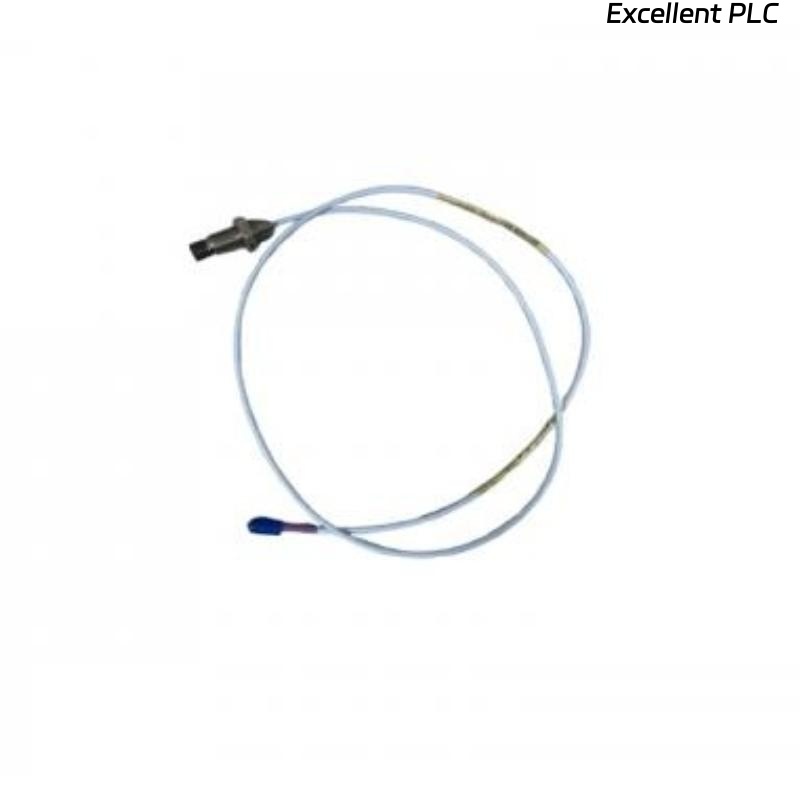

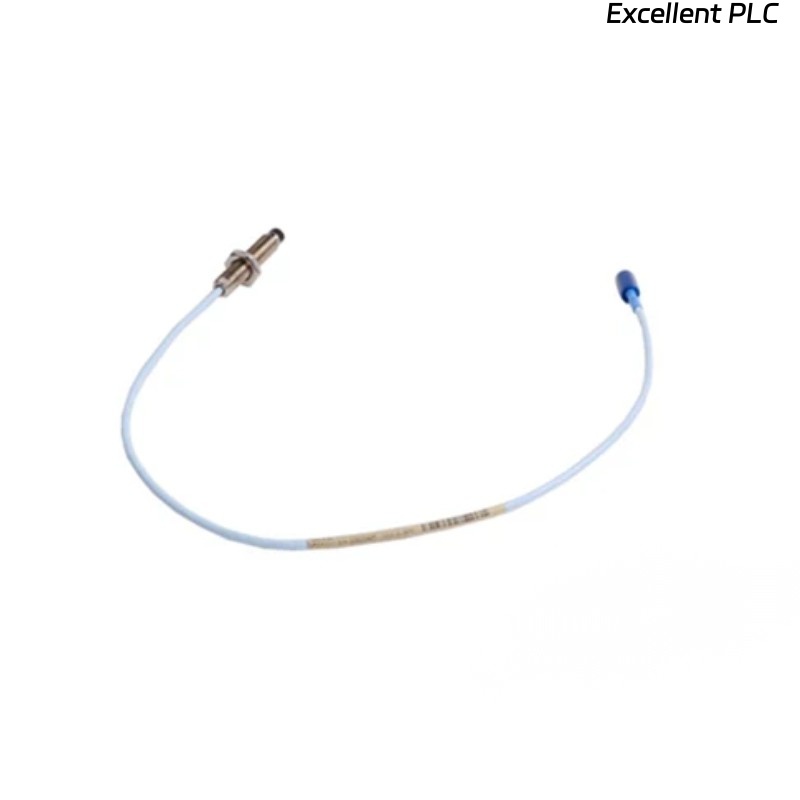

The Bently Nevada 330703-000-040-10-11-00 and 330703-000-040-10-01-00 are high-precision extension cables designed for the 3300 XL vibration monitoring system. These cables provide reliable signal transmission between proximity probes and monitoring modules, ensuring accurate machinery condition monitoring in critical industrial environments. Built with high-quality materials and robust connectors, they are optimized for industrial applications where reliability and signal integrity are paramount.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Numbers | 330703-000-040-10-11-00, 330703-000-040-10-01-00 |
| Cable Type | Coaxial Extension Cable |
| Total Length | 1 m |
| Weight | 0.255 kg |
| Connector Type | LEMO or equivalent, depending on variant |
| Operating Temperature | -40°C to 85°C |
| Voltage Rating | 300 V |
| Signal Type | AC for proximity probes |
| Shielding | Double shielded for EMI/RFI protection |
| Compliance | ISO 9001, CE |
Applications
-
Connecting 3300 XL proximity probes to monitoring modules.
-
Facilitating accurate rotor vibration and position monitoring in turbines, compressors, and generators.
-
Ensuring reliable signal transmission in high-noise industrial environments.
-
Supporting condition-based maintenance programs.
Advantages
-
High Signal Integrity: Double-shielded design reduces electromagnetic interference and ensures accurate readings.
-
Robust Construction: Designed for harsh industrial environments, resistant to temperature variations and mechanical stress.
-
Compatibility: Directly compatible with Bently Nevada 3300 XL series sensors and modules.
-
Ease of Installation: Standard connectors and flexible cabling simplify installation in confined or complex spaces.
-
Maintenance-Friendly: Modular design allows easy replacement without system downtime.
FAQ
Q1: Are these cables compatible with all 3300 XL proximity probes?
A1: Yes, both variants are fully compatible with all standard 3300 XL proximity probes.
Q2: What is the maximum recommended distance for signal transmission?
A2: For optimal performance, use the cable lengths as specified by the 3300 XL system; exceeding recommended lengths may degrade signal quality.
Q3: Can these cables be used in explosive environments?
A3: Yes, provided they are installed according to hazardous area regulations and the connected devices are certified for such use.
Q4: How does the shielding protect against EMI/RFI?
A4: The double-shielded design minimizes electromagnetic and radio frequency interference, preserving signal fidelity.
Q5: Are the connectors interchangeable between the two models?
A5: No, each model has a specific connector type; verify the connector compatibility before installation.
Q6: Can the cable be routed alongside power cables?
A6: Yes, but maintain recommended separation distances to prevent electromagnetic interference.
Q7: What type of maintenance is required?
A7: Periodically inspect connectors and cable integrity; ensure connections are secure. No other routine maintenance is necessary.
Q8: Can these cables handle high-frequency probe signals?
A8: Yes, they are designed to support the frequency range used by the 3300 XL vibration monitoring probes.
Q9: Is there a recommended installation orientation?
A9: Cables can be routed in any orientation, but avoid sharp bends to maintain signal integrity.
Q10: Are these cables resistant to chemical exposure?
A10: The cable materials are resistant to common industrial oils and chemicals, but avoid prolonged exposure to highly aggressive substances.
Related Models
| Model Number | Description |
|---|---|
| 330703-000-040-10-12-00 | 1 m extension cable with alternative connector |
| 330703-000-040-10-13-00 | 2 m extension cable variant |
| 330703-000-040-10-14-00 | Shielded extension cable with LEMO connectors |
| 330703-000-040-10-15-00 | 3 m extension cable for XL probes |
| 330703-000-040-10-16-00 | High-temperature variant |
| 330703-000-040-10-17-00 | Coaxial extension with reinforced shielding |
