Product Overview

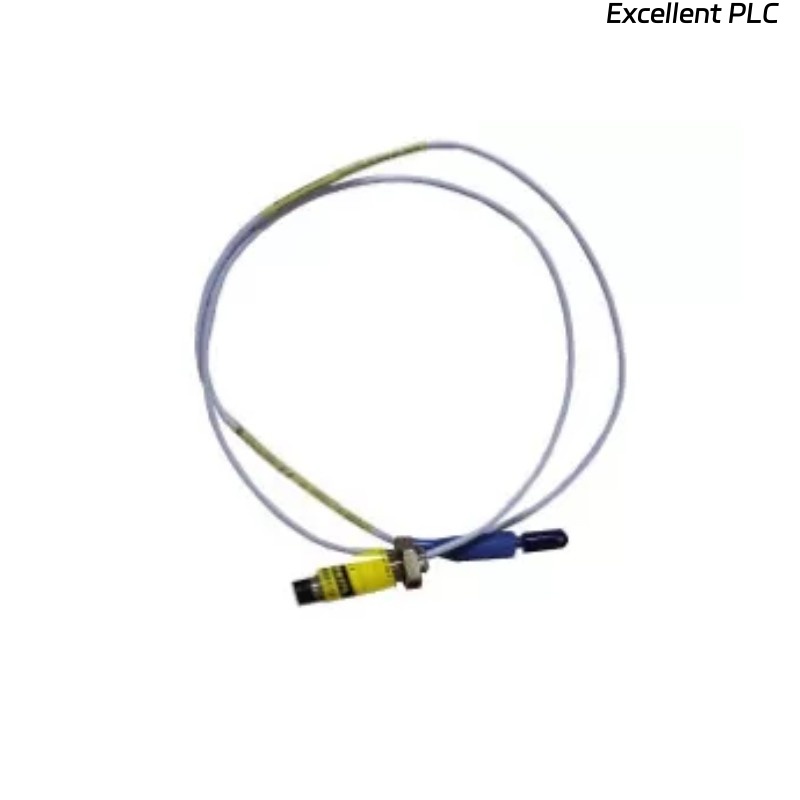

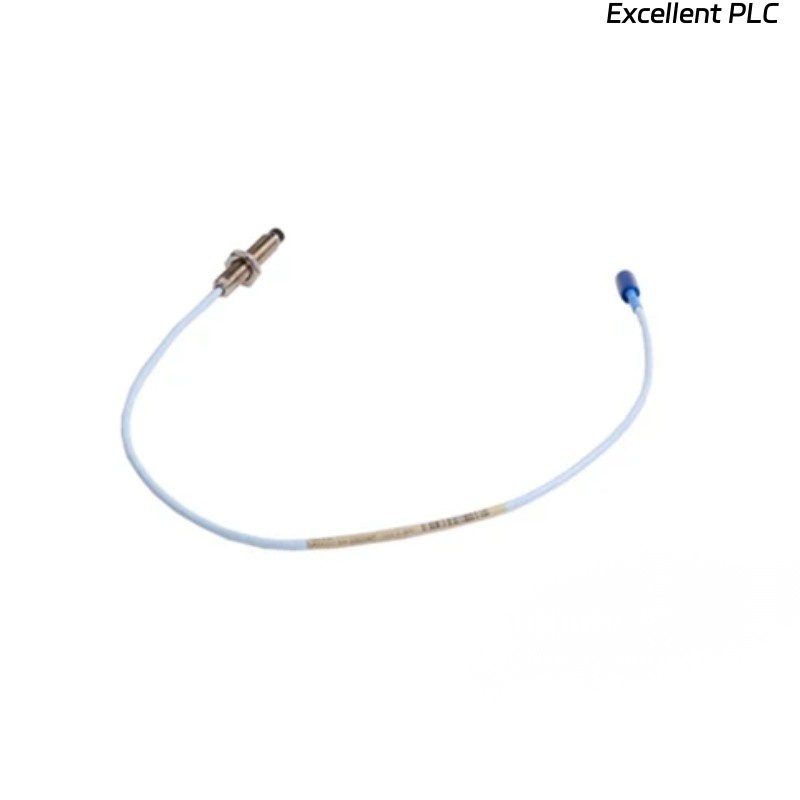

The 3300 XL 11 mm Proximity Probe is a high-performance sensor designed for accurate vibration and position monitoring in critical industrial applications. This probe is typically used in machinery monitoring systems to measure shaft displacement and other mechanical movements in rotating equipment.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 3300 XL 11 mm Proximity Probe |
| Total Length | 1 m |
| Weight | 0.07 kg |
| Operating Temperature | -40°C to +120°C |
| Frequency Range | 1 Hz to 30 kHz |
| Probe Tip Material | Stainless Steel |
| Cable Length | Customizable |
| Output Type | 4-20 mA or 0-10 V |
| Mounting Type | 11 mm, threaded |
Applications
-
Turbine Monitoring: Used to measure shaft position in turbines to prevent mechanical failure.
-
Pump & Motor Monitoring: Detects changes in the alignment or displacement of rotating equipment.
-
Compressor Monitoring: Provides critical data on the position of compressor shafts, ensuring efficient operation.
-
Power Generation: Used to monitor critical components such as turbine shafts, ensuring early detection of any mechanical issues.
-
Oil and Gas Industry: Ideal for high-pressure, high-vibration environments, ensuring that vital machinery operates smoothly.
Advantages
-
Precision: Offers highly accurate measurements, enabling real-time monitoring and predictive maintenance.
-
Durability: Built with robust materials that withstand harsh environments, including extreme temperatures and vibrations.
-
Easy Integration: Compatible with a wide range of monitoring systems, ensuring ease of use in various setups.
-
Long-Lasting Performance: Designed to provide long-term reliability, reducing maintenance and downtime.
-
Wide Frequency Range: The ability to monitor both low and high frequencies makes it adaptable to various machinery types.
FAQ
1. What is the maximum operating temperature of the 3300 XL 11 mm Proximity Probe?
-
The maximum operating temperature is 120°C.
2. Can the 3300 XL proximity probe be used in hazardous environments?
-
Yes, it is suitable for use in harsh industrial environments such as turbines, compressors, and motors.
3. How do you connect the probe to the monitoring system?
-
The probe can be connected to the monitoring system via standard cables, supporting 4-20 mA or 0-10 V output types.
4. What type of output does this proximity probe provide?
-
It provides either a 4-20 mA or 0-10 V output for easy integration into vibration and position monitoring systems.
5. Is this proximity probe suitable for measuring shaft displacement?
-
Yes, it is specifically designed to measure the displacement of rotating shafts in various types of machinery.
6. What is the probe’s frequency range?
-
The 3300 XL probe operates within a frequency range of 1 Hz to 30 kHz, making it versatile for a range of industrial applications.
7. How does the 3300 XL probe perform in high-vibration environments?
-
The probe is engineered to withstand high levels of vibration, ensuring accurate measurements even in challenging conditions.
8. Is the probe adjustable?
-
Yes, the probe is available with adjustable cable lengths, allowing for custom installation based on specific application needs.
9. Can this probe be used for turbine vibration monitoring?
-
Yes, it is widely used in turbine monitoring systems to track shaft position and vibration levels.
10. What materials are used in the construction of the 3300 XL probe?
-
The probe tip is made of stainless steel, ensuring durability and corrosion resistance.
Recommended Models from the Same Series
| Model | Total Length | Weight | Output Type |
|---|---|---|---|
| 3300 XL 11 mm Probe | 1 m | 0.07 kg | 4-20 mA / 0-10 V |
| 3300 XL 8 mm Probe | 1 m | 0.065 kg | 4-20 mA / 0-10 V |
| 3300 XL 5 mm Probe | 1 m | 0.06 kg | 4-20 mA / 0-10 V |
| 3300 XL 11 mm Probe | 2 m | 0.13 kg | 4-20 mA / 0-10 V |
| 3300 XL Extension Probe | 1 m | 0.07 kg | 4-20 mA / 0-10 V |
| 3300 XL High Temperature Probe | 1 m | 0.07 kg | 4-20 mA / 0-10 V |
