Product Introduction

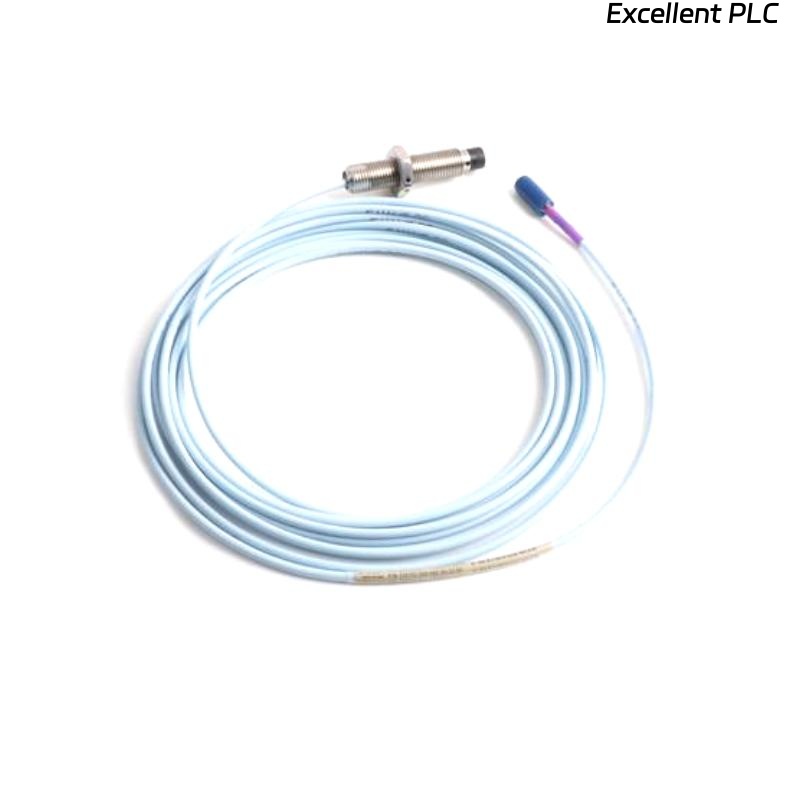

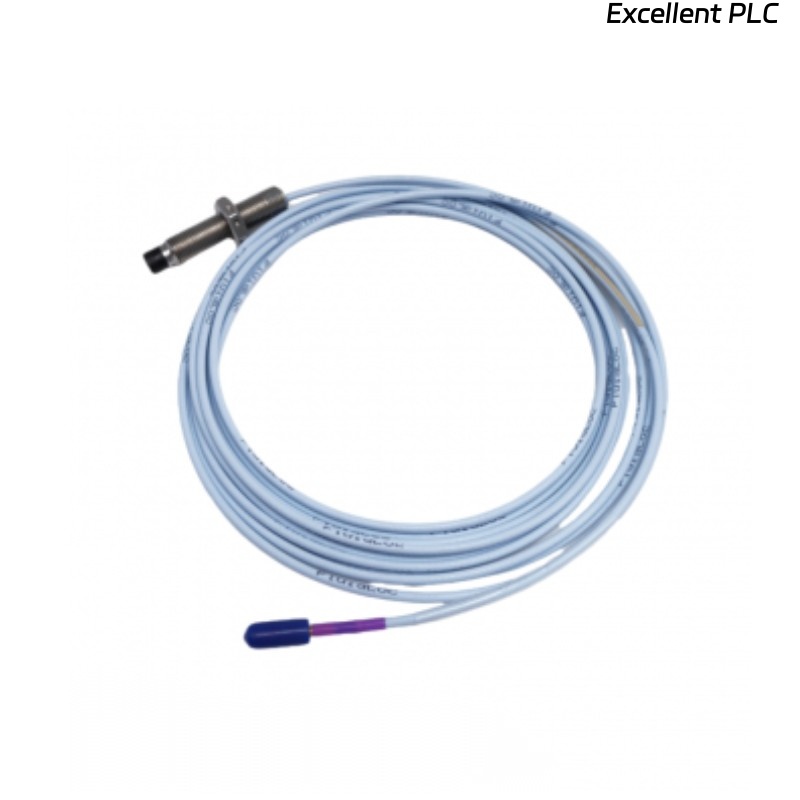

The 3300 XL 11 mm Proximity Probe is a precision measuring device designed to monitor the position or displacement of rotating machinery components in industrial environments. This probe is part of the renowned 3300 XL series by Bently Nevada, widely recognized for its robust performance in harsh operating conditions. The probe offers highly accurate proximity measurement to detect potential mechanical issues early, making it essential for predictive maintenance in industries such as power generation, oil and gas, and manufacturing.
Product Specifications
| Specification | Value |
|---|---|
| Model Number | 330703-000-050-50-02-00 |
| Probe Type | 11 mm Proximity Probe |
| Total Length | 5 m |
| Weight | 0.35 kg |
| Sensing Type | Proximity (Inductive) |
| Operating Temperature | -40°C to 85°C |
| Operating Voltage | 20-30 VDC |
| Cable Type | 3-wire shielded |
| Mounting Type | Threaded |
| Sensor Material | Stainless Steel |
Product Applications
-
Rotating Machinery Monitoring: To monitor the condition of shafts, gears, and bearings.
-
Vibration Monitoring: Used as part of a vibration monitoring system to detect faults in machinery.
-
Predictive Maintenance: Helps to forecast potential failures before they occur, reducing downtime and maintenance costs.
-
Turbine and Generator Monitoring: Often used in power plants to ensure the reliability of turbines and generators.
-
Compressor and Pump Monitoring: Ensures the proper functioning of compressors and pumps in critical systems.
Product Advantages
-
High Accuracy: Provides precise displacement measurements, allowing for early detection of machine misalignment and wear.
-
Durable: Designed for harsh industrial environments, it withstands high temperatures, vibrations, and corrosive conditions.
-
Easy Installation: Threaded mounting and simple electrical connections make installation quick and easy.
-
Long-Lasting: Stainless steel construction ensures durability and resistance to wear.
-
Versatile: Suitable for a wide range of machinery monitoring applications.
-
Cost-Effective: Helps extend the life of machinery and reduces the need for costly repairs by providing early fault detection.
FAQ
Q1: How accurate is the 3300 XL 11 mm Proximity Probe?
A1: The 3300 XL Proximity Probe offers highly accurate displacement measurements with a resolution of up to 0.001 mm, ensuring precise monitoring of machinery components.
Q2: What is the operating temperature range of this probe?
A2: The probe operates within a temperature range of -40°C to 85°C, making it suitable for a variety of industrial environments.
Q3: Can this probe be used in hazardous locations?
A3: Yes, the 3300 XL Proximity Probe is suitable for use in hazardous environments, as it is certified for use in potentially explosive atmospheres.
Q4: What type of cable is used with this probe?
A4: The probe uses a 3-wire shielded cable, ensuring stable signal transmission and protection against electromagnetic interference.
Q5: How do I install the 3300 XL Proximity Probe?
A5: The probe can be easily installed by threading it into a compatible mounting point on the machine. It requires simple electrical connections for operation.
Q6: Is the probe resistant to vibration?
A6: Yes, the probe is designed to perform reliably under high-vibration conditions, making it ideal for rotating machinery monitoring.
Q7: What is the probe’s voltage range?
A7: The probe operates within a voltage range of 20-30 VDC, making it compatible with most industrial systems.
Q8: How do I calibrate the 3300 XL Proximity Probe?
A8: Calibration can be done using the associated monitoring system or through the software provided by Bently Nevada, ensuring accurate measurements.
Q9: Can the probe be used for condition monitoring of bearings?
A9: Yes, the 3300 XL Proximity Probe is commonly used for monitoring bearing conditions, allowing for early detection of issues like misalignment or wear.
Q10: Does the 3300 XL Proximity Probe require regular maintenance?
A10: The probe requires minimal maintenance. Regular checks and cleaning are recommended to ensure optimal performance, especially in harsh conditions.
Recommended Related Models
| Model Number | Description | Key Features |
|---|---|---|
| 330703-000-050-50-02-01 | 3300 XL 11 mm Proximity Probe with 1 m Cable | Shorter cable length, similar specs |
| 330703-000-050-50-02-03 | 3300 XL 11 mm Proximity Probe with 10 m Cable | Extended cable length for larger setups |
| 330702-000-050-50-02-00 | 3300 XL 5 mm Proximity Probe | Smaller probe for finer measurements |
| 330703-000-051-50-02-00 | 3300 XL 11 mm Proximity Probe (Extended) | Enhanced version with better resolution |
| 330703-000-050-50-02-06 | 3300 XL 11 mm Proximity Probe with 6 m Cable | Medium cable length for flexible setups |
| 330701-000-050-50-02-00 | 3300 XL 5 mm Proximity Probe (High-Temp) | High temperature range for extreme conditions |
