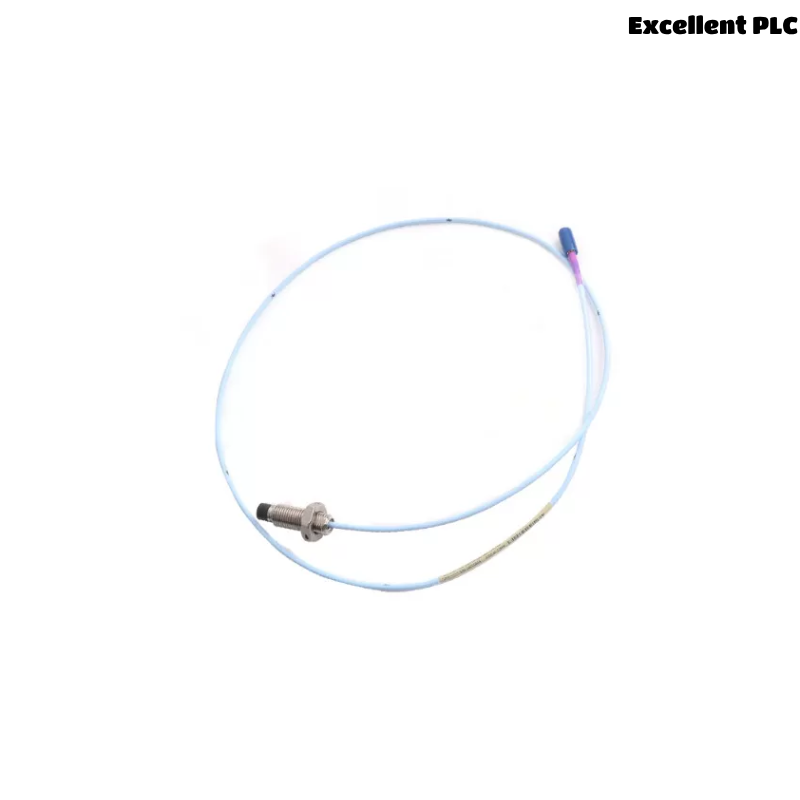

Bently Nevada 330703-000-070-10-02-00 Product Introduction
The Bently Nevada 330703-000-070-10-02-00 is a high-performance vibration monitoring sensor designed for industrial applications. This product is part of the Bently Nevada 3300 series, renowned for its reliability and precision in machinery condition monitoring. It is commonly used in critical rotating equipment such as turbines, compressors, and pumps to detect vibration and ensure operational safety. The sensor provides accurate measurements, enabling early fault detection and preventive maintenance.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | 330703-000-070-10-02-00 |
| Type | Proximity Vibration Sensor |
| Measurement Range | 0 to 10 mm (peak-to-peak) |
| Frequency Response | 0.5 to 10,000 Hz |
| Output Signal | -4 to -20 VDC (linear with gap) |
| Operating Temperature | -40°C to +120°C |
| Power Supply | Typically 18-24 VDC |
| Cable length | 1 m |
| Weight | 0.255kg |
| Housing Material | Stainless Steel |
| Connector Type | Integral cable or threaded connector |
Product Applications
The Bently Nevada 330703-000-070-10-02-00 is widely used in industries where machinery health monitoring is critical. Key applications include:
-
Power Generation: Monitoring turbines and generators for vibration anomalies.
-
Oil & Gas: Ensuring the reliability of compressors, pumps, and pipelines.
-
Chemical Processing: Safeguarding rotating equipment in harsh environments.
-
Manufacturing: Detecting imbalances or misalignments in heavy machinery.
-
Water Treatment: Monitoring pumps and motors to prevent failures.
Product Advantages
-
High Accuracy: Provides precise vibration measurements for early fault detection.
-
Durability: Constructed with stainless steel for resistance to corrosion and harsh conditions.
-
Wide Temperature Range: Operates reliably in extreme temperatures (-40°C to +120°C).
-
Easy Installation: Compact design and standardized connectors simplify setup.
-
Compatibility: Integrates seamlessly with Bently Nevada monitoring systems.
-
Low Maintenance: Robust design reduces the need for frequent servicing.
Frequently Asked Questions (FAQ)
-
What is the operating voltage range for this sensor?
The sensor typically operates on 18-24 VDC. -
Can this sensor be used in hazardous environments?
Yes, it is designed to withstand harsh industrial conditions, but verify certifications for specific hazardous areas. -
What is the expected lifespan of the sensor?
With proper maintenance, the sensor can last 5-10 years or more. -
How do I calibrate the sensor?
Calibration requires specialized equipment and should be performed by trained personnel. -
Is the sensor compatible with third-party monitoring systems?
It is optimized for Bently Nevada systems but may work with others if signal requirements match. -
What is the maximum vibration range it can measure?
The range is 0 to 10 mm peak-to-peak. -
Does the sensor require regular maintenance?
Minimal maintenance is needed, but periodic checks are recommended. -
Can it measure both radial and axial vibration?
This model is primarily for radial vibration; axial measurement may require additional sensors. -
What is the output signal type?
It provides a -4 to -20 VDC output proportional to the gap. -
How long is the warranty period?
The standard warranty is 1 years, subject to proper usage and conditions.
Recommended Similar or Related Models
| Model Number | Description |
|---|---|
| 330703-000-050-10-02-00 | Proximity sensor with 5 mm measurement range |
| 330703-000-100-10-02-00 | Proximity sensor with 10 mm measurement range |
| 330701-000-070-10-02-00 | Vibration sensor with extended temperature range |
| 330705-000-070-10-02-00 | High-frequency vibration sensor |
| 330702-000-070-10-02-00 | Compact design for space-constrained applications |
| 330704-000-070-10-02-00 | Explosion-proof variant for hazardous areas |
