Proximity Probe Overview

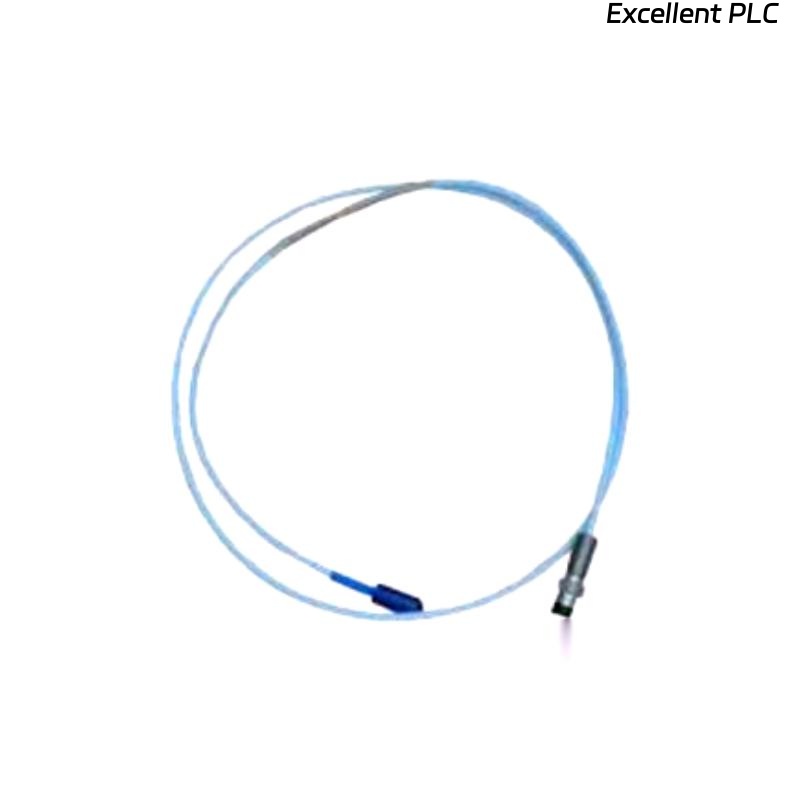

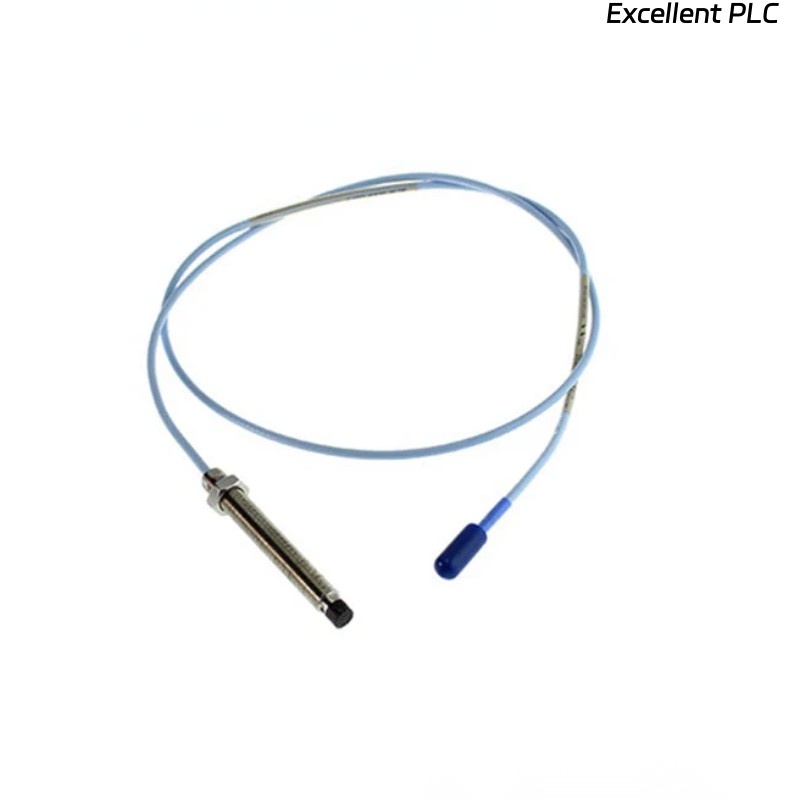

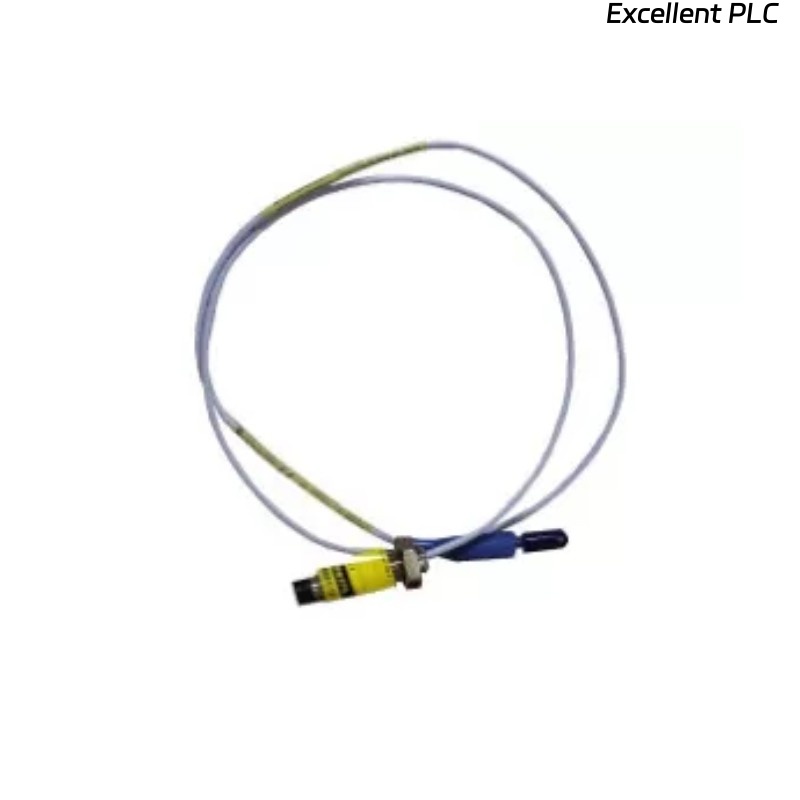

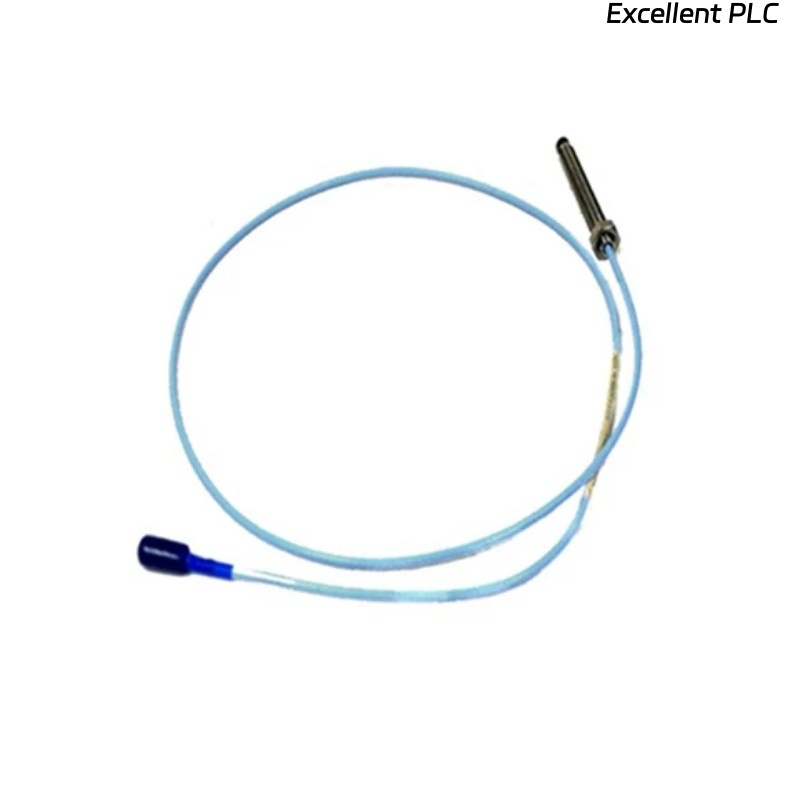

The Bently Nevada 330704-000-050-10-01-05 is a high-precision 11 mm proximity probe designed for industrial applications, particularly in machinery monitoring and vibration measurement systems. As part of the 3300 XL series, it offers exceptional reliability, accuracy, and durability, making it suitable for monitoring critical rotating machinery in demanding environments.
Product Specifications
| Parameter | Value |
|---|---|
| Model Number | 330704-000-050-10-01-05 |
| Probe Type | 11 mm Proximity Probe |
| Total Length | 1 m |
| Weight | 0.07 kg |
| Mounting Style | Flush mount |
| Material | Stainless Steel |
| Operating Temperature | -40°C to 121°C |
| Vibration Range | ±250 mils peak-to-peak |
| Output Type | 4-20 mA |
| Sensing Range | 0.2 to 50 mils (5.08 to 1.27 mm) |
Product Applications
-
Power Generation: Monitoring turbines, generators, and pumps.
-
Oil & Gas: Vibration and position measurement of critical machinery.
-
Manufacturing: For monitoring bearings and shafts in large motors.
-
Mining: Measuring vibrations in large rotating equipment.
-
Chemical Processing: Vibration analysis in critical reactor vessels and compressors.
Product Advantages
-
Precision and Accuracy: Provides highly accurate vibration measurements with a sensing range of 0.2 to 50 mils.
-
Durability: The robust stainless-steel construction ensures reliability even in harsh industrial environments.
-
Temperature Tolerance: The wide operating temperature range (-40°C to 121°C) makes it ideal for extreme conditions.
-
Cost-Effective: Reduces downtime and improves maintenance scheduling, resulting in cost savings.
-
Easy Integration: The probe integrates seamlessly with Bently Nevada’s monitoring systems, allowing for a cohesive machinery health solution.
FAQ
Q1: What is the sensing range of the 3300 XL proximity probe?
A1: The sensing range of the 3300 XL proximity probe is between 0.2 and 50 mils (5.08 mm to 1.27 mm).
Q2: Can the 3300 XL probe be used for non-rotating equipment?
A2: The 3300 XL proximity probe is optimized for rotating machinery, but it can be adapted for certain non-rotating equipment with suitable configurations.
Q3: Is the 3300 XL probe compatible with all vibration monitoring systems?
A3: Yes, the probe is compatible with a wide range of Bently Nevada vibration monitoring systems, including the 3500 series.
Q4: What is the output signal type of the 3300 XL probe?
A4: The 3300 XL probe outputs a 4-20 mA signal, which is commonly used for vibration and displacement monitoring.
Q5: How should the probe be mounted?
A5: The 3300 XL probe should be mounted flush with the machine surface to ensure accurate readings. The mounting style is typically through a threaded hole or with a mounting bracket.
Q6: What is the typical application of this probe in power plants?
A6: In power plants, the 3300 XL proximity probe is commonly used for monitoring turbines, generators, and pumps, where precise vibration measurement is critical.
Q7: Can this probe withstand extreme temperatures?
A7: Yes, the 3300 XL proximity probe operates effectively within a temperature range of -40°C to 121°C, making it suitable for many industrial applications.
Q8: What is the material construction of the probe?
A8: The 3300 XL probe is constructed from high-quality stainless steel for durability and resistance to corrosion in harsh environments.
Q9: Can the probe be used for shaft displacement measurement?
A9: Yes, the 3300 XL probe is commonly used for shaft displacement measurements in rotating machinery, ensuring proper alignment and operation.
Q10: How does this probe reduce maintenance costs?
A10: The 3300 XL probe helps to predict equipment failures by continuously monitoring vibration levels, which allows for scheduled maintenance and minimizes unexpected downtime.
Recommended Models from the Same Series
| Model Number | Description | Sensing Range | Weight | Length |
|---|---|---|---|---|
| 330704-000-050-10-01-06 | 3300 XL 11 mm Proximity Probe | 0.2 to 50 mils (5.08 mm to 1.27 mm) | 0.07 kg | 1 m |
| 330704-000-050-10-01-07 | 3300 XL 11 mm Proximity Probe | 0.2 to 50 mils (5.08 mm to 1.27 mm) | 0.07 kg | 1.5 m |
| 330704-000-050-10-01-08 | 3300 XL 11 mm Proximity Probe | 0.2 to 50 mils (5.08 mm to 1.27 mm) | 0.07 kg | 2 m |
| 330704-000-100-10-01-05 | 3300 XL 100 mm Proximity Probe | 0.2 to 100 mils (5.08 mm to 2.54 mm) | 0.15 kg | 1 m |
| 330704-000-050-10-02-05 | 3300 XL 11 mm Proximity Probe | 0.2 to 50 mils (5.08 mm to 1.27 mm) | 0.07 kg | 1 m |
| 330704-000-150-10-01-05 | 3300 XL 150 mm Proximity Probe | 0.2 to 150 mils (5.08 mm to 3.81 mm) | 0.2 kg | 1 m |
