Product Overview

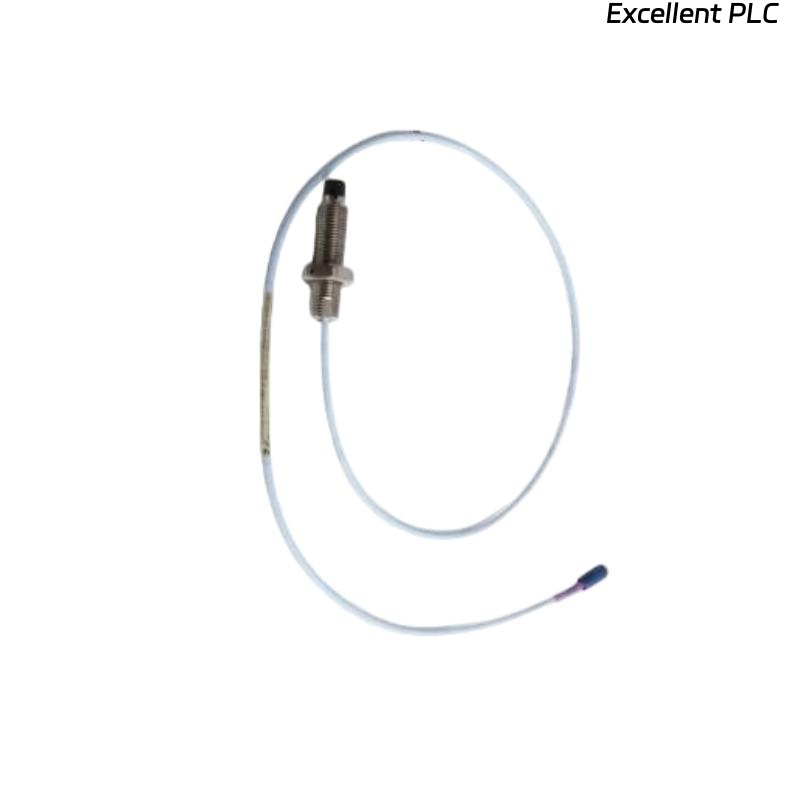

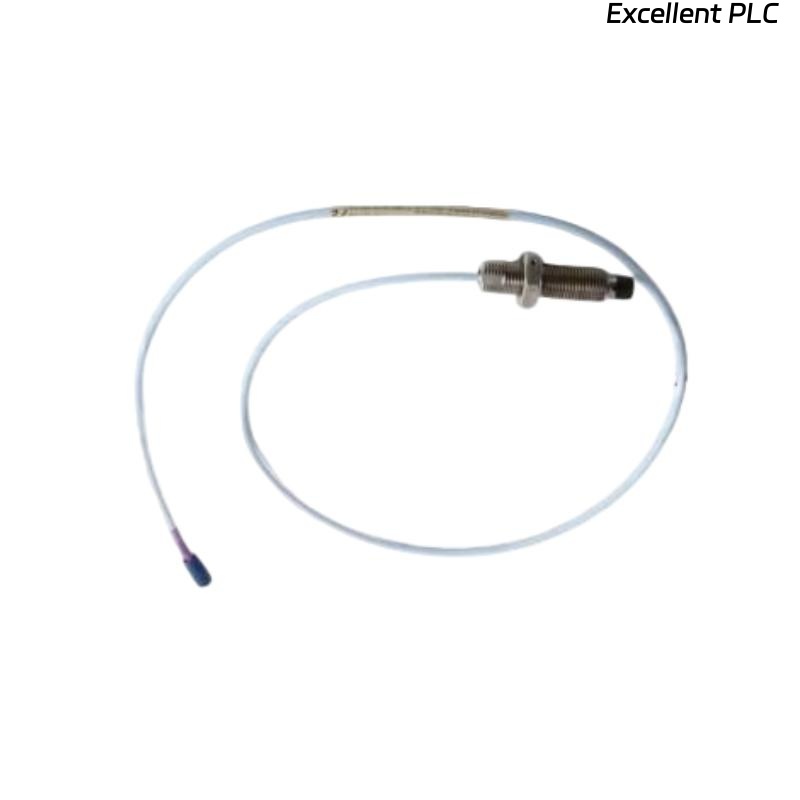

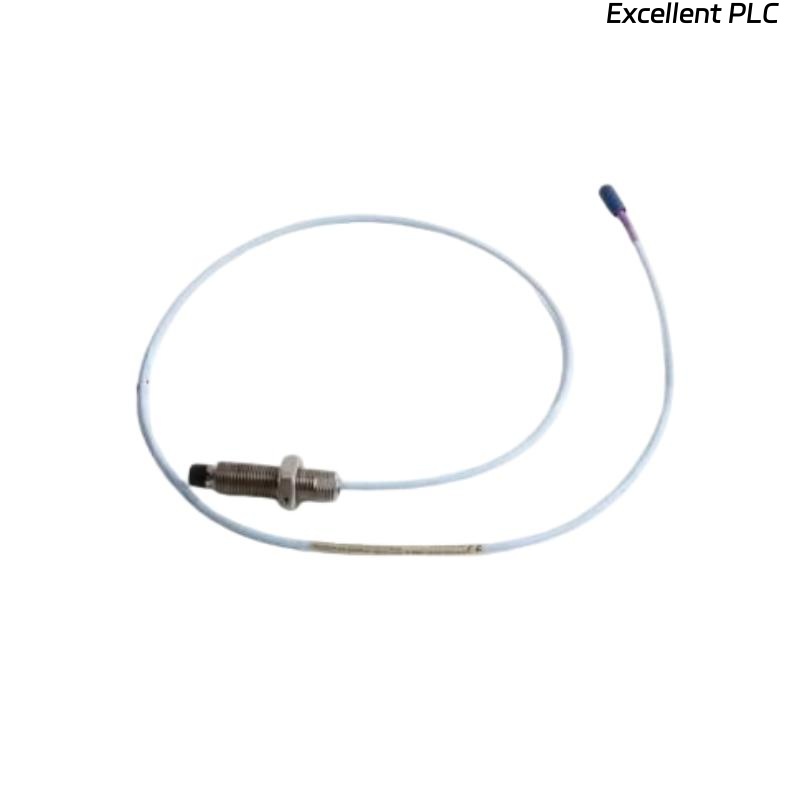

The Bently Nevada 330704-000-050-10-02-00 3300 XL 11 mm Proximity Probe is a high-precision sensor designed for shaft vibration and position monitoring in industrial machinery. Its 11 mm probe diameter and robust design make it ideal for medium to large machinery, including turbines, compressors, and generators. The probe ensures accurate, reliable measurements and is compatible with the 3300 XL monitoring system for long-term condition monitoring and protection.
Key Features
-
Accurate shaft vibration and position measurement
-
Compatible with 3300 XL proximity transducer systems
-
Durable and resistant to oil, dust, and industrial contaminants
-
Provides real-time analog signal output
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330704-000-050-10-02-00 |
| Product Type | 3300 XL Proximity Probe |
| Dimensions | Total Length : 1.0 meter |
| Weight | 0.17 kg |
| Measurement Range | 0–1.0 mm (0–40 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) typical |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | –35 °C to +177 °C |
| Storage Temperature | –40 °C to +200 °C |
| Humidity | 0–95% RH, non-condensing |
| Mounting | Threaded sleeve installation |
| Applications | Shaft vibration, position monitoring, and machinery protection |
Industry Applications
-
Steam and gas turbines
-
Compressors and pumps
-
Electric motors and generators
-
Gearboxes and rotating machinery
-
Oil, gas, and power generation industries
-
Condition-based monitoring systems
Frequently Asked Questions (FAQ)
Q1: What is the primary use of the 330704-000-050-10-02-00 probe?
It measures shaft vibration and position in medium to large machinery.
Q2: Which system is it compatible with?
It works with the Bently Nevada 3300 XL proximity transducer system.
Q3: What is the probe size?
11 mm diameter with a 50 mm probe length.
Q4: What is the operating temperature range?
–35 °C to +177 °C.
Q5: Can it be used in harsh industrial environments?
Yes, it is resistant to oil, dust, and industrial contaminants.
Q6: What is the linear measurement range?
0–1.0 mm (0–40 mils).
Q7: What type of signal does it output?
It provides an analog voltage proportional to shaft vibration and position.
Q8: Where is it typically installed?
On turbines, compressors, motors, and gearboxes in industrial settings.
