Product Overview

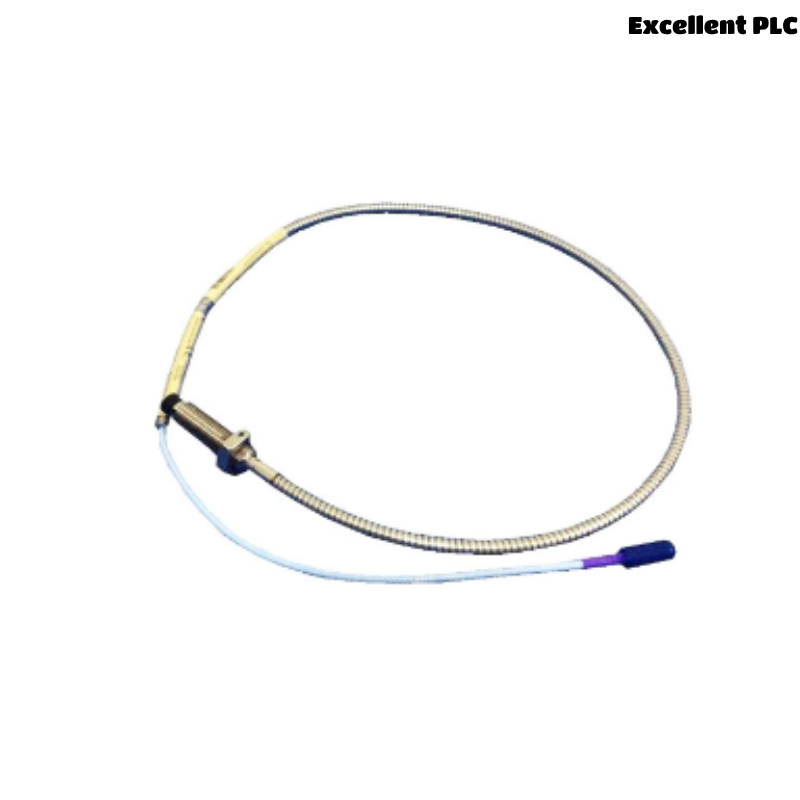

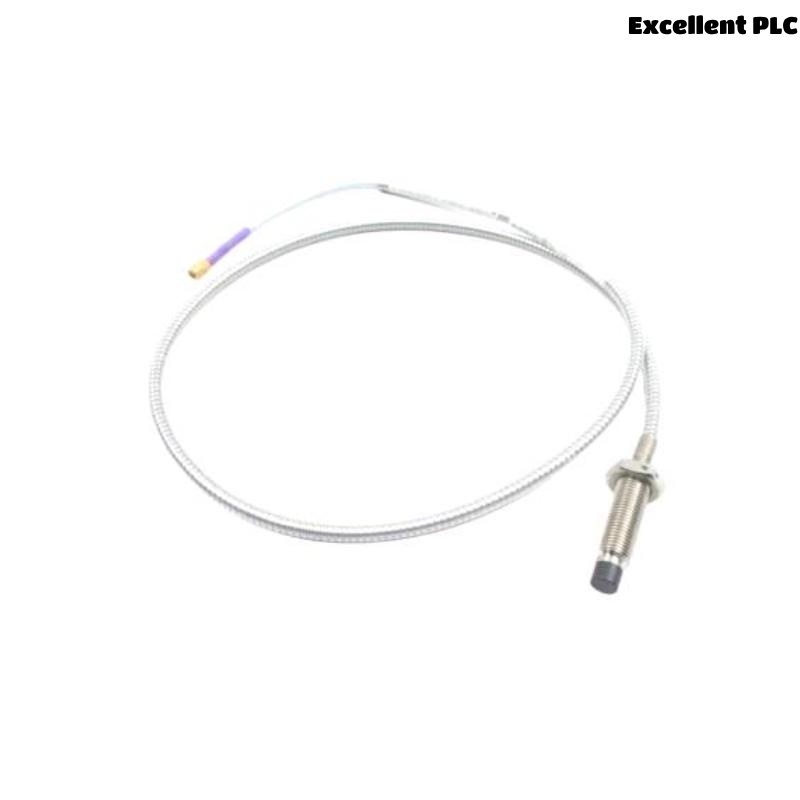

The Bently Nevada 330704-000-050-10-02-05 is a precision 11 mm Proximity Probe from the reputable 3300 XL series, designed for continuous, non-contact measurement of shaft displacement, vibration, and position in rotating machinery. Using the proven eddy-current sensing technology, this probe offers accurate, stable, and repeatable measurements vital for condition monitoring and machinery protection.
Engineered to perform reliably in harsh industrial environments, this 11 mm probe is ideal for turbines, compressors, motors, and pumps. It enables early detection of mechanical issues, helping prevent unexpected downtime and extending the life of critical assets.
Key Features
-
Eddy-Current Proximity Sensing Technology for accurate, contactless measurement
-
11 mm Probe Diameter suitable for larger machinery and wider air gaps
-
Rugged Stainless Steel Construction ensuring durability and corrosion resistance
-
High Sensitivity and Linearity across its measurement range
-
Wide Operating Temperature Range for demanding industrial conditions
-
Low Noise, Stable Signal Output for precise monitoring
-
Compatible with Bently Nevada 3300 XL Monitoring Systems
-
Easy Installation with Bayonet-Style Connector
-
Supports Extended Cable Lengths for flexible placement
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330704-000-050-10-02-05 |
| Product Type | 11 mm Proximity Probe |
| Measurement Principle | Eddy Current |
| Diameter | Total Length: 1.0 meter |
| Measurement Range | Typically 0.25 to 3.05 mm (0.010 to 0.120 inches) |
| Sensitivity | Approx. 40 mV/mil (1.6 mV/μm) |
| Linearity | ±1% full scale |
| Operating Temperature | -40°C to +121°C (-40°F to +250°F) |
| Cable Length | Standard up to 150 feet (45.7 meters); longer cables optional |
| Output Type | AC Signal |
| Connector Type | Bayonet-style connector |
| Housing Material | Stainless steel |
| Weight | 0.14 kg |
| Compliance | Meets industrial and safety standards |
Industry Applications
-
Turbomachinery: Shaft vibration and displacement monitoring in turbines and compressors
-
Power Generation: Generator and motor shaft monitoring for condition assessment
-
Oil & Gas: Monitoring of pumps and compressors in harsh environments
-
Mining and Minerals: Machinery protection in heavy equipment
-
Pulp & Paper Industry: Vibration and position sensing in critical equipment
-
General Industrial Automation: Predictive maintenance and machine health monitoring
Product Advantages
-
High Accuracy and Stability: Delivers precise and repeatable measurements essential for fault detection
-
Non-Contact Operation: Prevents mechanical wear and reduces maintenance
-
Robust Design: Built to withstand extreme temperatures and harsh industrial conditions
-
Long-Term Reliability: Stable output minimizes sensor drift over time
-
Flexible Installation: Supports extended cable runs and simple mounting
-
Seamless Integration: Compatible with Bently Nevada 3300 XL monitoring systems
-
Enhances Asset Management: Facilitates early warning and predictive maintenance programs
Frequently Asked Questions (FAQ)
-
Q: What sensing technology does this probe use?
A: It uses eddy-current proximity sensing for non-contact measurements. -
Q: What is the diameter of the probe tip?
A: The probe diameter is 11 mm. -
Q: What is the typical measurement range?
A: Typically between 0.25 and 3.05 mm (0.010 to 0.120 inches). -
Q: Is this probe compatible with other Bently Nevada systems?
A: Yes, it is designed for use with 3300 XL series monitoring systems. -
Q: What temperature range can the probe operate in?
A: It operates in temperatures from -40°C to +121°C (-40°F to +250°F). -
Q: Can the cable length be extended?
A: Standard cable length is up to 150 feet (45.7 meters), with longer cables available. -
Q: What type of output does the probe provide?
A: The output is an AC signal proportional to shaft displacement. -
Q: How is the probe mounted?
A: It features a bayonet-style connector for easy and secure mounting. -
Q: What maintenance is required?
A: The probe requires minimal maintenance due to its robust and non-contact design. -
Q: Is this probe suitable for harsh industrial environments?
A: Yes, it is built to withstand harsh conditions and meets relevant industrial standards.
