Product Introduction

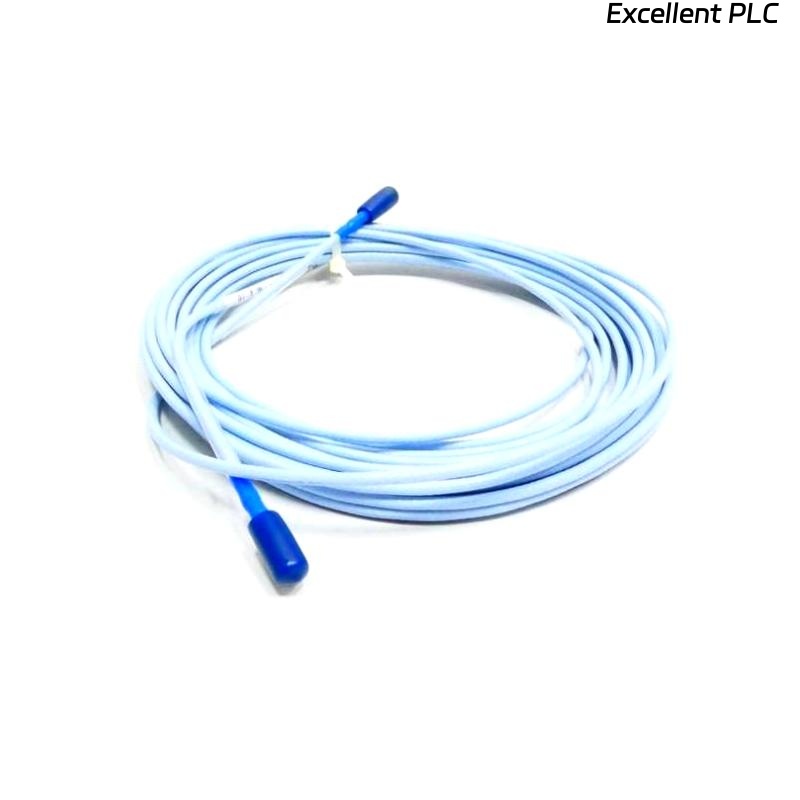

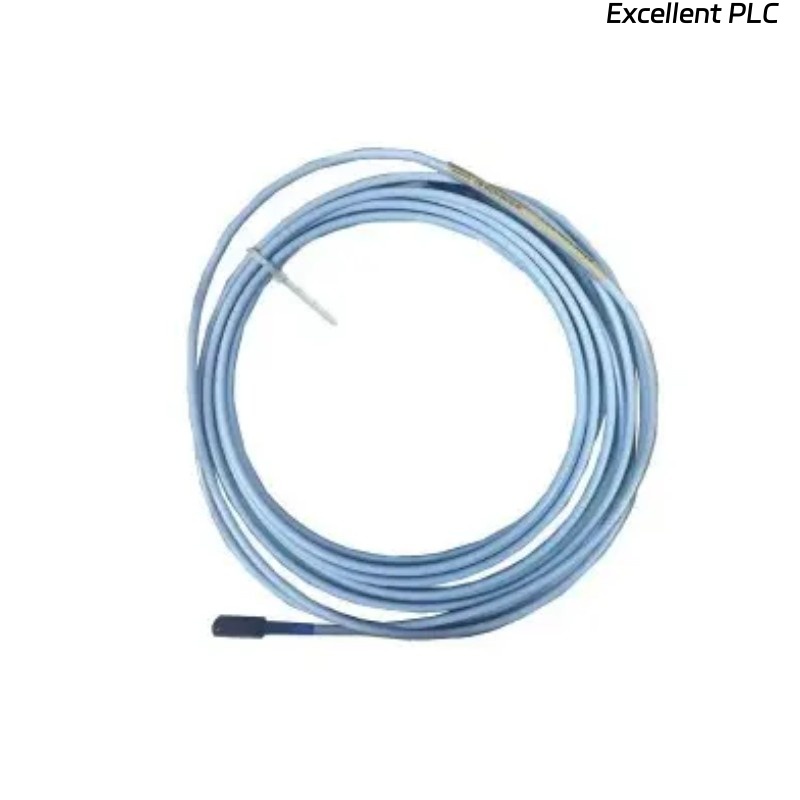

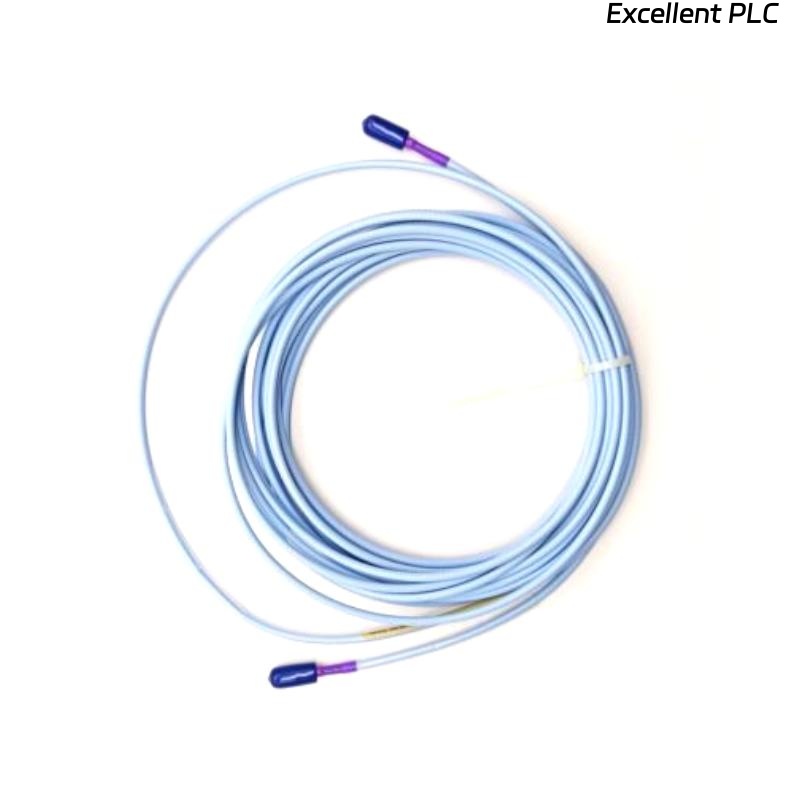

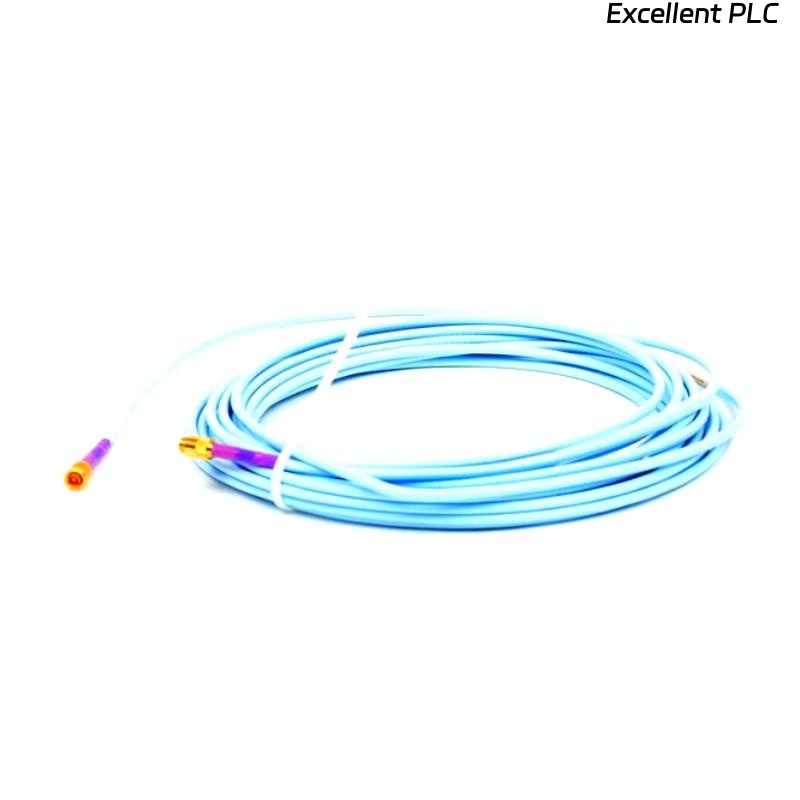

The 330704-000-050-90-02-RU 3300 XL 11 mm Proximity Probe is a high-precision measurement device designed for industrial applications requiring accurate displacement and vibration monitoring. Built on the 3300 XL series platform, this probe offers robust performance in harsh environments, delivering reliable readings for predictive maintenance and condition monitoring of rotating machinery. It is specifically engineered to measure radial and axial movements with high sensitivity, making it suitable for turbines, generators, compressors, and other critical equipment.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | 330704-000-050-90-02-RU |
| Probe Type | Proximity Probe |
| Series | 3300 XL |
| Probe Diameter | 11 mm |
| Total Length | 9 m |
| Weight | 0.63 kg |
| Sensing Method | Eddy Current |
| Output Type | AC Voltage |
| Frequency Response | 0–10 kHz |
| Operating Temperature | -40°C to 125°C |
| Cable Type | Shielded, flexible |
| Connector Type | Standard 2-pin connector |
| Housing Material | Stainless Steel |
Product Applications
-
Turbine vibration and shaft displacement monitoring
-
Generator rotor position and clearance measurements
-
Compressor and pump condition monitoring
-
Industrial predictive maintenance programs
-
Vibration analysis in heavy machinery
-
Power plant machinery and critical rotating equipment
Product Advantages
-
High Accuracy: Provides precise measurements with minimal signal noise.
-
Rugged Construction: Designed to operate reliably in high-temperature, high-vibration environments.
-
Long Cable Length: 9-meter cable allows flexible installation and remote sensor placement.
-
Compatibility: Fully compatible with standard 3300 XL system signal conditioners and monitoring equipment.
-
Wide Frequency Response: Effective in capturing high-speed shaft vibrations.
-
Ease of Installation: Threaded mounting ensures secure and repeatable probe placement.
FAQ
Q1: What is the operating principle of this proximity probe?
A1: It uses eddy current sensing to detect changes in displacement or vibration of conductive surfaces.
Q2: Can this probe measure both radial and axial movements?
A2: Yes, the 3300 XL 11 mm probe is designed to measure both radial and axial displacement accurately.
Q3: What is the maximum gap between the probe tip and the target?
A3: The maximum recommended probe gap is 1.5 mm for optimal accuracy.
Q4: Is the probe compatible with all 3300 XL system signal conditioners?
A4: Yes, it is fully compatible with all standard 3300 XL signal conditioners.
Q5: What type of output signal does the probe provide?
A5: The probe outputs an AC voltage signal proportional to the distance to the target.
Q6: How does temperature affect the probe’s performance?
A6: It operates effectively between -40°C to 125°C without significant deviation in signal response.
Q7: Can this probe be used in high-vibration machinery?
A7: Yes, it is specifically engineered to maintain accuracy in high-vibration environments.
Q8: What type of connector is used for this probe?
A8: It uses a standard 2-pin connector compatible with 3300 XL series equipment.
Q9: Can the cable be extended beyond 9 meters?
A9: Extending the cable is not recommended, as it may affect signal quality and measurement accuracy.
Q10: What maintenance is required for optimal performance?
A10: Regular inspection for cable integrity, connector cleanliness, and secure mounting ensures continued accuracy.
