Product Introduction

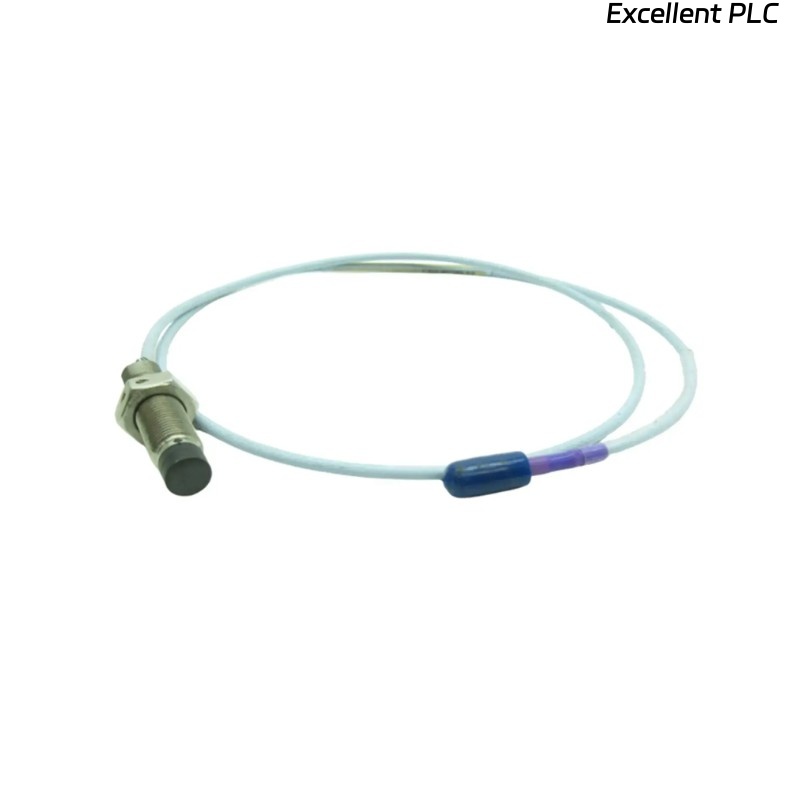

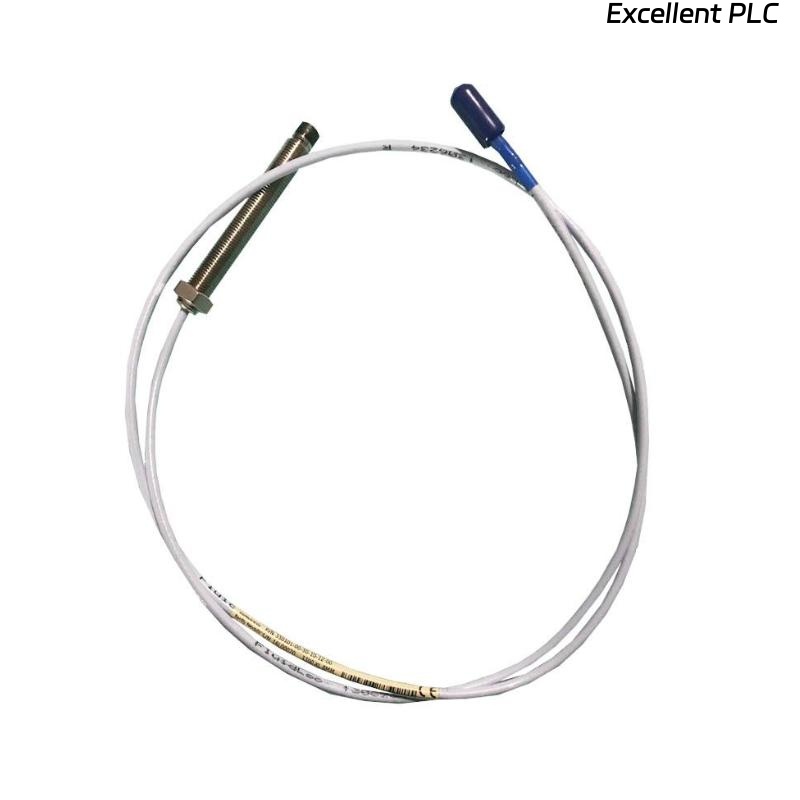

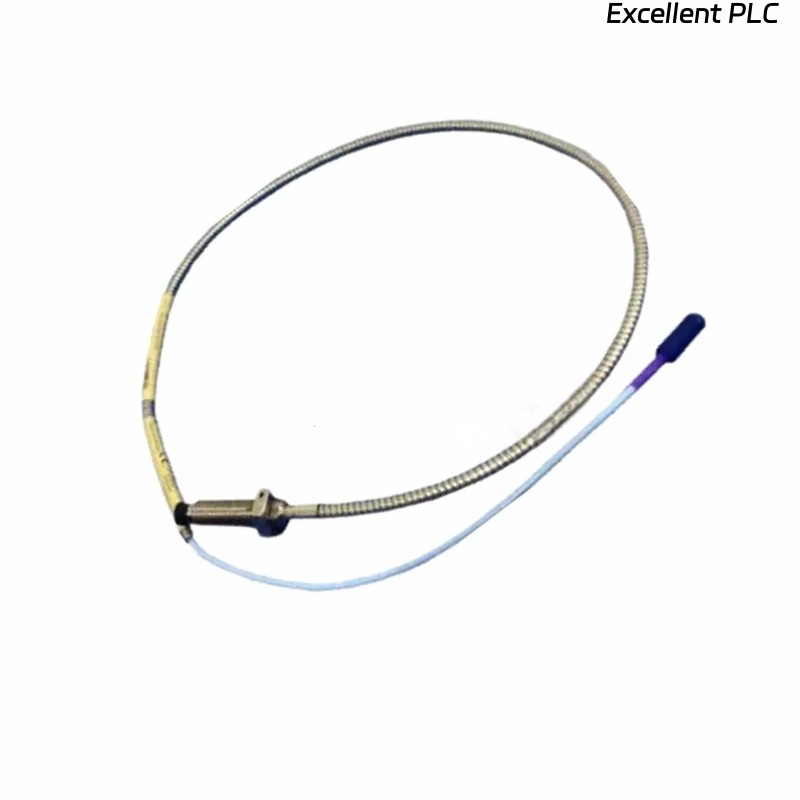

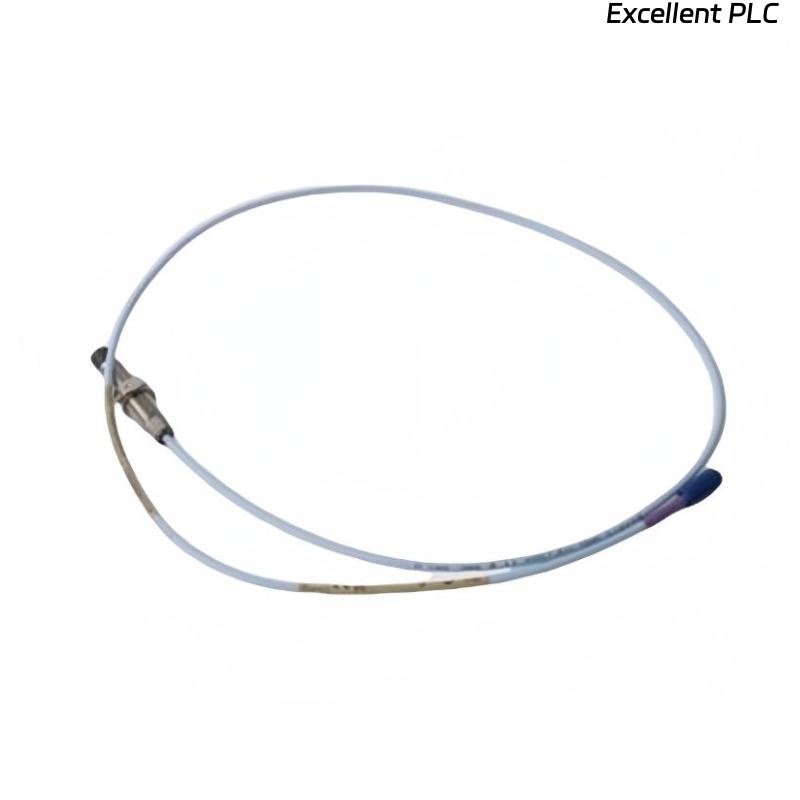

The 330704-000-070-10-02-00 3300 XL 11 mm Proximity Probe is a high-precision sensor designed for monitoring the vibration and position of rotating machinery. It is part of the Bently Nevada 3300 XL series, which is widely recognized for its reliability in industrial environments. The probe operates with eddy-current sensing technology, providing accurate displacement measurements under challenging operating conditions. Its 11 mm tip diameter ensures precise detection while maintaining compatibility with standard probe holders.
Technical Specifications
Parameter | Specification |
---|---|
Model Number | 330704-000-070-10-02-00 |
Probe Type | Proximity Probe |
Series | 3300 XL |
Tip Diameter | 11 mm |
Sensing Principle | Eddy-current |
Measurement Range | ±0.25 mm typical |
Frequency Response | DC to 10 kHz |
Total Length | 1 m |
Weight | 0.07 kg |
Operating Temperature | -40°C to 120°C |
Cable Type | Shielded coaxial |
Connector Type | Standard 2-pin |
Maximum Vibration Tolerance | 50 g |
Compatibility | 3300 XL Monitoring System |
Applications
-
Monitoring rotor vibration in turbines, compressors, and generators.
-
Shaft position and displacement measurement in critical rotating equipment.
-
Early fault detection for predictive maintenance programs.
-
High-speed machinery monitoring for industrial plants, power generation, and oil & gas sectors.
-
Integration with Bently Nevada 3300 XL monitoring systems for continuous protection.
Advantages
-
High Accuracy: Eddy-current sensing ensures precise displacement measurements.
-
Robust Design: Designed to operate in extreme industrial environments.
-
Easy Integration: Compatible with existing 3300 XL monitoring systems.
-
Wide Temperature Range: Reliable performance from -40°C to 120°C.
-
Lightweight and Compact: 0.07 kg weight and 1 m total length for convenient installation.
-
Enhanced Machinery Protection: Supports predictive maintenance and early fault detection.
FAQ
Q1: What is the typical measurement range of this probe?
A1: The typical measurement range is ±0.25 mm.
Q2: Can the probe operate in high-temperature environments?
A2: Yes, it operates reliably from -40°C to 120°C.
Q3: What sensing technology does this probe use?
A3: It uses eddy-current sensing technology.
Q4: Is this probe compatible with all vibration monitoring systems?
A4: It is specifically designed for use with Bently Nevada 3300 XL monitoring systems.
Q5: What type of cable does this probe use?
A5: The probe uses a shielded coaxial cable.
Q6: What is the frequency response of the probe?
A6: The frequency response is DC to 10 kHz.
Q7: What is the probe’s maximum vibration tolerance?
A7: The probe can tolerate up to 50 g of vibration.
Q8: Can this probe be used for shaft displacement measurement?
A8: Yes, it is suitable for shaft position and displacement monitoring.
Q9: What type of connector does the probe use?
A9: It uses a standard 2-pin connector.
Q10: Is the probe suitable for high-speed rotating machinery?
A10: Yes, it is designed for high-speed industrial equipment and turbines.
