Product Overview

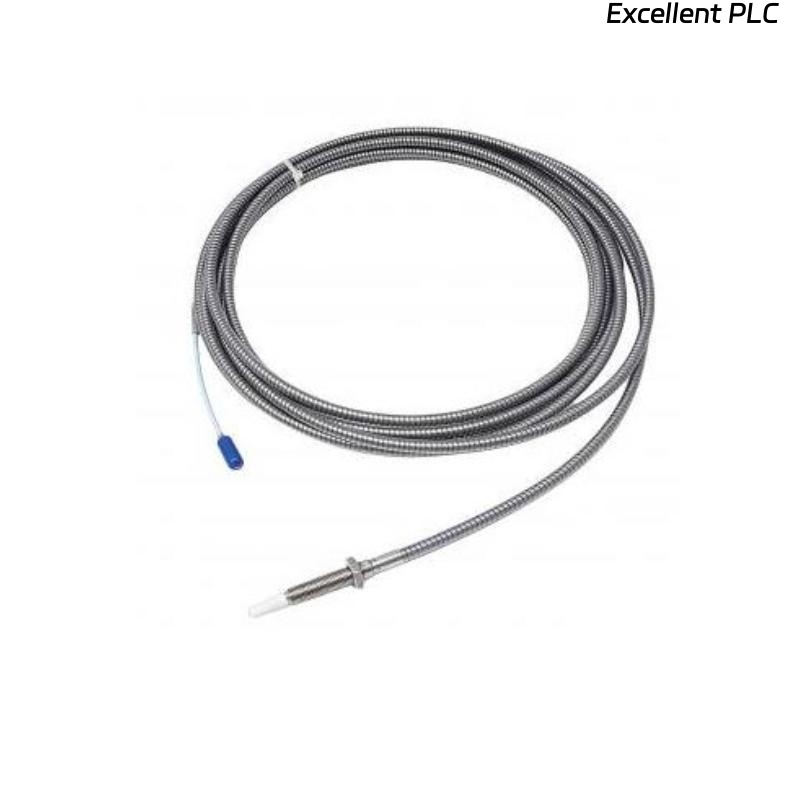

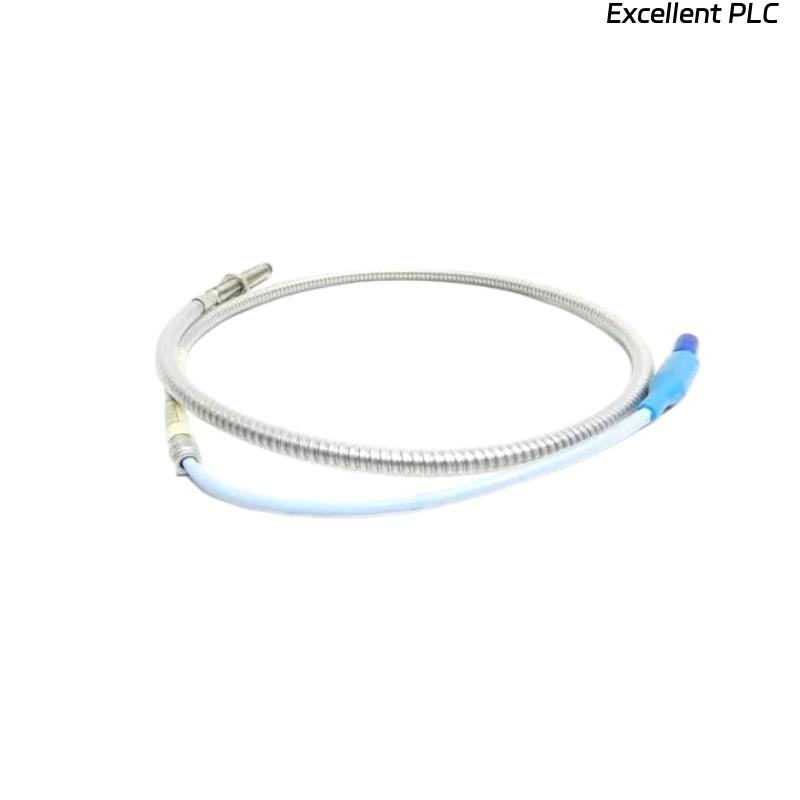

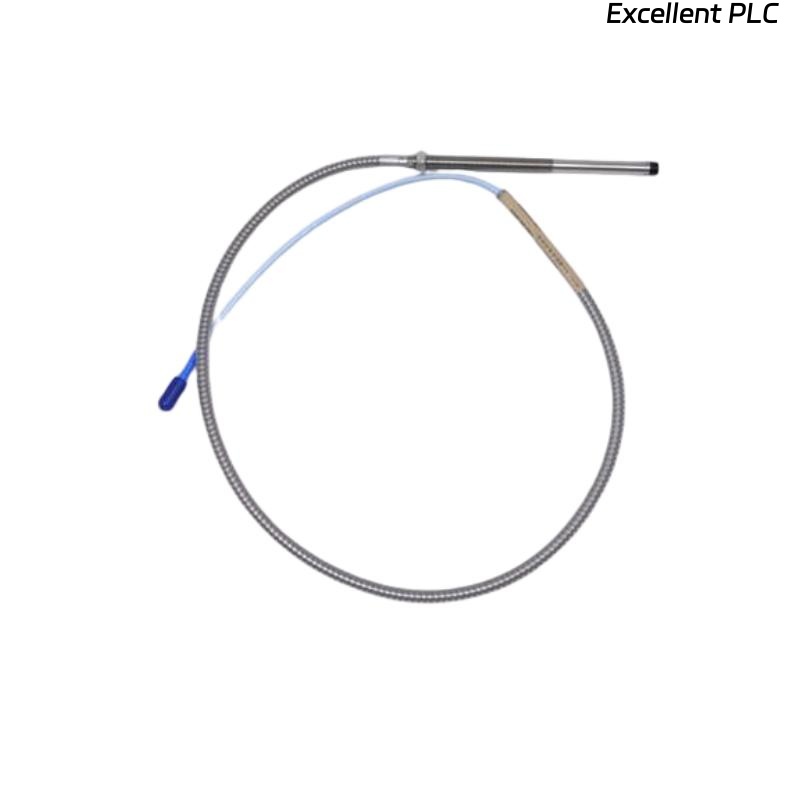

The Bently Nevada 330704-000-070-10-02-CN 3300 XL 11 mm Proximity Probe is a high-precision displacement sensor designed for industrial machinery monitoring. It is a critical component in machinery protection systems, offering accurate and reliable measurements of displacement or vibration of rotating machinery components. This probe is part of the 3300 XL series by Bently Nevada, renowned for its robust design, ease of integration, and high reliability.
With its 11 mm measurement range, the 3300 XL proximity probe is suitable for use in a wide array of industrial applications, including monitoring turbine shafts, motor rotors, and compressors. The 330704-000-070-10-02-CN model features a total length of 1.0 meter, making it perfect for installations in compact machinery or where shorter probe lengths are required. Its analog output is ideal for integrating with various monitoring systems, ensuring seamless operation.
The probe is built to withstand harsh industrial environments, offering both durability and performance even in high-vibration settings. It is typically paired with the Bently Nevada 3300 series monitoring systems to provide real-time monitoring data for predictive maintenance and process optimization.
Product Parameters
The following table outlines the key technical parameters of the Bently Nevada 330704-000-070-10-02-CN 3300 XL 11 mm Proximity Probe:
| Parameter | Specification |
|---|---|
| Model | 330704-000-070-10-02-CN |
| Type | 3300 XL 11 mm Proximity Probe |
| Total Length | 1.0 meter |
| Weight | 0.07 kg |
| Measurement Range | 11 mm |
| Output Type | Analog (4-20 mA) |
| Operating Temperature | -40°C to +120°C |
| Material | Stainless Steel |
| Mounting Type | Direct mounting to machinery |
| Installation | Simple installation with quick connect fittings |
| Power Supply | Powered by 3300 series monitoring system |
Product Applications
The Bently Nevada 330704-000-070-10-02-CN proximity probe is essential in industrial environments where precise monitoring of machinery displacement and vibration is required. Some of its key applications include:
-
Vibration Monitoring: The probe is primarily used for measuring the vibration of rotating machinery, including turbines, motors, and compressors, to prevent equipment failure.
-
Machinery Protection: It is an integral part of machinery protection systems, ensuring that machinery operates within safe limits and minimizing the risk of catastrophic failures.
-
Power Generation: In power plants, it is used to monitor turbines, generators, and other critical components, ensuring smooth and efficient operations.
-
Oil and Gas: The probe plays a critical role in the oil and gas industry by monitoring the health of pumps, compressors, and other key machinery in extraction and transportation processes.
-
Manufacturing: Used to monitor the condition of motors, pumps, and fans in manufacturing environments, preventing unplanned downtime and ensuring operational efficiency.
-
HVAC Systems: The proximity probe is utilized to monitor the health of industrial fans and motors within HVAC systems, ensuring optimal performance and energy efficiency.
Product Advantages
-
High Precision: The 11 mm measurement range ensures that the probe delivers precise readings, critical for early detection of machinery problems such as misalignment or imbalance.
-
Durable and Robust: The stainless steel construction ensures that the probe can withstand the harshest conditions, including high vibration, moisture, and temperature fluctuations.
-
Compact Design: With a total length of 1.0 meter, the probe is ideal for use in confined spaces or where longer probes may not be practical.
-
Wide Temperature Range: The probe can operate in extreme temperatures ranging from -40°C to +120°C, making it suitable for diverse industrial environments.
-
Seamless Integration: The analog output (4-20 mA) allows for easy integration with Bently Nevada’s 3300 series monitoring systems, providing real-time feedback and data analytics.
-
Predictive Maintenance: When paired with the right monitoring system, the probe allows for predictive maintenance, helping to identify and mitigate machinery issues before they cause failures.
-
Easy Installation: Designed for easy and quick installation, the probe features quick-connect fittings that simplify setup without requiring extensive downtime.
FAQ
1. What is the measurement range of the 3300 XL proximity probe?
The measurement range of the probe is 11 mm, making it suitable for accurately measuring displacement and vibration in rotating machinery.
2. What type of output does the 3300 XL proximity probe provide?
The probe provides an analog output (4-20 mA), compatible with most industrial monitoring systems.
3. What is the total length of the 3300 XL proximity probe?
The total length of the probe is 1.0 meter, making it ideal for compact machinery installations where shorter probe lengths are required.
4. Can the 3300 XL proximity probe be used for high-speed machinery?
Yes, the probe is designed to provide precise measurements even for high-speed rotating machinery, such as turbines and motors.
5. What material is used in the construction of the 3300 XL proximity probe?
The probe is constructed from stainless steel, ensuring long-lasting durability and resistance to corrosion in challenging industrial environments.
6. How is the 3300 XL proximity probe mounted?
The probe is mounted directly onto the machinery, offering a simple and secure installation process.
7. What is the operating temperature range of the 3300 XL proximity probe?
The operating temperature range is -40°C to +120°C, allowing the probe to function in a wide range of industrial conditions.
8. Can the 3300 XL proximity probe be used in harsh environments?
Yes, the probe is designed to withstand harsh environments, including high-vibration and high-temperature conditions typically found in power plants and oil rigs.
9. How does the 3300 XL proximity probe help with predictive maintenance?
By providing accurate real-time displacement and vibration data, the probe helps detect early signs of machinery wear and damage, allowing for timely maintenance and minimizing downtime.
10. How does the probe connect to the monitoring system?
The probe connects easily to the Bently Nevada 3300 series monitoring systems via a 4-20 mA analog output, ensuring smooth data transfer and integration.
