Product Introduction

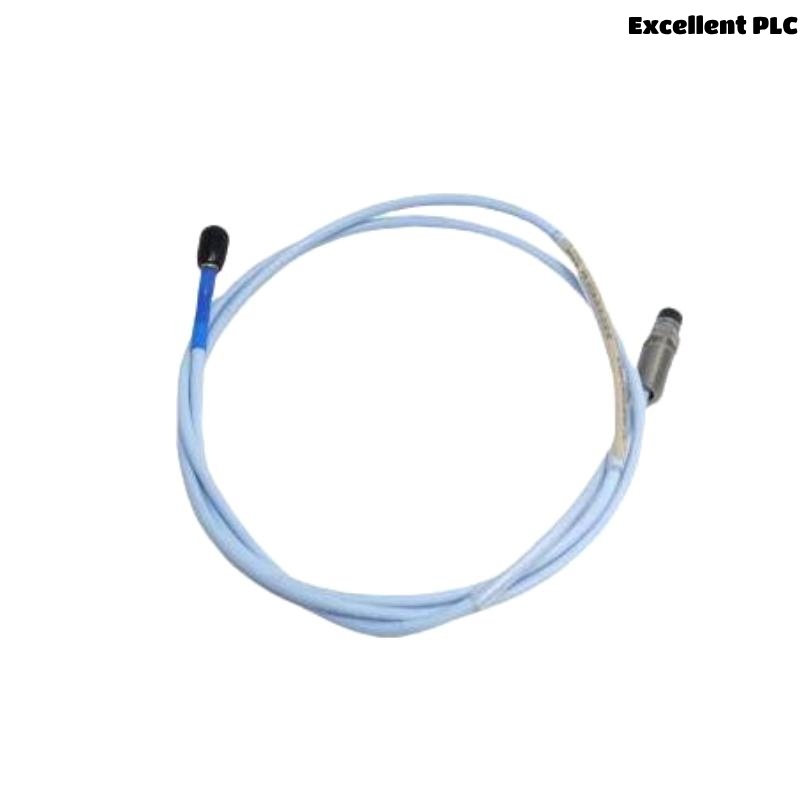

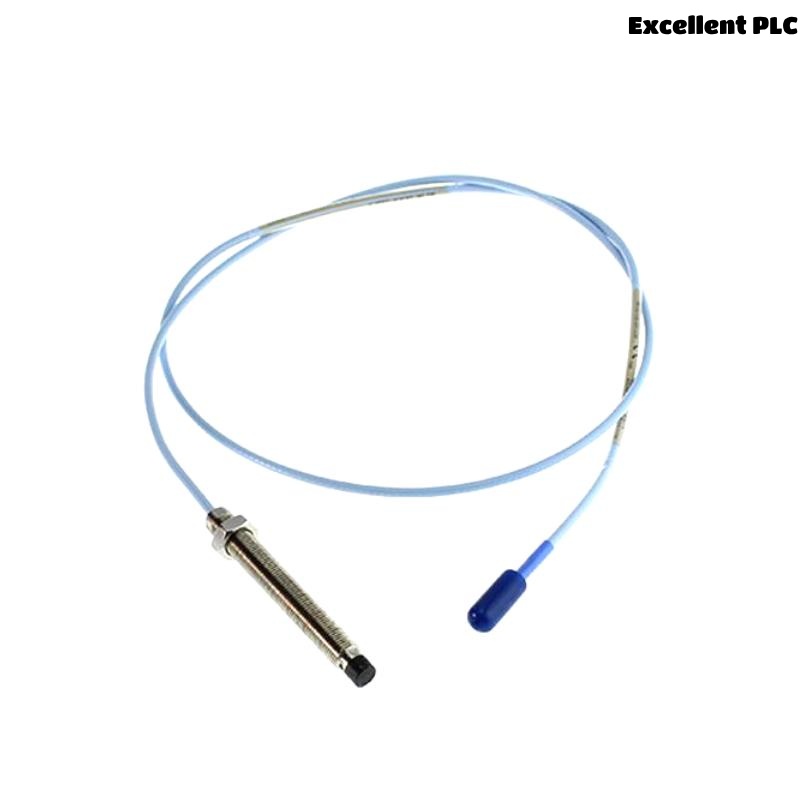

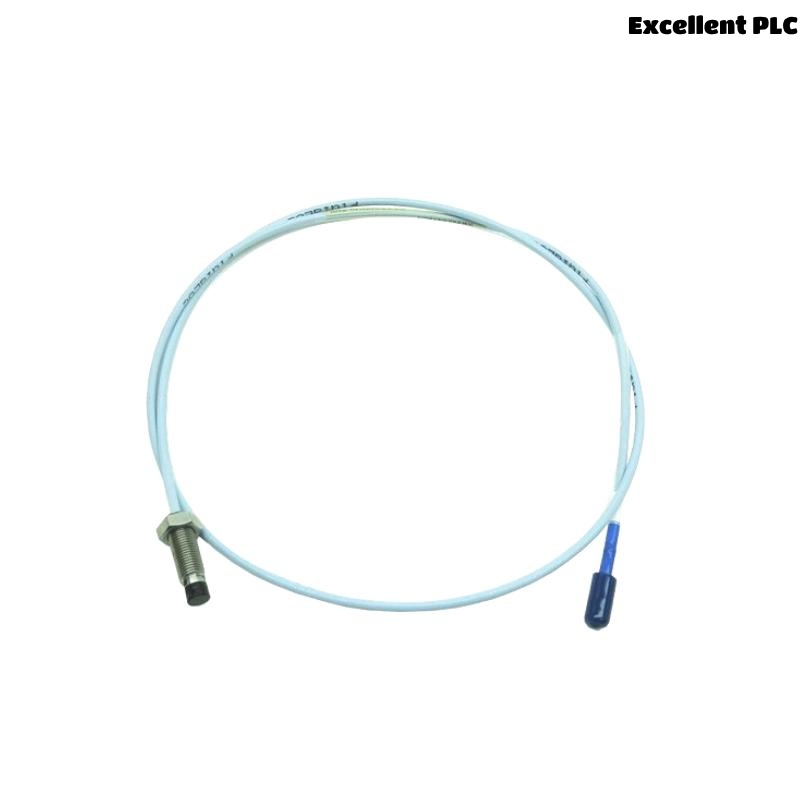

The Bently Nevada 330705-02-18-10-02-05 3300 XL 11 mm Reverse Mount Probe is a part of Bently Nevada’s 3300 XL series, a trusted family of high-performance proximity probes used for measuring shaft displacement, vibration, and alignment in rotating machinery. This particular model is designed with a reverse mounting configuration, making it ideal for installations where traditional forward mounting would be impractical. This reverse mount design is especially helpful when space constraints or specific mechanical configurations make forward mounting difficult or impossible.
The 3300 XL Reverse Mount Probe uses advanced eddy-current technology for non-contact measurement, ensuring that the sensor does not wear out over time. The non-contacting nature of this technology makes it highly durable and reduces the need for frequent maintenance. The probe is capable of providing real-time, accurate displacement data for rotating machinery such as turbines, pumps, compressors, and motors.
Bently Nevada’s 3300 XL 11 mm Reverse Mount Probe is particularly suited for industries where reliable and continuous machine health monitoring is critical, including power generation, oil & gas, manufacturing, and aerospace applications. By using this probe, operators can detect early signs of machinery failure, reducing unplanned downtime and avoiding costly repairs.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 330705-02-18-10-02-05 |
| Type | Reverse Mount Proximity Probe |
| Measurement Range | 0 to 11 mm |
| Output Signal | 4-20 mA (Linear) |
| Operating Temperature | -40°C to +85°C |
| Mounting Type | Reverse Mount |
| Weight | 0.07 kg |
| Total Length | 1 meter |
| Material | Stainless Steel & Inconel |
| Environmental Protection | IP67 |
| Power Supply | 24 V DC |
Product Applications
The Bently Nevada 330705-02-18-10-02-05 3300 XL 11 mm Reverse Mount Probe is widely used for monitoring the condition of rotating machinery in critical industrial environments. The key applications of this probe include:
-
Rotating Machinery Monitoring
The probe is used to monitor rotating equipment such as turbines, pumps, motors, and compressors. It measures shaft displacement and vibration, allowing operators to identify problems before they result in failure. -
Power Generation
In power plants, turbines and generators are essential to operations. The probe helps monitor these critical components, detecting early signs of misalignment, unbalance, or other issues that can impact efficiency and performance. -
Oil & Gas Industry
The 3300 XL Reverse Mount Probe is widely used in the oil and gas sector, including offshore platforms, refineries, and drilling rigs. It ensures that critical equipment such as pumps, compressors, and motors remain in optimal working condition. -
Manufacturing Plants
This probe is frequently used in manufacturing facilities for monitoring machinery like conveyors, mills, presses, and grinders. It helps prevent unscheduled downtime and ensures efficient production. -
HVAC Systems
The probe is also utilized in HVAC systems for monitoring compressors, fan motors, and other vital components, ensuring that these systems operate smoothly without unexpected failures. -
Aerospace & Defense
The aerospace industry uses the 3300 XL Reverse Mount Probe to monitor the health of engines, turbines, and other rotating equipment used in aircraft and other defense machinery, where precise operation is critical for safety.
Product Advantages
-
Non-Contact Measurement: The 3300 XL Reverse Mount Probe utilizes eddy-current technology for non-contact displacement measurement. This ensures long-term reliability and reduces the need for regular maintenance.
-
Reverse Mounting Configuration: This probe is designed for reverse mounting, which is essential for installations where traditional mounting is not feasible due to space constraints or other technical factors.
-
Wide Temperature Range: The probe can operate in temperatures ranging from -40°C to +85°C, making it suitable for a variety of industrial environments, from extreme cold to high heat.
-
Durable Construction: Built with high-quality stainless steel and Inconel, this probe is durable enough to withstand harsh conditions such as high temperature, corrosion, and mechanical stress.
-
IP67 Rating: The probe is rated IP67, meaning it is fully dustproof and can withstand water immersion for short periods, ensuring reliable operation in challenging environments.
-
Real-Time Data: The probe delivers real-time data via a 4-20 mA linear output signal, making it easy to integrate with industrial monitoring systems for continuous performance tracking.
Frequently Asked Questions (FAQs)
-
What is the measurement range of the 3300 XL Reverse Mount Probe?
The probe measures displacement from 0 to 11 mm, suitable for detecting both small and large displacements in rotating machinery. -
What type of output signal does this probe provide?
The probe provides a 4-20 mA linear output, which is commonly used in industrial systems for continuous and reliable data transmission. -
How is the 3300 XL Reverse Mount Probe mounted?
This probe is specifically designed for reverse mounting, making it ideal for applications where traditional forward mounting configurations are not possible. -
What power supply does the 3300 XL Reverse Mount Probe require?
The probe requires a 24 V DC power supply to operate. -
What temperature range can this probe handle?
The probe operates in temperatures ranging from -40°C to +85°C, making it suitable for a wide range of industrial environments. -
What is the weight of the 3300 XL Reverse Mount Probe?
The probe weighs 0.07 kg, which makes it lightweight and easy to install in machinery setups with space constraints. -
What materials are used in the construction of the probe?
The probe is made from stainless steel and Inconel, which provides high durability and resistance to corrosion, heat, and mechanical stress. -
What industries can use the 3300 XL Reverse Mount Probe?
The probe is ideal for industries such as power generation, oil & gas, manufacturing, HVAC systems, and aerospace, where reliable machinery health monitoring is crucial. -
What environmental protection rating does the probe have?
The probe has an IP67 rating, ensuring it is dustproof and can withstand immersion in water for short periods. -
What are the total length of the 3300 XL Reverse Mount Probe?
The probe total length of 1 meter.
Related Models from the Bently Nevada 3300 XL Series
| Model | Measurement Range | Output Signal | Weight | Application |
|---|---|---|---|---|
| 330705-02-18-10-02-00 | 0 to 11 mm | 4-20 mA (Linear) | 0.33 kg | Shaft displacement monitoring |
| 330705-02-18-10-03-00 | 0 to 11 mm | 4-20 mA (Linear) | 0.34 kg | Pumps, motors, compressors |
| 330705-02-18-10-04-00 | 0 to 11 mm | 4-20 mA (Linear) | 0.35 kg | Oil & gas, rotating equipment |
| 330705-02-18-10-05-00 | 0 to 11 mm | 4-20 mA (Linear) | 0.36 kg | Manufacturing, conveyors, presses |
| 330705-02-18-10-06-00 | 0 to 11 mm | 4-20 mA (Linear) | 0.37 kg | HVAC systems, critical machinery |
| 330705-02-18-10-07-00 | 0 to 11 mm | 4-20 mA (Linear) | 0.38 kg | Aerospace, turbines, generators |
