Product Introduction

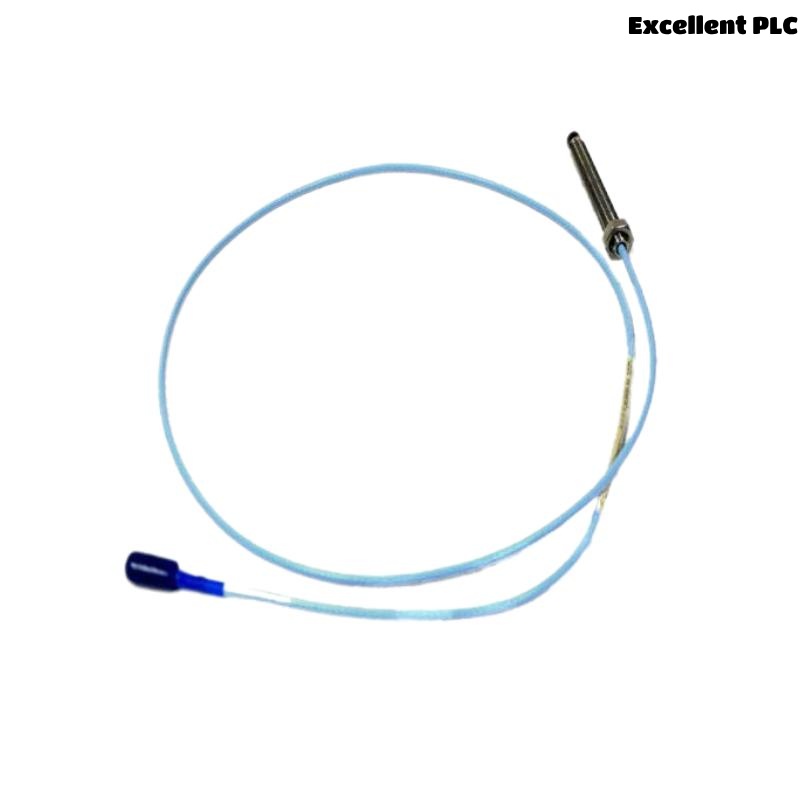

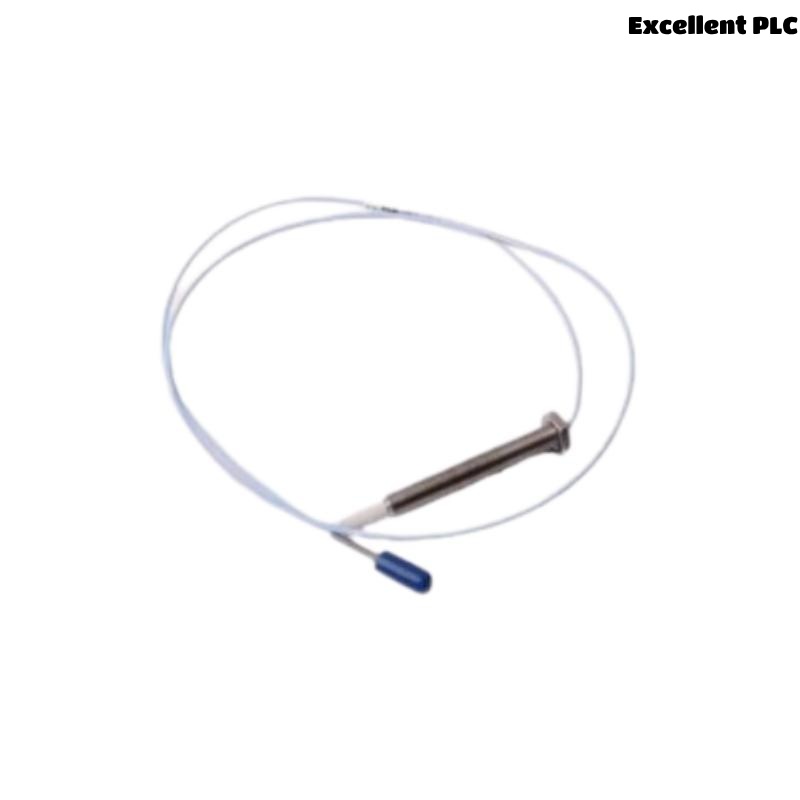

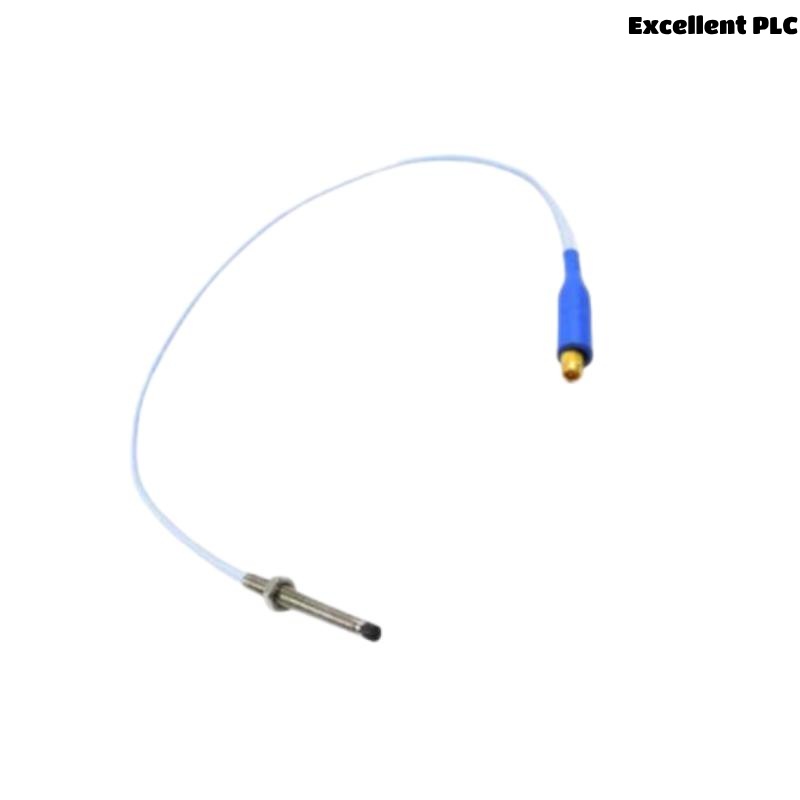

The Bently Nevada 330707-00-20-10-02-00 3300 XL 11 mm Proximity Probe is an advanced sensor designed for highly accurate shaft displacement and vibration monitoring in industrial machinery. As part of the 3300 XL series, it uses eddy current technology to measure the position of rotating shafts without direct physical contact. This technology provides superior accuracy, stability, and performance in environments where precision is critical.
This proximity probe is essential for predictive maintenance programs, helping prevent costly downtime and improving operational efficiency. It is specifically engineered for high-performance monitoring of rotating equipment such as gas turbines, motors, pumps, and compressors. The 330707-00-20-10-02-00 probe offers exceptional performance in terms of sensitivity and reliability, even in harsh conditions like high vibration or extreme temperatures.
With a measurement range of up to 10 mm, the 3300 XL 11 mm probe offers the ability to detect minute changes in shaft displacement, allowing early detection of potential mechanical issues before they lead to equipment failure.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | 330707-00-20-10-02-00 |
| Product Series | Bently Nevada 3300 XL |
| Proximity Probe Type | 11 mm Eddy Current |
| Total Length | 1.0 meter |
| Shipping Weight | 2 kg |
| Sensing Range | 0 to 10 mm |
| Output Signal | 4–20 mA (Current Loop) |
| Operating Temperature Range | -40°C to +121°C |
| Material | Stainless Steel, Ceramic |
| Probe Tip Style | Threaded Mounting |
| Mounting Type | Axial Mounting |
| Probe Connection | 5-pin military-style connector |
| Compliance | CE, RoHS, UL |
Product Applications
The 3300 XL 11 mm Proximity Probe is widely used across industries where monitoring the condition of rotating machinery is critical. The precise displacement and vibration measurement capabilities of this probe make it ideal for applications in:
-
Turbine and Compressor Monitoring: The 3300 XL 11 mm probe is commonly used in steam, gas, and hydro turbines as well as compressors to monitor the position and alignment of rotating shafts, ensuring optimal performance and detecting issues early.
-
Motor and Generator Monitoring: In electric motors and generators, the probe is used to track shaft displacement, helping to prevent misalignments and mechanical failures that could disrupt operations.
-
Pump and Fan Systems: The probe helps detect vibration or misalignment in pumps and fans, preventing system inefficiencies and ensuring continuous operation.
-
Critical Equipment Monitoring: In industries such as power generation, oil & gas, petrochemicals, and aerospace, the 3300 XL 11 mm probe is used to monitor high-value, mission-critical equipment, ensuring long-term reliability and preventing catastrophic failures.
-
Manufacturing and Heavy Industries: In manufacturing plants with large machinery, the probe ensures precise alignment and vibration monitoring, contributing to the smooth operation of production lines.
By offering continuous, real-time measurements, the 3300 XL 11 mm probe helps detect potential failures before they occur, improving the reliability and uptime of critical machinery.
Product Advantages
The Bently Nevada 330707-00-20-10-02-00 3300 XL 11 mm Proximity Probe offers several advantages that make it an excellent choice for industrial machinery monitoring:
-
High Sensitivity: The 11 mm sensing gap provides exceptional sensitivity to small displacement changes, ensuring precise measurements even in high-vibration environments.
-
Eddy Current Technology: Utilizing eddy current technology allows for non-contact measurement, offering high accuracy and minimizing the risk of wear or damage to the equipment.
-
Durability: Constructed from stainless steel and ceramic, the probe is designed to withstand harsh industrial environments, including exposure to high temperatures, vibrations, and harsh chemicals.
-
Wide Operating Temperature Range: With an operating temperature range from -40°C to +121°C, the probe can be used in a variety of industrial environments, from freezing cold to high heat.
-
Low Drift and High Stability: The probe’s minimal drift ensures that it remains accurate over time, reducing the need for frequent recalibration and ensuring consistent performance.
-
Compact Design: The probe’s compact form factor (1 meter in length and 2 kg in weight) ensures easy installation in tight spaces, while still providing high-performance monitoring capabilities.
-
Seamless Integration: The 3300 XL probe integrates easily with Bently Nevada’s monitoring systems, providing a comprehensive predictive maintenance solution that helps improve operational efficiency and reduce downtime.
-
Reduced Maintenance Costs: By detecting issues early, the probe helps reduce the risk of unplanned downtime and costly repairs, making it a cost-effective solution for maintaining equipment health.
These advantages make the 3300 XL 11 mm probe a preferred choice for applications requiring precise, continuous monitoring of rotating machinery in industrial environments.
Frequently Asked Questions (FAQ)
1. What technology does the 3300 XL 11 mm probe use?
The 3300 XL 11 mm probe uses eddy current technology, which allows for non-contact displacement measurement, providing high accuracy and minimal wear.
2. What is the total length of the 3300 XL 11 mm probe?
The total length of the 3300 XL 11 mm probe is 1.0 meter.
3. What is the weight of the 3300 XL 11 mm probe?
The probe weighs 2 kg, making it easy to handle and install in industrial machinery.
4. What is the sensing range of the 3300 XL 11 mm probe?
The sensing range of the probe is 0 to 10 mm, which provides precise measurements for displacement monitoring.
5. Can the 3300 XL 11 mm probe be used in high-temperature environments?
Yes, the probe can operate in temperatures ranging from -40°C to +121°C, making it suitable for a wide range of industrial applications.
6. What kind of output signal does the 3300 XL 11 mm probe provide?
The probe provides a 4–20 mA current loop output, which is compatible with a variety of condition monitoring systems.
7. How is the 3300 XL 11 mm probe mounted?
The probe is mounted axially using a threaded connection, which ensures stable and secure installation.
8. How does the 3300 XL 11 mm probe contribute to predictive maintenance?
By continuously measuring displacement and vibration, the probe provides early detection of potential issues, allowing for proactive maintenance and reducing unplanned downtime.
9. Is the 3300 XL 11 mm probe resistant to electrical noise?
Yes, the probe is designed to offer excellent immunity to electromagnetic interference, ensuring reliable operation even in environments with high electrical noise.
10. What industries benefit from using the 3300 XL 11 mm probe?
Industries such as power generation, petrochemical, aerospace, oil & gas, and manufacturing benefit from the high accuracy and durability of the 3300 XL 11 mm probe.
Related Models from the Same Series
| Model | Description |
|---|---|
| 330701-00-26-10-11-05 | 3300 XL 5 mm Proximity Probe for smaller applications and tighter spaces. |
| 330703-00-26-10-11-05 | 3300 XL 8 mm Proximity Probe for general-purpose use. |
| 330702-00-26-10-11-05 | 3300 XL 10 mm Proximity Probe for moderate shaft displacement. |
| 330704-00-26-10-11-05 | 3300 XL 12 mm Proximity Probe for larger machines with higher vibration. |
| 330705-00-26-10-11-05 | 3300 XL 14 mm Proximity Probe designed for high-vibration equipment. |
| 330706-00-26-10-11-05 | 3300 XL 15 mm Proximity Probe for extreme industrial conditions. |
