Product Introduction

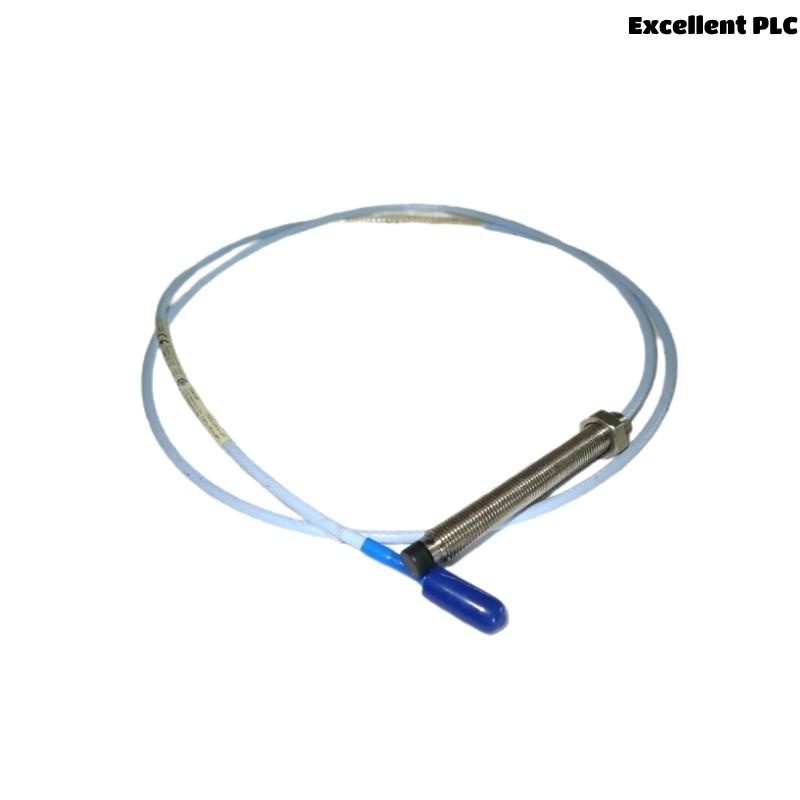

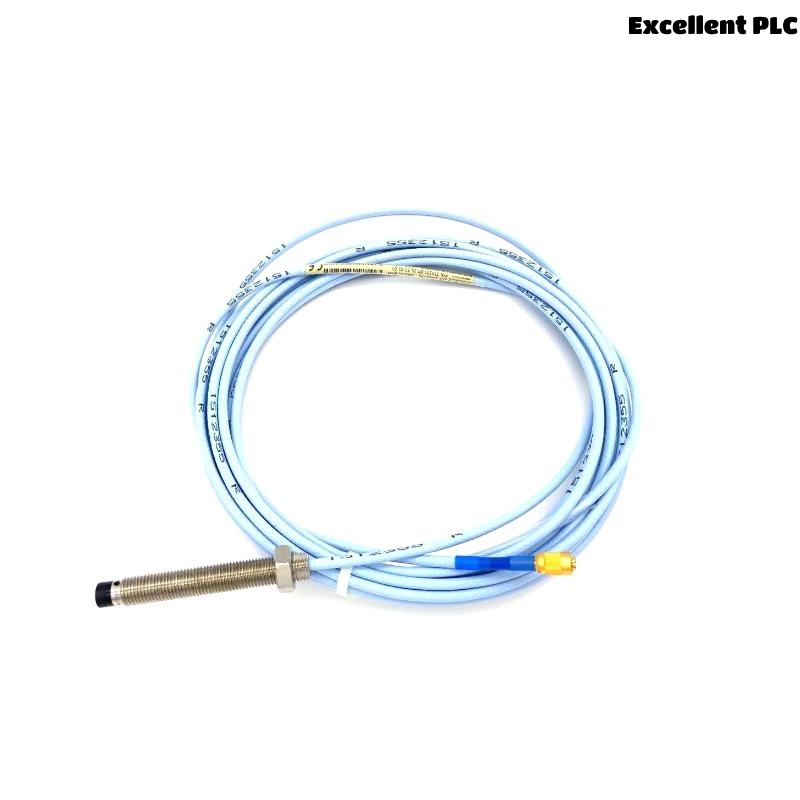

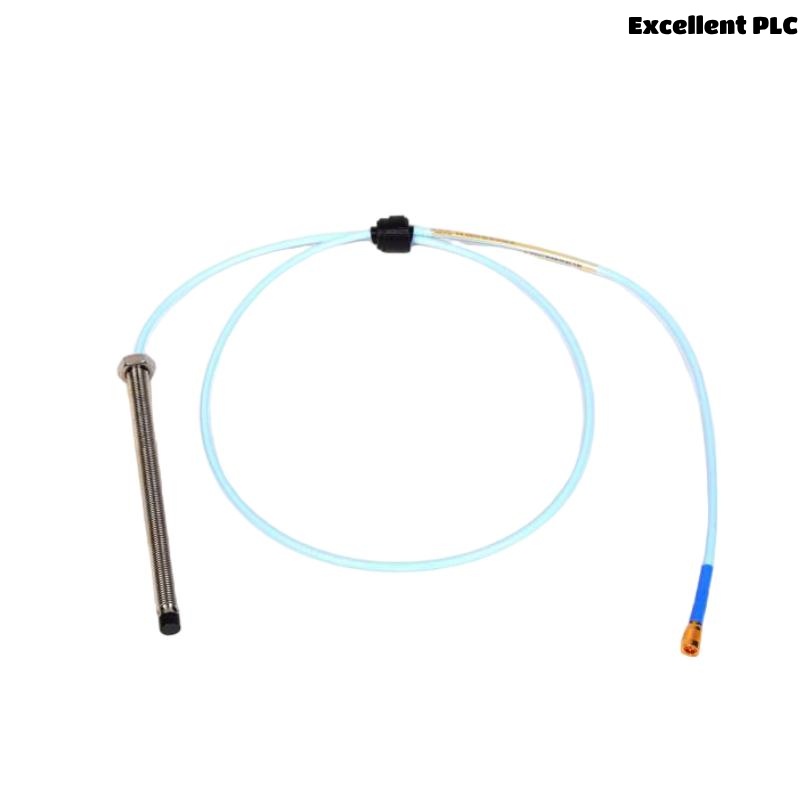

The Bently Nevada 330709-000-030-10-02-00 3300 XL 11 mm Proximity Probe is a high-precision displacement and vibration sensor designed for monitoring rotating machinery. As part of the 3300 XL series, this probe is engineered to measure the displacement between the probe and the target shaft, providing real-time, accurate feedback on shaft position. This non-contacting probe is widely used in a range of industries for machinery health monitoring.
The 3300 XL 11 mm Proximity Probe operates based on eddy current technology, which means that it does not require physical contact with the shaft, ensuring long-term durability without wear and tear. With a measurement range of up to 11 mm, the probe can be used in various applications, from small displacement measurements to larger ones, ensuring reliable and accurate readings.
This product is ideal for industries where rotating machinery is integral, including power generation, oil and gas, aerospace, HVAC systems, and manufacturing plants. By providing precise data, it helps detect early signs of mechanical failure, ensuring that issues can be resolved before leading to unplanned downtime or expensive repairs.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 330709-000-030-10-02-00 |
| Type | 3300 XL Proximity Probe |
| Measurement Range | 0 to 11 mm |
| Output Signal | 4-20 mA (Linear) |
| Operating Temperature | -40°C to +85°C |
| Mounting Type | Standard Mount (for non-reverse applications) |
| Weight | 0.07 kg |
| Total Length | 1 meter |
| Material | Stainless Steel and Inconel |
| Environmental Protection | IP67 |
| Power Supply | 24 V DC |
Product Applications
The Bently Nevada 330709-000-030-10-02-00 3300 XL 11 mm Proximity Probe is designed to monitor the health of rotating equipment and machinery in several industries. It plays a critical role in early detection of potential problems, allowing for proactive maintenance and reducing the risk of unexpected downtime. Some of the key applications include:
-
Rotating Machinery Monitoring
The probe is commonly used to monitor the vibration and displacement of rotating machinery, including turbines, motors, compressors, and pumps. This ensures that machines are operating within safe limits, preventing failure. -
Power Generation
In power plants, the probe is used to monitor turbines, generators, and other critical equipment, helping to identify issues such as misalignment, imbalance, and excessive vibration. -
Oil & Gas Industry
The 3300 XL Proximity Probe is used in harsh environments like offshore platforms, refineries, and gas processing plants. It provides critical data to monitor pumps, motors, compressors, and other machinery operating under extreme conditions. -
Manufacturing Plants
The probe is used in industrial settings to monitor heavy machinery such as presses, conveyors, and mills. It helps manufacturers ensure that their equipment is in top working condition, preventing downtime caused by machinery failure. -
HVAC Systems
This proximity probe is an excellent choice for HVAC systems, where it is used to monitor fan motors, compressors, and other rotating components, ensuring smooth and efficient system performance. -
Aerospace and Defense
The probe is utilized in aerospace applications to monitor turbines and other critical rotating equipment in aircraft engines, ensuring they operate safely and efficiently.
Product Advantages
-
Non-Contacting Measurement: The 3300 XL 11 mm Proximity Probe uses eddy current technology, providing non-contact measurement of displacement and vibration. This eliminates mechanical wear on the probe, leading to longer operational life and reduced maintenance costs.
-
Durable Construction: The probe is built using high-quality stainless steel and Inconel, materials that ensure the probe’s resilience to high temperatures, corrosion, and mechanical stress. This makes it highly suitable for industrial environments where equipment is exposed to harsh conditions.
-
IP67 Protection: With an IP67 rating, the probe is fully protected from dust and can withstand brief immersion in water. This makes it ideal for use in environments where the sensor may be exposed to moisture, dirt, or other contaminants.
-
Wide Operating Temperature Range: The probe can operate in temperatures from -40°C to +85°C, making it versatile enough for use in a wide range of industrial environments, from freezing temperatures to high-heat settings.
-
Real-Time Data: The probe provides a 4-20 mA linear output, making it easy to integrate with industrial monitoring systems. This ensures that real-time data is continuously available for machinery health monitoring.
-
Precise Displacement Measurement: With a measurement range of 0 to 11 mm, the probe can detect even subtle changes in shaft displacement and vibration, making it a valuable tool for precise machinery health monitoring.
Frequently Asked Questions (FAQs)
-
What is the measurement range of the 3300 XL Proximity Probe?
The probe can measure shaft displacement and vibration in the range of 0 to 11 mm. -
What type of output signal does the probe provide?
The 3300 XL 11 mm Proximity Probe provides a 4-20 mA linear output, which is commonly used in industrial systems for continuous data transmission. -
What is the power supply requirement for the probe?
The probe requires a 24 V DC power supply for operation. -
What is the operating temperature range of the 3300 XL Proximity Probe?
The probe operates in a temperature range of -40°C to +85°C, making it suitable for both extreme cold and heat conditions. -
How is the probe mounted?
The probe is mounted in a standard configuration, ideal for applications where reverse mounting is not needed. -
What is the weight of the 3300 XL Proximity Probe?
The probe weighs 0.07 kg, making it lightweight and easy to install. -
What materials are used in the construction of the probe?
The probe is constructed using stainless steel and Inconel, materials known for their durability and resistance to corrosion and high temperatures. -
What industries can benefit from using the 3300 XL Proximity Probe?
The probe is ideal for industries like power generation, oil & gas, HVAC, manufacturing, and aerospace, where reliable machinery health monitoring is critical. -
What environmental protection does the probe have?
The 3300 XL Proximity Probe has an IP67 rating, which ensures it is dustproof and can withstand immersion in water for short periods. -
What are the total length of the 3300 XL Proximity Probe?
The probe total length of 1 meter.
Related Models from the Bently Nevada 3300 XL Series
| Model | Measurement Range | Output Signal | Weight | Application |
|---|---|---|---|---|
| 330705-02-18-10-02-00 | 0 to 11 mm | 4-20 mA (Linear) | 0.33 kg | Shaft displacement monitoring |
| 330705-02-18-10-03-00 | 0 to 11 mm | 4-20 mA (Linear) | 0.34 kg | Compressors, pumps, motors |
| 330705-02-18-10-04-00 | 0 to 11 mm | 4-20 mA (Linear) | 0.35 kg | Oil & gas, rotating equipment |
| 330705-02-18-10-05-00 | 0 to 11 mm | 4-20 mA (Linear) | 0.36 kg | Manufacturing, conveyors, presses |
| 330705-02-18-10-06-00 | 0 to 11 mm | 4-20 mA (Linear) | 0.37 kg | HVAC systems, critical machinery |
| 330705-02-18-10-07-00 | 0 to 11 mm | 4-20 mA (Linear) | 0.38 kg | Aerospace, turbines, generators |
