Product Introduction

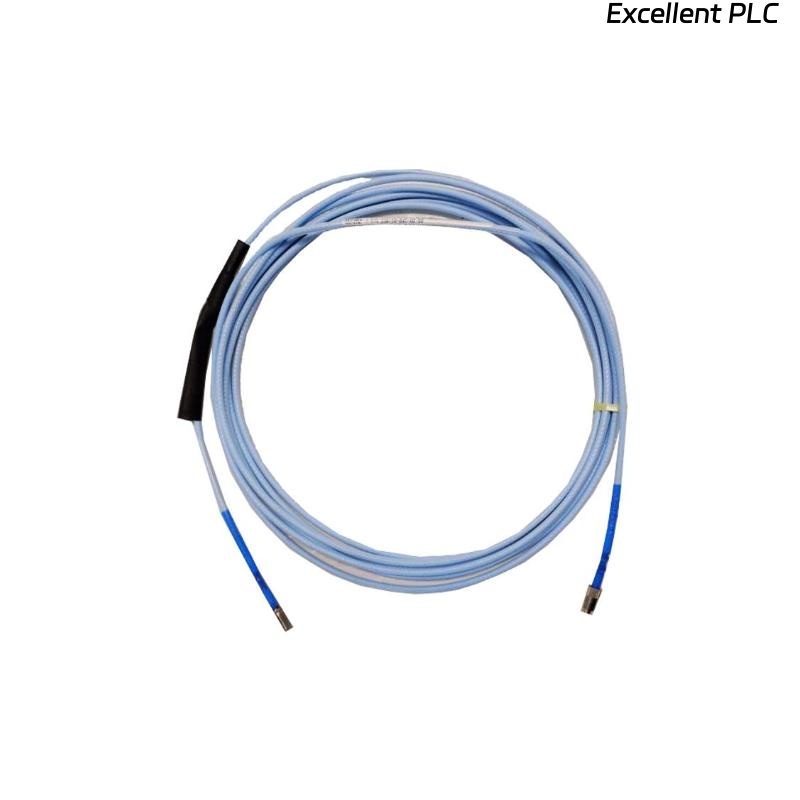

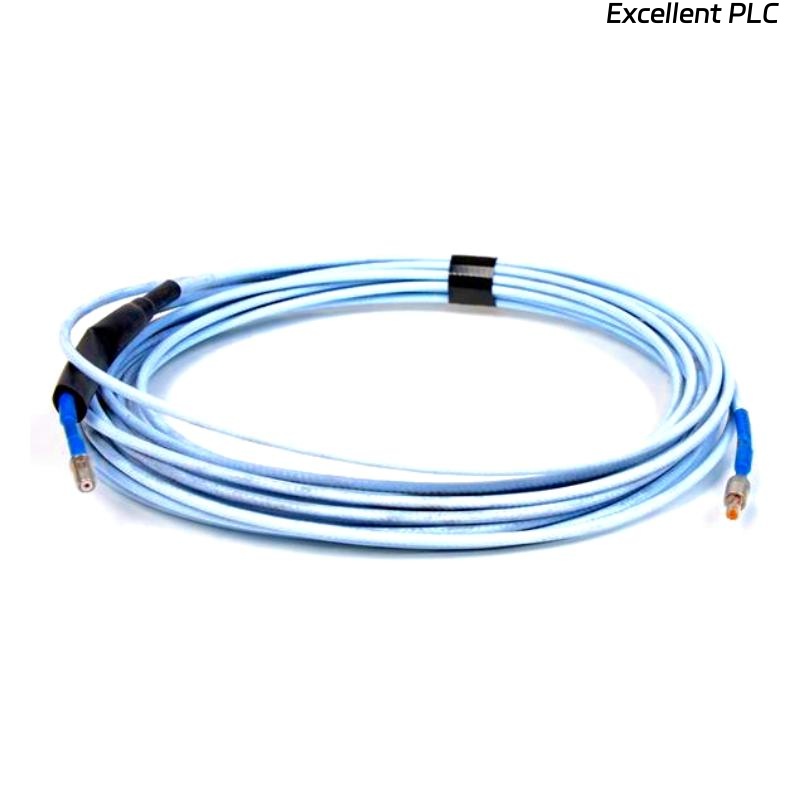

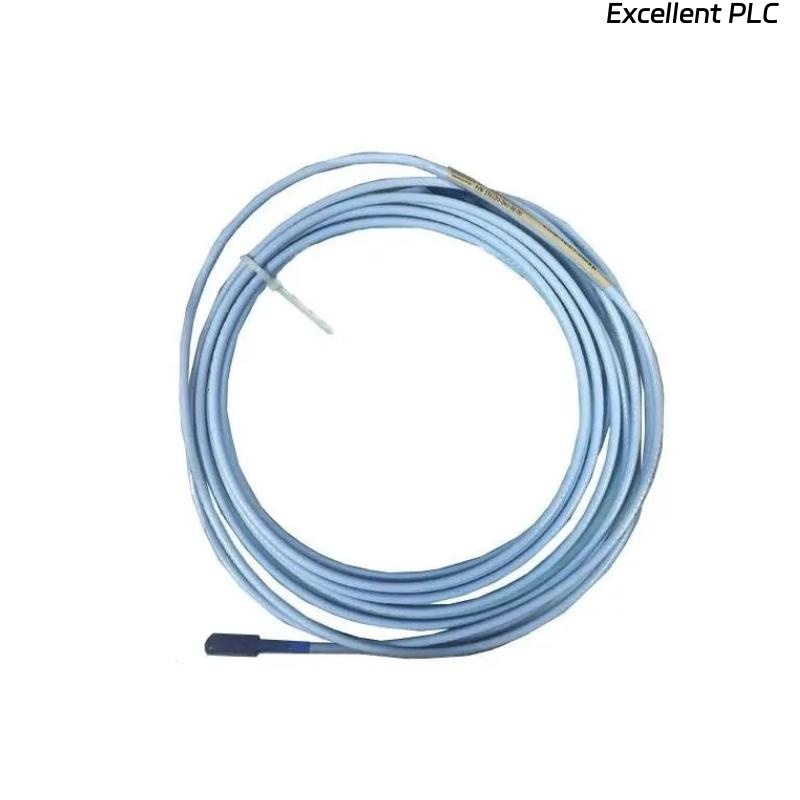

The Bently Nevada 330709-000-030-50-12-00 3300 XL 11 mm Proximity Probe is a high-precision eddy-current sensor designed for industrial machinery vibration monitoring. It belongs to the 3300 XL series, widely recognized for its robust performance, reliability, and ease of integration with monitoring systems. The probe measures the displacement of a rotating shaft or other machinery components with high accuracy, providing critical data for predictive maintenance and operational safety.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 11 mm Proximity Probe |
| Sensor Technology | Eddy-Current |
| Target Material Compatibility | Ferromagnetic metals |
| Output Type | AC Voltage / DC Voltage (depending on system) |
| Cable Length | 5 m |
| Total Length | 5 m |
| Weight | 0.35 kg |
| Operating Temperature Range | -40°C to +120°C |
| Frequency Response | Up to 50 kHz |
| Mounting Type | Threaded or push-fit |
| System Compatibility | Bently Nevada 3300 XL Series Monitors |
Product Applications
-
Rotating machinery vibration monitoring
-
Turbine shaft position detection
-
Compressor and pump alignment verification
-
Generator shaft vibration and displacement measurement
-
Industrial predictive maintenance programs
-
Critical asset protection and monitoring in power plants, oil & gas, and petrochemical facilities
Product Advantages
-
High Accuracy: Capable of detecting micrometer-level displacement variations.
-
Rugged Design: Durable construction suited for harsh industrial environments.
-
Reliable Integration: Fully compatible with Bently Nevada 3300 XL monitoring systems.
-
Flexible Installation: Compact 11 mm diameter probe fits into restricted spaces.
-
Wide Frequency Response: Suitable for high-speed machinery applications.
-
Long Cable Options: 5 m standard cable allows flexible placement relative to the monitor.
FAQ
Q1: What is the maximum cable length supported without signal loss?
A1: Standard cable length is 5 m, but extensions up to 30 m can be used with appropriate signal conditioning.
Q2: Can this probe operate in high humidity environments?
A2: Yes, the probe housing is sealed and suitable for humid or wet industrial conditions.
Q3: What type of output does the probe provide?
A3: The probe provides eddy-current AC signal compatible with 3300 XL monitor inputs.
Q4: Is it compatible with non-ferromagnetic targets?
A4: No, eddy-current probes require ferromagnetic target materials for proper operation.
Q5: What is the frequency range of the sensor?
A5: The sensor supports up to 50 kHz, making it suitable for high-speed machinery.
Q6: How is the probe calibrated?
A6: Calibration is performed using standard Bently Nevada calibration fixtures or via the monitor’s built-in calibration routine.
Q7: Can this probe detect both radial and axial vibration?
A7: It primarily measures radial shaft displacement; axial measurements require appropriate sensor orientation.
Q8: What mounting options are available?
A8: Threaded mounting and push-fit installation are supported for flexible integration.
Q9: How resistant is the probe to electrical noise?
A9: The probe is designed with shielding to minimize electromagnetic interference in industrial environments.
Q10: Can it be used in explosive or hazardous areas?
A10: With proper conduit and system certification, certain configurations of the 3300 XL series can be used in hazardous environments. Always verify local safety requirements.
