Product Introduction

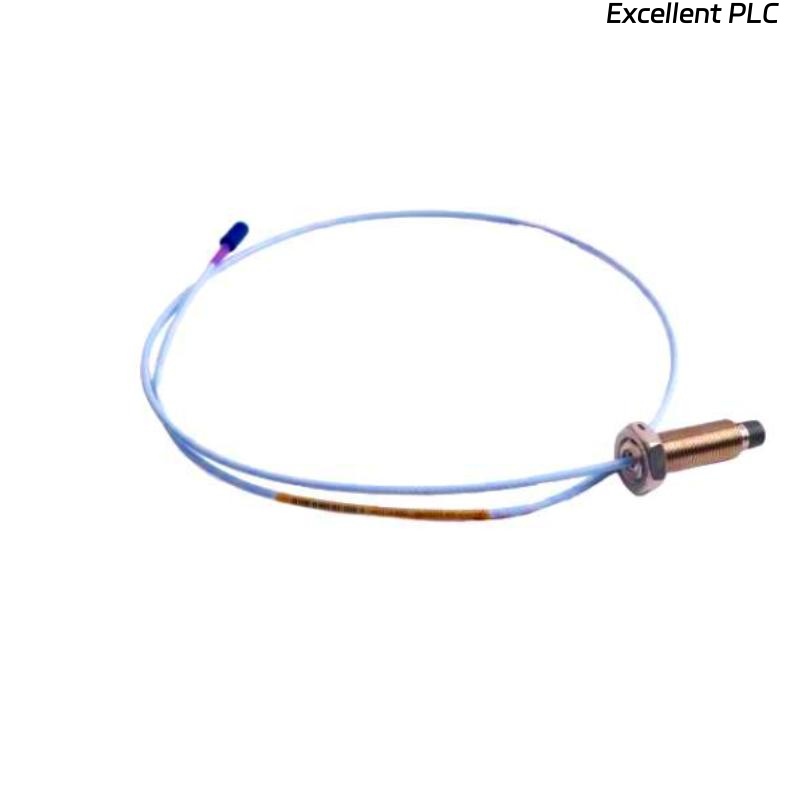

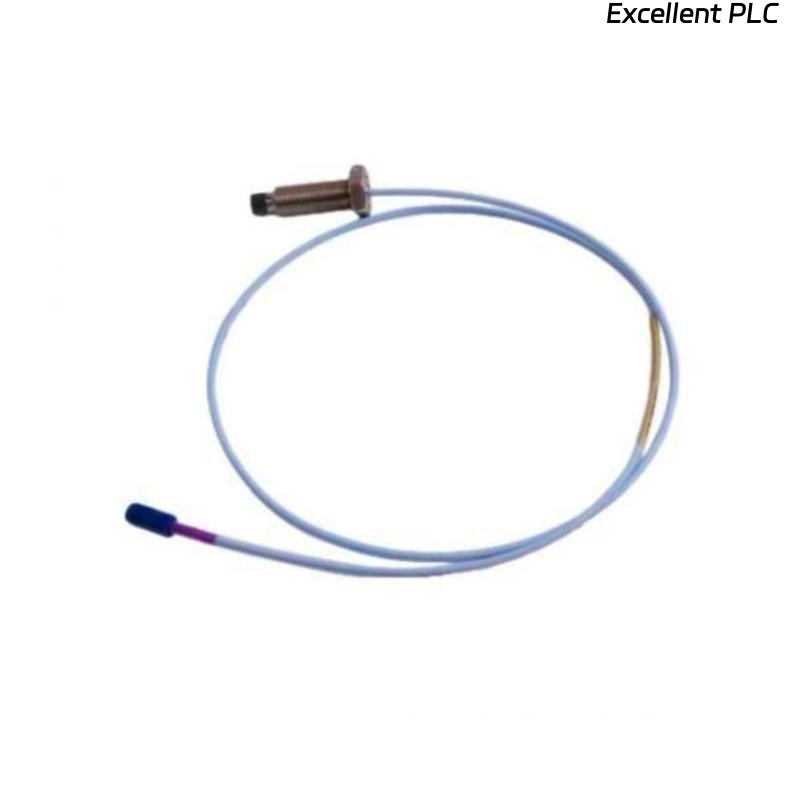

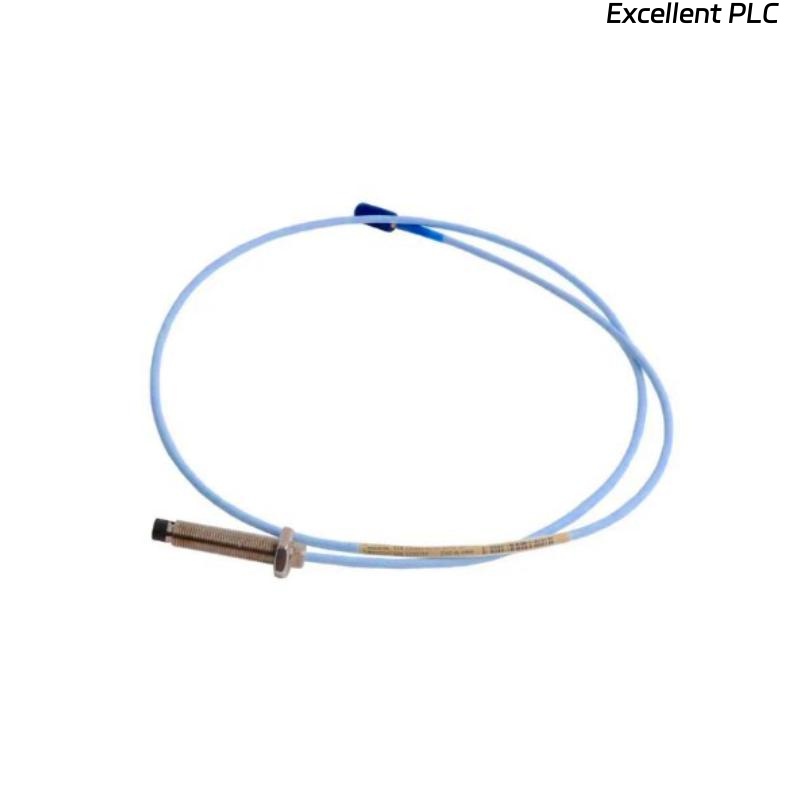

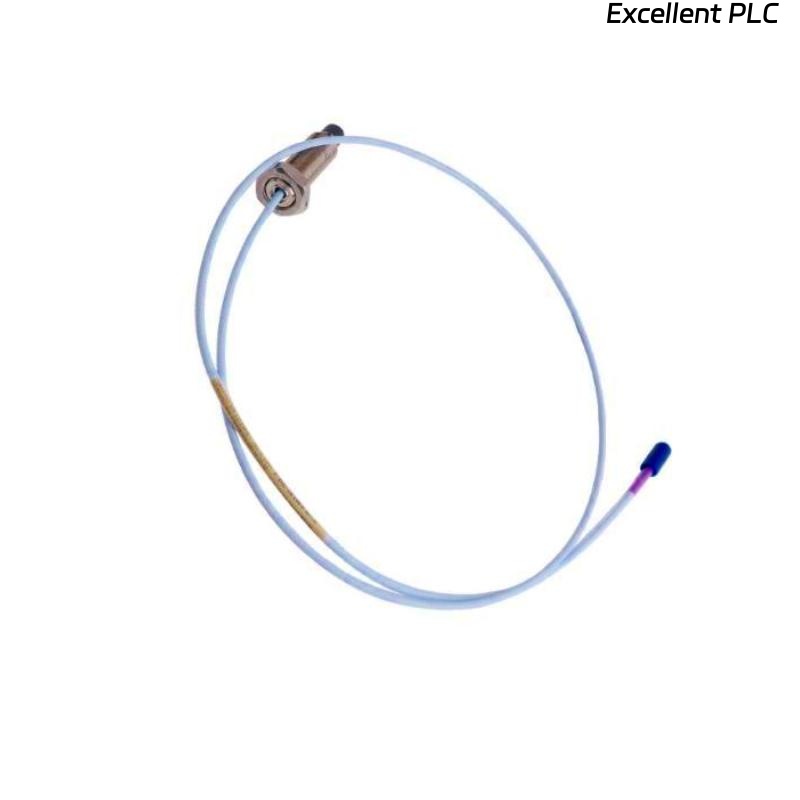

The 330709-000-040-10-02-05 3300 XL 11 mm Proximity Probe is a high-performance eddy-current displacement sensor designed for precise measurement of vibration and position in rotating machinery. This sensor is widely used in industrial monitoring systems for turbines, generators, pumps, and compressors, offering reliable and accurate detection in demanding environments. Its compact 11 mm diameter makes it suitable for applications where space is limited while still providing robust sensing capabilities.
Technical Specifications
| Parameter | Specification |
|---|---|
| Sensor Type | Eddy-Current Proximity Probe |
| Diameter | 11 mm |
| Tip Material | Hardened Stainless Steel |
| Output Type | Voltage/Current (depending on system) |
| Measuring Range | 0–1 mm (standard, other ranges available) |
| Linearity | ≤ 1% of full scale |
| Operating Temperature | -40°C to +120°C |
| Cable Length | 1 m (Total Length) |
| Weight | 0.07 kg |
| Insulation Resistance | ≥ 100 MΩ at 500 VDC |
| Electrical Connector | LEMO / Custom options |
| Vibration Resistance | Up to 20 g |
| Shock Resistance | Up to 50 g |
| Response Time | ≤ 1 ms |
Product Applications
-
Rotating machinery monitoring (turbines, compressors, pumps)
-
Vibration and position detection in generators and motors
-
Condition monitoring systems in power plants
-
Industrial automation requiring precise displacement measurements
-
Research and development labs for mechanical dynamics testing
-
Aerospace and defense applications with high-speed rotating equipment
Product Advantages
-
High precision measurement with low linearity error
-
Robust construction suitable for harsh industrial environments
-
Compact 11 mm design for installation in tight spaces
-
Quick response time ideal for high-speed monitoring
-
Versatile compatibility with standard 3300 XL systems
-
Reliable signal output over long cable distances
FAQ
Q1: What is the recommended operating temperature range for this probe?
A1: The probe can reliably operate between -40°C and +120°C.
Q2: Can this probe be used in a high-vibration environment?
A2: Yes, it is designed to withstand vibrations up to 20 g.
Q3: What type of electrical output does this probe provide?
A3: It provides voltage or current output compatible with standard 3300 XL systems.
Q4: Is the probe compatible with standard 3300 XL proximity probe systems?
A4: Yes, it is fully compatible with 3300 XL monitoring systems.
Q5: What is the sensor’s linearity accuracy?
A5: The sensor maintains a linearity error of ≤ 1% of full scale.
Q6: Can this probe be installed in confined spaces?
A6: Yes, its 11 mm diameter allows installation in tight locations.
Q7: What is the insulation resistance of this probe?
A7: The insulation resistance is ≥ 100 MΩ at 500 VDC.
Q8: How long is the standard cable supplied with the probe?
A8: The standard cable length is 1 meter.
Q9: Is the probe resistant to mechanical shocks?
A9: Yes, it can tolerate shocks up to 50 g.
Q10: How fast can this probe respond to changes in displacement?
A10: The response time is ≤ 1 millisecond, suitable for high-speed applications.
Recommended Same-Series or Related Models
| Model | Diameter | Measuring Range | Notes |
|---|---|---|---|
| 330709-000-040-10-02-01 | 11 mm | 0–0.5 mm | Standard XL model |
| 330709-000-040-10-02-03 | 11 mm | 0–2 mm | Extended range |
| 330709-000-040-10-02-04 | 11 mm | 0–1.5 mm | High temperature version |
| 330709-000-040-10-02-06 | 11 mm | 0–1 mm | Enhanced cable shielding |
| 330709-000-040-10-02-07 | 11 mm | 0–0.75 mm | Precision grade |
| 330709-000-040-10-02-08 | 11 mm | 0–1 mm | For high-vibration applications |
Popular Models from the Same Brand
| Model | Diameter | Measuring Range | Notes |
|---|---|---|---|
| 3300 XL 12 mm | 12 mm | 0–1 mm | Larger diameter option |
| 3300 XL 8 mm | 8 mm | 0–0.5 mm | Compact design |
| 3300 XL 11 mm HP | 11 mm | 0–2 mm | High performance |
| 3300 XL 11 mm HT | 11 mm | 0–1 mm | High temperature |
| 3300 XL 11 mm LV | 11 mm | 0–1 mm | Low voltage version |
| 3300 XL 10 mm | 10 mm | 0–1 mm | Mid-range option |
| 3300 XL 11 mm Shielded | 11 mm | 0–1 mm | Shielded cable version |
| 3300 XL 11 mm Precision | 11 mm | 0–0.75 mm | Precision measurement |
