Product Introduction

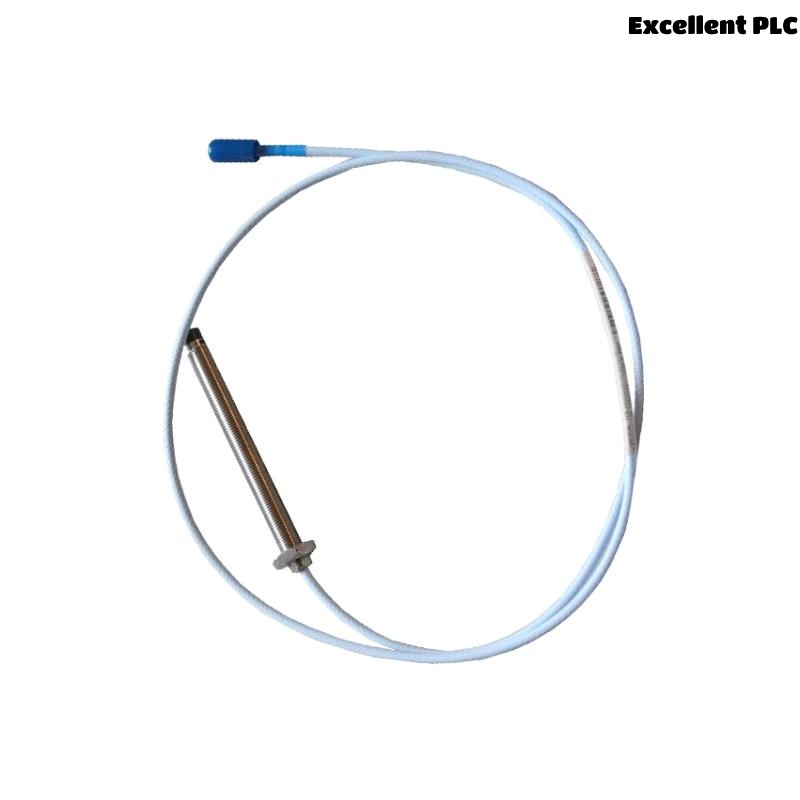

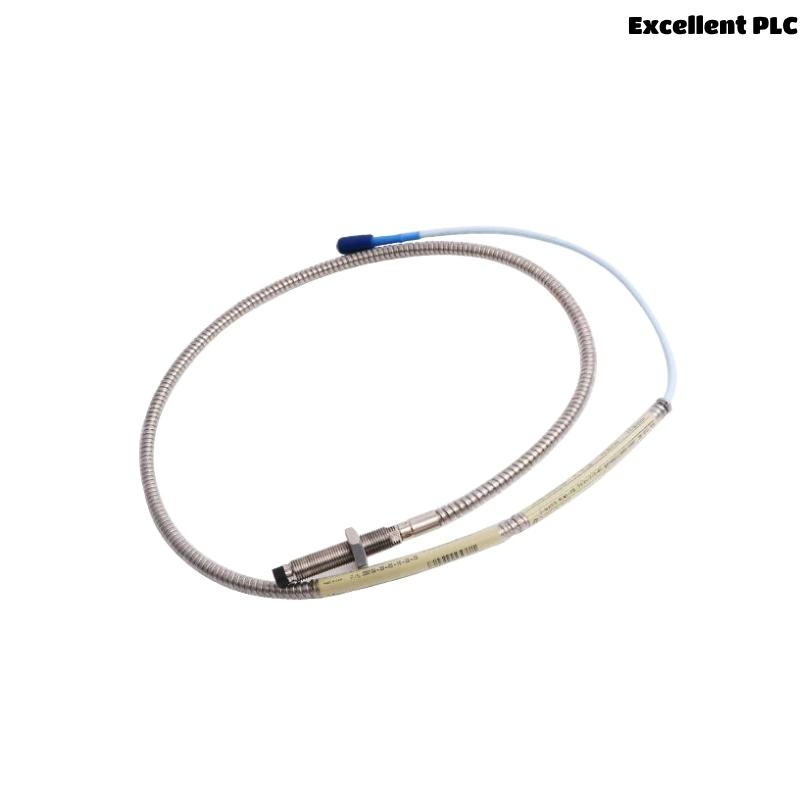

The Bently Nevada 330709-000-050-10-02-00 3300 XL 11 mm Proximity Probe is part of the advanced 3300 XL series, designed for high-precision machinery monitoring in various industrial sectors. The probe uses eddy current technology to measure shaft displacement and vibration without making physical contact with the rotating shaft, ensuring durability and minimal wear over time. This makes the 3300 XL Proximity Probe a vital component for monitoring the health of critical machinery.
Built with a robust design, the 3300 XL 11 mm Proximity Probe is specifically engineered to withstand harsh industrial environments. It is commonly used for real-time feedback on equipment performance, such as turbines, compressors, pumps, and motors, providing vital information that can help operators predict and prevent failures.
The 3300 XL 11 mm Proximity Probe offers a highly accurate and reliable means of measuring shaft displacement, helping industries like power generation, oil & gas, manufacturing, and aerospace ensure the long-term health of their rotating equipment.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 330709-000-050-10-02-00 |
| Type | 3300 XL Proximity Probe |
| Measurement Range | 0 to 11 mm |
| Output Signal | 4-20 mA (Linear) |
| Operating Temperature | -40°C to +85°C |
| Mounting Type | Standard Mount (Non-reverse mount) |
| Weight | 0.07 kg |
| Total Length | 1 meter |
| Material | Stainless Steel and Inconel |
| Environmental Protection | IP67 |
| Power Supply | 24 V DC |
Product Applications
The Bently Nevada 330709-000-050-10-02-00 3300 XL 11 mm Proximity Probe is used across various industries for precise measurement and monitoring of rotating machinery. Some of the primary applications include:
-
Rotating Machinery Monitoring
This proximity probe is ideal for detecting shaft displacement and vibration in critical rotating machinery, including turbines, motors, pumps, and compressors. It helps to identify potential issues such as misalignment, imbalance, or wear before they lead to costly downtime. -
Power Generation
In power plants, the probe is used to monitor equipment like turbines, generators, and pumps, ensuring they operate smoothly and reducing the risk of failure or inefficiency. -
Oil & Gas Industry
The 3300 XL Proximity Probe is designed to withstand harsh environmental conditions, making it ideal for offshore platforms and refineries. It is used to monitor critical components like pumps, motors, and compressors, ensuring optimal performance and preventing breakdowns. -
Manufacturing Plants
In manufacturing settings, the probe is used to monitor machines such as conveyors, presses, and grinders. It helps reduce unexpected production interruptions by providing early warnings about machine health. -
HVAC Systems
The 3300 XL Proximity Probe is also effective for monitoring components in HVAC systems, such as fan motors and compressors, ensuring their efficient operation and preventing costly repairs. -
Aerospace & Defense
Aerospace applications require extremely precise monitoring of rotating machinery. This probe helps in monitoring critical components such as jet turbines and aircraft engines, ensuring their safety and performance.
Product Advantages
-
Non-Contact Measurement: The 3300 XL 11 mm Proximity Probe employs eddy current technology, meaning it does not require physical contact with the shaft. This significantly reduces wear on the probe and extends its life while providing high accuracy in shaft displacement and vibration measurements.
-
Durable and Robust Construction: Made from stainless steel and Inconel, this probe is built to withstand harsh industrial environments. It is resistant to corrosion, mechanical stress, and high temperatures, making it suitable for extreme conditions found in industries like oil & gas, aerospace, and power generation.
-
High Precision: With a measurement range of 0 to 11 mm, the probe delivers high precision in detecting small displacements and vibrations, ensuring accurate data is available for monitoring the condition of rotating machinery.
-
IP67 Protection: The probe has an IP67 rating, meaning it is fully protected from dust and can be immersed in water for short periods, making it reliable for use in wet or dusty environments.
-
Wide Operating Temperature Range: The 3300 XL Proximity Probe can function in temperatures ranging from -40°C to +85°C, making it versatile enough for a wide range of applications, from cold environments to high-heat settings.
-
Real-Time Monitoring: The 4-20 mA linear output allows for real-time data transmission, enabling continuous monitoring and easy integration into industrial control systems.
Frequently Asked Questions (FAQs)
-
What is the measurement range of the 3300 XL Proximity Probe?
The 3300 XL 11 mm Proximity Probe has a measurement range from 0 to 11 mm, allowing it to measure both small and larger shaft displacements. -
What type of output signal does the probe provide?
The probe provides a 4-20 mA linear output signal, which is widely used in industrial systems for continuous monitoring. -
What power supply is required for the 3300 XL Proximity Probe?
The probe requires a 24 V DC power supply for operation, which is compatible with most industrial control systems. -
What is the weight of the 3300 XL Proximity Probe?
The probe weighs 0.07 kg, making it lightweight and easy to install. -
What materials are used in the construction of the probe?
The probe is made of stainless steel and Inconel, ensuring it is durable and resistant to corrosion, high temperatures, and mechanical stress. -
What is the temperature range for the 3300 XL Proximity Probe?
The probe operates within a temperature range of -40°C to +85°C, suitable for both extreme cold and hot environments. -
How is the probe mounted?
The 3300 XL Proximity Probe is designed for standard mounting (non-reverse mount), making it ideal for typical machinery monitoring applications. -
What are the total length of the 3300 XL Proximity Probe?
The probe total length of 1 meter. -
What environmental protection does the probe offer?
The probe is rated IP67, meaning it is dustproof and can withstand immersion in water for short periods, making it ideal for use in harsh environments. -
In which industries can the 3300 XL Proximity Probe be used?
The probe is used in industries such as power generation, oil & gas, manufacturing, HVAC, and aerospace for monitoring rotating machinery.
