Product Introduction

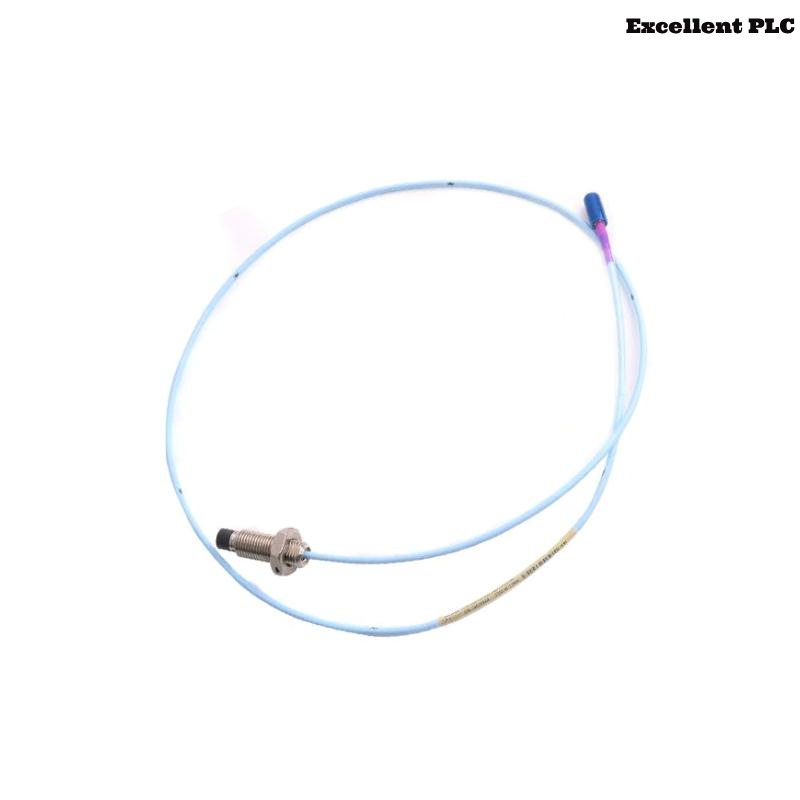

The Bently Nevada 330709-000-130-10-02-00 is part of the 3300 XL series of proximity transducer systems, specifically engineered to provide highly accurate, non-contact displacement measurements for rotating machinery. This particular model is an 11 mm proximity probe, designed to measure shaft position and vibration by sensing the distance to a conductive target, typically the shaft surface.
Engineered with durability, temperature resistance, and EMI immunity in mind, this proximity probe is ideal for harsh industrial environments. It offers high linearity over a wide range, consistent sensitivity, and strong compatibility with Proximitor® sensors in the 3300 XL system. The model’s long extension length and rugged casing make it suitable for challenging installations in the oil & gas, power generation, and heavy machinery sectors.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 330709-000-130-10-02-00 |
| Series | 3300 XL Proximity Transducer System |
| Probe Tip Diameter | 11 mm |
| Linear Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 mV/μm (200 mV/mil) ±5% |
| Usable Gap Range | 0.25 mm to 3.25 mm (10 to 130 mils) |
| Thread Type | M14 x 1.5 |
| Thread Length | 80 mm (Custom Option: 130 mm in this model) |
| Case Material | AISI 303 Stainless Steel |
| Probe Length | 130 mm (threaded portion) |
| Cable Type | Integral coaxial cable, PFA-insulated |
| Cable Length (Integral) | 1.0 meter (10 in model code = 1 meter) |
| Connector Type | ClickLoc® coaxial, field-mateable |
| Operating Temperature | -51°C to +177°C (-60°F to +350°F) |
| Maximum Pressure Rating | 20 bar (290 psi) |
| Ingress Protection | IP67 (when mated with compatible connector) |
| Weight | 0.07 kg |
| Certifications | CE, RoHS, ATEX (with optional configurations) |
Product Applications
The 330709-000-130-10-02-00 proximity probe is engineered for high-performance applications in demanding environments, including:
-
Steam and Gas Turbines
Used for measuring shaft vibration and axial thrust movement in turbine rotors. -
Centrifugal Compressors
Monitors proximity to detect shaft deflections and early signs of imbalance or misalignment. -
Industrial Motors and Generators
Ensures real-time insight into radial shaft movement and dynamic vibration behaviors. -
Gearboxes
Enables predictive monitoring of wear, gear backlash, and shaft displacement. -
Pumps and Blowers
Deployed to detect cavitation, misalignment, or rotor rubbing incidents. -
Petrochemical and Power Plants
Plays a crucial role in machinery protection systems (MPS) and condition monitoring platforms.
Product Advantages
-
Wide Linear Measurement Range
Offers a broad and precise detection window up to 2 mm with minimal deviation. -
Rugged Construction
Built with 303 stainless steel housing to endure mechanical stress, corrosion, and harsh process environments. -
Temperature Resistant
Withstands high-temperature conditions up to 177°C, making it suitable for thermal-critical applications. -
ClickLoc® Locking Connector
Prevents connector loosening under vibration and enhances safety with reliable locking feedback. -
High Compatibility
Fully compatible with 3300 XL Proximitor® sensors and extension cables, allowing modular configuration. -
Field Proven Design
Trusted globally in critical machinery applications with decades of deployment success. -
Minimal Signal Degradation
Shielded cable ensures high-quality signal transmission in high-noise electrical environments. -
Easy Integration
Threaded body allows for simple and secure mounting in standardized probe holders and ports.
Frequently Asked Questions (FAQ)
-
What does the “11 mm” in the probe description refer to?
It indicates the diameter of the probe tip, allowing greater linear range and durability. -
Can this probe be used in high-temperature zones near turbines?
Yes, it supports continuous operation in environments up to 177°C (350°F). -
Is the cable attached to the probe replaceable?
The integral cable is not replaceable; however, it can be extended using a Bently Nevada extension cable. -
What is the function of the ClickLoc® connector?
It ensures a secure mechanical and electrical connection that resists loosening from vibration. -
Is this probe suitable for both radial and axial measurements?
Yes, it can measure both radial vibration and axial thrust movement depending on installation. -
Can this be used in hazardous areas?
Yes, when ordered with ATEX/IECEx-certified options, it is suitable for classified zones. -
What type of target material is required for accurate measurement?
The probe is calibrated for 4140 steel targets; accuracy may vary with other materials. -
Is field calibration required after installation?
Typically no, but periodic validation is recommended during maintenance intervals. -
Does the probe come with mounting hardware?
No, mounting brackets or probe holders must be sourced separately or specified at ordering. -
How does this model compare with a standard 5 mm probe?
The 11 mm probe provides a longer linear range and is generally used in larger machinery where space allows.
Related Models (Same Series / Similar Functionality)
| Model | Description |
|---|---|
| 330709-000-060-10-02-00 | 11 mm probe, 60 mm thread length, 1 m cable |
| 330703-000-070-10-02-00 | 8 mm probe, 70 mm thread length, 1 m cable |
| 330104-00-08-10-02-00 | 8 mm probe with standard 5/8-UNF thread, general use |
| 330105-02-12-10-02-00 | 5 mm probe, 120 mm length, high-temperature model |
| 3300 XL 8 mm System Kit | Complete system (probe, extension, Proximitor sensor) |
| 330101-00-36-10-02-00 | 5 mm probe with 36-inch cable, used in confined spaces |
Popular Bently Nevada Models (Other Categories)
| Model | Description |
|---|---|
| 3500/42M | 4-Channel Proximitor® Monitor |
| 3500/22M | Transient Data Interface (TDI) |
| 3500/15 | Power Supply Module |
| 330130-040-00 | XL 8 mm Extension Cable, 40 ft |
| 330500-02-00 | Velocity Sensor (Seismic Monitoring) |
| 7200 Series | Legacy Vibration Monitoring and Proximitor System |
