Product Description

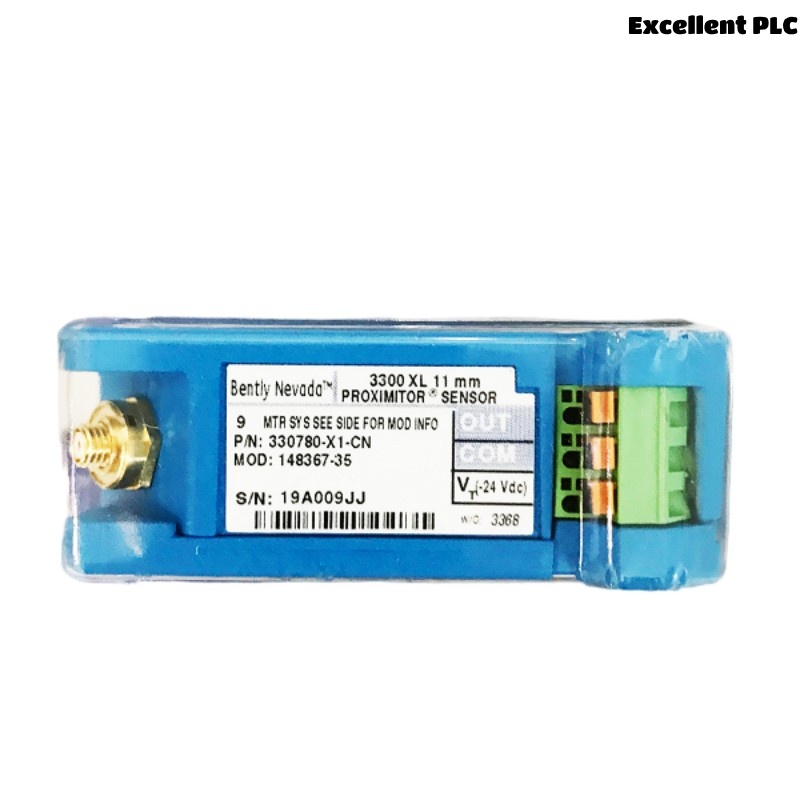

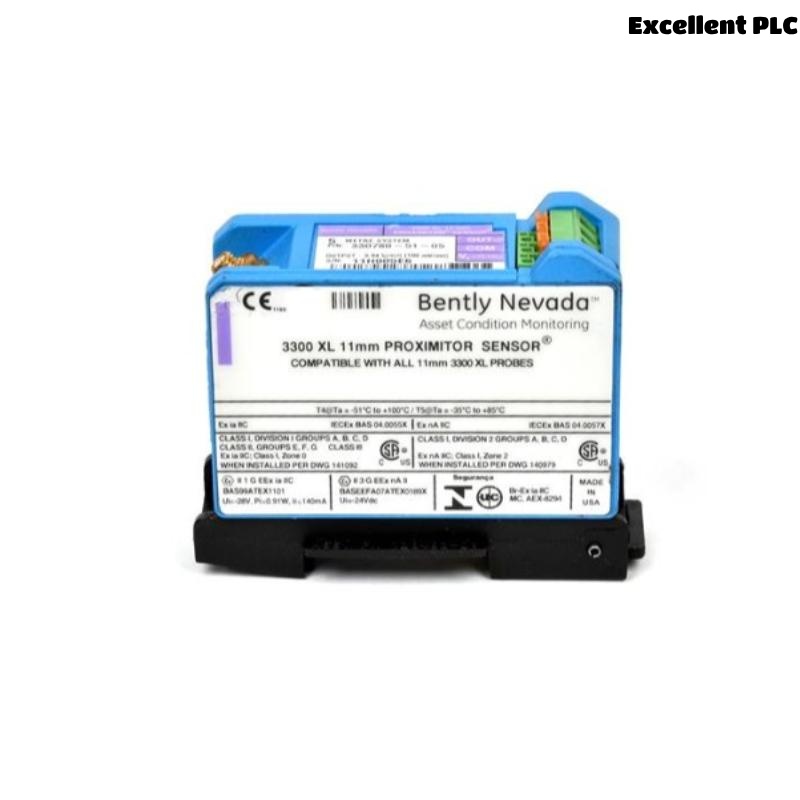

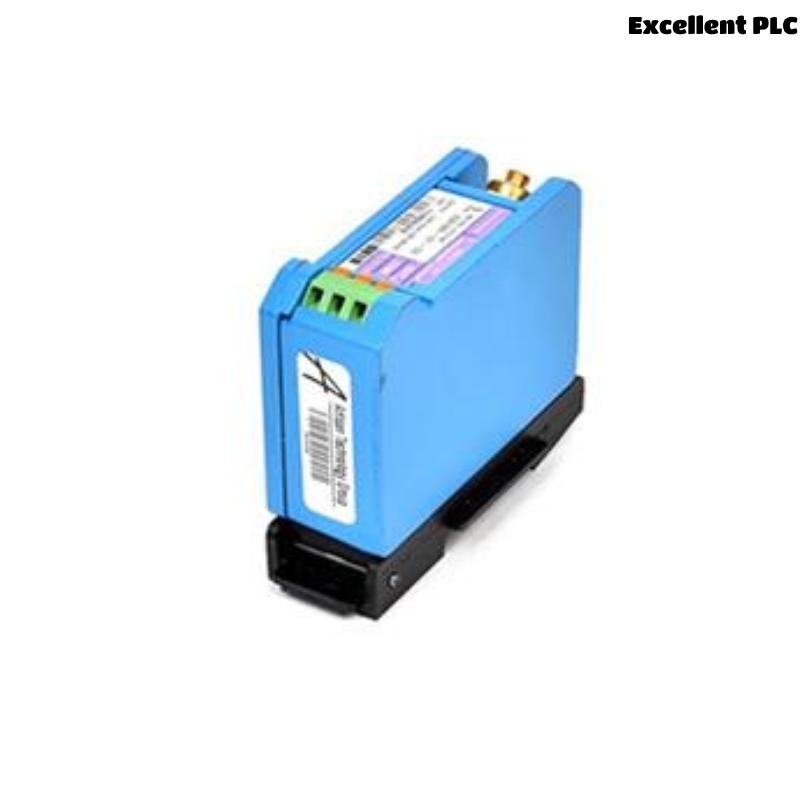

The Bently Nevada 330780-X1-CN is part of the 3300 XL 11 mm Proximity Transducer System, comprising a proximity probe, extension cable, and Proximitor Sensor. It delivers a 3.94 V/mm (100 mV/mil) output, ideal for vibration and displacement measurements in rotating machinery.
Applications
-
Axial (thrust) position measurements
-
Rod position or rod drop on reciprocating compressors
-
Differential expansion on steam turbines
-
Tachometer and zero-speed detection
-
Phase reference (Keyphasor) signals
Key Advantages
-
Extended linear range (up to 4.5 mm) compared to 8 mm systems
-
Rugged construction with TipLoc and CableLoc technology
-
Excellent RFI/EMI immunity
-

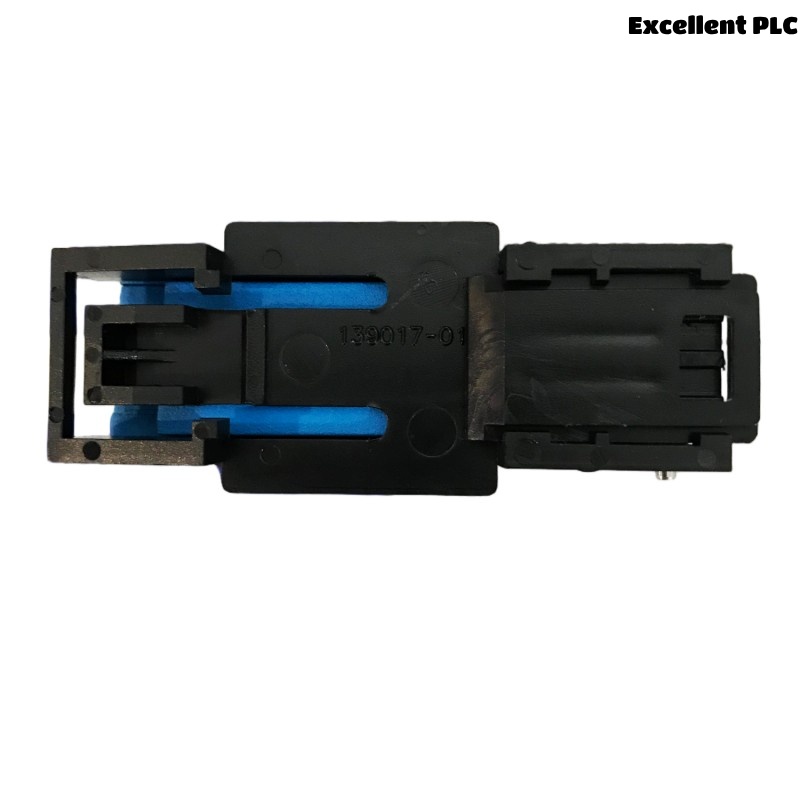

DIN-rail or panel mount flexibility
-
Environmentally protected connectors
-
SpringLoc terminal strips for easy wiring
Technical Specifications
| Parameter | Specification |
|---|---|
| Output Scale Factor | 3.94 V/mm (100 mV/mil) ±10% |
| Frequency Response | 0 to 8 kHz, ±3 dB |
| Linear Range | 0.5 to 4.5 mm (20 to 180 mils) |
| Extended DSL Range | 0.5 to 5.0 mm (20 to 200 mils) |
| Recommended Gap | 2.5 mm (100 mils) |
| Operating Temperature | Sensor: –52°C to +100°C Probe: –52°C to +177°C |
| Humidity | 100% condensing (non-submersible with protected connectors) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Sensor Material | A380 Aluminum |
| Probe Case Material | AISI 304 Stainless Steel |
| Minimum Shaft Diameter | 152 mm (6.0 in) recommended |
| Power Supply | –17.5 Vdc to –26 Vdc |
| Dimensions | 81.3 mm x 35.1 mm x 58.4 mm |
| Weight | 0.255 kg |
Frequently Asked Questions (FAQ)
Q1: What is the main advantage of the 11 mm over the 8 mm proximity system?
A1: The 11 mm system offers a longer linear range, suitable for applications like axial thrust measurements.
Q2: Can the 330780-X1-CN be used with older 7200 series probes?
A2: No, all components must be upgraded to 3300 XL 11 mm series for compatibility.
Q3: What is the recommended operating temperature for the Proximitor Sensor?
A3: The sensor operates from –52°C to +100°C.
Q4: Is the system suitable for high-RFI environments?
A4: Yes, it features enhanced RFI/EMI immunity and meets CE requirements.
Q5: What type of mounting options are available?
A5: It supports both DIN rail and panel mounting.
Q6: Is the sensor hazardous area approved?
A6: Yes, it is certified for various ATEX, IECEx, and North American standards including SIL2/SIL3 ratings.
Q7: How is the cable secured against oil leakage?
A7: The FluidLoc option prevents oil migration through the cable.
Q8: What is the output scale factor of the sensor?
A8: It provides 3.94 V/mm (100 mV/mil).
Q9: Are special tools required for terminal connections?
A9: No, SpringLoc terminals simplify wiring without specialized tools.
Q10: Can I mix cable lengths and probe lengths?
A10: Yes, but the total length must match the sensor’s system length (e.g., 5 m or 9 m).
Related or Same Series Models
| Model Number | Description | Thread Type | Armor Option | Length Options |
|---|---|---|---|---|
| 330701 | 11 mm Probe, 1/2-20 UNF | UNF | No | 1 m, 5 m, 9 m |
| 330702 | 11 mm Probe, 1/2-20 UNF | UNF | Yes | 1 m, 5 m, 9 m |
| 330703 | 11 mm Probe, M14 x 1.5 | Metric | No | 1 m, 5 m, 9 m |
| 330704 | 11 mm Probe, M14 x 1.5 | Metric | Yes | 1 m, 5 m, 9 m |
| 330730-040 | 11 mm Extension Cable, 4 m | — | Optional | 4 m |
| 330730-080 | 11 mm Extension Cable, 8 m | — | Optional | 8 m |
