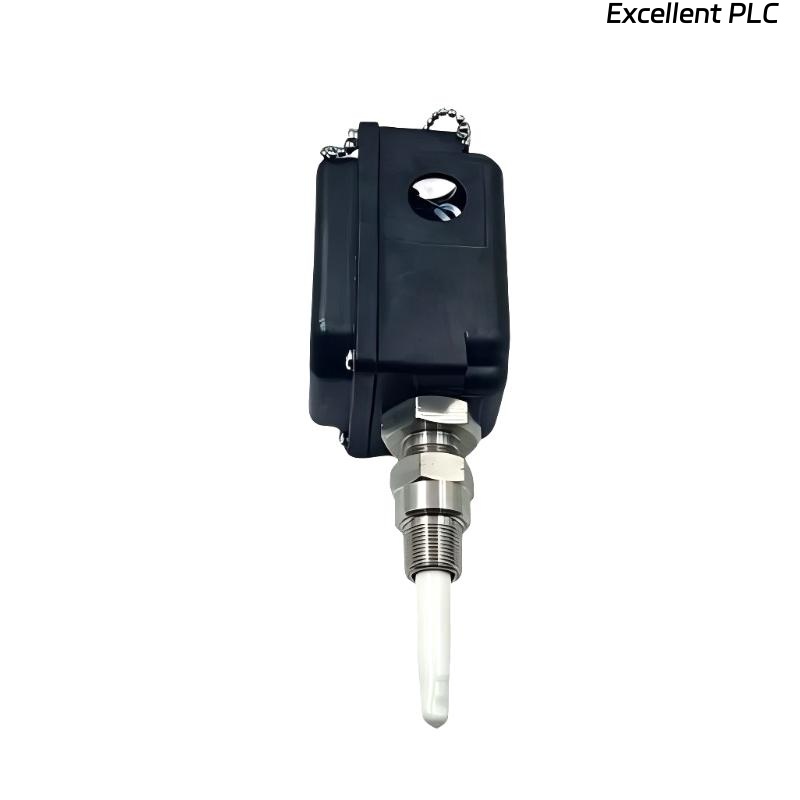

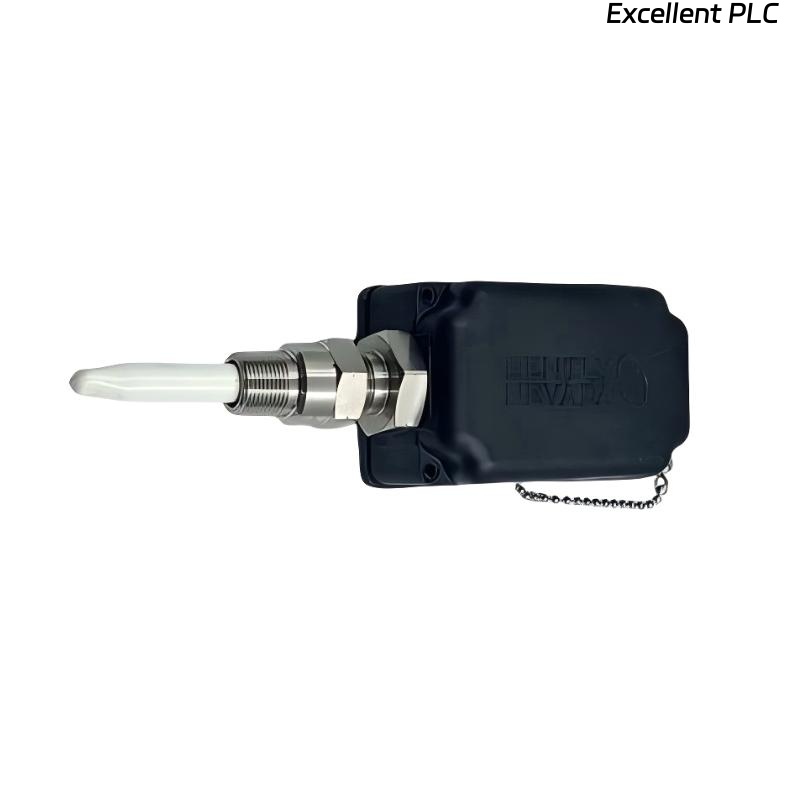

Bently Nevada 330800-16-00-039-03-02 PROXPAC XL Proximity Transducer

Product Introduction

The Bently Nevada 330800-16-00-039-03-02 PROXPAC XL Proximity Transducer is an advanced vibration and position measurement device engineered for high-performance industrial machinery monitoring. As part of the Bently Nevada 3300 XL series, the PROXPAC XL transducer delivers exceptional measurement accuracy, environmental durability, and stability across a wide range of operating conditions.

Designed to convert signals from non-contact proximity probes into precise electrical outputs, the PROXPAC XL enables accurate monitoring of shaft vibration, radial and axial displacement, and mechanical position in critical rotating equipment. Its robust design ensures consistent performance even under severe industrial environments such as high temperature, vibration, and electromagnetic interference. The transducer is built for integration with Bently Nevada’s 3300 XL proximity probes, forming a complete proximity measurement system compliant with API 670 machinery protection standards.

Technical Specifications

Product Applications

The Bently Nevada 330800-16-00-039-03-02 PROXPAC XL Transducer is a core component in industrial condition monitoring systems where machinery protection and performance optimization are critical. It is used in a variety of industries and mechanical assets, including:

• Gas and steam turbines for shaft vibration and position monitoring

• Centrifugal compressors and industrial pumps

• Electric motors and alternators for bearing monitoring

• Gearboxes and expanders in process plants

• Large fans and blowers in power and petrochemical systems

• Machinery protection systems in refineries and power stations

Its stable performance, robust construction, and precise signal output make it indispensable for predictive maintenance and critical asset management in rotating machinery environments.

Product Advantages

• High Signal Accuracy: Provides precise linear signal conversion between probe and monitoring system, ensuring reliable vibration and position readings.

• Superior Temperature Stability: Maintains consistent performance across extreme temperature fluctuations.

• Rugged Industrial Design: Built with durable materials to withstand harsh industrial environments including oil, dust, and vibration.

• Excellent EMI Shielding: Advanced circuitry and shielding reduce electromagnetic interference for stable output.

• Seamless System Integration: Compatible with all 3300 XL proximity probes and Bently Nevada monitoring systems.

• Long-Term Reliability: Proven performance with minimal drift, reducing calibration frequency and maintenance needs.

• Flexible Mounting Options: Can be mounted in panels or racks for system adaptability.

• API 670 Compliance: Ensures reliability and standardization for critical machinery protection systems.

• Stable DC Power Operation: Operates with a consistent -24 VDC supply, ensuring low noise and precise measurement.

FAQ

1. What type of signal does the PROXPAC XL transducer output?
   It outputs a DC voltage signal (0 to -24 VDC) proportional to the distance measured by the probe.

2. Which proximity probes are compatible with the 330800-16-00-039-03-02?
   It is compatible with Bently Nevada 3300 XL 5 mm, 8 mm, and 11 mm proximity probes.

3. How is the transducer connected within the monitoring system?
   It connects between the proximity probe and the monitoring module, converting probe signals into measurable voltage output.

4. What is the linear range of measurement when used with an 8 mm probe?
   The typical linear range is 2.0 mm (80 mils) with 7.87 mV/μm sensitivity.

5. Can this transducer operate in high electromagnetic environments?
   Yes, the PROXPAC XL features advanced electromagnetic shielding to ensure measurement accuracy under EMI conditions.

6. What type of power supply is required for operation?
   It requires a -24 VDC nominal power source.

7. Is recalibration necessary when replacing this transducer?
   No, it is designed for interchangeability within the 3300 XL system and typically does not require recalibration.

8. What kind of mechanical mounting options are available?
   The unit supports both panel and rack mounting, depending on the system configuration.

9. What environmental protection rating does the transducer have?
   It is rated IP65, providing protection against dust and water ingress.

10. Can this transducer be integrated with older Bently Nevada monitoring systems?
    Yes, it maintains backward compatibility with previous 3300 series monitoring hardware through standard interfaces.
