Product Introduction

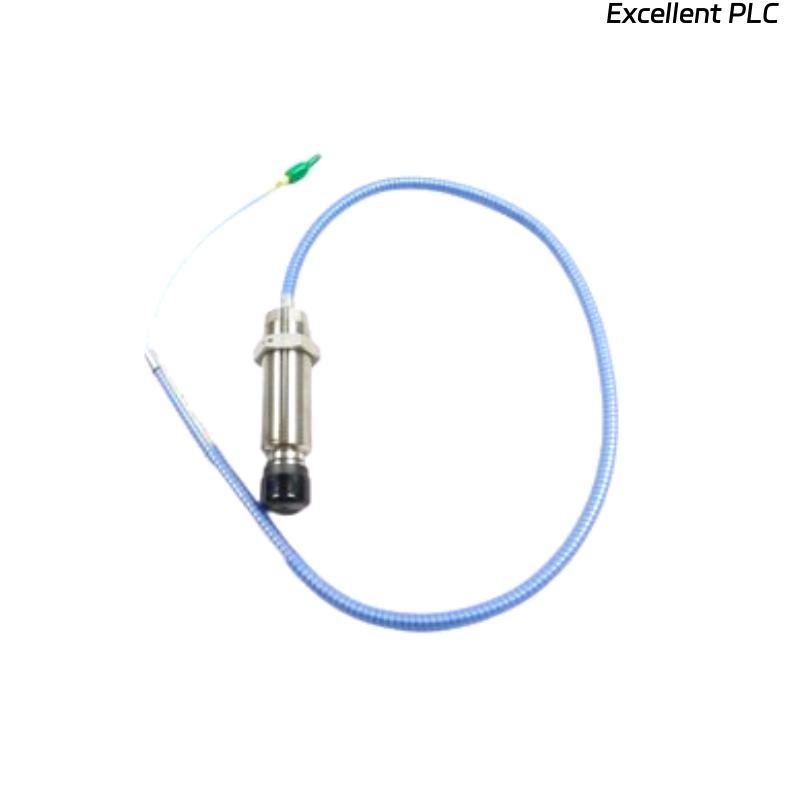

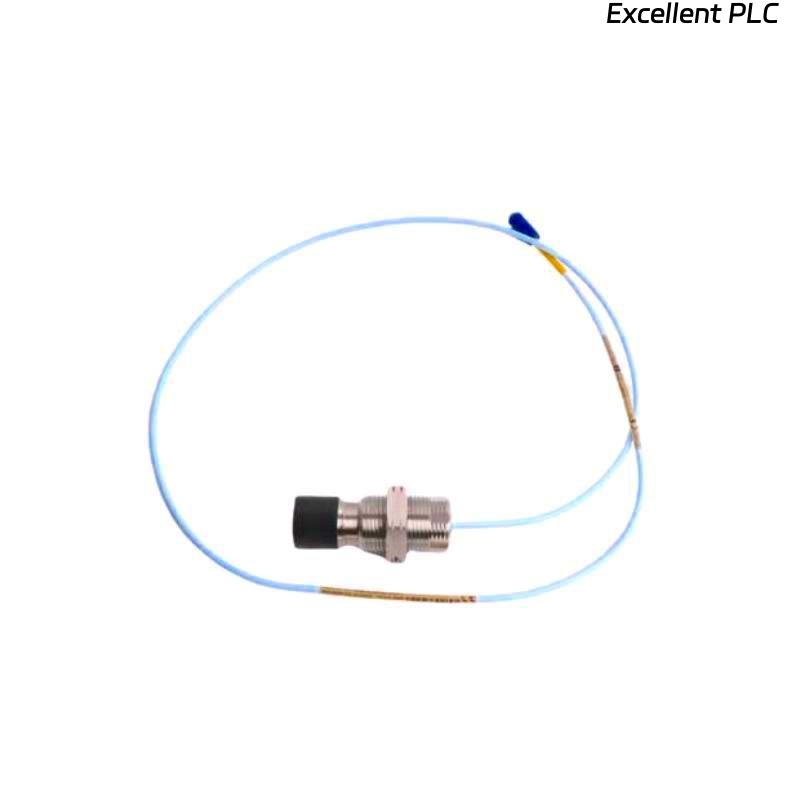

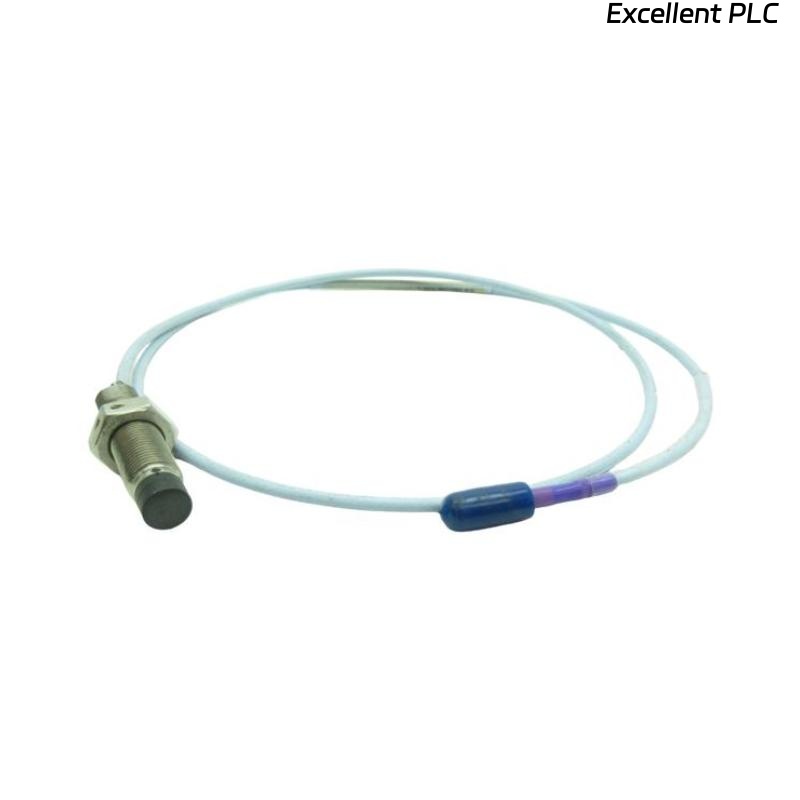

The Bently Nevada 330851-01-000-030-10-00-05 3300 XL 25 mm Proximity Probe is a high-performance proximity sensor designed to measure shaft displacement, vibration, and position in rotating machinery. It is part of the well-known 3300 XL series, which is widely adopted in critical industrial environments such as power plants, petrochemical facilities, and manufacturing systems.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | 330851-01-000-030-10-00-05 |
| Series | 3300 XL 25 mm Proximity Probe |
| Total Length | 1 m |
| Weight | 0.23 kg |
| Tip Diameter | 25 mm |
| Linear Range | Up to 12.7 mm (500 mils) |
| Sensitivity | 200 mV/mil (7.87 mV/µm) |
| Frequency Response | 0 to 10 kHz |
| Operating Temperature | -35 °C to +177 °C |
| Interchangeability | Probe, extension cable, and driver matched |
| Compliance | API 670 standard |
Product Applications
-
Monitoring shaft vibration in turbines, compressors, and pumps.
-
Measuring shaft axial position and displacement for thrust bearing monitoring.
-
Detecting shaft orbit and shaft-to-case motion to identify early-stage mechanical faults.
-
Supporting rotating equipment diagnostics in industries like oil & gas, power generation, and chemical processing.
-
Providing reliable input signals for Bently Nevada monitoring systems such as 3500 series racks.
Product Advantages
-
High Accuracy: Delivers precise vibration and displacement measurement with consistent sensitivity.
-
API 670 Compliance: Meets global standards for machinery protection.
-
Rugged Design: Withstands harsh environments and high temperatures.
-
Interchangeability: Compatible with other 3300 XL probes, extension cables, and drivers.
-
Wide Linear Range: Suitable for large shaft movements and heavy-duty machines.
-
Long-Term Reliability: Proven track record in continuous industrial operation.
FAQ
Q1: What signal output does the probe provide?
A1: The probe provides a voltage signal proportional to shaft displacement, with sensitivity of 200 mV/mil (7.87 mV/µm).
Q2: Can the probe be used interchangeably with other 3300 XL probes?
A2: Yes, it is designed for full interchangeability with other 3300 XL probes, extension cables, and Proximitor sensors.
Q3: What type of monitoring systems is this probe compatible with?
A3: It is compatible with Bently Nevada systems such as the 3500 monitoring platform and earlier 3300 systems.
Q4: How does the probe maintain accuracy in harsh environments?
A4: The probe uses high-quality materials and advanced shielding to ensure stable operation in extreme temperatures and electromagnetic environments.
Q5: What is the linear measurement range of this probe?
A5: The linear range extends up to 12.7 mm (500 mils), ensuring accurate monitoring of shaft movement.
Q6: Does the probe support both static and dynamic measurements?
A6: Yes, it measures both static shaft position and dynamic vibration signals.
Q7: What frequency response does the probe offer?
A7: It supports a frequency response range of 0 to 10 kHz, suitable for vibration analysis.
Q8: Can the probe detect thrust bearing wear?
A8: Yes, it is widely used for axial position measurements, making it suitable for thrust bearing monitoring.
Q9: What role does the extension cable play in the probe system?
A9: The extension cable connects the probe to the Proximitor sensor, ensuring signal integrity and system flexibility.
Q10: Is the probe suitable for high-speed rotating machinery?
A10: Yes, its high accuracy and wide frequency response make it ideal for turbines, compressors, and other high-speed machines.
