Product Overview

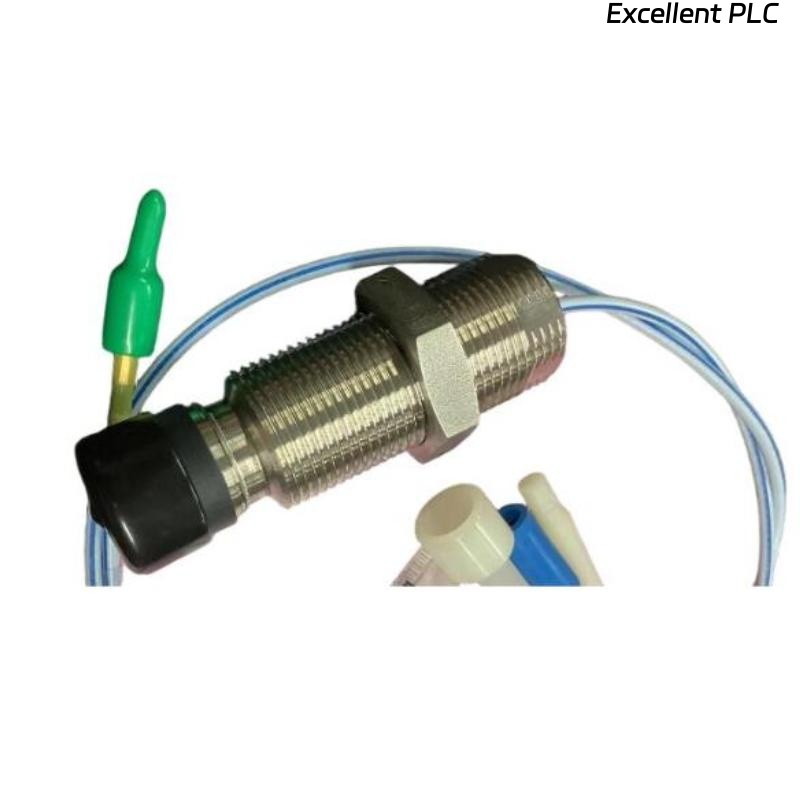

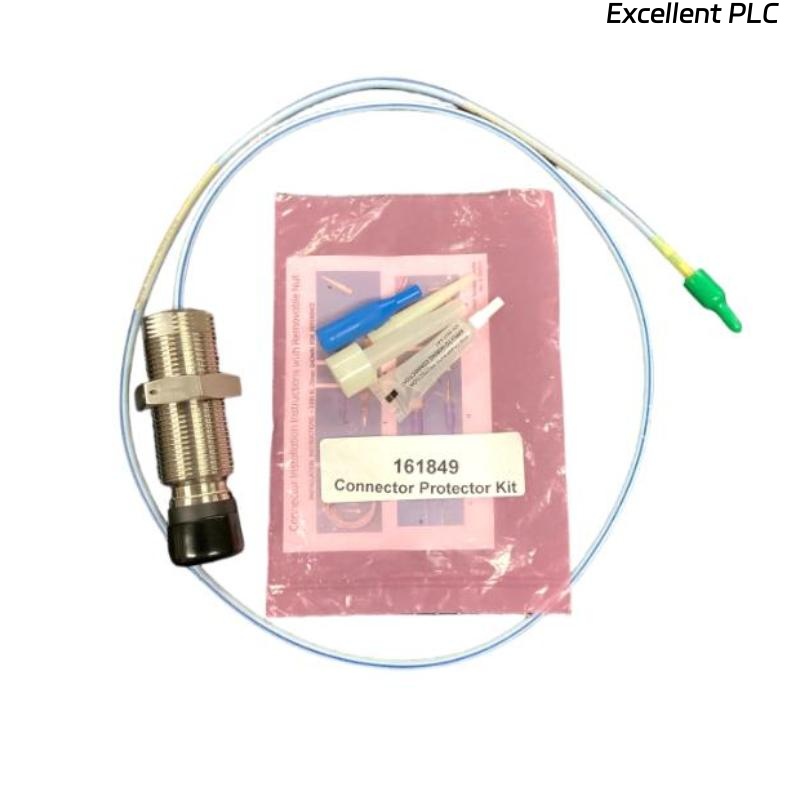

The Bently Nevada 330851-01-000-070-10-01-00 3300 XL 25mm Proximity Probe is designed for precision vibration and displacement monitoring in rotating machinery. This high-performance sensor is part of the 3300 XL series, which is known for its reliability and accuracy. The 3300 XL proximity probe utilizes eddy current technology to measure the proximity of a target object, offering excellent sensitivity and stability even in harsh industrial environments.
This probe is commonly used in various industries such as power generation, oil & gas, manufacturing, and aerospace. Its robust construction and ability to withstand high vibration levels make it a preferred choice for critical machinery monitoring, especially where the measurement of dynamic displacement is essential.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | 3300 XL 25mm Proximity Probe |
| Total Length | 1.0 meter |
| Weight | 0.33 kg |
| Probe Tip Diameter | 25 mm |
| Housing Material | Stainless Steel |
| Temperature Range | -40°C to 120°C |
| Frequency Response | 10 Hz to 50 kHz |
| Sensing Type | Eddy Current |
| Protection Rating | IP67 |
| Electrical Connection | 2-wire |
Applications
The Bently Nevada 330851-01-000-070-10-01-00 proximity probe is ideal for a wide range of industrial applications, including:
-
Power Generation: Monitoring turbines, generators, and compressors.
-
Oil & Gas: Vibration analysis for pumps, compressors, and rotating equipment.
-
Industrial Manufacturing: Vibration and displacement measurement in motors, blowers, and other rotating machinery.
-
Aerospace & Defense: Ensuring the reliability of critical systems, such as turbines and actuators.
-
Mining: Applied in crushers, mills, and other large rotating equipment for condition monitoring.
Advantages
-
High Measurement Accuracy: The 25mm probe diameter ensures precise proximity measurements, making it ideal for applications requiring high accuracy.
-
Durability: Constructed from stainless steel, it is highly resistant to corrosion, ensuring long-lasting performance in harsh environments.
-
Wide Operating Temperature Range: The probe operates effectively in environments with temperatures ranging from -40°C to 120°C.
-
Reliability: As part of the 3300 XL series, it provides consistent and reliable measurements even under challenging operational conditions.
-
Easy Integration: The probe is compatible with various vibration monitoring systems, providing flexibility in system configurations.
-
IP67 Protection: The probe is rated for protection against dust and water ingress, making it suitable for outdoor and wet environments.
FAQ
-
How does the 3300 XL proximity probe work?
It uses eddy current technology to measure the displacement of a target object by detecting changes in its electrical properties. -
What is the recommended installation for the probe?
The probe should be aligned with the target, ensuring the tip is facing it for accurate measurements. -
Can the probe handle high vibrations?
Yes, it’s designed to operate accurately under high vibration conditions commonly found in rotating machinery. -
Is the probe compatible with other systems?
Yes, it works with Bently Nevada systems, including the 3500 series, and can integrate with other systems supporting eddy current sensors. -
What impact does temperature have on the probe?
The probe operates within a temperature range of -40°C to 120°C. Extreme temperatures outside this range may affect its performance. -
What is the frequency range of the probe?
The probe has a frequency response range from 10 Hz to 50 kHz, suitable for a variety of vibration and displacement measurements. -
Can the probe be used in harsh environments?
Yes, with an IP67 rating, the probe is protected from dust and water, making it ideal for harsh industrial environments. -
How should the probe be maintained?
Minimal maintenance is required. Regular checks for debris and alignment are recommended for optimal performance. -
What types of machinery is the probe suited for?
It’s ideal for turbines, motors, compressors, pumps, and other rotating equipment. -
Can the probe measure both vibration and displacement?
Yes, it can measure both, providing valuable data for predictive maintenance and monitoring.
