Product Overview

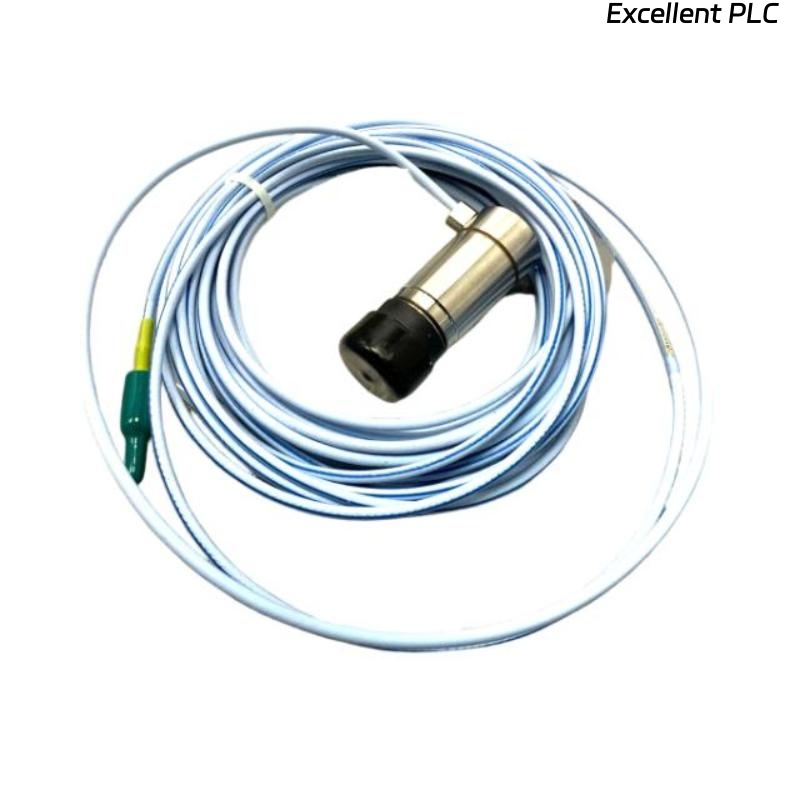

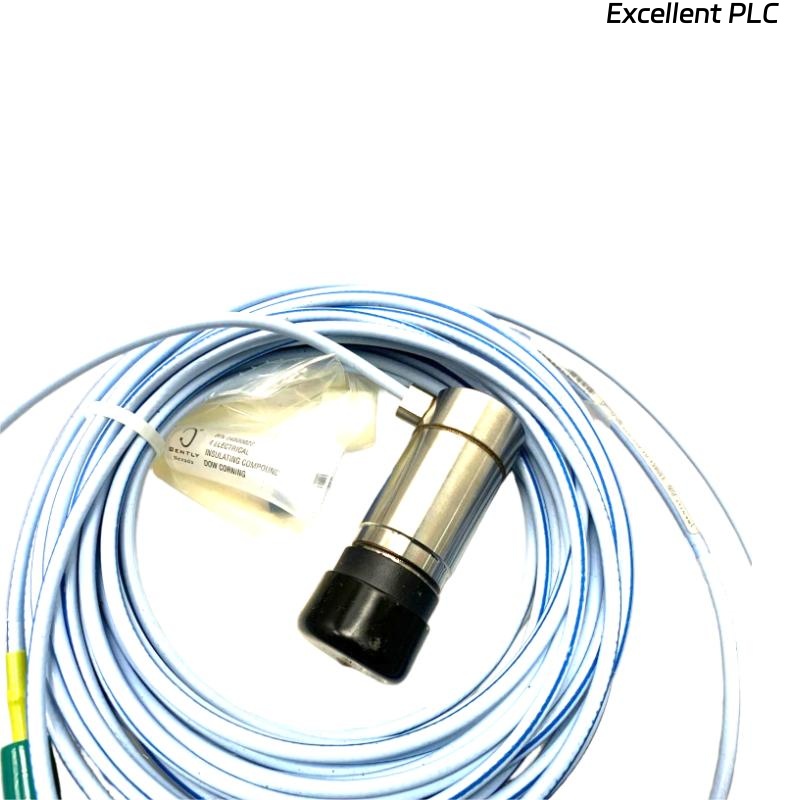

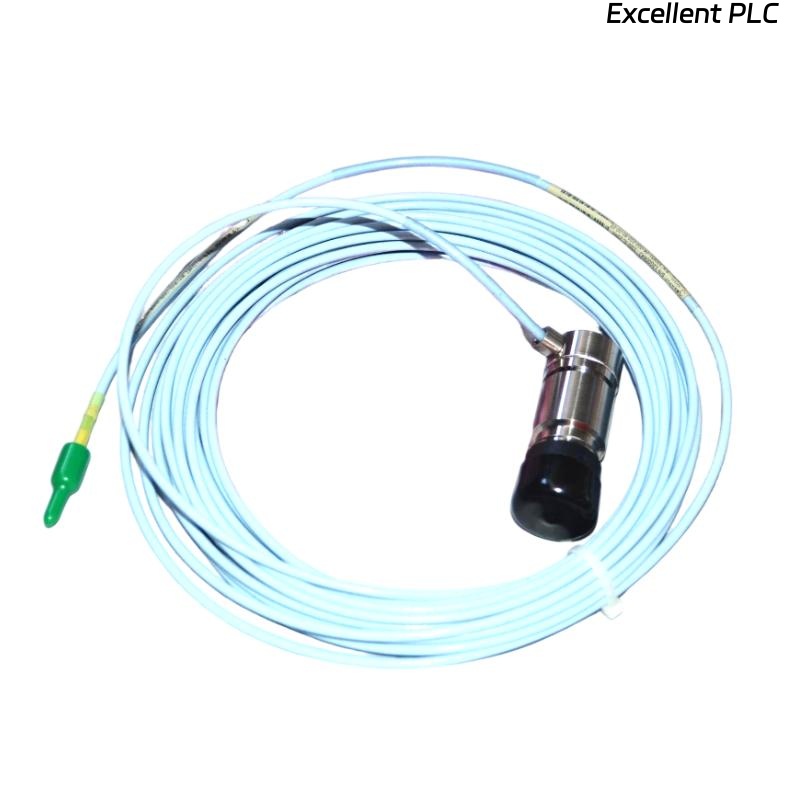

The Bently Nevada 330851-02-00-060-50-00-05 3300 XL 25 mm Proximity Probe is a high-precision, non-contact displacement sensor designed for real-time machine condition monitoring. Engineered with eddy current technology, this probe measures the relative displacement of rotating machinery, ensuring early detection of potential issues such as misalignment, imbalance, and bearing wear. It is ideal for industries where machinery uptime is critical, such as power generation, oil and gas, and chemical processing.
The probe is part of the Bently Nevada 3300 XL series, renowned for its reliability, ease of integration, and exceptional performance. With a total length of 5.0 meters and a weight of 0.41 kg, this proximity probe is robust yet lightweight, designed to handle even the most demanding industrial environments. Its 25 mm measurement range offers versatility in both medium and large-scale applications, making it a preferred choice for monitoring complex rotating systems.
Product Parameters
Below are the technical specifications for the Bently Nevada 330851-02-00-060-50-00-05 3300 XL 25 mm proximity probe:
| Parameter | Specification |
|---|---|
| Model | 330851-02-00-060-50-00-05 |
| Measurement Range | 25 mm |
| Output Type | Analog (4-20 mA or 0-10V) |
| Measurement Principle | Eddy Current |
| Probe Length | 5.0 meters |
| Weight | 0.41 kg |
| Operating Temperature | -40°C to +85°C |
| Material | Stainless Steel |
| Mounting Type | Fixed Mounting |
| Power Supply | 24V DC (Nominal) |
| Accuracy | ±0.01% of full scale |
Product Applications
The Bently Nevada 330851-02-00-060-50-00-05 proximity probe is used in various industries where machinery performance and health are critical. Its primary applications include:
-
Power Generation: Monitoring turbines, generators, and motors, ensuring operational efficiency and reducing unexpected downtime.
-
Oil and Gas: Used in compressors, pumps, and other vital rotating equipment to ensure reliability and prevent catastrophic failures.
-
Chemical Processing: Essential for measuring displacement in reactors, mixers, and other high-speed machinery to optimize production processes.
-
Aerospace: Used to monitor turbines and other rotating machinery for performance analysis and fault detection.
-
Mining: Provides crucial data on the health of large industrial machinery used in mining operations, helping to avoid costly breakdowns.
-
Marine: For condition monitoring of engines, pumps, and turbines on vessels, ensuring smooth operations in harsh environments.
Product Advantages
The Bently Nevada 330851-02-00-060-50-00-05 proximity probe offers several key advantages:
-
Non-contact Measurement: By using eddy current technology, the probe provides accurate displacement measurements without physical contact, reducing wear and minimizing maintenance requirements.
-
High Accuracy: With ±0.01% accuracy, it delivers precise readings, critical for high-performance machinery and ensuring that slight deviations in machinery behavior are detected early.
-
Durability: The stainless steel housing ensures the probe’s durability in harsh environments, resistant to corrosion and mechanical stress.
-
Wide Temperature Range: It operates effectively within a temperature range of -40°C to +85°C, making it suitable for a variety of challenging environments, from cold storage to high-temperature industrial plants.
-
Easy Integration: The probe can be easily integrated into existing monitoring systems, supporting 4-20 mA and 0-10V outputs, ensuring compatibility with various systems.
-
Versatility: Ideal for use in both medium and large-scale applications, offering a flexible solution for diverse industrial machinery.
FAQ
1. What is the purpose of the Bently Nevada 3300 XL proximity probe?
The Bently Nevada 3300 XL proximity probe measures the displacement of rotating machinery components to monitor the machine’s health and detect potential issues like misalignment or imbalance.
2. How does the eddy current technology work in this probe?
Eddy current technology uses the principle of electromagnetic induction to measure the displacement between the probe and the target, providing a non-contact method for accurate and reliable monitoring.
3. What industries can benefit from using the Bently Nevada 3300 XL proximity probe?
This probe is commonly used in industries like power generation, oil and gas, chemical processing, aerospace, mining, and marine for monitoring critical rotating machinery.
4. How accurate is the Bently Nevada 3300 XL proximity probe?
The probe offers an accuracy of ±0.01% of full scale, making it suitable for both high-precision applications and larger industrial machinery.
5. What kind of monitoring systems is this probe compatible with?
The probe supports 4-20 mA and 0-10V output systems, making it easy to integrate with existing monitoring systems for real-time data collection.
6. Why is the Bently Nevada 3300 XL proximity probe preferred in industrial environments?
The probe’s non-contact measurement system reduces the risk of wear on both the probe and machinery, leading to longer operational life and less maintenance.
7. Can this probe be used in high-temperature environments?
Yes, the probe operates effectively in a temperature range of -40°C to +85°C, making it suitable for a variety of environments, including extreme heat or cold.
8. What materials is the Bently Nevada 3300 XL proximity probe made of?
The probe is housed in stainless steel, providing excellent resistance to corrosion, mechanical stress, and harsh industrial conditions.
9. How does the probe contribute to predictive maintenance?
By offering real-time monitoring, the Bently Nevada 3300 XL probe helps detect faults early, allowing operators to schedule maintenance before failures occur, thus reducing downtime and maintenance costs.
10. Is this probe easy to install and integrate?
Yes, the Bently Nevada 3300 XL probe is designed for easy installation and integration, supporting multiple output types that work seamlessly with existing monitoring and control systems.
