Product Overview

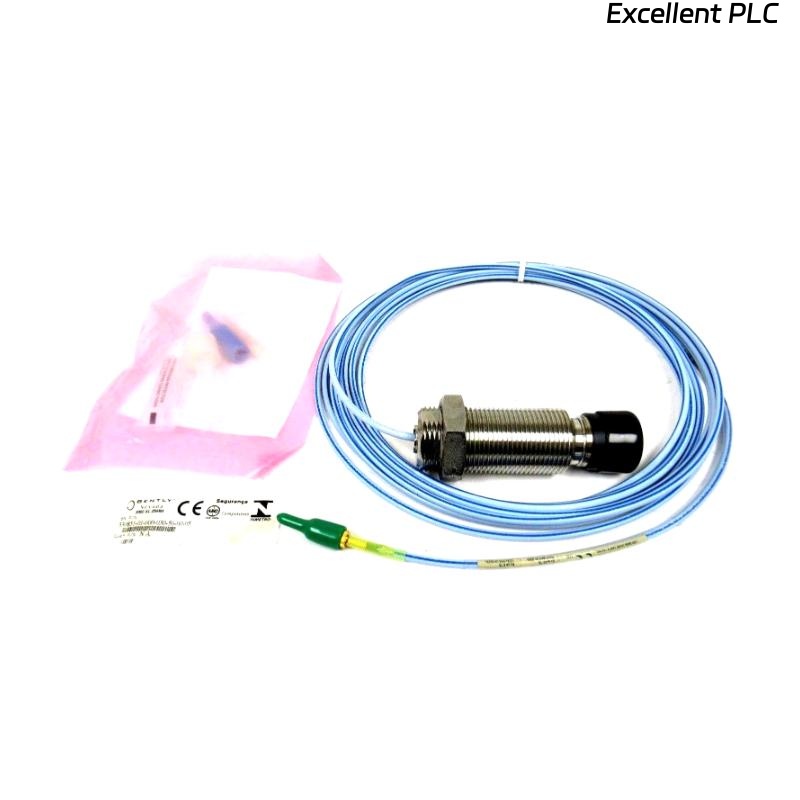

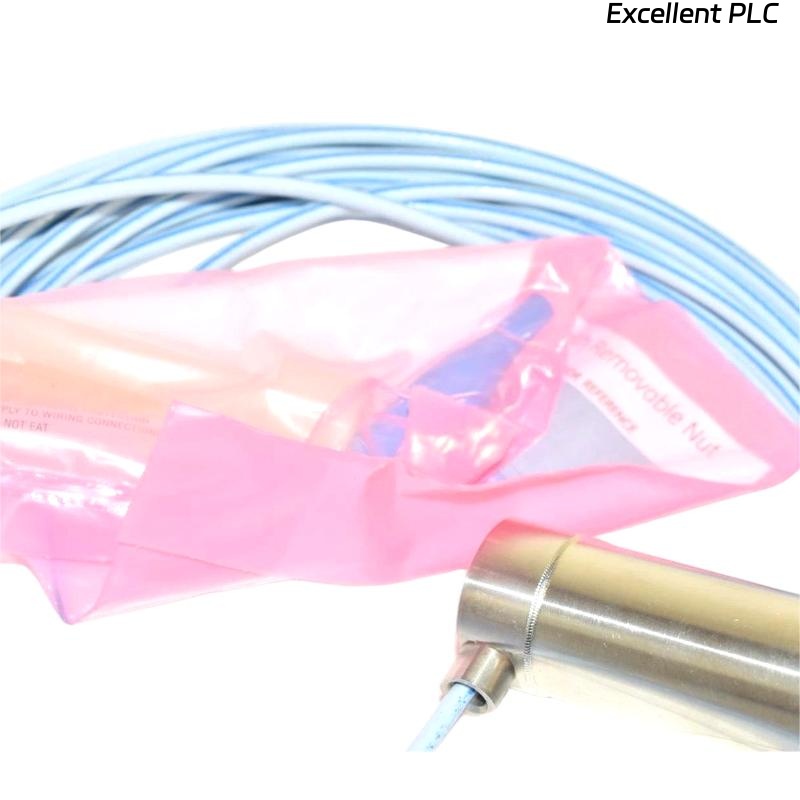

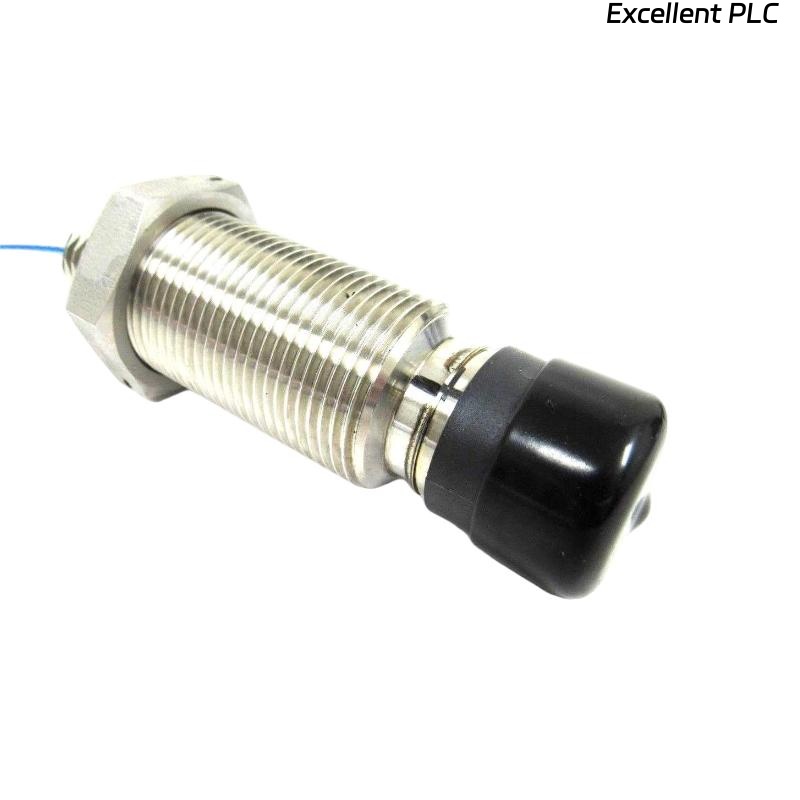

The Bently Nevada 330851-02-000-026-50-01-05 3300 XL 25mm Proximity Probe is part of the 3300 XL series, designed for high-precision vibration and displacement monitoring in rotating machinery. Known for its excellent performance and durability, this proximity probe provides accurate and reliable measurements in a wide range of industrial applications, particularly in the power generation, oil and gas, and manufacturing sectors.
Utilizing advanced eddy current sensing technology, the 3300 XL probe ensures minimal measurement errors even in harsh environments. It is specifically engineered for critical applications, where high accuracy and reliability are paramount for maintaining machinery health and preventing unplanned downtimes.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | 3300 XL 25mm Proximity Probe |
| Total Length | 5.0 meters |
| Weight | 0.95 kg |
| Probe Tip Diameter | 25 mm |
| Housing Material | Stainless Steel |
| Temperature Range | -40°C to 120°C |
| Frequency Response | 10 Hz to 50 kHz |
| Sensing Type | Eddy Current |
| Protection Rating | IP67 |
| Electrical Connection | 2-wire |
Applications
The Bently Nevada 330851-02-000-026-50-01-05 proximity probe is suitable for a wide range of industrial applications, such as:
-
Power Generation: Ideal for monitoring turbines, generators, and motors.
-
Oil & Gas: Provides accurate vibration measurements for pumps, compressors, and other rotating machinery.
-
Industrial Manufacturing: Used in motors, blowers, and compressors for condition monitoring and fault detection.
-
Aerospace & Defense: Ensures the reliability of critical machinery in high-stress environments.
-
Mining: Applied to rotating equipment such as crushers and mills, where reliable condition monitoring is required.
Advantages
-
High Accuracy: The 25mm probe tip diameter ensures precise proximity measurements, especially in high-speed and high-vibration environments.
-
Durability: Constructed with high-grade stainless steel, this probe is resistant to corrosion and harsh environmental conditions.
-
Wide Operating Temperature: Operates effectively within a temperature range of -40°C to 120°C, ensuring versatility across various environments.
-
Reliable Performance: The 3300 XL series is known for providing consistent and dependable results even under demanding conditions.
-
Flexible Integration: Compatible with a wide range of monitoring systems, offering flexibility in installation and data integration.
-
IP67 Protection: The probe is fully protected against dust and water ingress, making it suitable for use in outdoor and wet environments.
FAQ
-
How does the 3300 XL proximity probe measure displacement?
The probe uses eddy current technology to detect changes in the target’s displacement by measuring the variations in the probe’s electrical properties as the target moves. -
What is the ideal installation angle for the proximity probe?
The probe should be installed at a 90-degree angle to the target surface to ensure accurate measurements. Proper alignment is crucial to prevent measurement errors. -
Can the 3300 XL probe be used in high-vibration environments?
Yes, the 3300 XL proximity probe is designed for high-vibration applications, offering accurate measurements even in the most challenging environments. -
Is the probe compatible with existing Bently Nevada monitoring systems?
Yes, it is fully compatible with Bently Nevada’s vibration monitoring systems such as the 3500 series, and can also be integrated into third-party monitoring setups. -
How does the probe handle extreme temperature variations?
The probe is rated to function within a wide temperature range from -40°C to 120°C. It performs reliably across this temperature range, making it suitable for both indoor and outdoor applications. -
What frequency range can the probe measure?
The 3300 XL probe has a frequency response range of 10 Hz to 50 kHz, making it capable of accurately measuring both low and high-frequency vibrations. -
What types of cables are recommended for the probe?
A 2-wire shielded cable is recommended for optimal signal transmission and to minimize electrical noise interference in environments with electromagnetic interference (EMI). -
Can the probe be used in hazardous environments?
Yes, the probe has an IP67 protection rating, which ensures it is resistant to dust and water, allowing it to be used in harsh and potentially hazardous environments. -
How does the probe contribute to predictive maintenance?
The probe continuously monitors displacement and vibration data, providing early warning signs of equipment wear and potential failures, thereby enabling predictive maintenance and reducing unplanned downtimes. -
Is the 3300 XL probe suitable for both displacement and vibration monitoring?
Yes, the 3300 XL probe is designed to measure both displacement and vibration, making it an excellent tool for comprehensive machinery health monitoring.
