Product Introduction

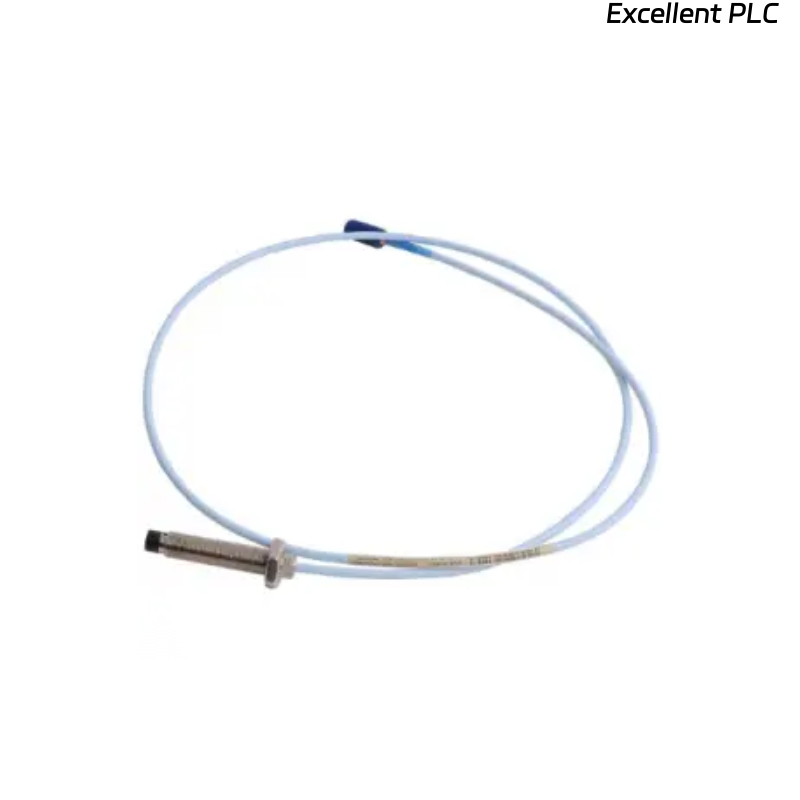

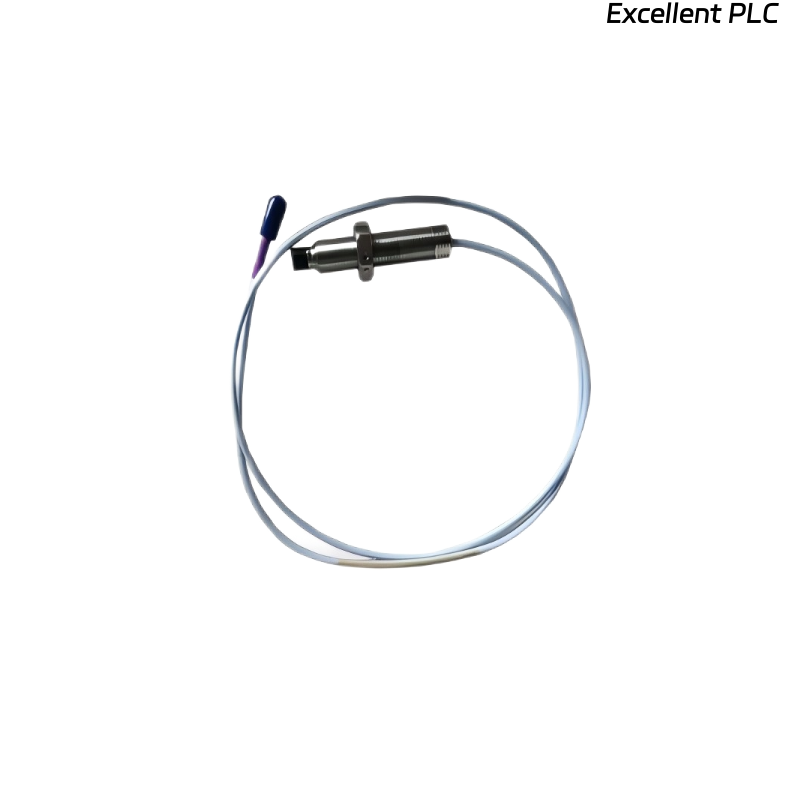

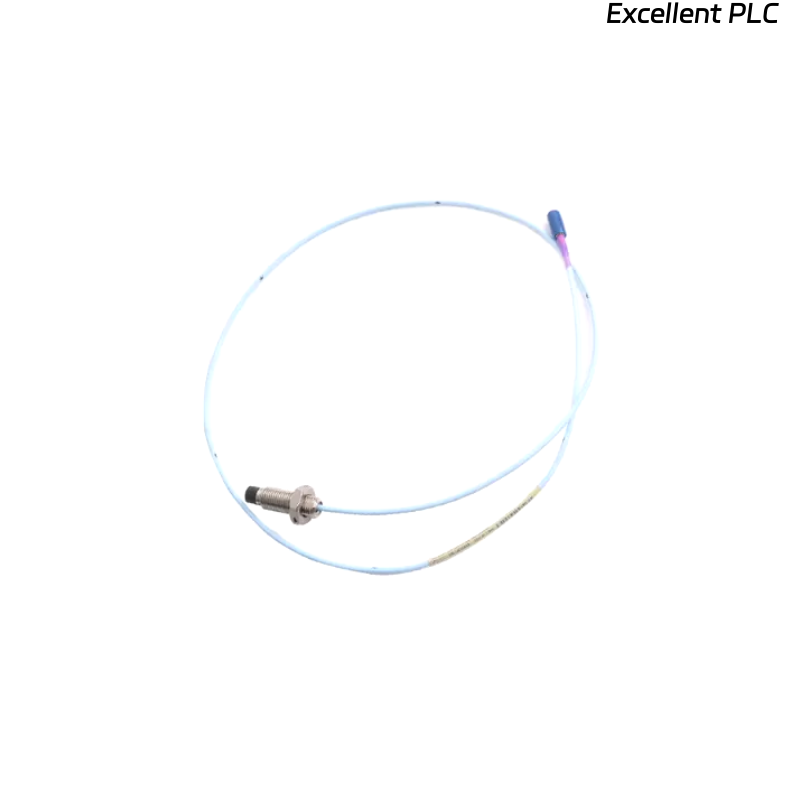

The Bently Nevada 330851-02-000-030-10-00-05 is a 3300 XL series 25 mm proximity probe, designed for precise monitoring of machinery vibration in critical industrial equipment. It offers high accuracy and reliability in detecting shaft displacement and vibration. The 3300 XL probes are widely used in rotating machinery, such as turbines, compressors, and generators, providing early warning of mechanical issues to prevent unplanned downtime.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | Proximity Probe |
| Series | 3300 XL |
| Measurement Range | ±25 mm |
| Output Type | AC/DC Voltage |
| Sensor Material | Non-magnetic stainless steel |
| Total Length | 1 m |
| Weight | 0.23 kg |
| Operating Temperature | -40°C to 120°C |
| Tip Style | Flat-tip or contact type |
| Connector Type | Integral coaxial connector |
| Mounting Type | Threaded or stud-mounted |
| Signal Frequency Response | DC to 20 kHz |
| Electrical Interface | 2-wire/4-wire compatible |
| Environmental Rating | IP65 / NEMA 4 |
Applications
-
Vibration monitoring in turbines, compressors, and generators
-
Hydroelectric, steam, and gas power plants for shaft displacement monitoring
-
Predictive maintenance programs for rotating machinery
-
Monitoring critical pumps, fans, and motors in heavy industrial operations
-
Integration with Bently Nevada 3300 XL vibration monitoring systems for real-time fault detection
Advantages
-
High Accuracy: Provides precise measurement of shaft displacement for critical machinery.
-
Robust Construction: Withstands harsh industrial environments and high temperatures.
-
Seamless Integration: Fully compatible with Bently Nevada 3300 XL monitoring systems.
-
Fast Response: High-frequency response for accurate vibration detection.
-
Reliable Monitoring: Reduces unplanned downtime through early fault detection.
-
Versatile Mounting: Offers flexible installation options including threaded or stud mounting.
FAQ
Q1: What type of output does this proximity probe provide?
A1: It provides an AC/DC voltage output suitable for the 3300 XL monitoring system.
Q2: Can this probe operate in high-temperature environments?
A2: Yes, it operates reliably in temperatures ranging from -40°C to 120°C.
Q3: Is the probe compatible with other Bently Nevada series?
A3: It is designed primarily for the 3300 XL system but may be compatible with select 3300 series modules.
Q4: What is the maximum measurement range?
A4: The probe can measure shaft displacement up to ±25 mm.
Q5: What type of connector does the probe use?
A5: It features an integral coaxial connector compatible with 3300 XL modules.
Q6: Can it be mounted in any orientation?
A6: Yes, the probe can be mounted using threaded or stud methods, allowing flexible orientation.
Q7: Does it support high-frequency vibration monitoring?
A7: Yes, the probe has a frequency response up to 20 kHz.
Q8: What is the environmental protection rating?
A8: The probe is rated IP65/NEMA 4, protecting against dust and water ingress.
Q9: Is cable replacement supported?
A9: Yes, the probe cable can be replaced if necessary, following manufacturer guidelines.
Q10: Can this probe be used in explosive atmospheres?
A10: It depends on system certification; refer to the 3300 XL documentation for hazardous environment compatibility.
Recommended Same-Series or Related Models
| Model Number | Description |
|---|---|
| 330851-02-000-020-10-00-05 | 3300 XL 20 mm Proximity Probe |
| 330851-02-000-050-10-00-05 | 3300 XL 50 mm Proximity Probe |
| 330852-02-000-030-10-00-05 | 3300 XL 25 mm High-Temp Probe |
| 330853-02-000-030-10-00-05 | 3300 XL 25 mm Low-Noise Probe |
| 330854-02-000-030-10-00-05 | 3300 XL 25 mm Miniature Probe |
| 330855-02-000-030-10-00-05 | 3300 XL 25 mm Dual Probe Assembly |
