Product Introduction

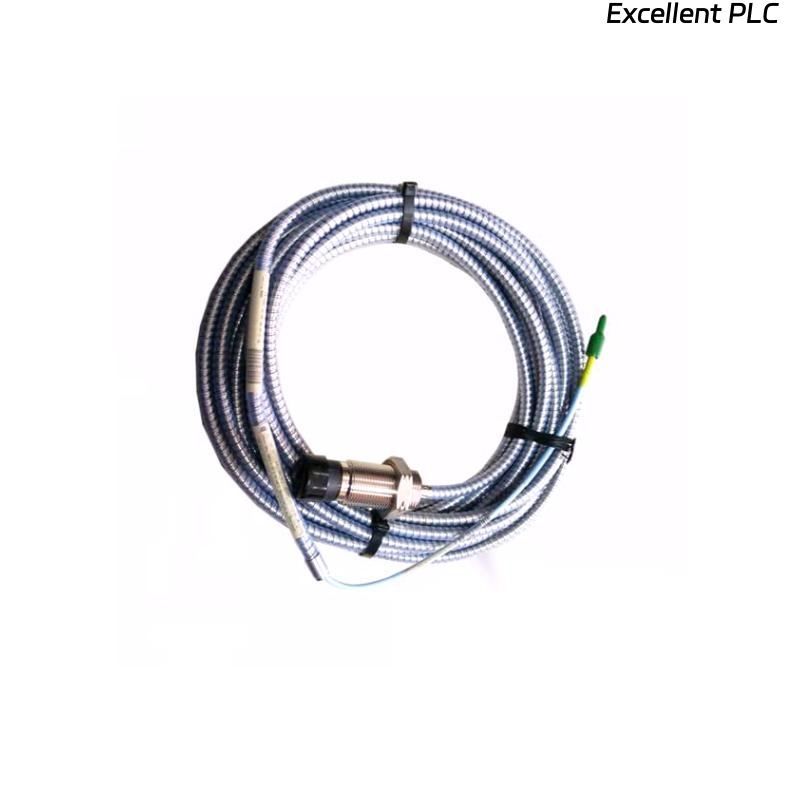

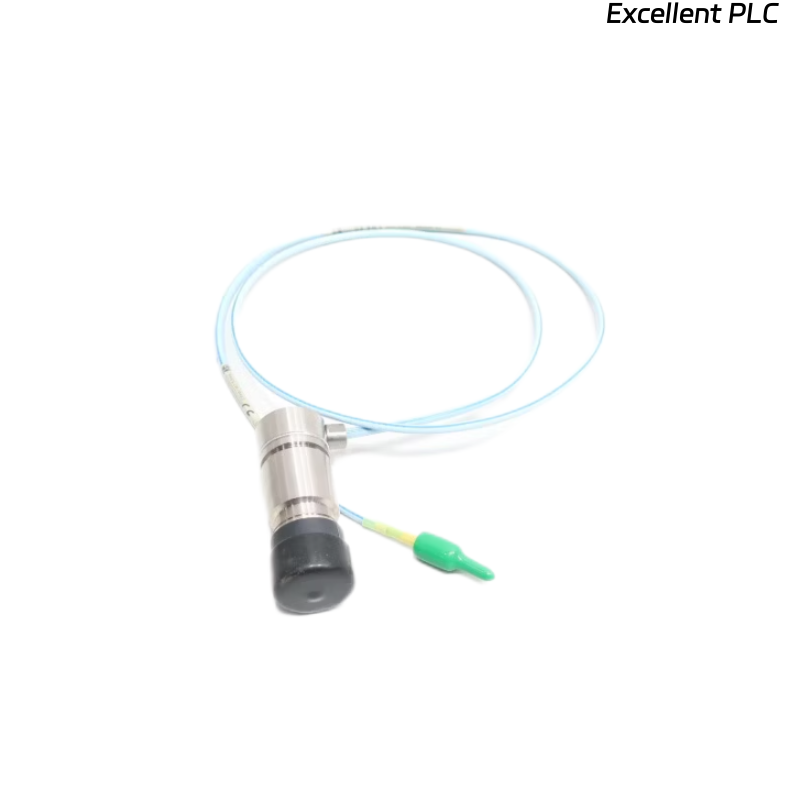

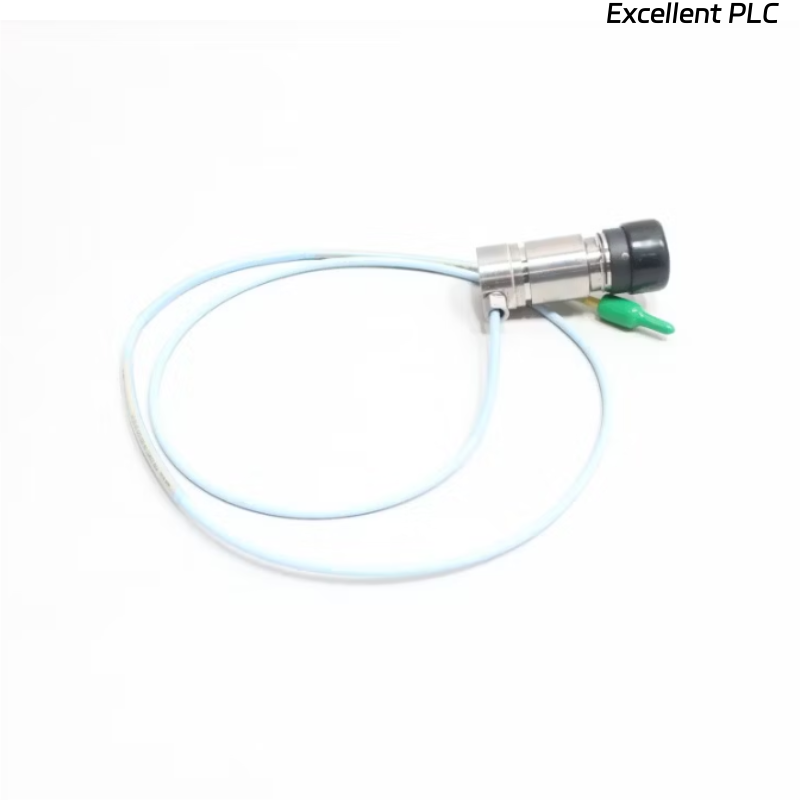

The Bently Nevada 330851-02-000-050-10-01-00 3300 XL 25 mm Proximity Probe is an advanced vibration monitoring sensor designed for industrial machinery protection and condition monitoring. Part of the 3300 XL series, this probe is engineered to deliver high-precision measurement of shaft displacement, vibration, and position. The 25 mm probe provides accurate gap detection and is compatible with 3300 XL machinery protection systems, ensuring reliable monitoring of rotating equipment in demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330851-02-000-050-10-01-00 |
| Probe Type | Proximity Probe |
| Measurement Range | 25 mm |
| Probe Style | Standard cylindrical |
| Sensor Type | Eddy Current |
| Output Type | AC / DC compatible |
| Cable Type | Shielded coaxial |
| Total Length | 1 m |
| Weight | 0.33 kg |
| Operating Temperature | -40°C to 120°C |
| Vibration Tolerance | Up to 200 g |
| Mounting Type | Threaded or clamped |
| Connector Type | Standard Bently connector |
Applications
-
Turbine vibration and shaft position monitoring
-
High-speed compressor condition tracking
-
Pump and motor vibration diagnostics
-
Generator shaft displacement detection
-
Gearbox vibration monitoring
-
Predictive maintenance programs in power plants, oil & gas, and petrochemical industries
Advantages
-
High Accuracy: Provides precise gap and displacement measurements, ensuring reliable data for machinery protection systems.
-
Robust Construction: Designed to withstand harsh industrial environments, including high vibration and temperature extremes.
-
Wide Compatibility: Fully compatible with Bently Nevada 3300 XL monitoring systems and related machinery protection devices.
-
Easy Installation: Standard mounting options and connectors simplify field installation and replacement.
-
Durable Cable Design: Shielded coaxial cable minimizes signal interference for consistent performance.
-
Reliable Monitoring: Supports predictive maintenance, reducing unplanned downtime and maintenance costs.
FAQ
Q1: What is the measurement principle of the 3300 XL proximity probe?
A1: It uses an eddy current sensing method to detect the position and vibration of the shaft with high accuracy.
Q2: Can this probe measure both radial and axial vibration?
A2: Yes, it primarily measures radial displacement, but when installed properly, it can provide useful axial vibration data.
Q3: What type of output does this probe provide?
A3: It provides a variable AC signal compatible with 3300 XL monitoring systems.
Q4: Is the probe compatible with other Bently Nevada 3300 series systems?
A4: Yes, it is designed for seamless integration with all 3300 XL system modules.
Q5: How is the probe mounted on machinery?
A5: It can be mounted using threaded fittings or clamps, depending on the equipment design.
Q6: What is the cable length for this probe?
A6: The standard total cable length is 1 meter.
Q7: Can the probe operate in high-vibration environments?
A7: Yes, it is rated to tolerate vibration levels up to 200 g.
Q8: What temperature ranges can this probe operate in?
A8: The operating temperature range is -40°C to 120°C.
Q9: Does this probe require calibration?
A9: Yes, periodic calibration is recommended to maintain measurement accuracy and system integrity.
Q10: Can the probe be used in explosive or hazardous environments?
A10: It can be used in hazardous locations if installed according to industry safety standards and regulations.
Recommended 6 Related or Same-Series Models
| Model Number | Measurement Range | Notes |
|---|---|---|
| 330851-02-000-050-05-01-00 | 5 mm | Short-range 3300 XL probe |
| 330851-02-000-100-10-01-00 | 100 mm | Long-range variant |
| 330851-02-000-050-15-01-00 | 25 mm | Extended cable version |
| 330851-02-000-050-20-01-00 | 25 mm | High-temperature version |
| 330851-02-000-050-10-02-00 | 25 mm | Dual probe for redundancy |
| 330851-02-000-025-10-01-00 | 25 mm | Compact 3300 XL configuration |
