Product Introduction

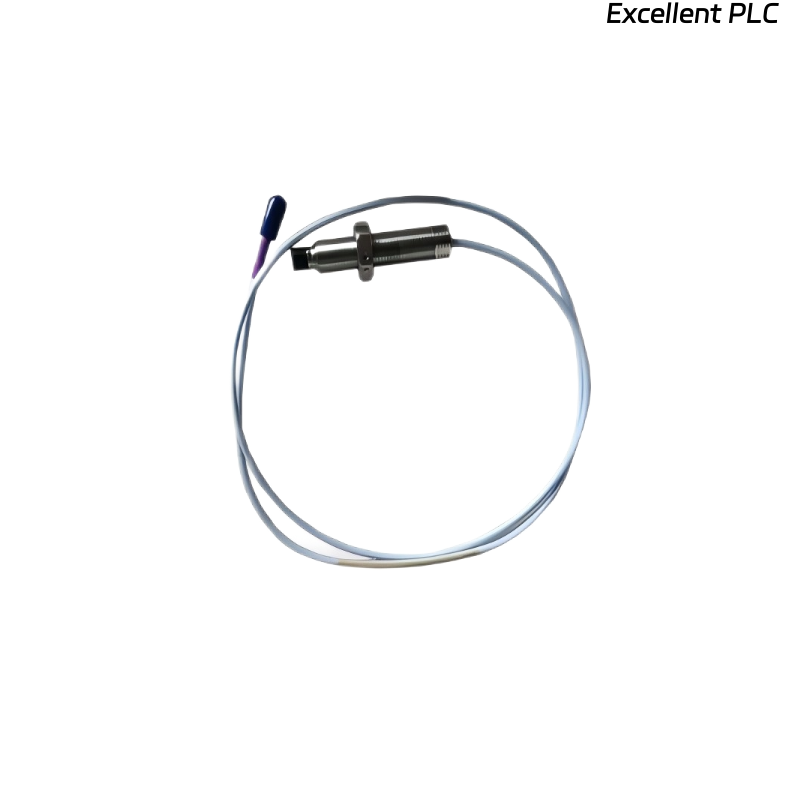

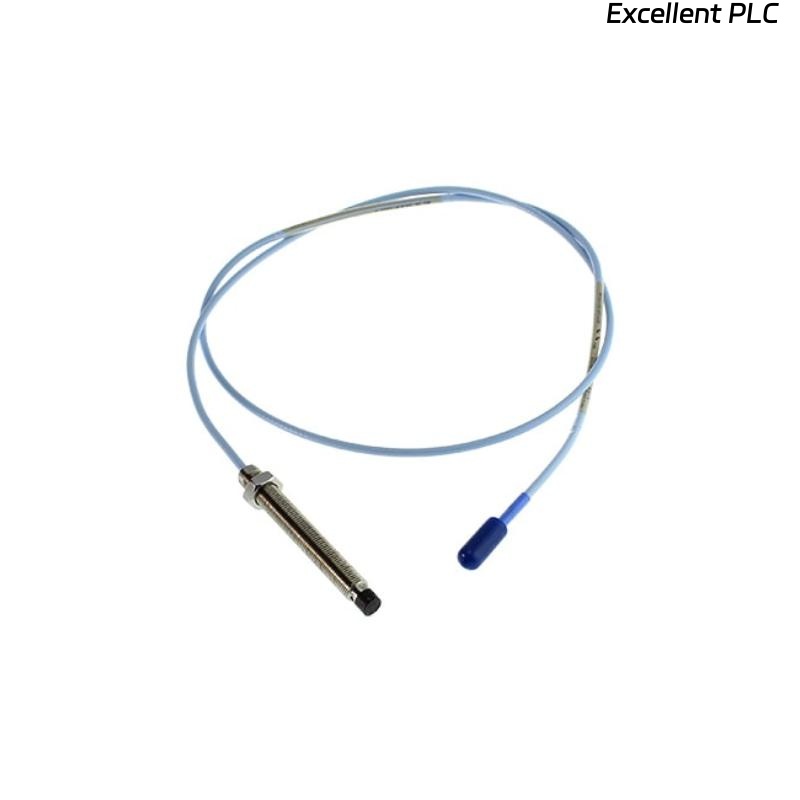

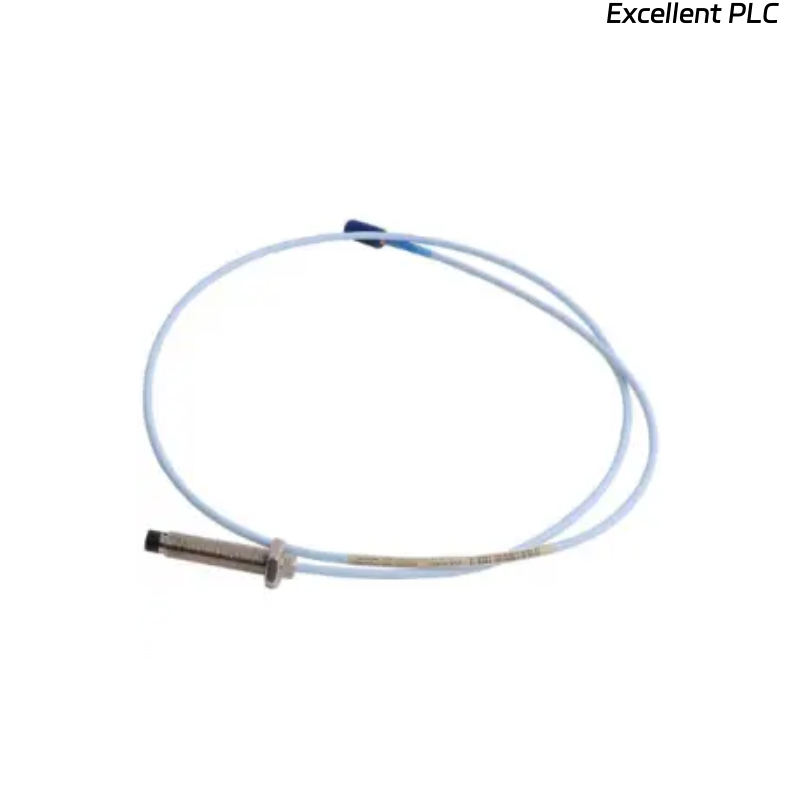

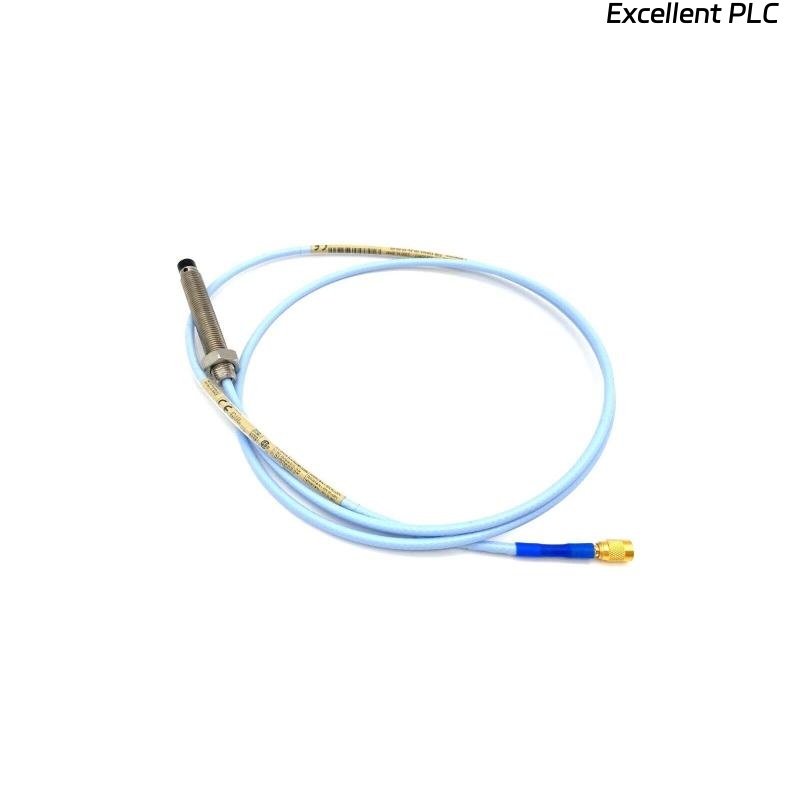

The Bently Nevada 330851-02-000-060-10-00-00 3300 XL 25 mm Proximity Probe is an industrial-grade displacement sensor designed for high-precision machinery monitoring. This probe is part of the 3300 XL series, widely recognized for its reliability in monitoring the vibration and position of rotating equipment. With a sensing range of 25 mm, it provides accurate and repeatable measurements in demanding environments, including high-speed turbines, compressors, and generators.
Product Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 3300 XL Proximity Probe |
| Sensing Range | 25 mm |
| Output Type | AC-coupled voltage output |
| Operating Temperature | -40°C to +121°C (-40°F to +250°F) |
| Total Length | 1 m |
| Weight | 0.23 kg |
| Housing Material | Stainless steel |
| Connector Type | Integral BNC or flying lead |
| Maximum Vibration Tolerance | 100 g |
| Linearity | ±1% FSO |
| Frequency Response | DC to 10 kHz |
Product Applications
-
Turbine shaft displacement monitoring
-
Generator vibration detection
-
Compressor alignment and shaft position tracking
-
High-speed industrial pumps and motors
-
Condition-based maintenance of rotating equipment
Product Advantages
-
High Accuracy: Provides precise and repeatable displacement measurements for critical machinery.
-
Rugged Design: Built to withstand harsh environments, including high temperatures, vibration, and moisture.
-
Reliable Signal: AC-coupled output ensures minimal signal drift and stable measurements over time.
-
Easy Integration: Compatible with all 3300 XL monitoring systems and standard Bently Nevada hardware.
-
Predictive Maintenance Support: Enhances machinery health monitoring to prevent unscheduled downtime.
FAQ
-
Q: What type of signal does the 3300 XL 25 mm probe output?
A: The probe outputs an AC-coupled voltage proportional to the shaft displacement. -
Q: Can this probe operate in temperatures above 100°C?
A: Yes, it has an operating range up to +121°C. -
Q: What is the maximum vibration tolerance for this probe?
A: The probe can withstand vibrations up to 100 g. -
Q: Is the 330851-02-000-060-10-00-00 compatible with standard 3300 XL monitors?
A: Yes, it is fully compatible with all 3300 XL proximity monitoring systems. -
Q: What type of housing material is used?
A: The housing is made of durable stainless steel. -
Q: What is the linearity specification for this probe?
A: Linearity is ±1% of full-scale output (FSO). -
Q: What is the frequency response range?
A: The probe operates effectively from DC up to 10 kHz. -
Q: How is the probe connected to the monitoring system?
A: It comes with an integral BNC connector or flying lead for flexible installation. -
Q: Can the probe be used in wet or humid environments?
A: Yes, the probe’s stainless steel construction and sealing allow use in humid and wet environments. -
Q: What is the sensing range of this probe?
A: The sensing range is 25 mm, suitable for most standard turbine and generator shafts.
Related Models
| Model Number | Sensing Range | Cable Length | Notes |
|---|---|---|---|
| 330851-02-000-050-10-00-00 | 25 mm | 1 m | Standard 3300 XL Probe |
| 330851-02-000-060-10-01-00 | 25 mm | 1 m | Optional connector type |
| 330851-02-000-040-10-00-05 | 25 mm | 1 m | Enhanced vibration tolerance |
| 330851-02-000-030-10-00-05 | 25 mm | 1 m | Compact design |
| 330851-02-000-050-90-00-05 | 25 mm | 1 m | High-temperature version |
| 330851-02-000-060-10-00-05 | 25 mm | 1 m | Standard 3300 XL probe, alternate finish |
Popular Models from Bently Nevada
| Model Number | Sensing Range | Cable Length | Application |
|---|---|---|---|
| 330851-02-000-060-10-00-00 | 25 mm | 1 m | General machinery monitoring |
| 330851-02-000-050-10-01-00 | 25 mm | 1 m | Turbine displacement monitoring |
| 330851-02-000-040-10-00-00 | 25 mm | 1 m | High-speed pump monitoring |
| 330851-02-000-030-50-00-05 | 25 mm | 1 m | Generator shaft position |
| 330851-02-000-050-90-00-00 | 25 mm | 1 m | High-temperature applications |
| 330851-02-000-060-10-01-05 | 25 mm | 1 m | Standard XL probe |
