Product Introduction

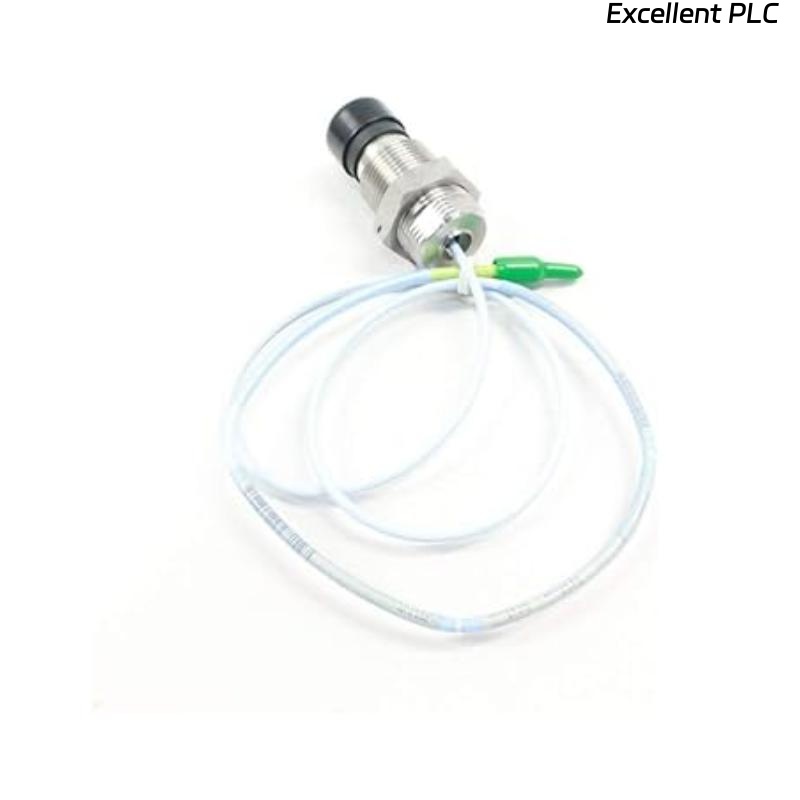

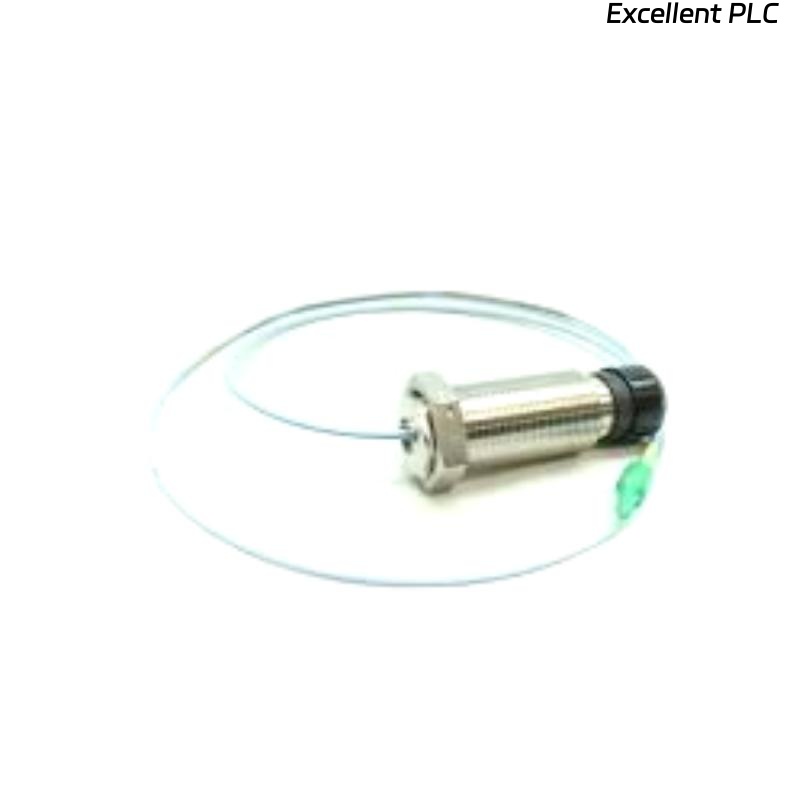

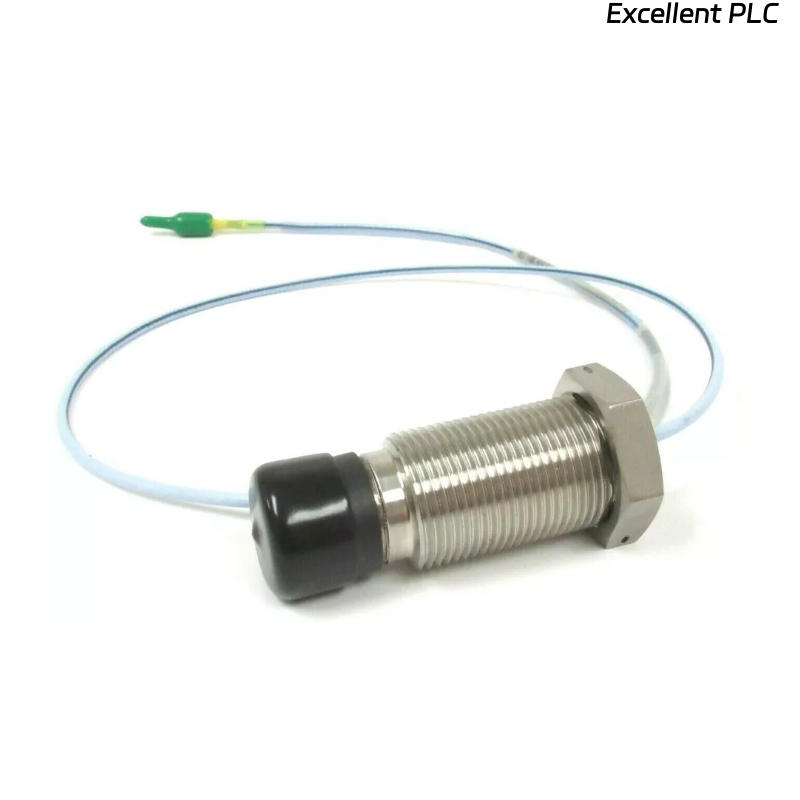

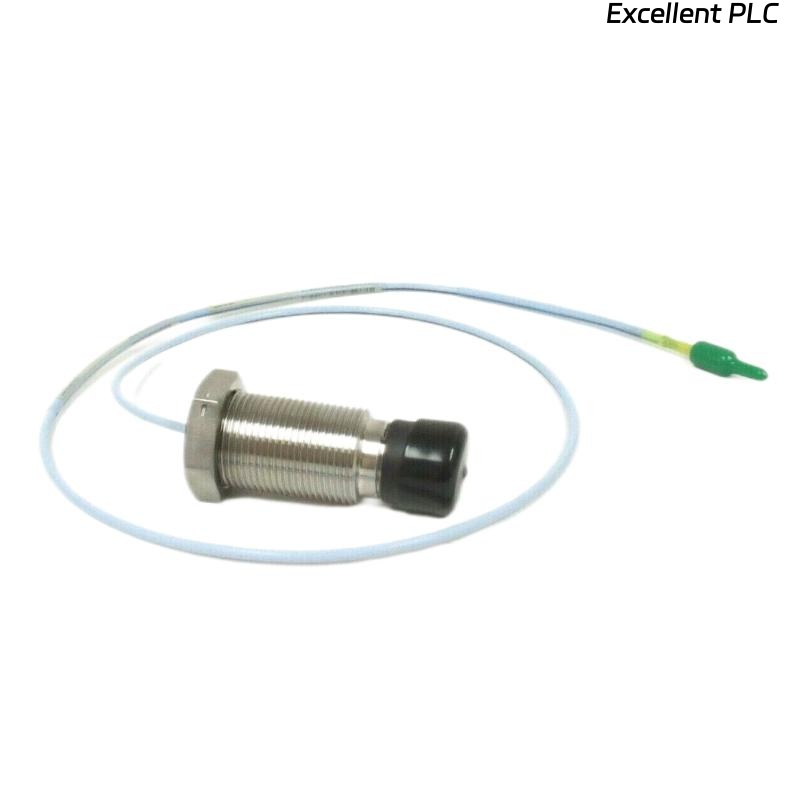

The Bently Nevada 330851-02-000-060-10-00-CN is a 3300 XL Series 25 mm Proximity Probe designed for high-precision monitoring of rotating machinery. It is part of the 3300 XL family, renowned for its reliability and robust design in industrial environments. This probe is engineered to provide accurate position measurements for shafts, turbines, and other critical rotating equipment. Its high stability and resistance to environmental disturbances make it suitable for demanding applications in power generation, oil and gas, and heavy industry.
Product Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 3300 XL Proximity Probe |
| Probe Range | 25 mm |
| Total Length | 1 m |
| Weight | 0.23 kg |
| Cable Type | Shielded two-wire |
| Tip Material | Non-contact sensing tip |
| Operating Temperature | -40°C to 120°C |
| Output Type | AC Voltage |
| Connector Type | Standard 3300 XL connector |
| Response Time | <1 ms |
| Compatibility | 3300 XL Series monitoring system |
| Environmental Rating | IP65/IP67 compatible |
Product Applications
-
Monitoring turbine shafts in power plants
-
Vibration measurement on compressors and pumps
-
Detection of misalignment or imbalance in motors
-
Condition monitoring in hydroelectric, gas, and steam turbines
-
Machinery protection systems in petrochemical and heavy industry
Product Advantages
-
High Accuracy: Provides precise measurements for critical machinery, enabling early detection of mechanical issues.
-
Robust Design: Resistant to harsh industrial conditions including temperature extremes, vibration, and electromagnetic interference.
-
Plug-and-Play Compatibility: Designed to integrate seamlessly with the Bently Nevada 3300 XL monitoring system.
-
Reliable Performance: Consistent output even in challenging environmental conditions.
-
Ease of Installation: Standardized connectors and cabling simplify installation and maintenance.
-
Flexibility: Available in various cable lengths and configurations to match specific plant requirements.
FAQ
-
Q: What is the input voltage required for the probe to operate?
A: The probe operates with the 3300 XL monitoring system and does not require an external voltage supply; the system provides the excitation voltage. -
Q: Can this probe operate in high-vibration environments without signal distortion?
A: Yes, the 3300 XL series probes are engineered to maintain accurate output in environments with high mechanical vibration. -
Q: What type of output signal does the probe provide?
A: The probe outputs an AC voltage signal proportional to shaft displacement. -
Q: Is this probe compatible with non-3300 XL systems?
A: It is specifically designed for 3300 XL monitoring systems; compatibility with other systems is not guaranteed without adapters. -
Q: What is the recommended cable length for optimal performance?
A: The standard cable length is 1 m, but custom lengths are available; longer cables may require calibration considerations. -
Q: Can the probe measure both radial and axial shaft movement?
A: The probe is primarily designed for radial displacement measurements. Axial measurements require specialized setups. -
Q: How does temperature affect the probe output?
A: The probe maintains stable performance within the operating temperature range of -40°C to 120°C. -
Q: Is electromagnetic interference (EMI) a concern?
A: The probe’s shielded design minimizes susceptibility to EMI in industrial environments. -
Q: Can the probe be used underwater or in highly humid environments?
A: The probe is rated IP65/IP67, making it suitable for exposure to moisture, splashes, and dust; immersion is not recommended without additional protection. -
Q: How fast can the probe respond to rapid shaft movements?
A: The probe has a response time of less than 1 ms, suitable for high-speed machinery monitoring.
Recommended 3300 XL Series / Related Models
| Model Number | Description |
|---|---|
| 330851-02-000-050-10-00-05 | 3300 XL 25 mm Proximity Probe |
| 330851-02-000-040-50-00-00 | 3300 XL 25 mm Proximity Probe |
| 330851-02-000-030-10-00-05 | 3300 XL 25 mm Proximity Probe |
| 330851-02-000-060-10-00-05 | 3300 XL 25 mm Proximity Probe |
| 330851-02-000-050-90-00-05 | 3300 XL 25 mm Proximity Probe |
| 330851-02-000-040-10-00-05 | 3300 XL 25 mm Proximity Probe |
