Product Overview

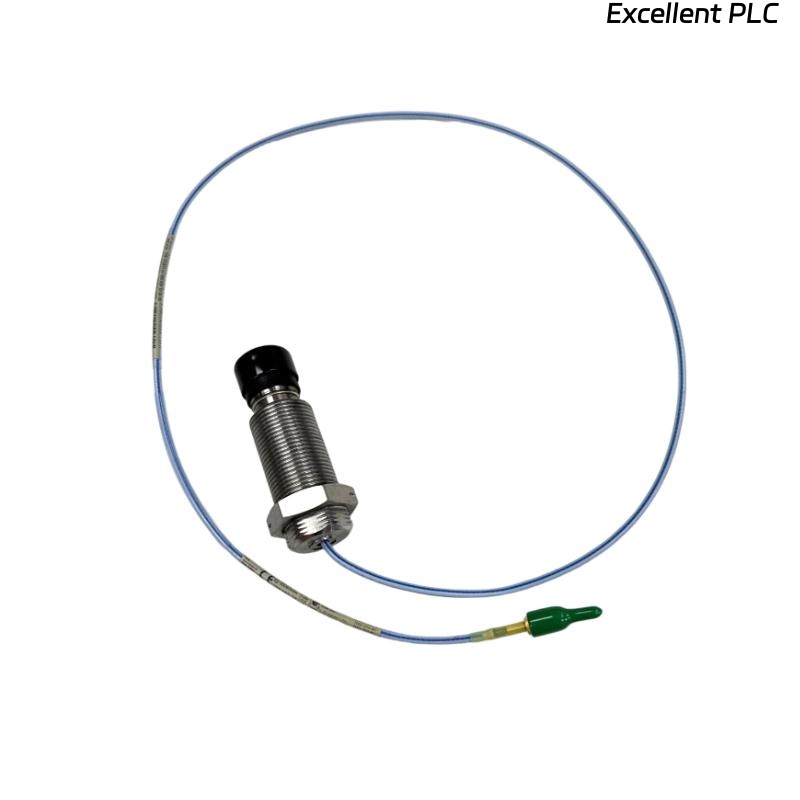

The Bently Nevada 330851-02-000-070-50-01-05 3300 XL 25 mm Proximity Probe is a high-precision proximity sensor designed for continuous monitoring of machinery in critical industrial applications. This probe is part of the renowned Bently Nevada 3300 XL series, which is known for its robust performance and reliability in extreme conditions.
The 3300 XL 25 mm proximity probe uses Eddy Current technology to measure the distance between the probe tip and a target, providing accurate, non-contact measurements of position, displacement, and vibration. The sensor’s 25 mm measurement range makes it suitable for a variety of industrial applications, especially for large-scale rotating machinery such as turbines, motors, and compressors.
This probe is engineered to withstand harsh environments and is particularly useful in industries like power generation, oil & gas, and manufacturing, where maintaining machinery health is critical. The 3300 XL series offers exceptional durability and performance, ensuring your monitoring system remains effective even in the most demanding operational conditions.
Product Parameters
Here are the key technical specifications for the Bently Nevada 330851-02-000-070-50-01-05 Proximity Probe:
| Parameter | Specification |
|---|---|
| Model | 330851-02-000-070-50-01-05 |
| Measurement Range | 25 mm |
| Output Type | Analog (4-20 mA or 0-10V) |
| Measurement Principle | Eddy Current |
| Probe Length | 5.0 meters |
| Weight | 0.95 kg |
| Operating Temperature | -40°C to +85°C |
| Material | Stainless Steel |
| Mounting Type | Fixed mounting |
| Power Supply | 24V DC (Nominal) |
| Accuracy | ±0.01% of full scale |
Product Applications
The Bently Nevada 330851-02-000-070-50-01-05 25 mm proximity probe is a versatile sensor used across a wide range of applications, particularly for vibration monitoring, displacement measurement, and position feedback. Here are some of its common applications:
-
Vibration Monitoring: The proximity probe is essential for monitoring the health of rotating machinery such as turbines, motors, and pumps. It detects vibrations that may indicate potential issues, helping prevent costly failures and unplanned downtime.
-
Position and Displacement Measurement: It provides precise measurements of displacement or position in automated systems and robotics, ensuring accurate control of moving parts in complex machinery.
-
Condition Monitoring: The 3300 XL probe is integral to condition monitoring systems that detect mechanical faults early, including misalignment, bearing wear, and imbalance.
-
Machine Performance Monitoring: It measures the movement of parts in industrial machines to ensure they are operating within designed parameters, optimizing efficiency and preventing mechanical failure.
-
Turbine and Compressor Monitoring: Particularly suited for monitoring the health and positioning of critical components in turbines and compressors, where precision is key to ensuring safe and efficient operation.
-
Dynamic Measurement: The probe can be used in dynamic testing environments where continuous monitoring of vibration or position is required in real-time.
Product Advantages
-
Non-contact Measurement: By using Eddy Current technology, the probe provides non-contact measurements, reducing wear and ensuring a longer lifespan.
-
High Precision: The 3300 XL 25 mm proximity probe offers ±0.01% accuracy, providing precise readings that are essential for monitoring critical machinery in industrial settings.
-
Wide Operating Temperature: With an operating temperature range from -40°C to +85°C, this probe can function in both cold and hot environments, ensuring reliability across a wide variety of industrial applications.
-
Durable Construction: Constructed from stainless steel, the sensor is highly resistant to corrosion and physical damage, making it suitable for use in harsh environments like offshore platforms, factories, and power plants.
-
Flexibility in Integration: The sensor offers analog output options like 4-20 mA and 0-10V, enabling seamless integration with existing control and monitoring systems.
-
Long Measurement Range: The 5-meter length ensures flexibility in placement, allowing the sensor to be installed in a wide range of machinery configurations and applications.
FAQ
1. What is the principle of operation for the Bently Nevada 3300 XL proximity probe?
The 3300 XL proximity probe operates using Eddy Current technology, which detects the distance between the probe tip and a target object without direct contact.
2. What output options are available for the 3300 XL 25 mm probe?
The probe provides analog output options, including 4-20 mA and 0-10V, which are commonly used in industrial control and monitoring systems.
3. How accurate is the Bently Nevada 3300 XL proximity probe?
The 3300 XL probe offers a high degree of accuracy with ±0.01% of full scale, ensuring precise measurement of displacement or vibration.
4. What are the typical applications for the Bently Nevada 3300 XL proximity probe?
It is widely used in vibration monitoring, displacement measurement, and position feedback in industries like power generation, automotive, and oil & gas.
5. Can the Bently Nevada 3300 XL proximity probe be used in high-temperature environments?
Yes, the probe can operate within a wide temperature range of -40°C to +85°C, making it suitable for various industrial environments, including those with extreme temperatures.
6. Is the Bently Nevada 3300 XL proximity probe suitable for high-speed machinery?
Yes, the probe is well-suited for high-speed machinery and can monitor dynamic conditions in turbines, motors, and compressors.
7. How does the Bently Nevada 3300 XL probe help in predictive maintenance?
By continuously monitoring vibration and position, the probe helps detect potential issues before they lead to machine failure, allowing for predictive maintenance.
8. What industries benefit the most from using the Bently Nevada 3300 XL proximity probe?
Industries such as oil & gas, power generation, aerospace, and automotive benefit from the high-precision monitoring capabilities of this sensor.
9. How is the Bently Nevada 3300 XL proximity probe installed?
The probe can be fixed-mounted onto the machine, and its 5-meter cable allows for flexible positioning in industrial machinery and equipment.
10. What are the advantages of using a non-contact sensor like the 3300 XL?
Non-contact sensors like the 3300 XL eliminate the risk of mechanical wear, extending the life of both the sensor and the equipment being monitored.
Recommended Similar Models
| Model | Description |
|---|---|
| 330704-000-060-50-02-00 | 3300 XL 8 mm proximity probe for medium-range measurements |
| 330704-000-070-50-01-05 | 3300 XL 8 mm proximity probe with higher sensitivity |
| 330850-00-000-070-10-00 | 3300 XL proximity probe with enhanced vibration monitoring capability |
| 330854-00-000-070-10-00 | 3300 XL 12 mm proximity probe for large machinery monitoring |
| 330300-00-000-070-00-01 | 3300 XL 25 mm proximity probe with higher durability for extreme environments |
| 330300-00-000-060-00-00 | 3300 XL 10 mm proximity probe designed for compact machinery |
