Product Overview

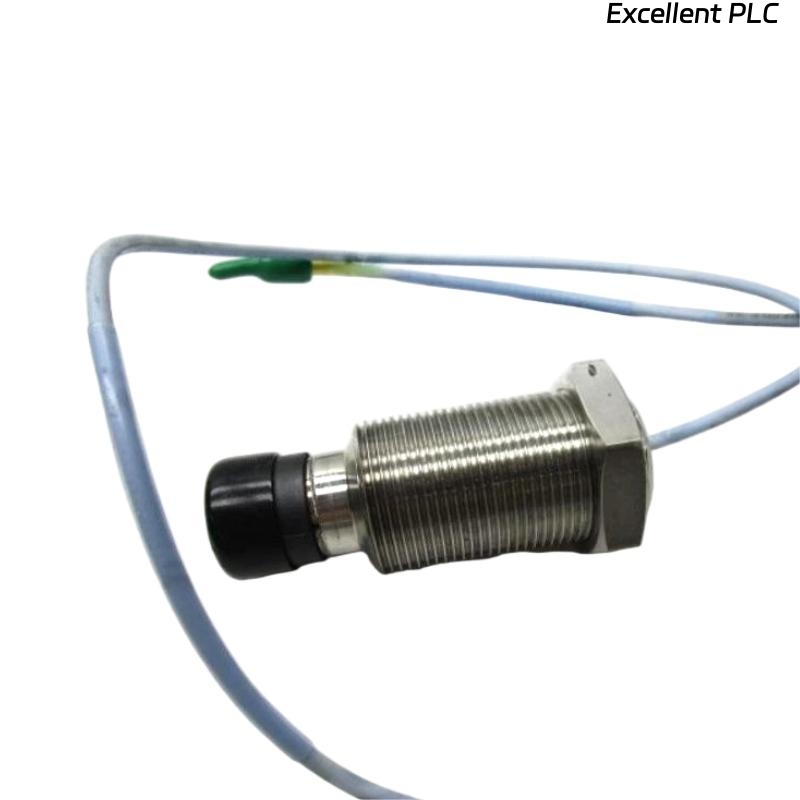

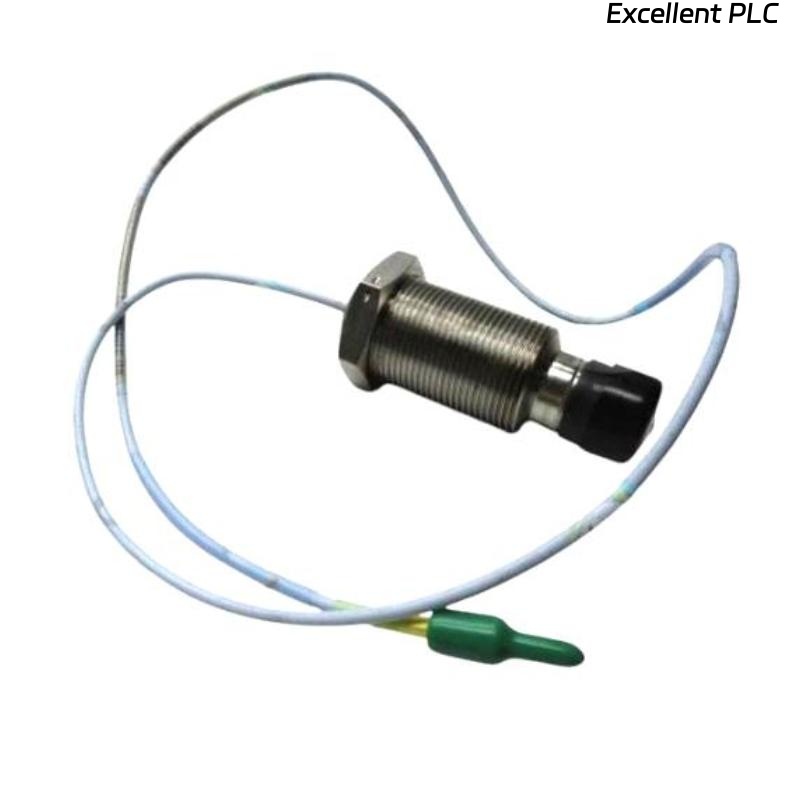

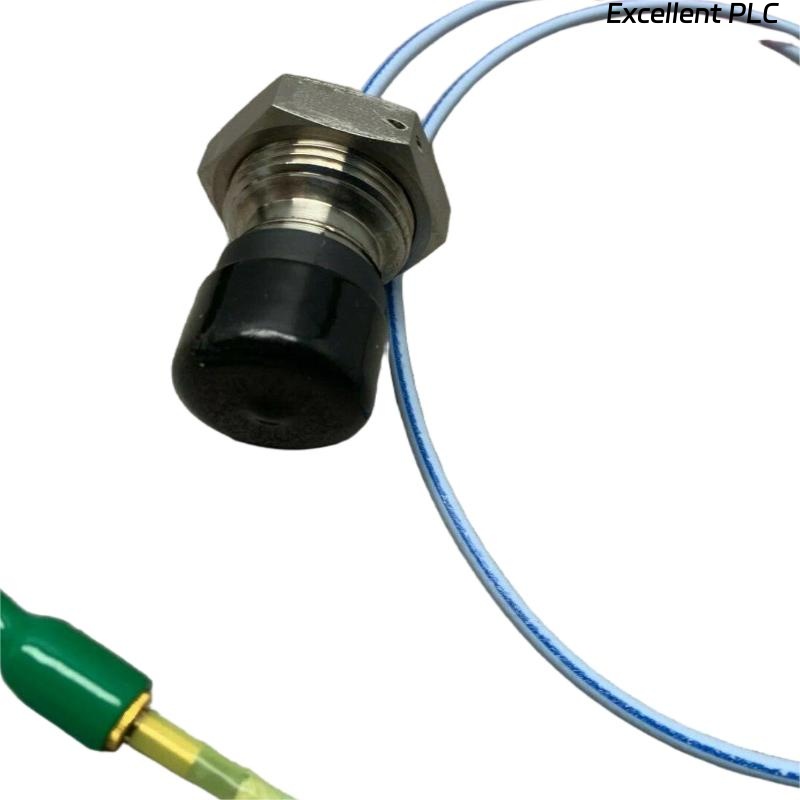

The Bently Nevada 330851-02-000-100-10-00-CN 3300 XL 25 mm Proximity Probe is a key element in monitoring the health of critical machinery in industrial applications. Designed for precision measurement of displacement and vibration, this proximity probe offers unparalleled accuracy and reliability for real-time machine monitoring. The 3300 XL series is known for its robust design, precision, and integration capabilities with various monitoring systems, making it a trusted choice for industries like power generation, oil & gas, and chemical processing.
This eddy current-based sensor provides non-contact measurement, which minimizes wear and tear while ensuring continuous, precise data collection. With a total length of 1.0 meter and a weight of 0.23 kg, the probe is compact yet rugged, ready to perform in a variety of demanding industrial settings. The 25 mm measurement range ensures that it is suitable for both high-precision and larger-scale applications.
Product Parameters
Below are the technical specifications for the Bently Nevada 330851-02-000-100-10-00-CN 3300 XL 25 mm proximity probe:
| Parameter | Specification |
|---|---|
| Model | 330851-02-000-100-10-00-CN |
| Measurement Range | 25 mm |
| Output Type | Analog (4-20 mA or 0-10V) |
| Measurement Principle | Eddy Current |
| Probe Length | 1.0 meter |
| Weight | 0.23 kg |
| Operating Temperature | -40°C to +85°C |
| Material | Stainless Steel |
| Mounting Type | Fixed Mounting |
| Power Supply | 24V DC (Nominal) |
| Accuracy | ±0.01% of full scale |
Product Applications
The Bently Nevada 330851-02-000-100-10-00-CN 3300 XL 25 mm Proximity Probe is ideal for various industrial applications where machinery health and performance need constant monitoring. Some of its common uses include:
-
Power Generation: It is used to monitor turbines, generators, and other rotating machinery, providing real-time data that ensures equipment is running efficiently.
-
Oil and Gas: This probe is widely employed in the oil & gas industry for applications like compressor monitoring, pump performance, and turbine diagnostics.
-
Chemical Processing: It helps monitor the health of equipment such as reactors, mixers, and other high-speed machinery in chemical plants.
-
Aerospace: The precision and reliability of this probe make it suitable for critical components such as engines and turbines in aerospace systems.
-
Mining: Used to monitor large, heavy machinery in mining operations, ensuring uptime and reducing the likelihood of costly failures.
-
Marine: The probe is also utilized on ships for monitoring systems like pumps, turbines, and compressors to ensure operational efficiency.
Product Advantages
The Bently Nevada 330851-02-000-100-10-00-CN proximity probe offers several key advantages:
-
Non-contact Measurement: The eddy current principle ensures that the probe measures the displacement of rotating machinery without making physical contact, reducing wear and minimizing risk of damage.
-
Accurate and Reliable: With an accuracy of ±0.01%, this probe is ideal for both high-precision and industrial monitoring, offering highly reliable readings under a variety of conditions.
-
Durable and Rugged: The stainless steel housing offers protection from corrosion and mechanical stress, which makes this probe highly durable in industrial environments.
-
Versatile Integration: It is compatible with both 4-20 mA and 0-10V output systems, making it easy to integrate into existing monitoring setups.
-
Wide Temperature Range: The probe operates within a wide range of temperatures, from -40°C to +85°C, making it ideal for extreme environments.
-
Improved Fault Detection: Early detection of misalignment, imbalance, or bearing wear can be achieved, helping to prevent unexpected breakdowns and extend the life of expensive machinery.
FAQ
1. What is the function of the Bently Nevada 3300 XL proximity probe?
The 3300 XL proximity probe is used to measure the displacement of rotating machinery components, allowing for the monitoring of machine health and performance.
2. How does the probe detect displacement?
It uses eddy current technology, which generates a magnetic field and measures the change in its position relative to the rotating machinery, allowing for non-contact measurements.
3. What industries typically use this proximity probe?
Industries like power generation, oil and gas, chemical processing, aerospace, mining, and marine rely on this probe for monitoring critical rotating machinery.
4. How accurate is the Bently Nevada 3300 XL proximity probe?
This probe offers an accuracy of ±0.01% of full scale, ensuring precise measurements even in high-speed or high-vibration conditions.
5. Can the 3300 XL probe be integrated into existing monitoring systems?
Yes, it is compatible with 4-20 mA or 0-10V output systems, making it easy to integrate with existing machinery monitoring and control systems.
6. How does the non-contact measurement principle benefit the probe?
Non-contact measurement reduces the risk of wear on both the probe and the machinery, preventing physical damage and improving the longevity of the equipment.
7. What makes this probe suitable for high-temperature environments?
The wide operating temperature range of -40°C to +85°C allows the probe to function effectively in both extreme cold and hot environments.
8. Is this probe suitable for offshore and marine environments?
Yes, the stainless steel housing and resistance to corrosion make the probe durable for use in marine and offshore oil & gas applications.
9. How does the Bently Nevada 3300 XL proximity probe contribute to predictive maintenance?
It allows for real-time monitoring of equipment health, identifying misalignment, vibration, and wear before they result in failure, thus supporting predictive maintenance efforts.
10. Can the probe be used in large-scale industrial machinery?
Yes, the 25 mm measurement range makes it suitable for monitoring both large industrial machinery and high-precision applications.
