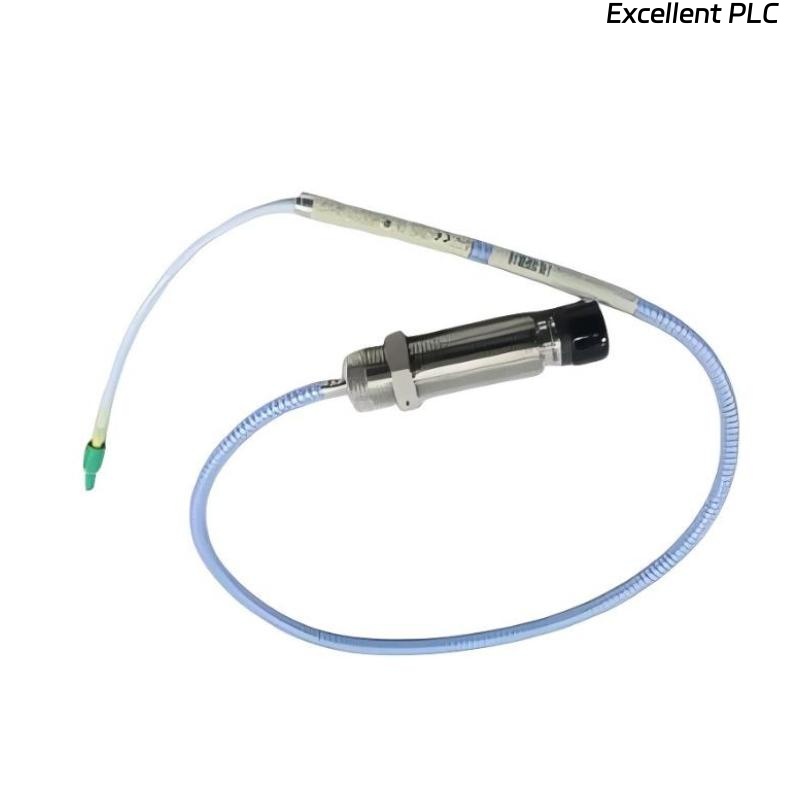

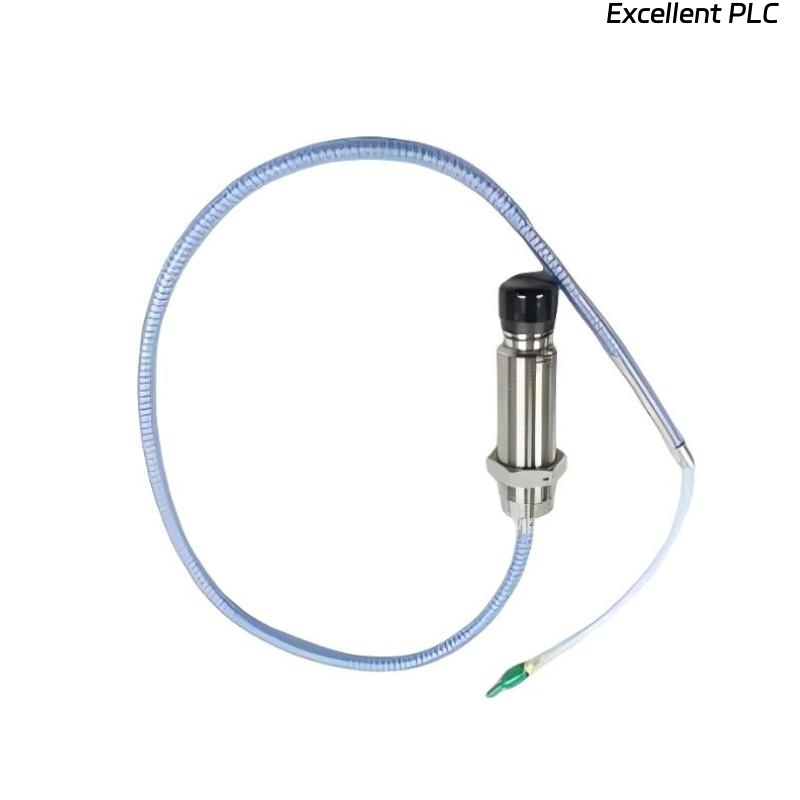

Bently Nevada 330851-05-000-040-10-00 3300 XL 25 mm Proximity Probe

Company Information
E-mail		[email protected]
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The Bently Nevada 330851-05-000-040-10-00 3300 XL 25 mm Proximity Probe is a precision-engineered, non-contact displacement transducer designed for continuous machinery monitoring and protection. As part of the Bently Nevada 3300 XL Series, it represents the industry standard for reliability, stability, and accuracy in proximity measurement technology.

This probe is specially optimized for large shaft and heavy-duty machinery applications, providing a 25 mm linear measurement range that allows accurate vibration and displacement detection in turbines, generators, compressors, and large electric motors. Utilizing the eddy current principle, it converts shaft motion into a proportional voltage signal, which is processed by the matching proximity sensor and extension cable to provide real-time measurement feedback.

The 330851-05-000-040-10-00 model is manufactured to meet API 670 requirements, ensuring high measurement integrity, repeatability, and interchangeability across systems. It is built from corrosion-resistant stainless steel and designed for harsh industrial environments, with high immunity to electromagnetic interference (EMI) and radio-frequency interference (RFI).

The probe forms a key component in the Bently Nevada 3300 XL 25 mm Transducer System, which includes the probe, extension cable, and proximity sensor. Together, they provide a standard system output of 7.87 V/mm (200 mV/mil), making it fully compatible with Bently Nevada’s 3500 Monitoring System and other protection platforms used in rotating equipment diagnostics.

---

Product Specifications

---

Product Applications

The Bently Nevada 330851-05-000-040-10-00 probe is designed for high-precision vibration, position, and displacement monitoring in industrial rotating machinery. Its extended 25 mm linear range makes it ideal for large shaft and high-amplitude displacement applications.

Typical applications include:

• Steam and Gas Turbines: Monitoring shaft axial position, vibration amplitude, and differential expansion.

• Compressors and Expanders: Measuring shaft movement, bearing vibration, and rotor displacement under varying load conditions.

• Hydrogenerators and Large Motors: Detecting misalignment, shaft eccentricity, and rotor thermal expansion.

• Centrifugal Pumps and Blowers: Tracking mechanical stability and bearing wear over time.

• Petrochemical and Refinery Machinery: Providing early warning of abnormal shaft behavior or vibration.

• Power Generation Equipment: Ensuring real-time protection and condition monitoring of high-value assets.

Because of its rugged construction and high temperature tolerance, this probe can operate continuously in harsh field conditions while maintaining measurement integrity.

---

Product Advantages

• Extended Linear Measurement Range: Provides up to 25 mm range for large shaft and slow-speed equipment.

• High Accuracy and Linearity: Maintains ±1% accuracy across the entire range for precise vibration detection.

• Rugged Industrial Construction: Stainless steel body ensures mechanical durability in extreme environments.

• Temperature-Resistant Design: Reliable operation at probe temperatures up to +180°C.

• API 670 Compliance: Fully meets international standards for machine protection systems.

• Excellent EMI/RFI Immunity: Minimizes interference from surrounding electrical equipment.

• Non-Contact Measurement Principle: Prevents mechanical wear and extends equipment lifespan.

• Interchangeable Components: Fully compatible with other 3300 XL probes, cables, and sensors.

• Easy Installation and Alignment: Threaded body allows fast and secure mounting on various machinery housings.

• Proven Reliability: Widely adopted in industries worldwide for its stability, repeatability, and robustness.

---

FAQ

1. What measurement method does the 330851 probe use?
   It uses the eddy current principle to measure the displacement between the probe and a conductive target surface.

2. What is the standard system output of this proximity probe?
   The system provides a standard sensitivity of 7.87 V/mm (200 mV/mil).

3. Can this probe operate in high-temperature conditions?
   Yes, the probe is designed to operate reliably at temperatures up to +180°C.

4. Is the probe compatible with Bently Nevada 3500 monitoring systems?
   Yes, it is fully compatible with the 3500 and 3300 XL series systems.

5. What kind of target material ensures accurate calibration?
   The probe is factory-calibrated for AISI 4140 steel or equivalent conductive materials.

6. Does it require an external power supply?
   No, the probe receives excitation voltage from the associated proximity sensor.

7. What is the vibration resistance capability of this probe?
   It can withstand vibrations up to 50 g across a frequency range of 10–2000 Hz.

8. Can this probe be used for slow-speed rotating equipment?
   Yes, the 25 mm range is ideal for large, slow-moving shafts such as hydrogenerator rotors.

9. How is the probe protected against contamination or oil ingress?
   The probe is hermetically sealed and rated IP68 for full protection against dust, oil, and water.

10. Does the probe system require factory matching of components?
    Yes, for accurate calibration, the probe, extension cable, and proximity sensor must be factory-matched.

---

Related Models (Same Series or Equivalent)

---

Popular Bently Nevada Models (Same Brand)

FAQ

1. What measurement method does the 330851 probe use?
   It uses the eddy current principle to measure the displacement between the probe and a conductive target surface.

2. What is the standard system output of this proximity probe?
   The system provides a standard sensitivity of 7.87 V/mm (200 mV/mil).

3. Can this probe operate in high-temperature conditions?
   Yes, the probe is designed to operate reliably at temperatures up to +180°C.

4. Is the probe compatible with Bently Nevada 3500 monitoring systems?
   Yes, it is fully compatible with the 3500 and 3300 XL series systems.

5. What kind of target material ensures accurate calibration?
   The probe is factory-calibrated for AISI 4140 steel or equivalent conductive materials.

6. Does it require an external power supply?
   No, the probe receives excitation voltage from the associated proximity sensor.

7. What is the vibration resistance capability of this probe?
   It can withstand vibrations up to 50 g across a frequency range of 10–2000 Hz.

8. Can this probe be used for slow-speed rotating equipment?
   Yes, the 25 mm range is ideal for large, slow-moving shafts such as hydrogenerator rotors.

9. How is the probe protected against contamination or oil ingress?
   The probe is hermetically sealed and rated IP68 for full protection against dust, oil, and water.

10. Does the probe system require factory matching of components?
    Yes, for accurate calibration, the probe, extension cable, and proximity sensor must be factory-matched.

Related Models (Same Series or Equivalent)

---

Popular Bently Nevada Models (Same Brand)
