Product Introduction

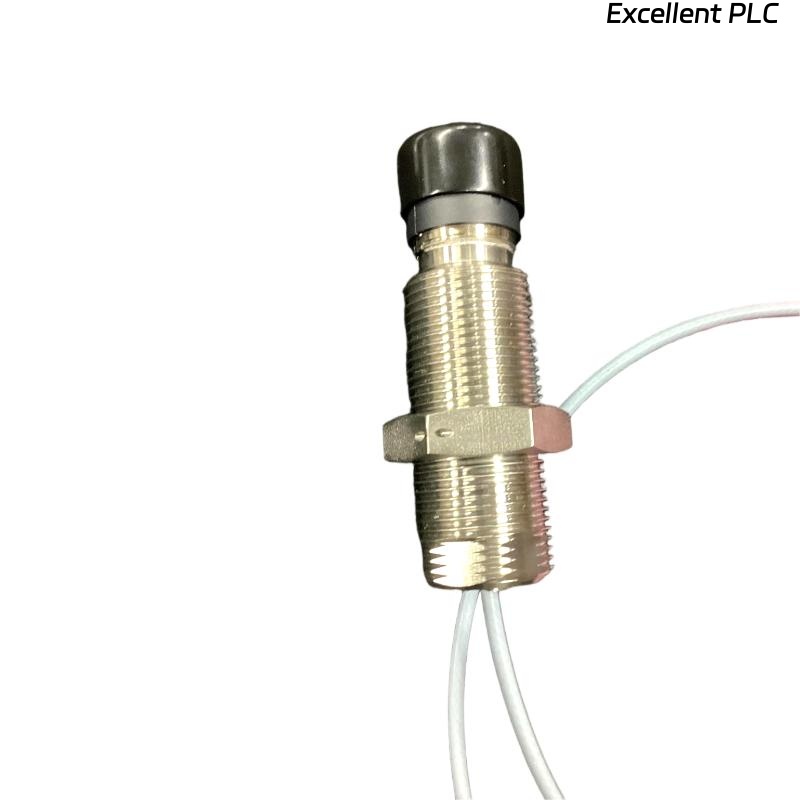

The Bently Nevada 330851-05-000-040-50-01-05 is a 25mm proximity probe from the 3300 XL series, designed for accurate condition monitoring of rotating machinery. This model is particularly suited for larger or more complex industrial machinery requiring extended measurement capabilities. It’s engineered to detect imbalances, misalignments, bearing wear, and other faults that could compromise equipment performance, providing critical data that enables predictive maintenance and minimizes the risk of unexpected breakdowns.
Constructed from stainless steel, the 3300 XL 25mm Proximity Probe ensures durability and resistance to corrosion, even in harsh industrial environments. The probe’s long 5-meter cable and high-performance sensing capabilities make it a versatile solution for monitoring large or difficult-to-access machinery. It works seamlessly with Bently Nevada’s 3300 XL monitoring system to deliver high-precision measurements, helping companies achieve better reliability, efficiency, and uptime.
Product Specifications
| Specification | Value |
|---|---|
| Model | Bently Nevada 330851-05-000-040-50-01-05 |
| Probe Type | Proximity Probe (25 mm) |
| Probe Size | 25 mm diameter |
| Total Length | 5.0 meters |
| Weight | 0.95 kg |
| Material | Stainless Steel |
| Temperature Range | -40°C to +120°C |
| Mounting Type | Surface Mount |
| Signal Type | 4-20mA Output |
| Operating Voltage | 10-30 VDC |
| Measurement Range | 0-25 mm |
| Accuracy | ±0.05 mm |
Applications
The 3300 XL 25mm Proximity Probe is ideal for use in a variety of industrial applications where precise monitoring of machinery is critical:
-
Vibration Monitoring: Used to monitor vibration levels in rotating equipment like motors, turbines, compressors, and pumps, helping to detect imbalance or misalignment early.
-
Condition Monitoring: The probe tracks the displacement of the machinery’s shaft, detecting faults such as bearing wear, shaft misalignment, or misalignments before they cause major damage.
-
Predictive Maintenance: Continuous real-time measurements allow operators to identify potential failures ahead of time, enabling planned downtime for maintenance and reducing the chance of unexpected breakdowns.
-
Machinery Protection: As part of a machinery protection system, the 3300 XL 25mm Proximity Probe monitors key parameters to ensure equipment operates within safe limits.
-
Rotating Equipment Monitoring: Essential for monitoring rotating equipment, such as large motors, turbines, and generators, where accurate displacement measurements are critical.
-
Process Industries: Frequently used in heavy industries like power generation, oil & gas, and manufacturing, where machinery uptime is essential for operational efficiency.
Advantages
-
High Accuracy: With an accuracy of ±0.05 mm, the 3300 XL 25mm Proximity Probe offers highly precise measurements, enabling the detection of even minor deviations in machinery performance.
-
Wide Temperature Range: The probe operates in extreme temperatures, from -40°C to +120°C, making it suitable for a wide range of industrial environments.
-
Durable Construction: Made from stainless steel, the probe is resistant to corrosion and designed to withstand harsh conditions typically found in industrial settings.
-
Extended Measurement Range: The 5-meter cable provides flexibility for installations on larger machinery or in areas that are difficult to access, making it ideal for complex setups.
-
Real-Time Data: Provides continuous, real-time feedback on the health of rotating machinery, enabling predictive maintenance and reducing downtime.
-
Easy Integration: The probe provides a 4-20 mA output, which is compatible with most industrial monitoring systems, simplifying integration into existing setups.
-
Cost-Effective Maintenance: By detecting issues early, this probe helps extend the life of machinery, reduce repair costs, and prevent unplanned shutdowns.
FAQ
1. How does the 3300 XL proximity probe measure displacement?
The 3300 XL 25mm Proximity Probe uses inductive sensing technology to detect the displacement between the probe tip and the rotating shaft. As the shaft moves closer or farther from the probe, the magnetic field changes, which is converted into an electrical signal to measure displacement.
2. What is the maximum measurement range of this proximity probe?
The 3300 XL 25mm Proximity Probe has a measurement range of 0-25 mm, which is ideal for detecting displacement in rotating machinery.
3. Can the probe detect both misalignment and imbalance?
Yes, the 3300 XL 25mm Proximity Probe can detect misalignment, imbalance, bearing wear, and displacement anomalies, which are common faults in rotating machinery.
4. What is the output signal of this proximity probe?
The 3300 XL 25mm Proximity Probe outputs a 4-20 mA signal, which is standard for industrial monitoring systems.
5. How is the 3300 XL proximity probe mounted?
The probe is designed for surface mounting. It can be easily installed on rotating shafts, turbines, or other machinery components for displacement and vibration monitoring.
6. What industries can benefit from using the 3300 XL proximity probe?
The probe is highly beneficial in industries such as oil & gas, power generation, mining, manufacturing, and any other industry that relies on large rotating machinery.
7. How does this probe contribute to predictive maintenance?
The 3300 XL 25mm Proximity Probe continuously monitors the health of machinery, detecting early signs of imbalance, misalignment, or bearing wear. This data allows operators to schedule maintenance before major failures occur.
8. What is the temperature range for this proximity probe?
The probe operates within a temperature range of -40°C to +120°C, making it suitable for use in both extreme cold and high-temperature environments.
9. How does the probe handle harsh industrial environments?
The 3300 XL 25mm Proximity Probe is constructed from stainless steel, making it durable and resistant to corrosion, ensuring it performs reliably in harsh industrial settings.
10. Can the probe be used for real-time monitoring?
Yes, the 3300 XL 25mm Proximity Probe provides real-time data on the condition of rotating machinery, enabling continuous monitoring of vibration and displacement parameters.
