Product Introduction

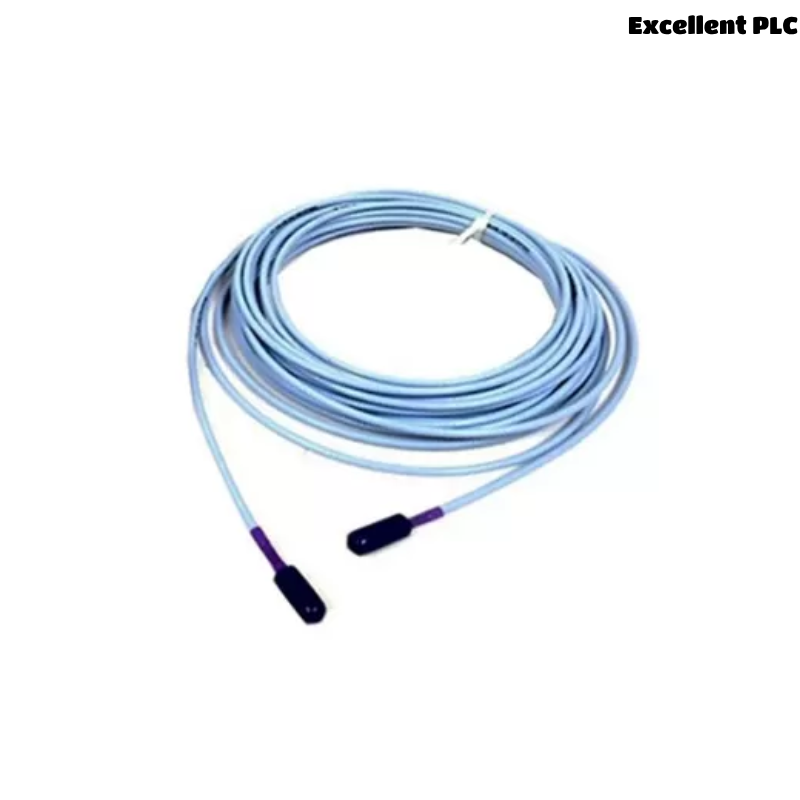

The Bently Nevada 330854-040-24-00 is a high-quality extension cable designed specifically for the 3300 XL series 25 mm proximitor sensors. This cable extends the connection between the sensor and monitoring equipment, enabling flexible and convenient installation in a variety of industrial environments.
Manufactured to meet rigorous standards, the cable ensures signal integrity over extended distances, minimizing electrical interference and signal loss. It is constructed with durable materials to withstand harsh industrial conditions such as extreme temperatures, mechanical stress, and exposure to moisture or chemicals.
This extension cable is an essential component in complex machinery monitoring setups where sensor placement needs to be adjusted without compromising measurement accuracy or system reliability.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | 330854-040-24-00 |
| Cable Type | Extension Cable for 3300 XL 25 mm Proximitor Sensors |
| Cable Length | 4 meters |
| Connector Type | MIL-C-26482 Military-grade Connectors (both ends) |
| Cable Diameter | Approximately 6.35 mm (0.25 inch) |
| Operating Temperature | -40°C to +120°C |
| Storage Temperature | -55°C to +150°C |
| Weight | 0.18 kg |
| Shielding | Braided copper shield for EMI protection |
| Jacket Material | Durable, chemical and abrasion-resistant PVC |
| Standards Compliance | Meets Bently Nevada and MIL specifications |
| Protection Rating | Suitable for industrial environments (IP65 with connectors) |
Applications
The 330854-040-24-00 extension cable is widely used in industrial machinery monitoring systems to provide flexible sensor placement and reliable signal transmission. Typical applications include:
-
Power Generation Plants – Extending proximitor sensor cables for turbines and generators
-
Oil & Gas Facilities – Flexible sensor placement in harsh environments
-
Petrochemical Industry – Signal extension for machinery vibration monitoring
-
Heavy Manufacturing – Enabling sensor installation in difficult-to-reach locations
-
Pumps and Compressors – Reliable monitoring over extended cable runs
-
Process Control Systems – Enhancing installation adaptability for rotating equipment
Key Advantages
-
High-Quality Signal Transmission: Maintains sensor signal integrity over extended distances.
-
Robust Construction: Chemical-resistant PVC jacket and braided shielding protect against interference and environmental damage.
-
Flexible Installation: Allows easy extension of proximitor sensor cables without performance loss.
-
Wide Temperature Range: Operates reliably between -40°C and +120°C.
-
Military-Grade Connectors: Durable connectors ensure secure and stable connections.
-
Industry Standard Compliance: Meets strict Bently Nevada and MIL specifications for quality assurance.
Frequently Asked Questions (FAQ)
-
Q: What is the length of the extension cable?
A: The cable is 4 meters long. -
Q: Is the cable compatible with all 3300 XL proximitor sensors?
A: It is specifically designed for 25 mm proximitor sensors in the 3300 XL series. -
Q: What type of connectors does the cable have?
A: It uses MIL-C-26482 military-grade connectors on both ends. -
Q: Can the cable be used outdoors?
A: Yes, with appropriate sealing and IP65 rating on connectors, it is suitable for outdoor industrial use. -
Q: What is the operating temperature range for the cable?
A: The cable operates between -40°C and +120°C. -
Q: How does the cable protect against electromagnetic interference (EMI)?
A: It has a braided copper shield to minimize EMI and maintain signal integrity. -
Q: Is the cable flexible enough for tight installations?
A: Yes, it has a durable but flexible PVC jacket designed for industrial routing. -
Q: Can custom cable lengths be ordered?
A: Custom lengths may be available. -
Q: What is the cable diameter?
A: 6.35 mm (0.25 inch). -
Q: What environments is this cable suited for?
A: It is suited for harsh industrial environments, including exposure to chemicals and abrasion.
Related or Similar Models
| Model Number | Length | Connector Type | Typical Application |
|---|---|---|---|
| 330854-020-24-00 | 20 feet (6.1 m) | MIL-C-26482 | Shorter extension for 25 mm probes |
| 330854-060-24-00 | 60 feet (18.3 m) | MIL-C-26482 | Longer extension cable |
| 330854-040-12-00 | 40 feet (12.19 m) | MIL-C-26482 | For 12 mm proximitor sensors |
| 330854-040-08-00 | 40 feet (12.19 m) | MIL-C-26482 | For 8 mm proximitor sensors |
| 330854-080-24-00 | 80 feet (24.38 m) | MIL-C-26482 | Extended length for 25 mm probes |
| 330854-100-24-00 | 100 feet (30.48 m) | MIL-C-26482 | Extra long extension cable |
