Product Introduction

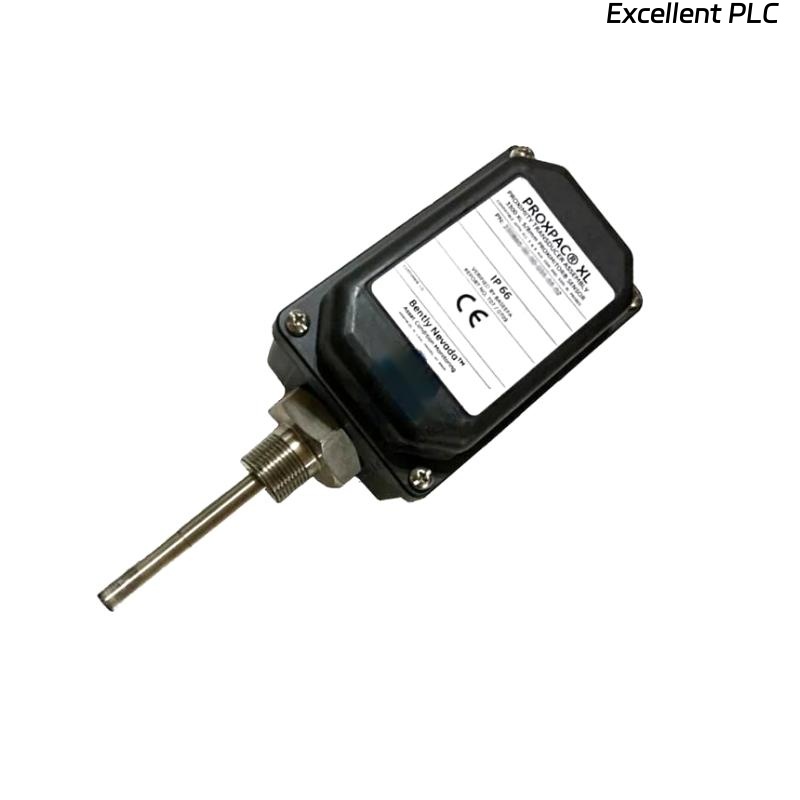

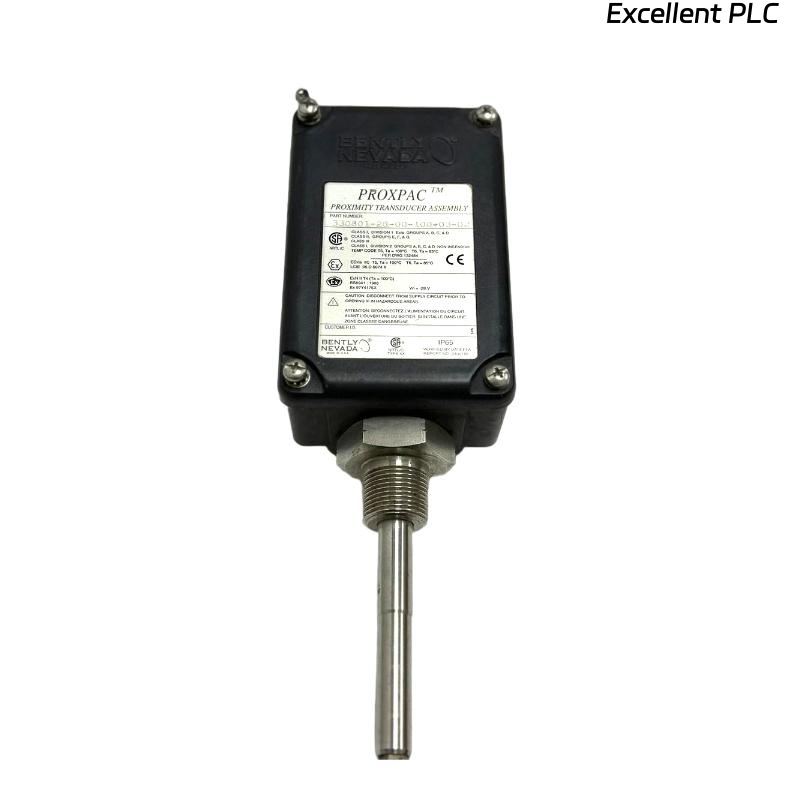

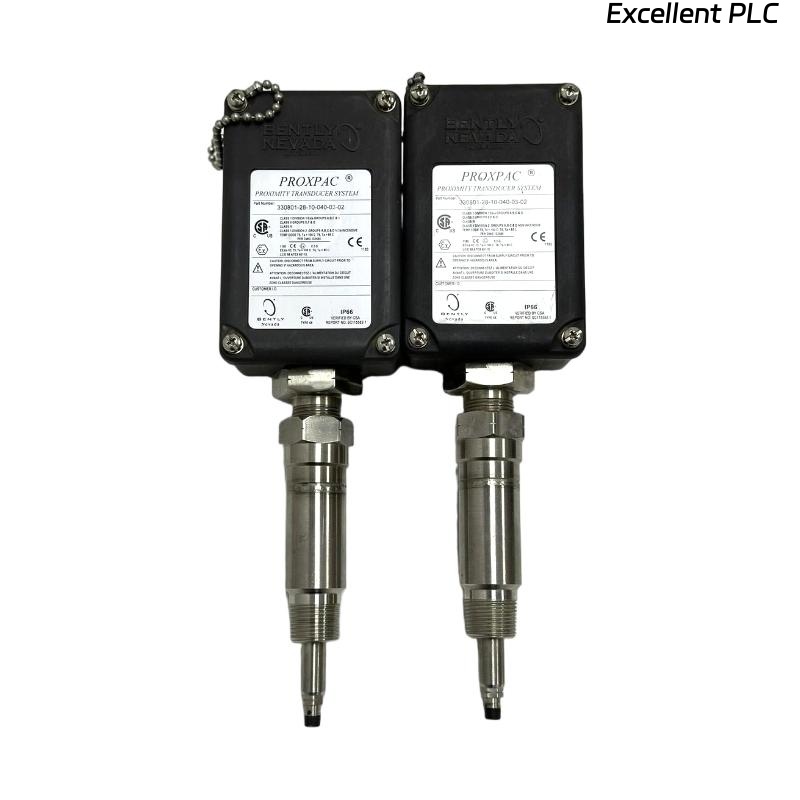

The Bently Nevada 330880-28-20-038-00-02 PROXPAC XL Proximity Sensor is part of the renowned 3300 XL series, specifically engineered for high-performance machinery monitoring and protection. It is designed to provide accurate, reliable non-contact measurements of shaft vibration, position, and displacement. With its rugged construction and optimized electronics, this sensor ensures precision in both industrial and critical turbomachinery applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 330880-28-20-038-00-02 |
| Series | PROXPAC XL (3300 XL series) |
| Measurement Range | Up to 2 mm (80 mils) linear range |
| Frequency Response | 0 to 10 kHz |
| Sensitivity | 7.87 mV/µm (200 mV/mil) |
| Power Supply | -24 V DC (through proximity system driver) |
| Operating Temperature | -35°C to +180°C |
| Probe Tip Material | Stainless steel |
| Cable Length | 3.8 m (customized per order code) |
| Dimensions | 91.4 x 144.8 mm |
| Weight | 1.44 kg |
| Mounting | Threaded connection with locknut |
| Compatibility | Works with 3300 XL Proximitor and Bently Nevada monitors |
Product Applications
-
Rotating machinery monitoring including turbines, compressors, motors, pumps, and generators.
-
Displacement and shaft vibration measurement for condition monitoring.
-
Axial position and thrust bearing measurements in large turbomachinery.
-
Predictive maintenance programs to reduce unscheduled downtime.
-
High-speed machinery protection systems where real-time, reliable sensor data is essential.
Product Advantages
-
High Precision – Delivers accurate measurements with excellent linearity across the specified range.
-
Reliability in Harsh Environments – Designed for extreme temperatures, vibration, and contamination resistance.
-
Seamless Compatibility – Fully compatible with Bently Nevada’s monitoring systems, making integration straightforward.
-
Extended Service Life – Engineered for long-term stability, reducing recalibration needs.
-
Flexible Installation – Multiple cable lengths and probe configurations available for tailored system setups.
-
Enhanced Signal Integrity – Optimized shielding ensures immunity from electromagnetic interference.
FAQ
Q1: How does the sensor achieve linearity over its operating range?
A1: The sensor uses an advanced coil design and proprietary calibration to maintain consistent linear output across the full measurement range.
Q2: Can this sensor operate reliably under high vibration conditions?
A2: Yes, the PROXPAC XL is specifically engineered to withstand harsh vibration environments without performance degradation.
Q3: How is the sensor connected to the monitoring system?
A3: It connects via a shielded extension cable to a Proximitor module, which conditions and transmits the signal to monitoring equipment.
Q4: What role does the Proximitor play in this system?
A4: The Proximitor supplies DC excitation to the probe, converts the return signal, and provides a linear voltage output proportional to displacement.
Q5: Is the sensor resistant to electromagnetic interference (EMI)?
A5: Yes, the probe and cables are shielded to reduce EMI and guarantee signal integrity in industrial environments.
Q6: Can it be used for both radial and axial measurements?
A6: Absolutely, the sensor is suitable for both radial shaft vibration and axial position monitoring applications.
Q7: What is the typical frequency response of this sensor?
A7: It offers a frequency response from DC up to 10 kHz, suitable for most machinery vibration monitoring.
Q8: Does the sensor require recalibration over time?
A8: Normally, recalibration is not required, thanks to its long-term stability and factory calibration.
Q9: How does the sensor behave in extreme temperature variations?
A9: The wide operating range (-35°C to +180°C) ensures stable performance even in fluctuating thermal conditions.
Q10: Is this sensor compatible with legacy Bently Nevada systems?
A10: Yes, it is backward compatible with many earlier Bently Nevada monitoring systems, provided the correct Proximitor and cabling are used.
Related Models from the Same Series
| Model Number | Description |
|---|---|
| 330880-91-05-05-02 | PROXPAC XL Probe, standard length |
| 330880-91-10-05-02 | PROXPAC XL Probe, extended length |
| 330880-90-00-05-02 | PROXPAC XL Probe, high-temperature version |
| 330881-28-04-090-03-02 | PROXPAC XL Proximity Sensor, specialized shaft monitoring |
| 330881-28-00-55-03-00 | PROXPAC XL Sensor, medium range application |
| 330881-28-10-087-03-02 | PROXPAC XL Sensor, long extension cable type |
Popular Models from the Same Brand
| Model Number | Product Type | Key Application |
|---|---|---|
| 330103-00-04-10-02-00 | Proximity Probe | General vibration and displacement monitoring |
| 330104-00-09-10-02-00 | Proximity Probe | Axial position measurements |
| 330130-040-00-00 | Extension Cable | Connection between probe and Proximitor |
| 330180-50-00 | Proximitor Module | Signal conditioning and linearization |
| 330400-50-00 | Velomitor Sensor | Velocity vibration measurements |
| 330500-02-00 | Accelerometer | High-frequency vibration monitoring |
| 3500/22M | Transient Data Interface | Online machinery data acquisition |
| 3500/42M | Vibration Monitor | Real-time machine protection and monitoring |
